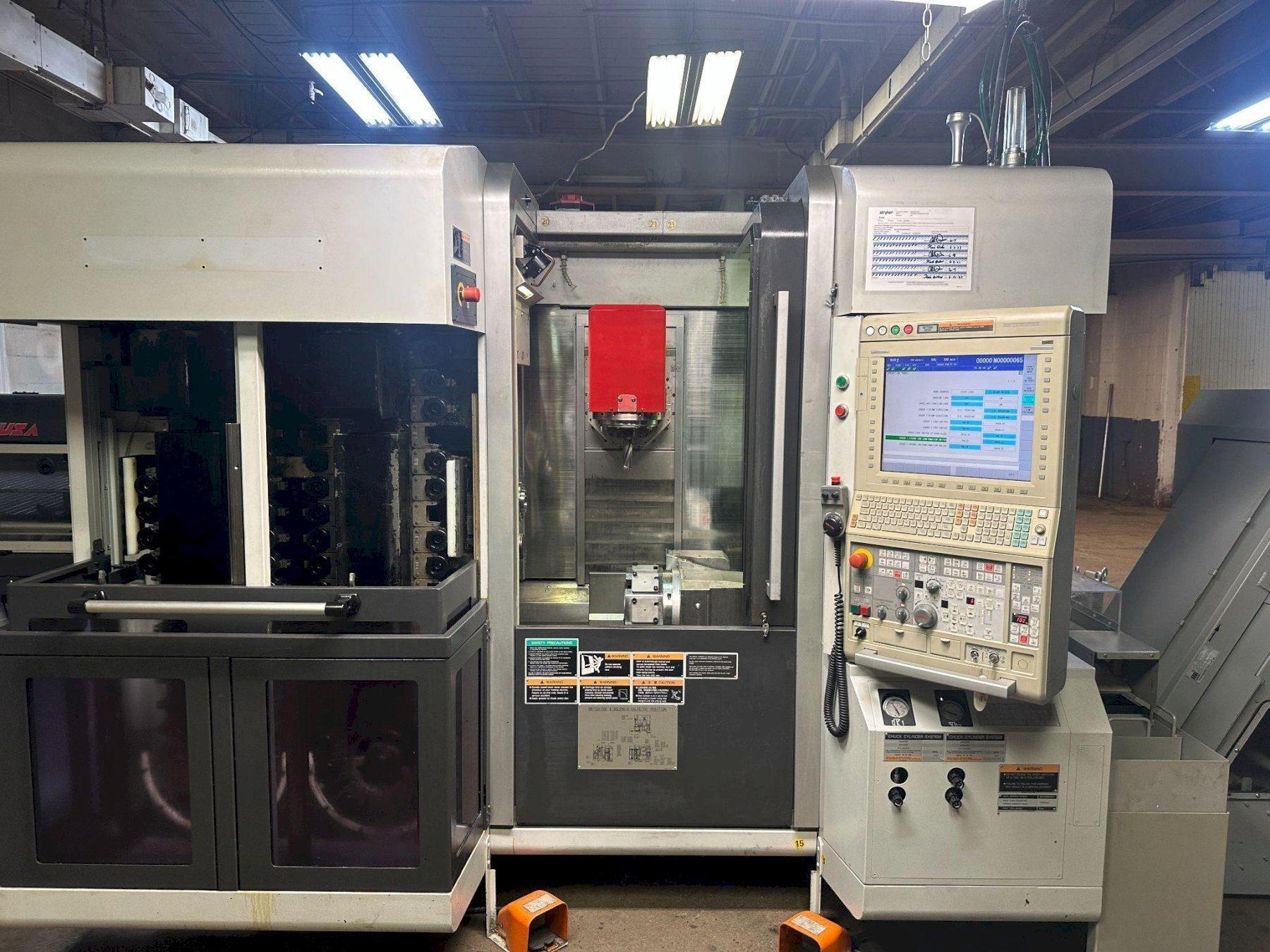

2012 Mori Seiki NTX1000/SZM CNC Lathe

Overview

This fully refurbished 2012 NTX1000/SZM recently came out of a medical device manufacturer and was set back to all Mori Seiki specifications with new linear guides and ball screws. It comes with a Renishaw probe OMP60/ HPRA W/RP3 tool pre -setter with the case, OEM coolant tank, chip conveyor, LNS quick load bar feeder Servo S3 and a HPS 75KVa transformer 480V-280Y/120. Located in Jackson Michigan, machine can be inspected under power by appointment.

o Machine Hours 64730, Spindle Hours 14190.

o Voltage Requirements 220VAC 3 Phase

o Full Load Current 142 Amps

o Spindle Drive Motor 11 kW

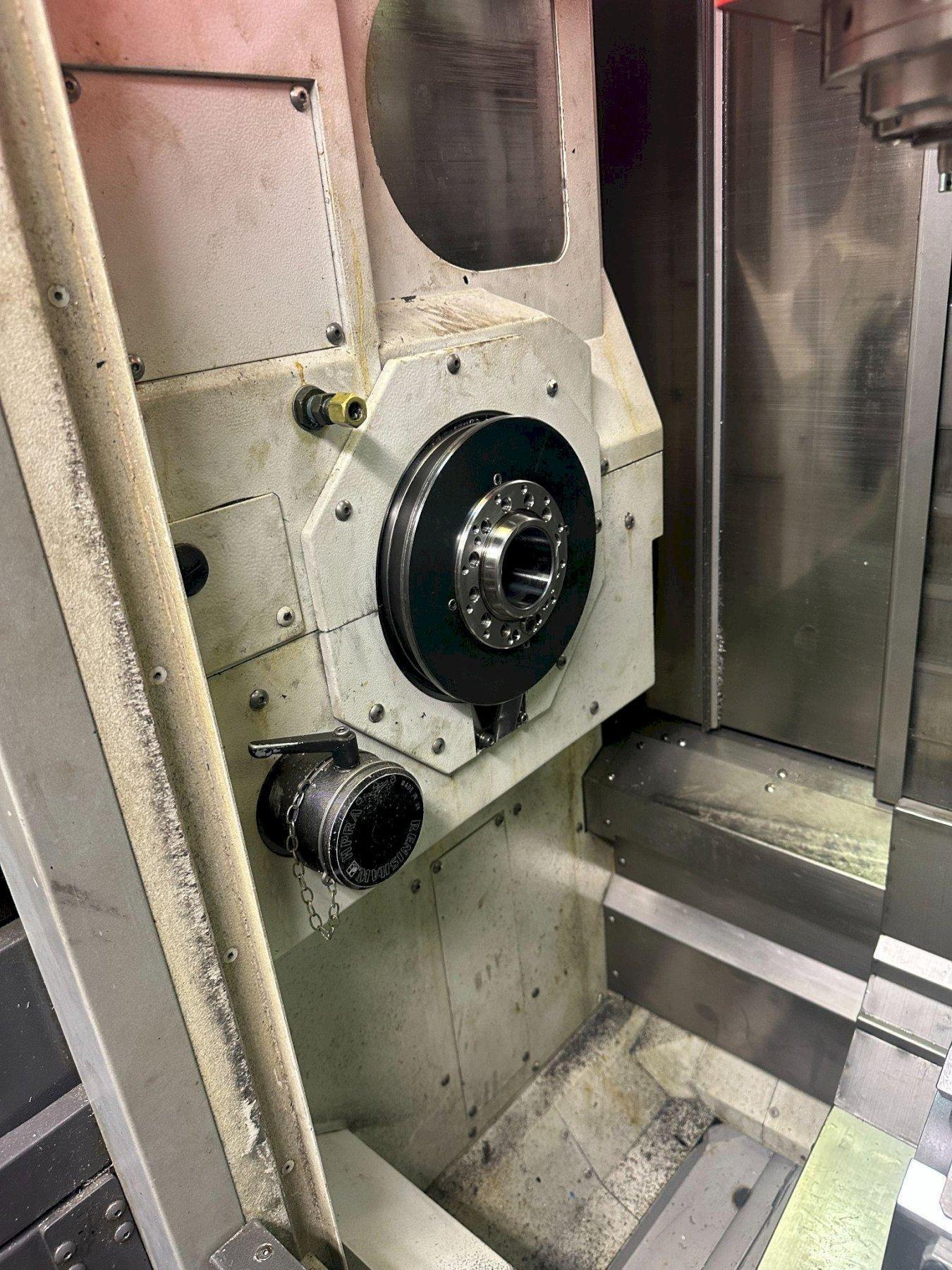

o Spindle 1 and 2 Max Speed 6.000 RPM’s

o Maximum Spindle Speed 20,000 RPM’s

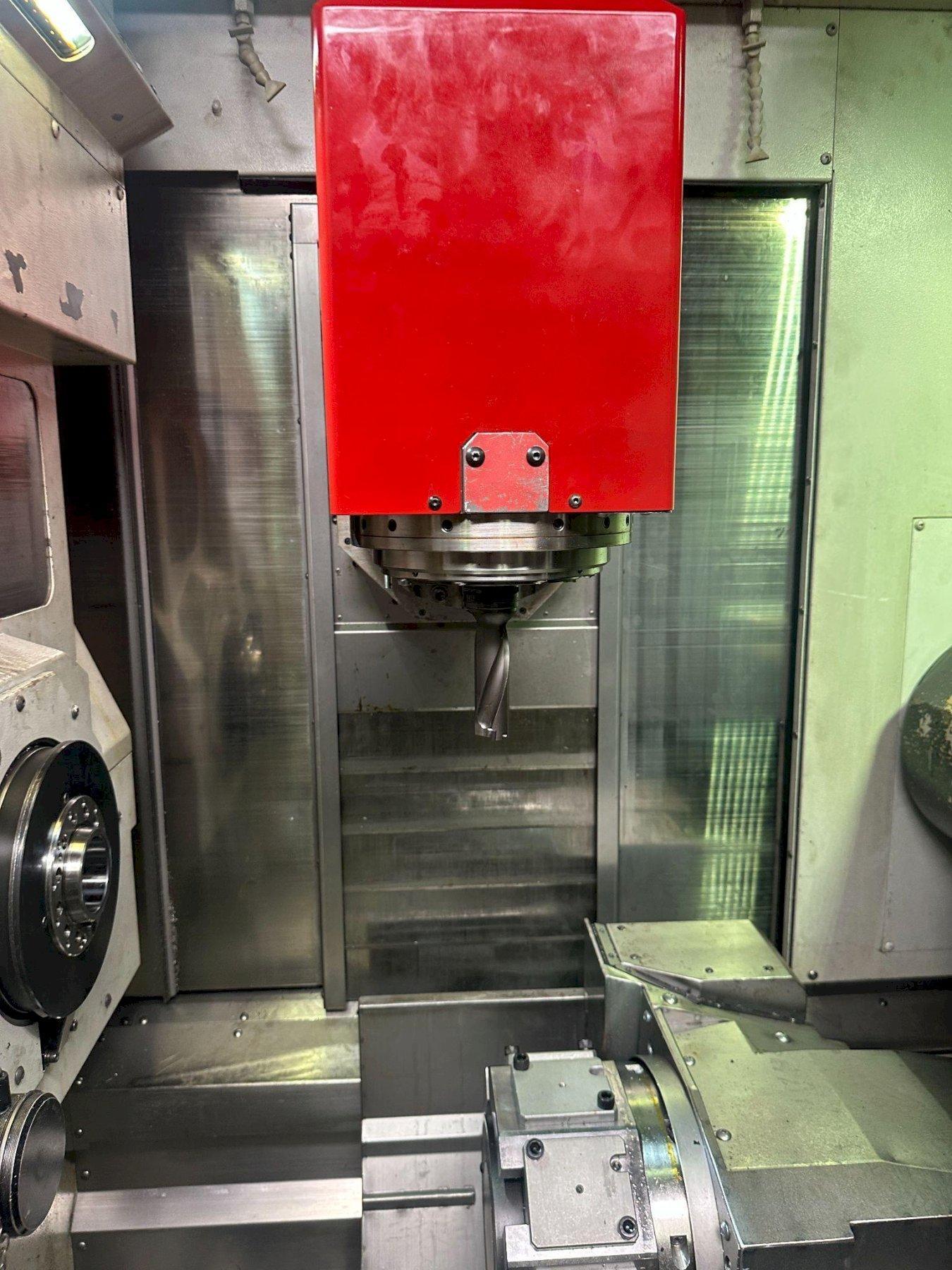

o Rotary Tool (On Turret 2) 10 Station, with Milling Function

o Max Turning Diameter 14.5”, Max Turning Length 16.6”

o Style of Tooling – Capto C5

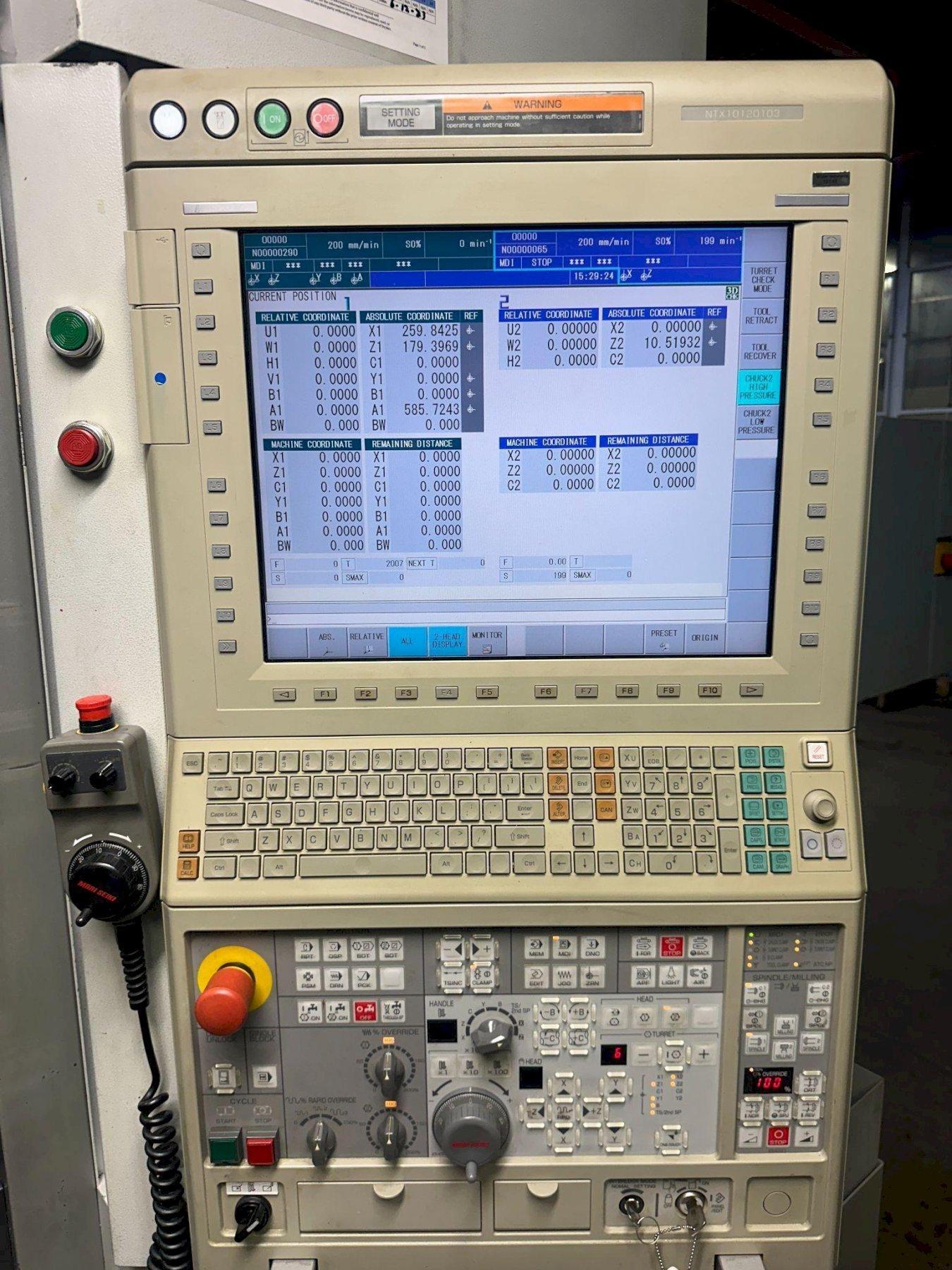

o Fanuc 31i B5 (MAPPS 4)

o 5 Axis Simultaneous Control

o Sub Micron Measuring Specifications

o 20 Additional External M-Codes

o (6 Total) Glass Scales on X, Y, Z, B axis, Turret 2 X, Z Axis

o Renishaw OMP60 Probing system

o Renishaw HPRA W/ RP3 Tool Pre-setter with Case

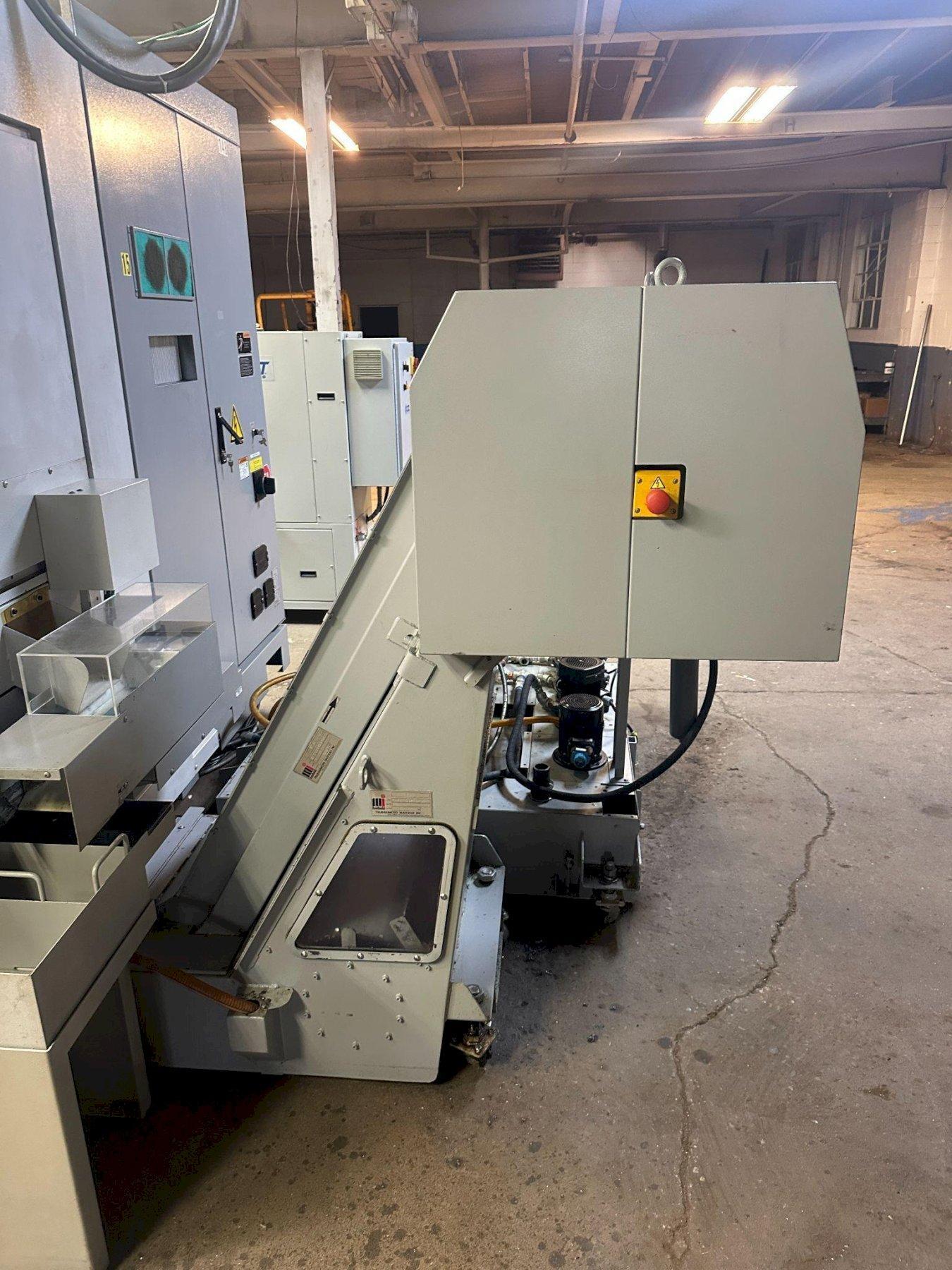

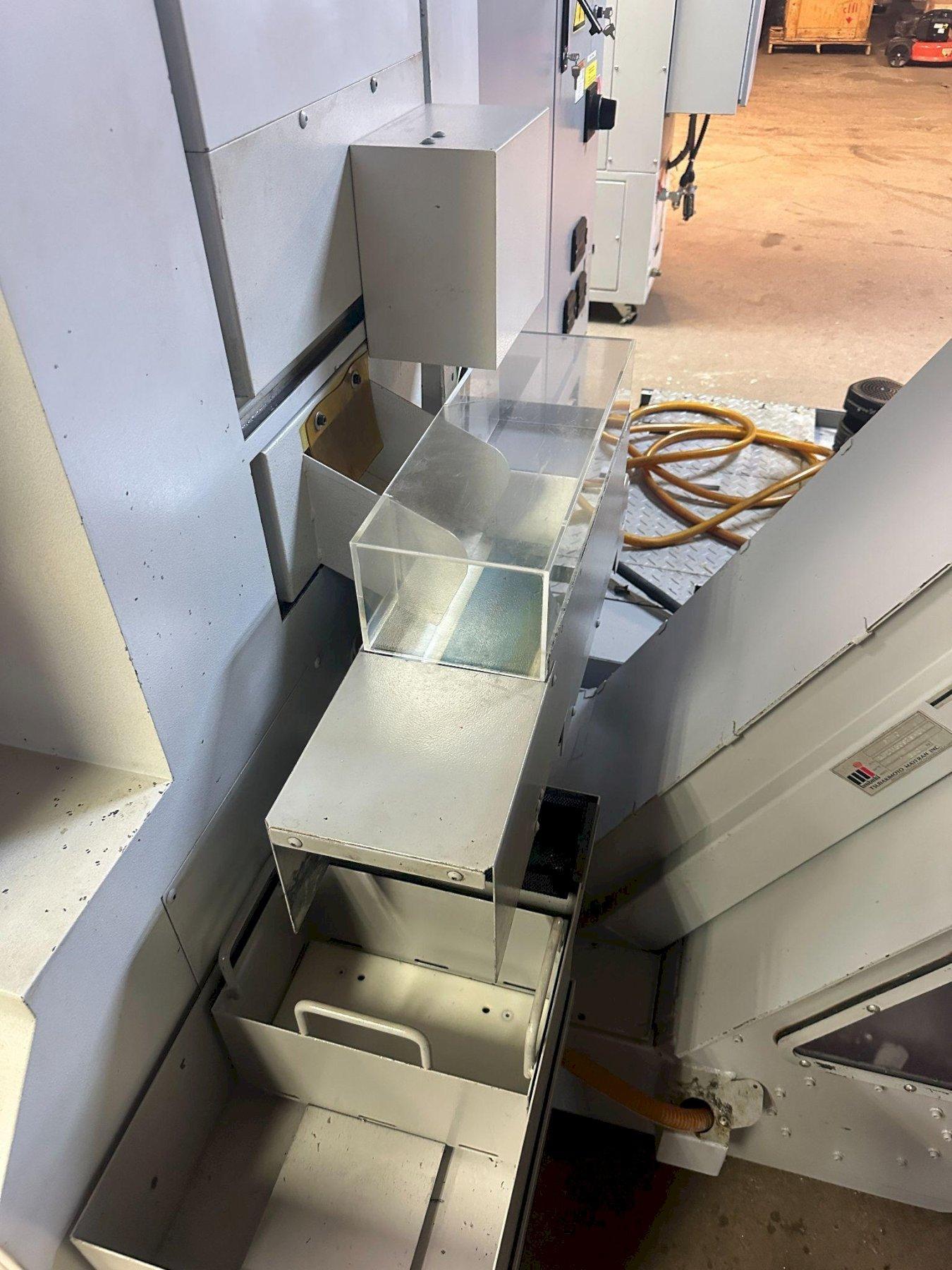

o OEM Coolant Tank and Chip Conveyor

o HPS 75KVA Transformer 480V-208Y/120

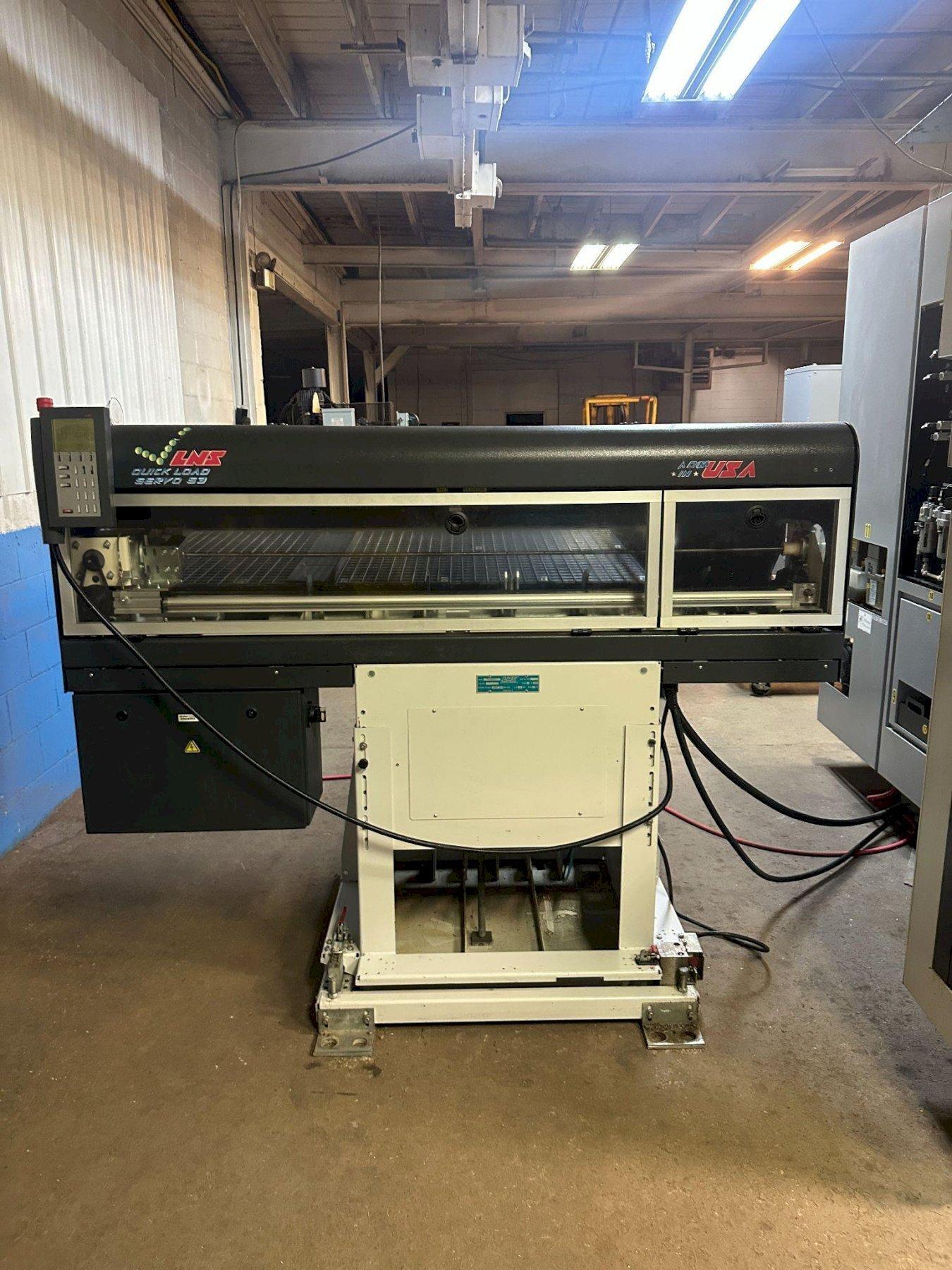

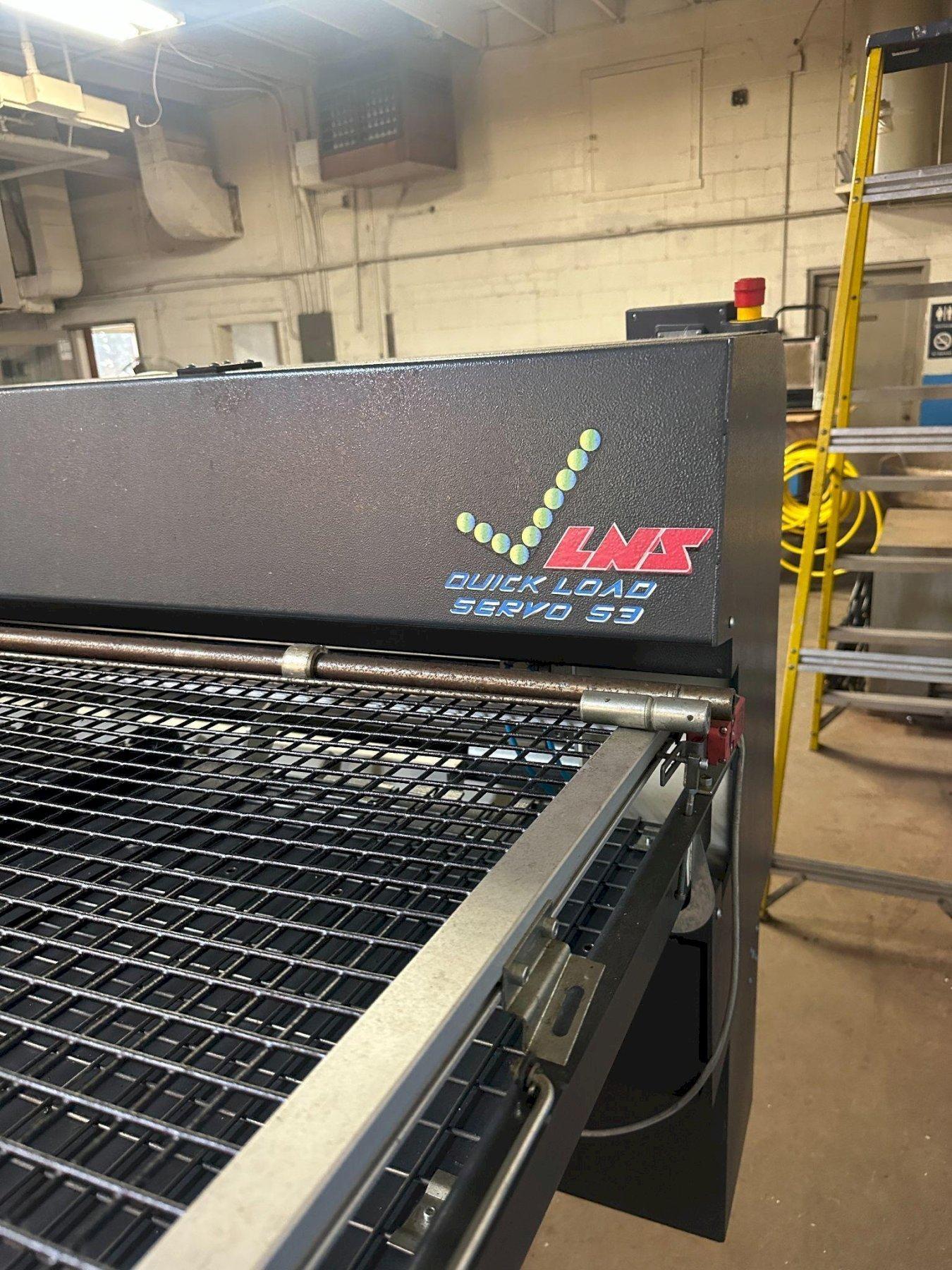

o LNS Quick Load Bar Feeder Servo S3

o Cool Jet High Pressure Coolant system (3515LV2-NT)

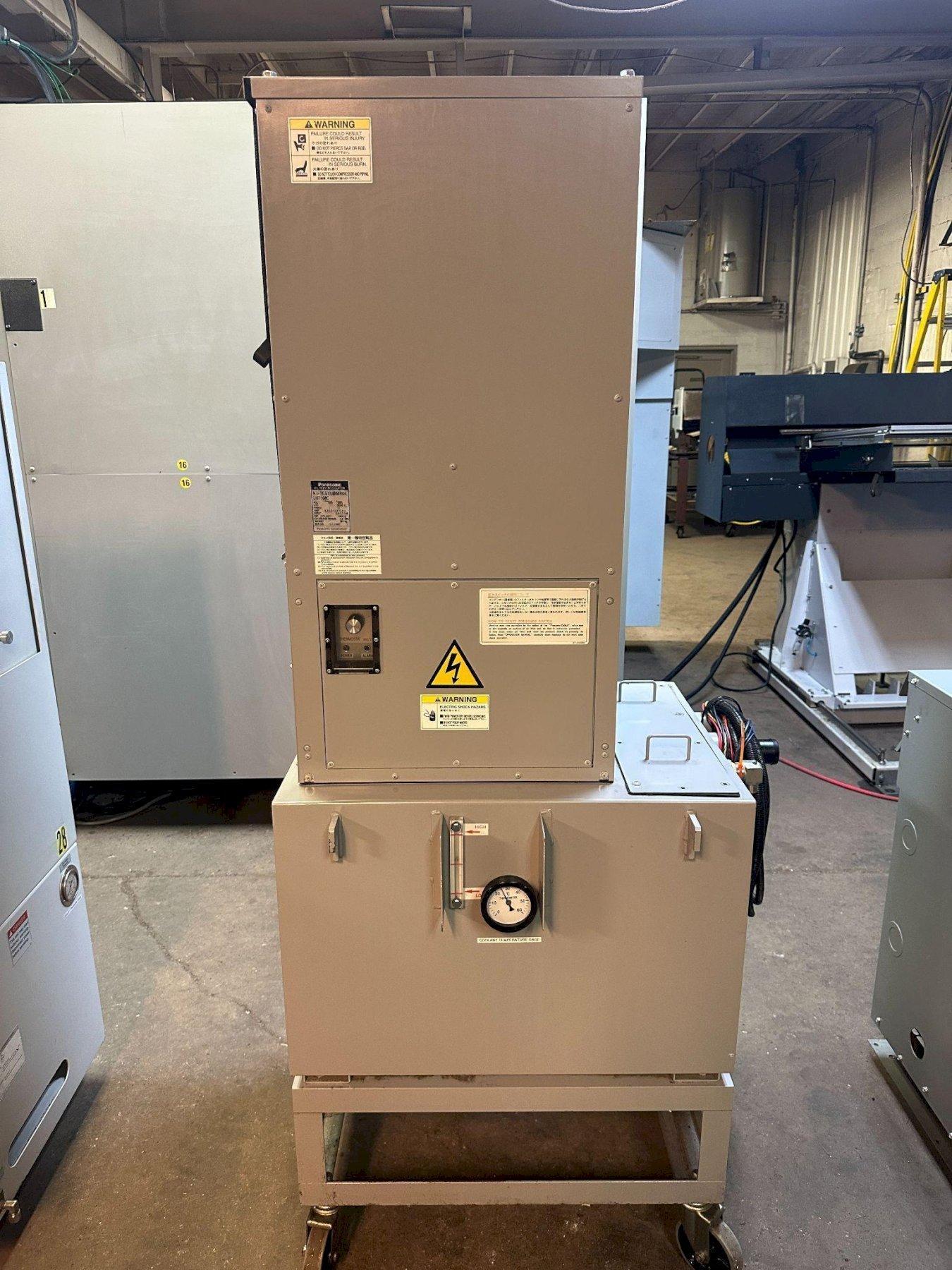

o Panasonic Coolant Chiller unit

o BK Micro System to check for Broken Tool (Not Tested)

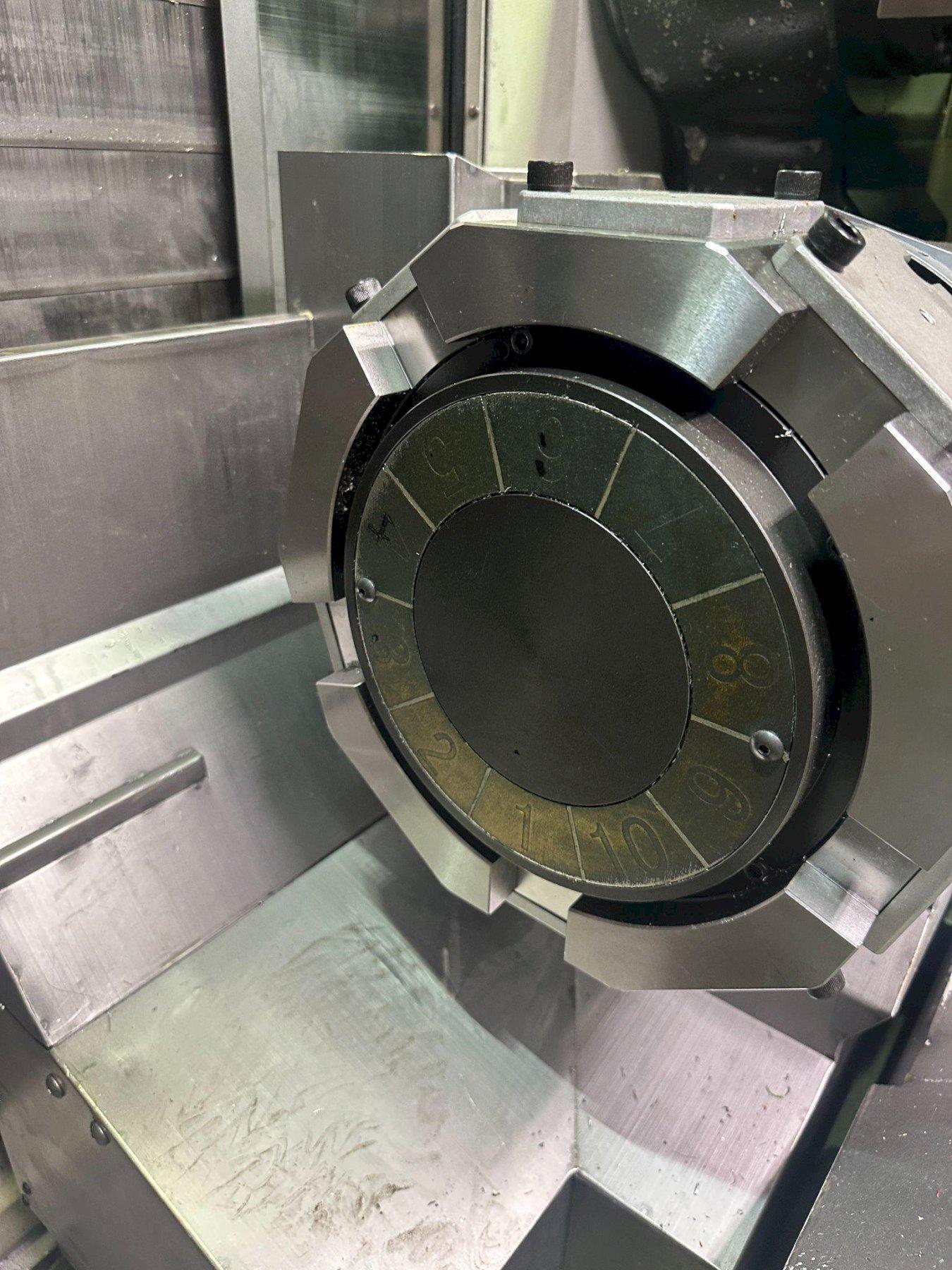

o Rotary Window
