2016 Doosan HC 400II CNC Horizontal Machining Center

2016 Doosan HC 400II CNC Horizontal Machining Center

Name: 2016 Doosan HC 400II CNC Horizontal Machining Center
Brand: DOOSAN
SKU: iGAM0470005
Availability: PreOrder

Brand

DOOSAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

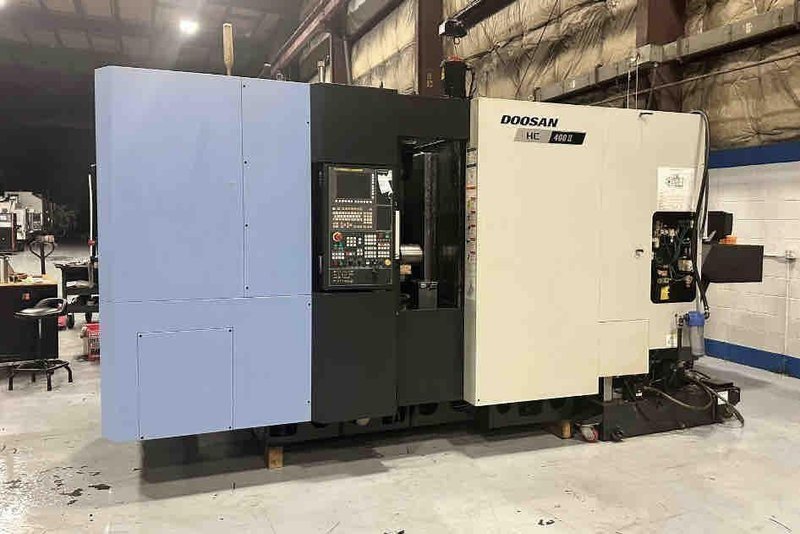

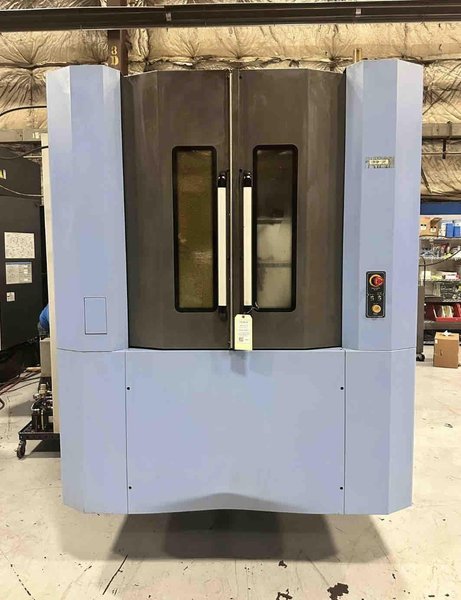

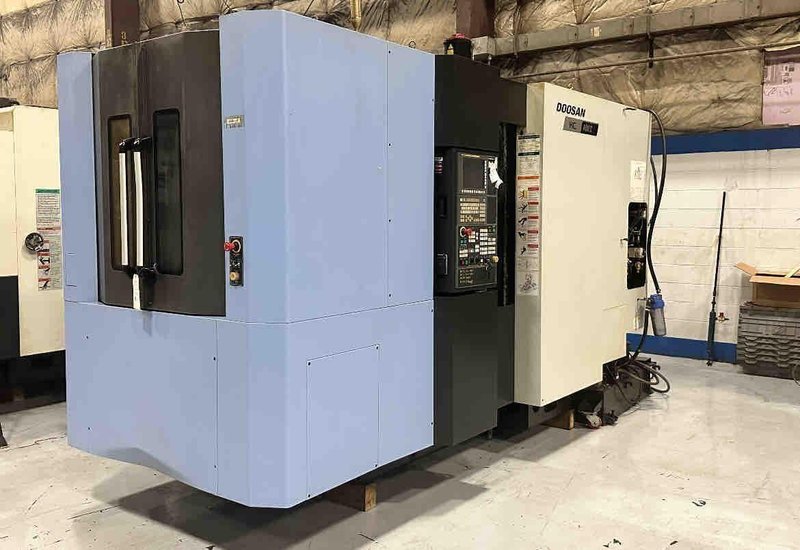

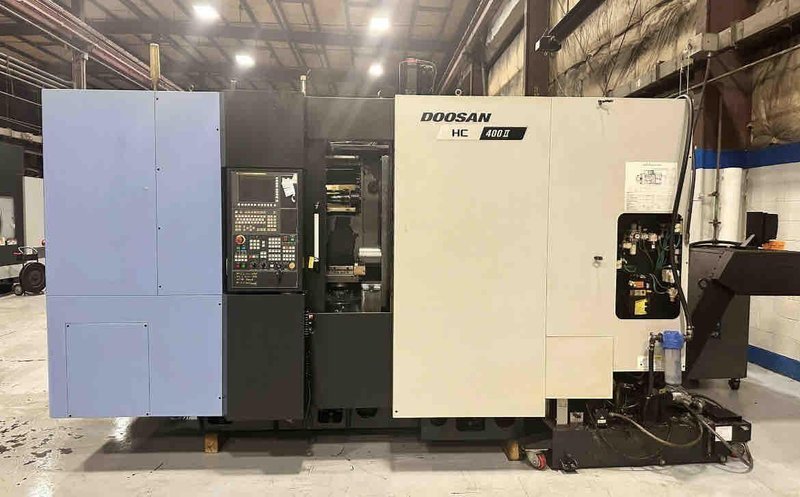

2016 Doosan HC 400II CNC Horizontal Machining Center available. Fanuc i-Series CNC Control 19.7″ x 19.7″ Pallet Size, 1 Degree B Axis Indexing, Travels (X/YZ): 23.6″/22″/22.2″, CAT 40 Big Plus, 12,000 rpm Spindle, and a 60 Station ATC. Contact for more details and availability.

Specification Table

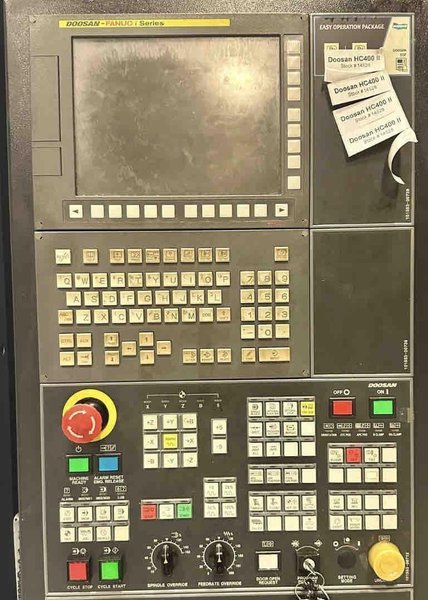

CNC Control	Fanuc i Series
# Axis	4
Pallet-L	19.7"
Pallet-W	19.7"
Max Pallet Load	1,102 lbs
Pallet Indexing (B-axis)	1° Degree
X-axis Travel	23.6"
Y-axis Travel	22"
Z-axis Travel	22.2"
Rapid Traverse Rate (X/Y/Z)	1,575 ipm
Spindle Speed	12,000 RPM
Spindle Taper	CAT 40 Big Plus
Spindle Motor	25 hp
# ATC	60
Coolant Thru Spindle	Yes
Machine Dimensions	182" x 90" x 112"
Machine Weight	24,500 lbs

Equipped With

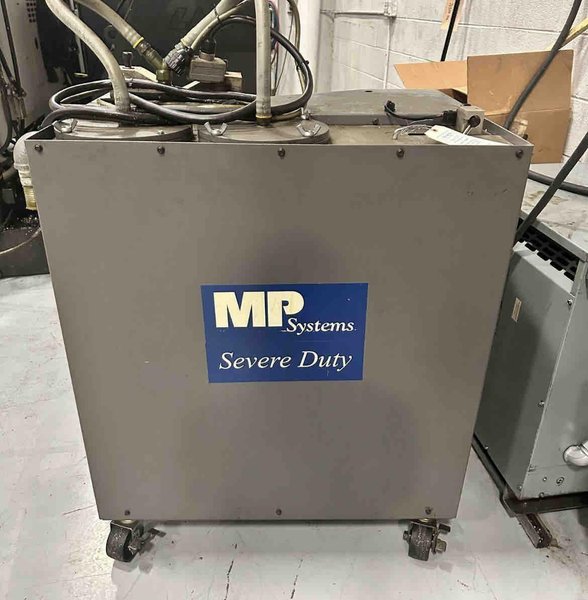

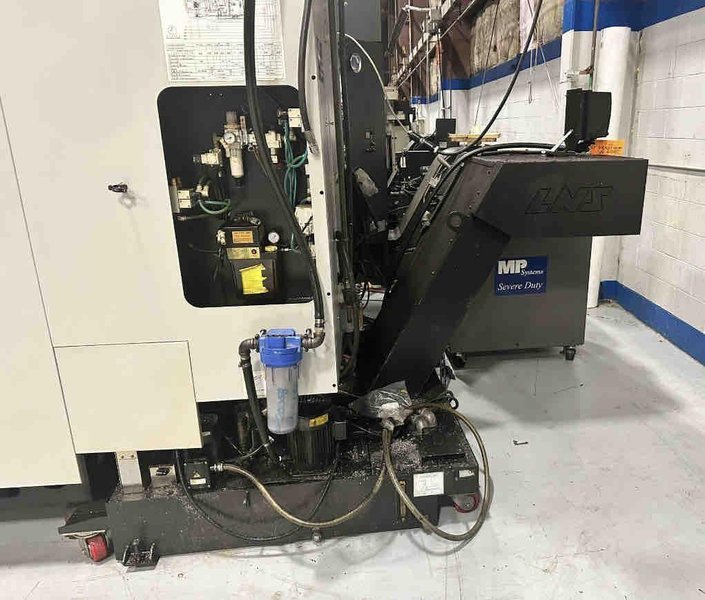

- Fanuc i Series Control - Chip Conveyor - Coolant Tank & Pumps - MP Coolant Systems (HP Coolant Thru Spindle) - Hydraulic Clamping - EZ Guide i - Manual Guide i - 400 Tool Offsets - Auto Tool Measure RMI-Q - Renishaw Probe Interface - Embedded Ethernet - AI Contour Control II

Specifications:

CNC Control	Fanuc i Series
# Axis	4
Pallet-L	19.7″
Pallet-W	19.7″
Max Pallet Load	1,102 lbs
Pallet Indexing (B-axis)	1° Degree
X-axis Travel	23.6″
Y-axis Travel	22″
Z-axis Travel	22.2″
Rapid Traverse Rate (X/Y/Z)	1,575 ipm
Spindle Speed	12,000 RPM
Spindle Taper	CAT 40 Big Plus
Spindle Motor	25 hp
# ATC	60
Coolant Thru Spindle	Yes
Machine Dimensions	182″ x 90″ x 112″
Machine Weight	24,500 lbs

Equipped With:

– Fanuc i Series Control- Chip Conveyor- Coolant Tank & Pumps- MP Coolant Systems (HP Coolant Thru Spindle)- Hydraulic Clamping- EZ Guide i- Manual Guide i- 400 Tool Offsets- Auto Tool Measure RMI-Q- Renishaw Probe Interface- Embedded Ethernet- AI Contour Control II

No files or videos to display
