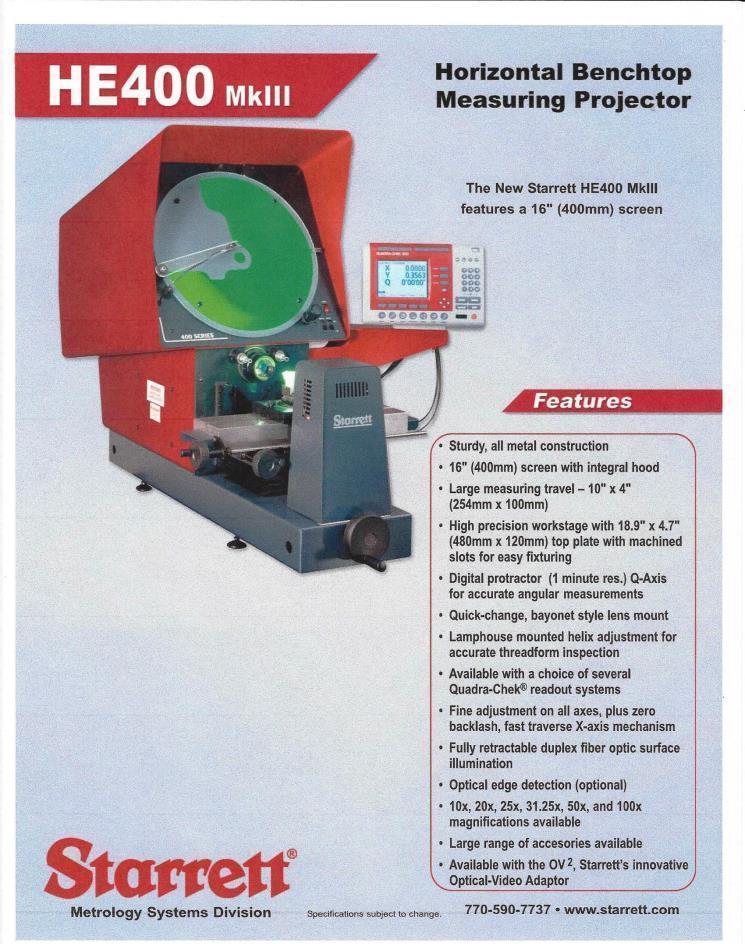

16” STARRETT Model HE400 Bench Top Optical Comparator S/N 70181.
Brand
Category
Type
Model
HE400
Stock #
34879
Year
Not specified
Condition
Used
Location
Ohio
|
Arrival and availability pending
Specifications: Screen Diameter - 16" Table Size - 4.7" x 18.9" Measuring Travels - 10" x 4" Focus Travel - 1.5" Table Load Capacity - 55 Lbs. Electrics - 1/60/115 V Dimensions - 34" LR x 44.8" FB x 37.4" H Net Weight, Approx - 200 Lbs. Gross Shipping Weight, Approx - 375 Lbs. Equipped with: Quadra Chek 221E Digital Readout with Edge Sensing Q-Axis for Angle Measuring Fiber Optic Surface Reflection Single Lens Mount with (1) 10X Lens Quick Release Table for Fast Position on X-Axis Travel Integral Hood Operators Manual (.pdf) * Notes: * New arrival - availability pending * From University Lab * Specifications subject to independent verification by the buyer. * Staging fixtures and other lenses may be available for purchase. |
