HURCO VM10i PLUS 3-AXIS CNC VERTICAL MACHINING CENTER WITH CABOT PICK AND PLACE ROBOT

HURCO VM10i PLUS 3-AXIS CNC VERTICAL MACHINING CENTER WITH CABOT PICK AND PLACE ROBOT

New 2019

Only 252 Hours

Motor Driven with 15 HP, 3-Phase, 60 Cycle, AC Spindle Motor

EQUIPPED WITH:
Hurco Max 5 CNC Controls
Max Classic Software Package
Rigid Tapping
UltiPocket Software
Spindle Chiller
Techniks TP-C40 Tooling Package
Huot 13940 Tool Cart
Retention Knobs-CTS
Kurt DX6 Vise

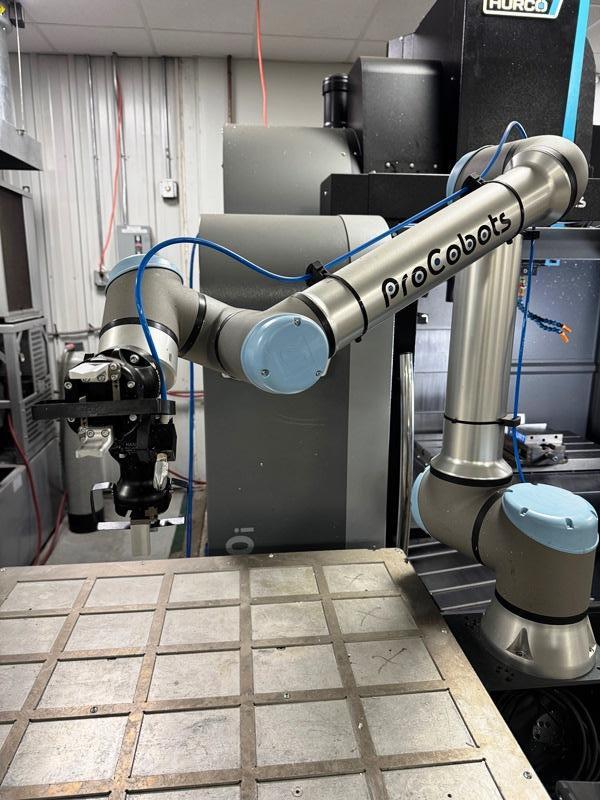

Universal Robots UR10e Collaborative Robot Arm
New 2023
The UR10e is a medium-sized e-series cobot from Universal Robots combining a 12.5 kg payload with 1300mm reach. It provides sufficient payload and reach capabilities to automate regular tasks such as machine tending, palletizing, pick and place, dispensing and welding, while ensuring a safe collaboration between humans and machines.

Note: Robot can be sold separately

Number of Axes                                      6
Reach                                                      1300 mm
Repeatability                                           0.05 mm
Max. Payload                                           12.5 Kg
Robot Weight                                          33.5 Kg
Degrees of Freedom                                6
Range of Movement                                360 Degrees in all Axes
Complete with 36" Square Pick & Place Table

SPEICIFICATIONS:
Table Size                                       30" x 16"
Travels
      X-Axis                                       26.02"
      Y-Axis                                       16.02"
      Z-Axis                                        20"
T-Slot Size                                       3" x 0.71"
Max. Weight on Table                     3,500 Lbs.
Min. Distance Spindle to Table       4"
Max. Distance Spindle to Table       24"
Max. Spindle Speed                        12,000 RPM
Spindle Taper                                   CAT 40
Number of Tools                              24 ATC
Max. Tool Diameter                          3.1"
Max. Tool Length                             9.8"
Max. Tool Weight                            15.4 Lbs.
Feed Rates XYZ                               1,102 IPM
Max. Programmable Feedrate         1,102 IPM
Approximate Dimensions                128.5" x 133.2" x 101" H
Approximate Weight                       7,121 Lbs.
