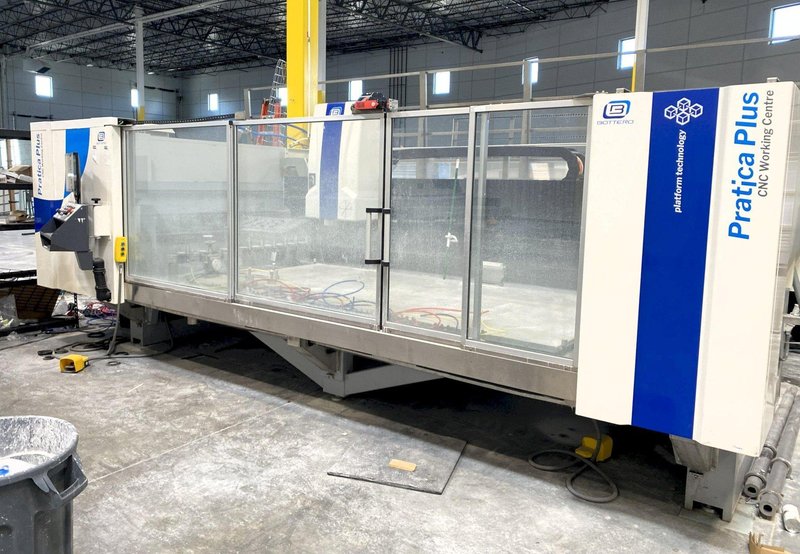

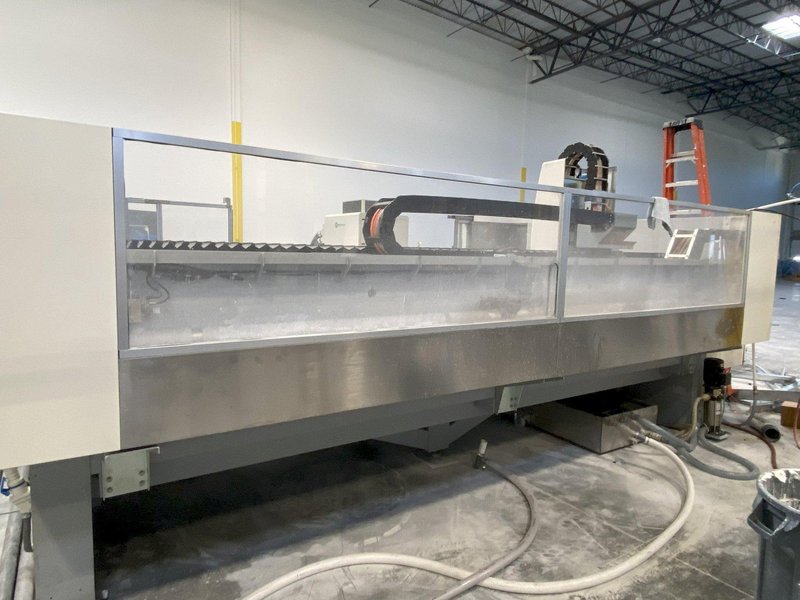

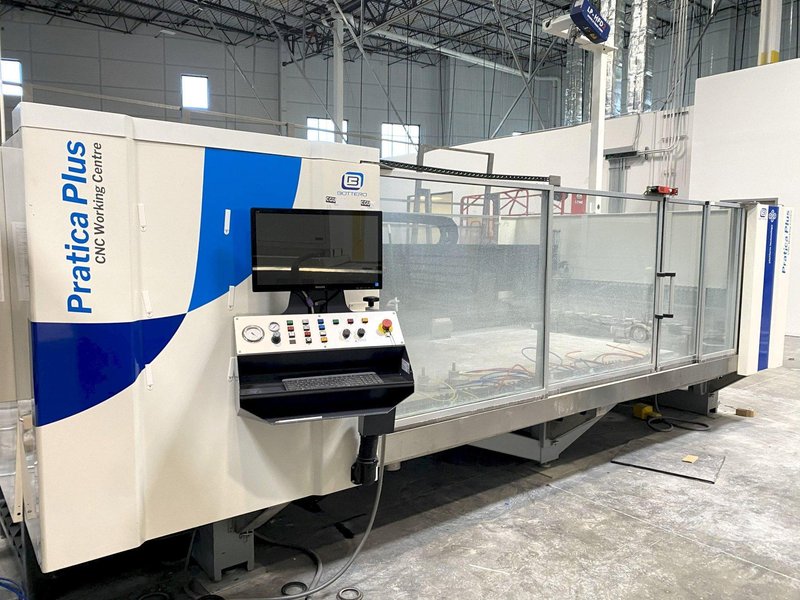

Bottero Practica Plus Processing CNC Machining Center 2023 For Glass or Stone
Brand
Category
Model
Practica Plus
Stock #
6975
Year
2023
Condition
Not specified
Location
California
| Worktable Dimensions (WxD) | X/Y 126.96 x 63.77" |
| Maximum Excursion Axes X/Y/Z | X/Y/Z 3400/1720/300 |
| Maximum Worktable Dimensions With Tools | X/Y 129.92" x 63.77" |
| Maximum Quick Travel Speed X/Y/Z | X/Y = 50m/min. Z = 15m/min. |
| Tool Change Time | 10,000 RPM |
| Electrical Power Pf The Electric Spindle | 12.33 HP |
| Sound Pressure Level | 76.1 Decibels |
| Internal Pressurization Of The Spindle | 2 Bar |
| Working Air Pressure | 6.5 Bar |
| Air Consumption | 350 Nlt/in. |
| Working Water Pressure | 3 Bar |
| Circulating Water Pump Flow | 113.5 Gal/min. |
| Circulating Water Tank Volume | 430 Gal. |
| Network Water Consumption | 3.96 Gal/min. |
| Electrical Power Requirements | 25 KVA |
| Average Lubricant Consumption | 0.00079 Gal/h |

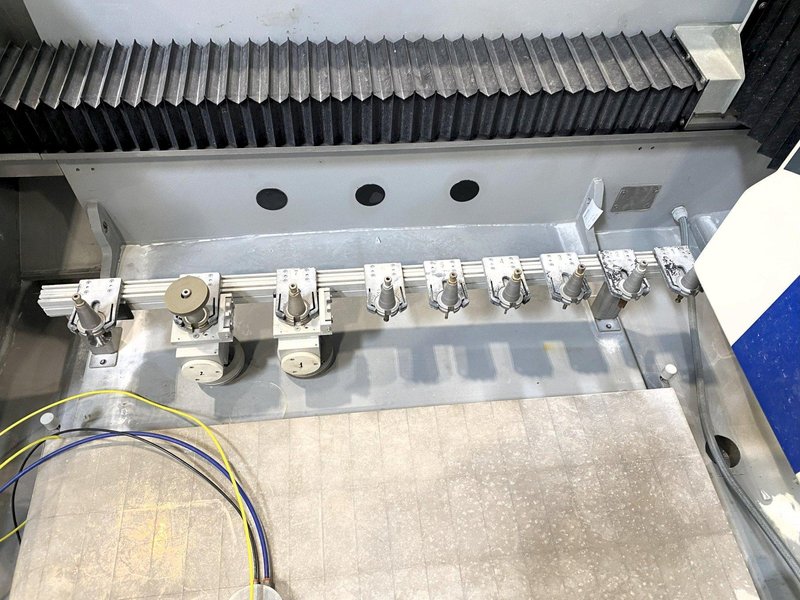

| Maximum Tool-Holder Loader Capacity | 13+13 |
| # Axis | 3 |
| Type Of CNC Control | Botteo |
| CNC Control | yes |
| Options | CNC Edger, Max 129.92" x 63.77", 3-Axis, 1x Fixed Tool Storage, Automatic Lubrication System, Water Pump and Water Tank, Laser Projector for Positioning Stops and Suction Cups Work Area, Laser Pre-Setter, Shape Scanner, ISO 40 Kit for Circular Saw (flat), ISO 40 Kit for Cutting 45' (1 aggregate), ISO 40 Kit for Beveling 3-5-7-10', ISO 40 Kit for Horizontal Grinding, ISO 40 Kit for Lower and Upper Drilling, ISO 40 Aggregate for Writing on the Edge, ISO 40 Kit for Shaped Engraving, Sheet Locking System for Activated by Pedal + Remote Control Box, and Touch Screen Monitor. |
| Dimensions (LxWxH) | 19 FT x 7.5 FT x 6.5 FT |
| Weight | 10000 pounds |
|
Bottero Practica Plus Processing CNC Machining Center 2023 For Glass or Stone
Options: CNC Edger, Max 129.92" x 63.77", 3-Axis, 1x Fixed Tool Storage, Automatic Lubrication System, Water Pump and Water Tank, Laser Projector for Positioning Stops and Suction Cups Work Area, Laser Pre-Setter, Shape Scanner, ISO 40 Kit for Circular Saw (flat), ISO 40 Kit for Cutting 45' (1 aggregate), ISO 40 Kit for Beveling 3-5-7-10', ISO 40 Kit for Horizontal Grinding, ISO 40 Kit for Lower and Upper Drilling, ISO 40 Aggregate for Writing on the Edge, ISO 40 Kit for Shaped Engraving, Sheet Locking System for Activated by Pedal + Remote Control Box, and Touch Screen Monitor. |
|
