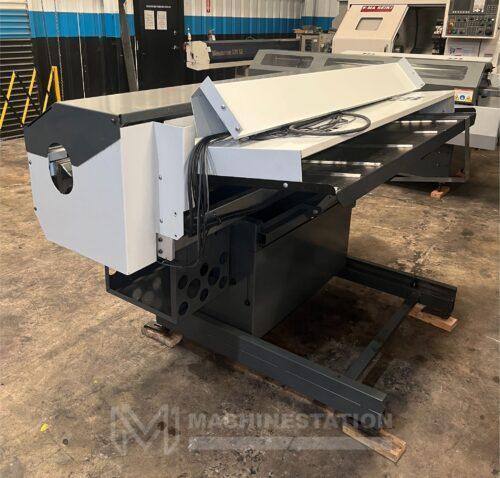

Haas V2 Automatic Bar Feeder

Name: Used V2 For Sale 112772B
Brand: Unknown
SKU: 112772B

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	V2
Year:	2015

Features:
Exclusively For Use on Haas CNC Lathes
Easy Access For Quick Liner Changes
High Pushrod Speed For Shorter Part-to-Part Cycle Times
Ability to Use the Pushrod as a Stop
Easy Bar Diameter Changeover
Quick-change Pushrod Design
Storage for both Pushrod Diameters 3/8″ (9.5 mm) and 3/4″ (20 mm)
Easily Accessible Storage For All Extruded Liners

Capacity:
Bar Diameter Range (varies w/lathe model): 0.375″ to 3.00″
Bar Length Capacity: 48″
Recommended Max Bar in Spindle: 48″
Minimum Bar Length: 10″

Charging Tray:
Tray Capacity: 30 EA x 1″
Staging Area Width: 30″
Max Weight of Total Bars: 650 lbs

Max Bar Weight Capacity:
Lift Arm Max Weight Limit: 80 lbs

Pushrod:
Maximum Thrust Push Limit: 100 lbf

General:
Power: 220v/ 3-Phase/ 50-60 Hz
Overall Dimensions: 90″ x 66″ x 56″ High Approx.
Weight: 900 lbs Approx.
