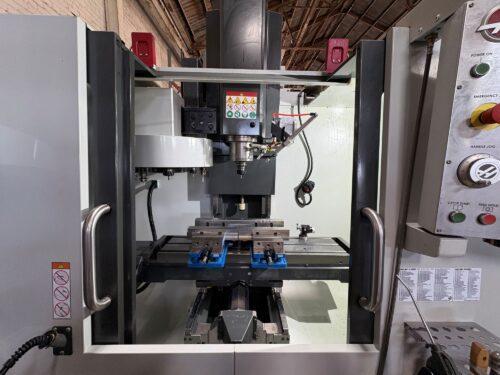

Haas TM-1P Tool Room CNC Mill – WIPS-R HSM 2017

Haas TM-1P Tool Room CNC Mill – WIPS-R HSM 2017

Name: Used HAAS TM-1P For Sale 115086
Brand: HAAS
SKU: 115086

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

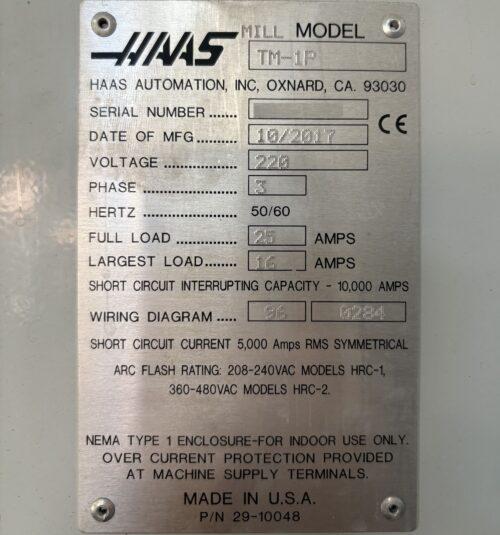

SKU:	115086
Make:	Haas
Model No.:	TM-1P
Year of Manufacture:	2017

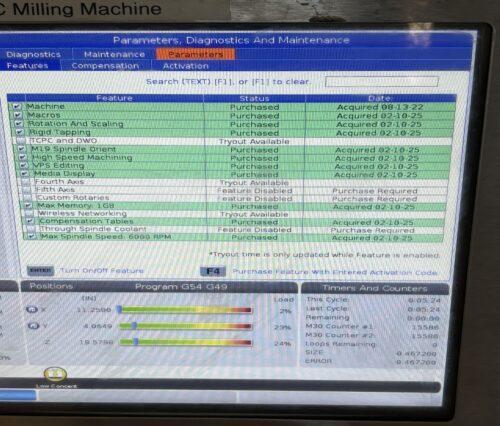

Equipped With:
Haas CNC Control
6000 RPM Spindle
10 Station Automatic Tool Changer
7.5 HP High Torque Spindle
WIPS-R Renishaw Probing System (Upgraded $6,395 Approx. value Included) – Reduced Scrap Rates, Minimized Downtime
Probe Riser Block – Provides Additional Height For The Tool Probe
High Speed Machining (Upgraded $3,895 value Included) – Allows Faster Feedrates and More Complex Toolpaths
Programmable Coolant Nozzle (Upgraded $2,395 value Included) – Automatically Directs Coolant Precisely At The Cutting Tool
Automatic Air Gun (Upgraded $1,595 value Included) – Provides a Cnstant Air Blast to Clear Chips During Dry Machining
Rigid Tapping (Upgraded $1,895 value Included)
Spindle Orientation
Macros
Rotation and Scaling
VPS Editing
Media Display
1GB Memory
Compensation Tables
Coolant Tank
Levelling Pads

Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 16″
Rapid Traverse Rates: 400 Inch Per Minute
Cutting Feed Rates: 400 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

Table:
Length: 47.8″
Width: 10.5″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 350 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 6000 RPM
Spindle Power: 7.5 HP

Automatic Tool Changer:
Capacity: 10 Station
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool Change Time: 5.7 Sec.

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 112″ x 80″ x 100″ High
Weight: 4400 lbs
