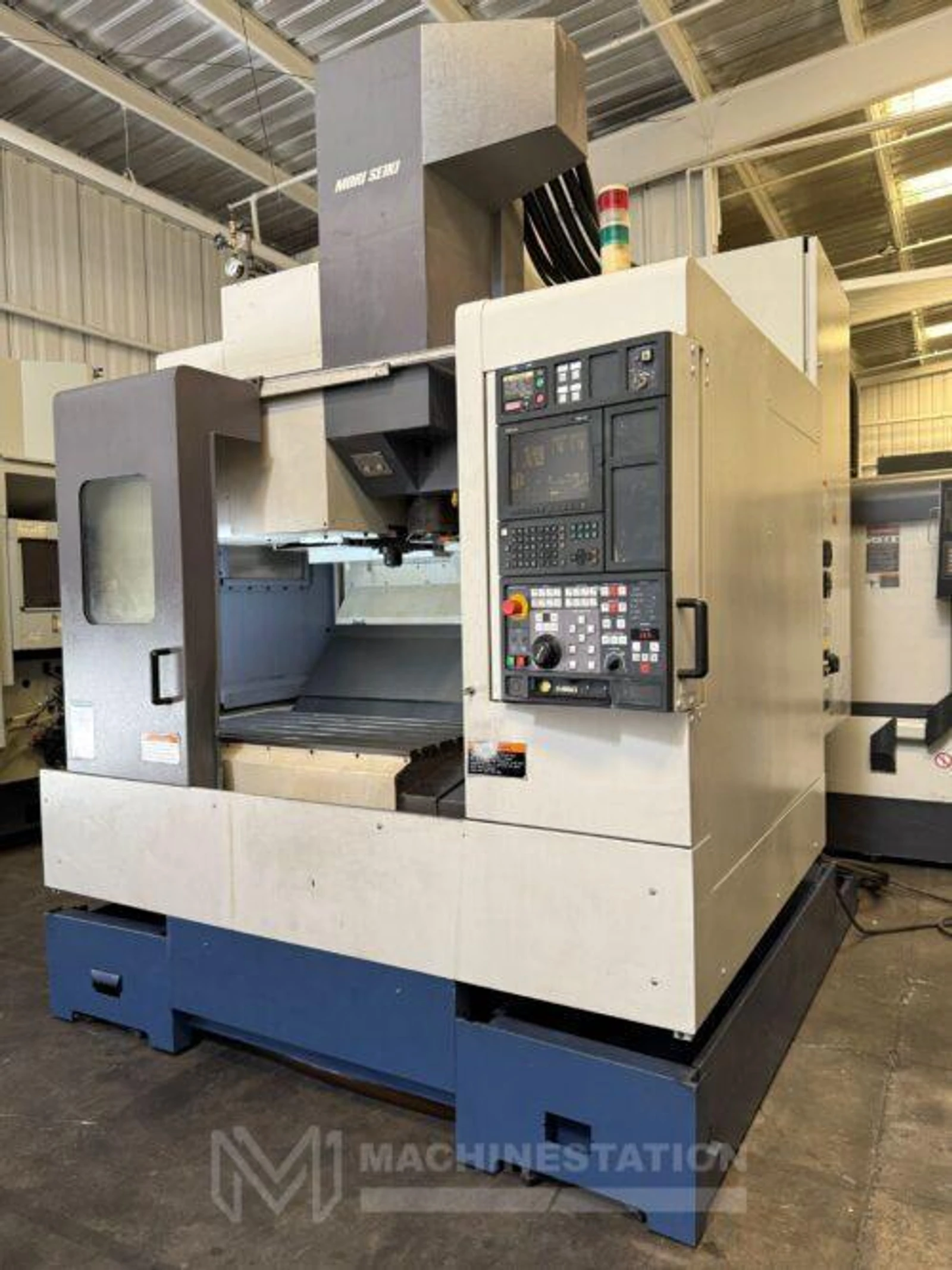

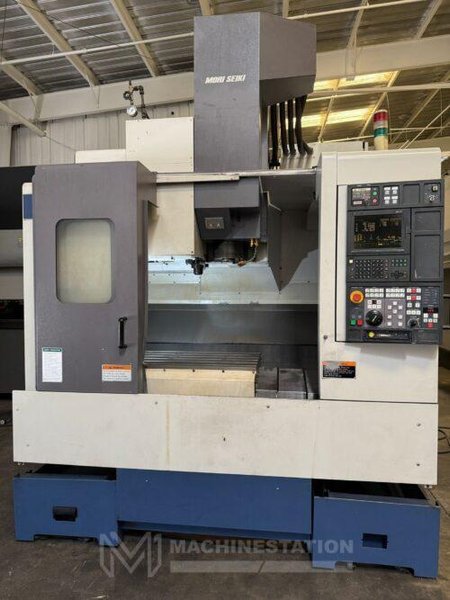

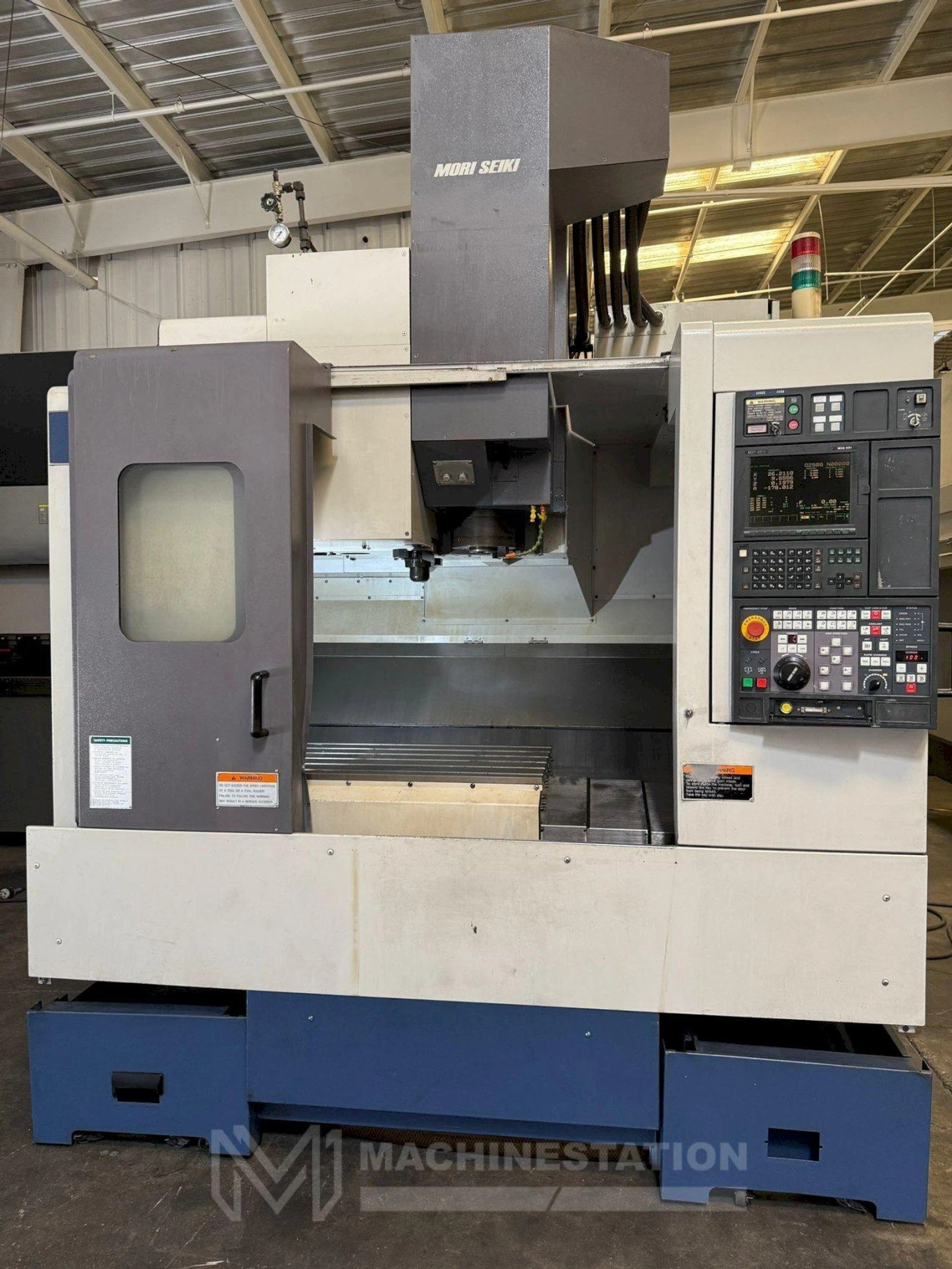

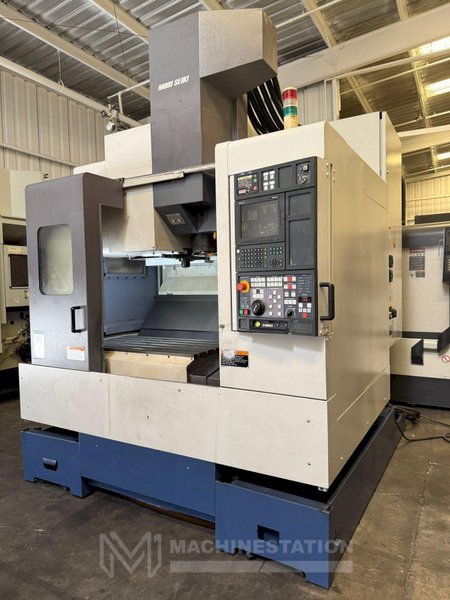

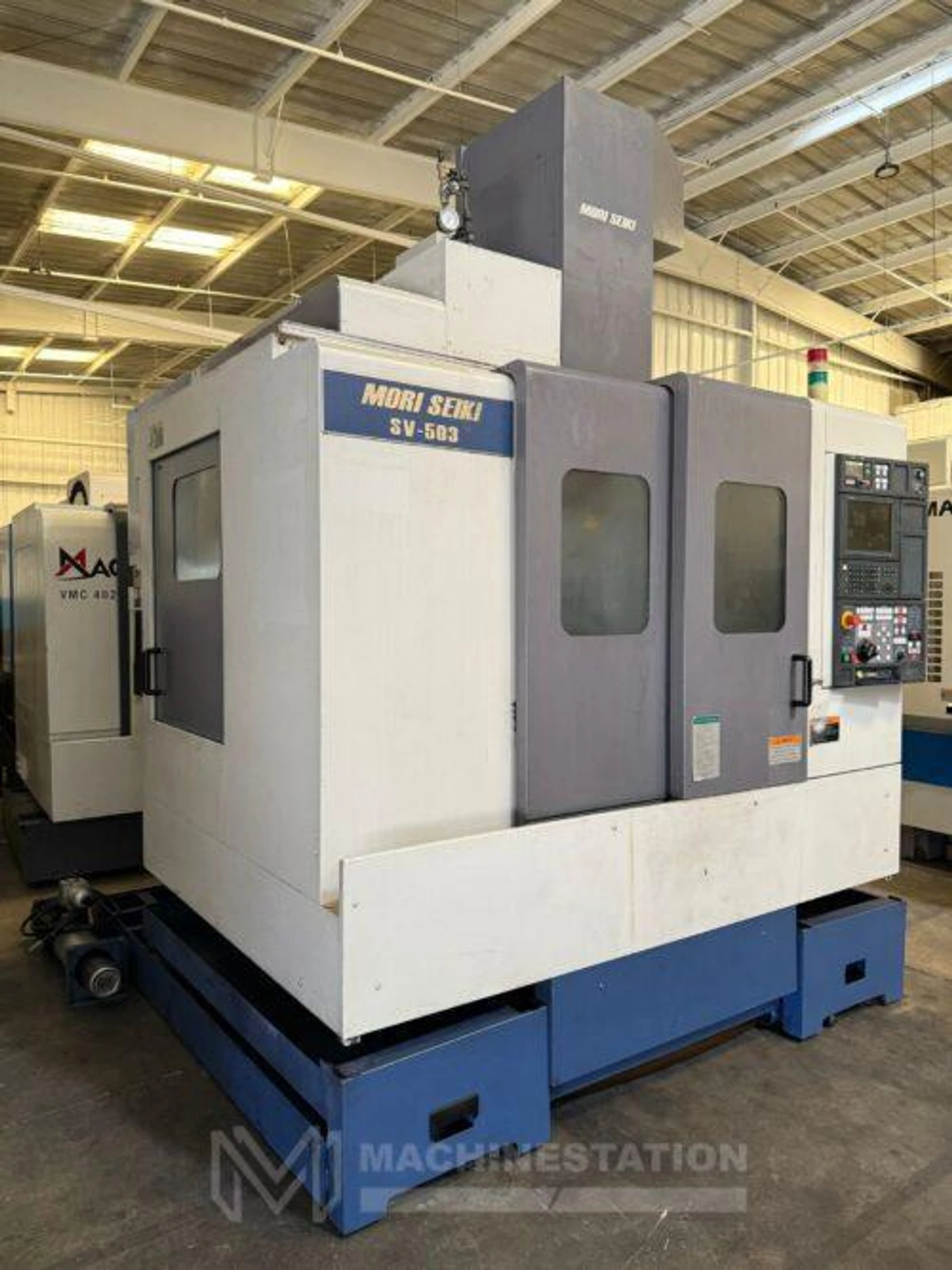

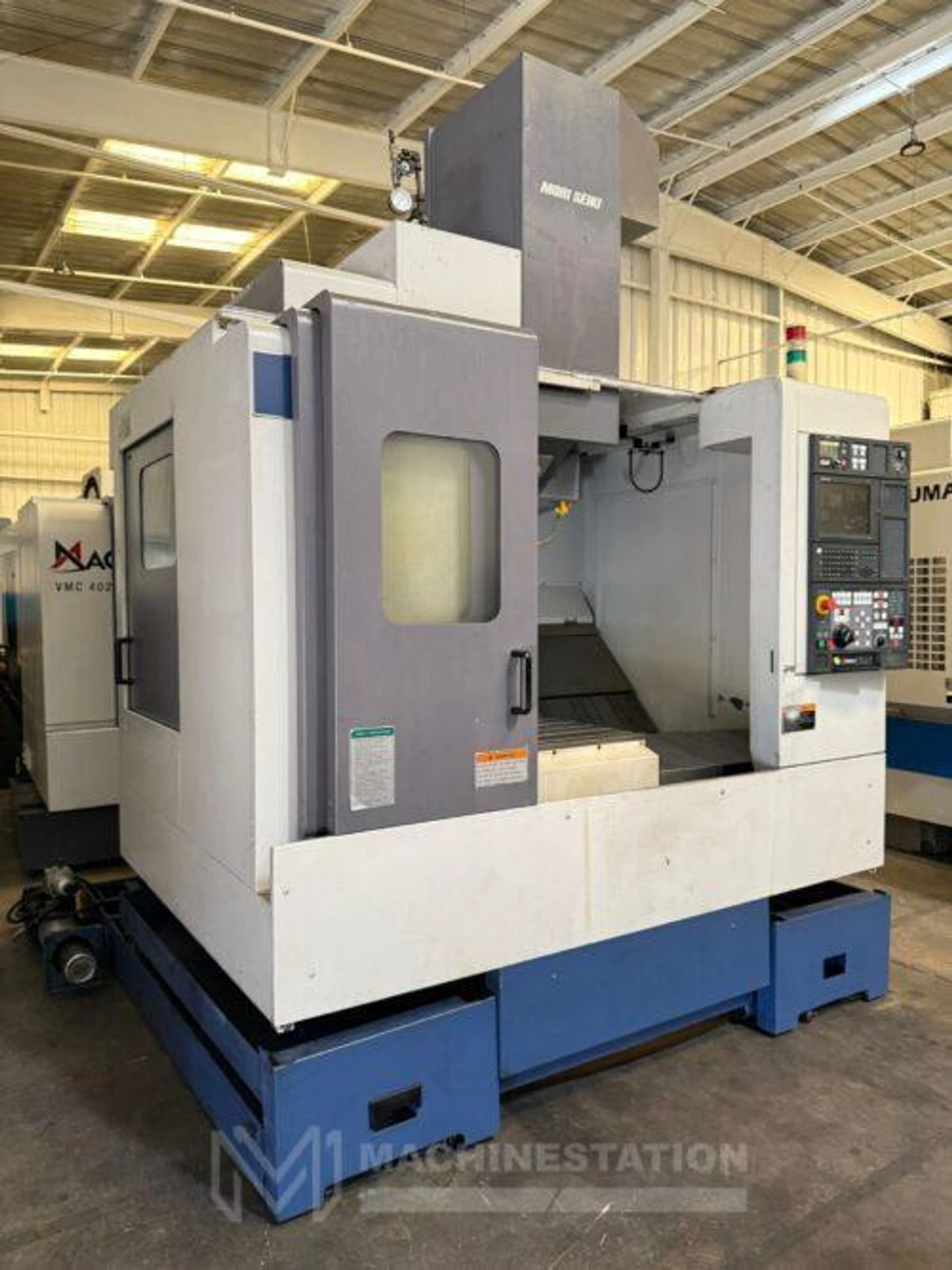

Mori Seiki SV-503/40 CNC Vertical Machining Center – 4th Axis Ready Mill

Mori Seiki SV-503/40 CNC Vertical Machining Center – 4th Axis Ready Mill

Name: Used MORI SEIKI Mori Seiki SV-503/40 For Sale 112770
Brand: MORI SEIKI
SKU: 112770
Availability: PreOrder

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mori Seiki
Model:	SV503/40
Year:	2000
Condition:	Used – Good

Equipped With:

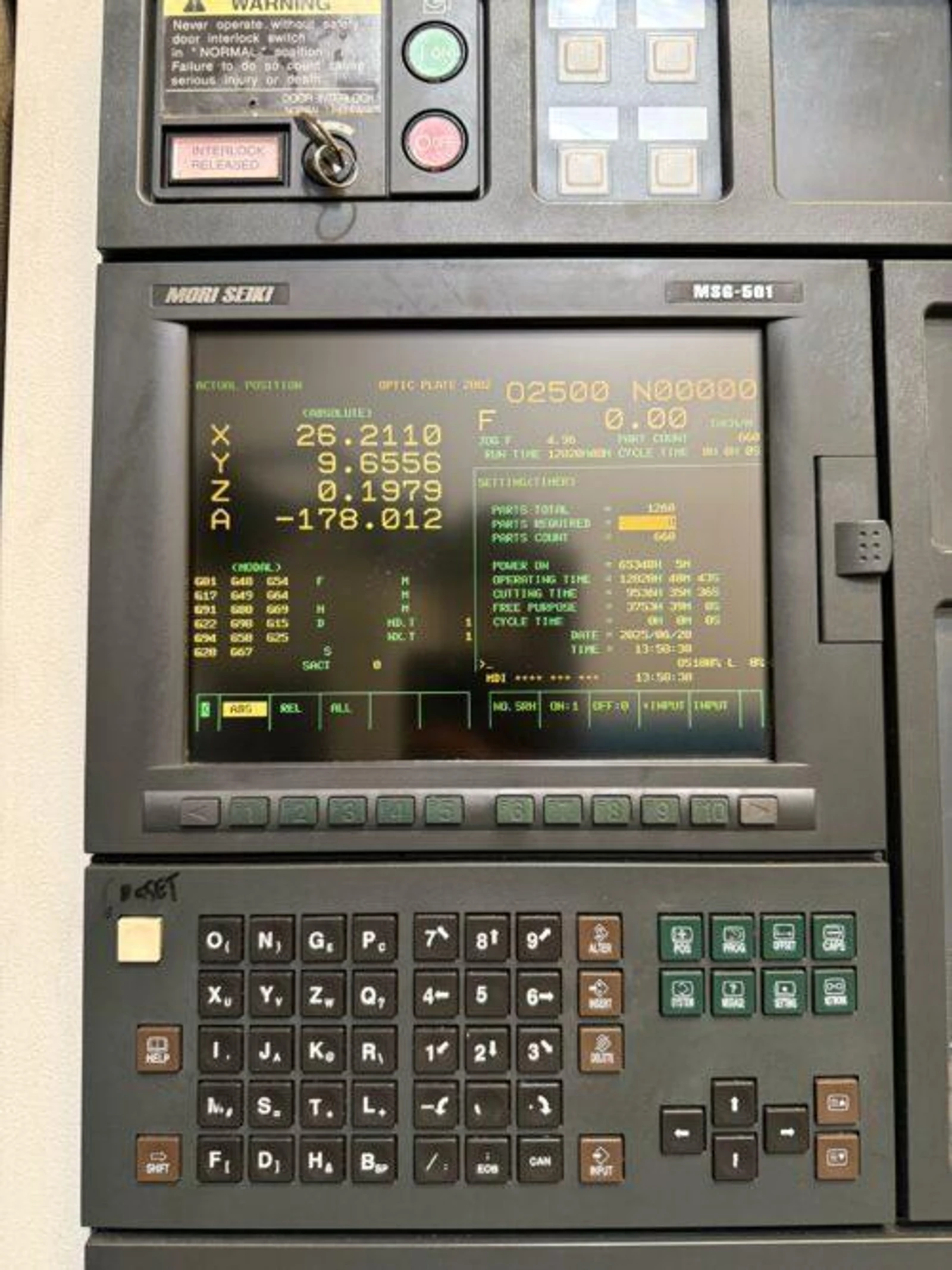

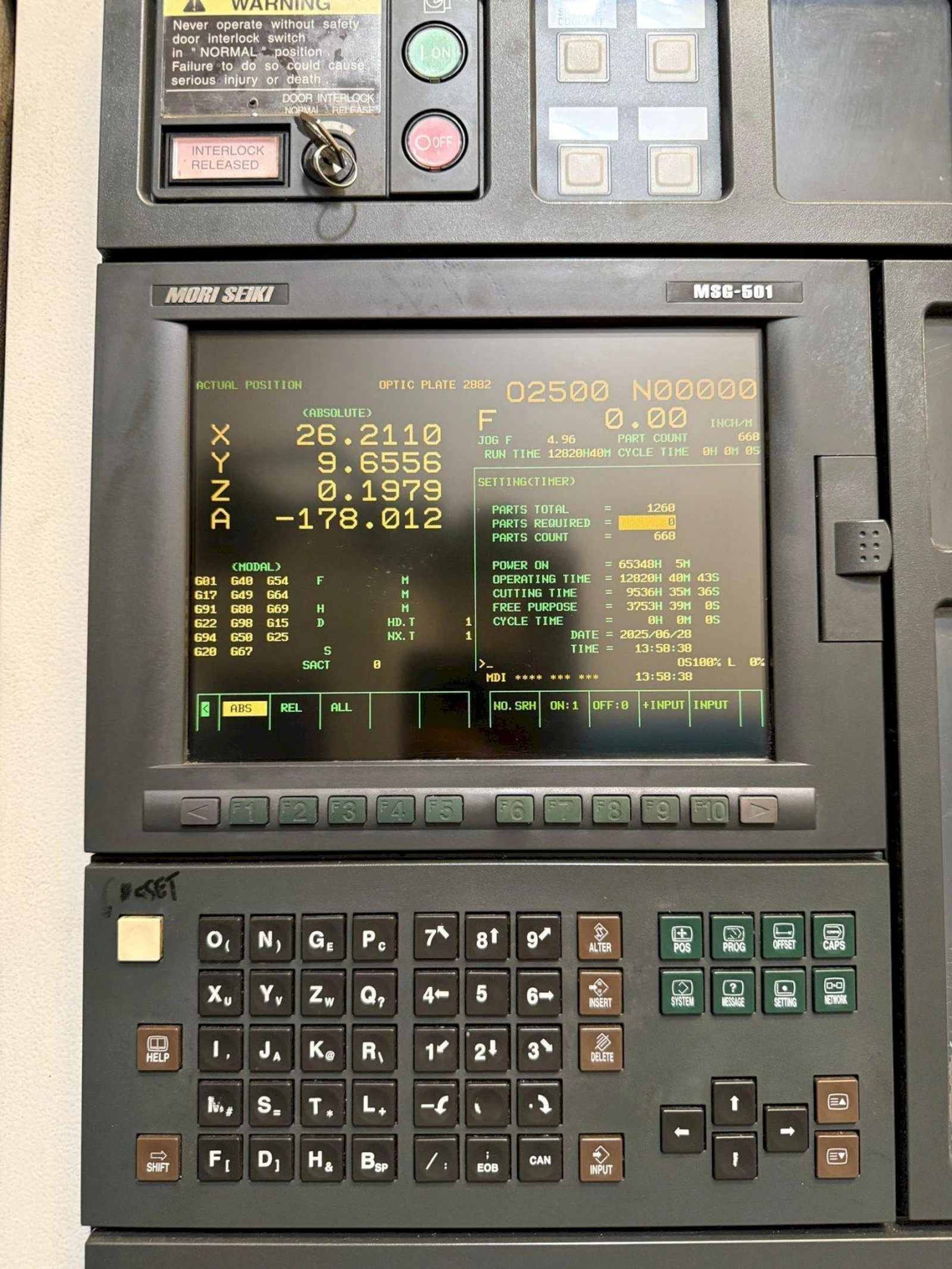

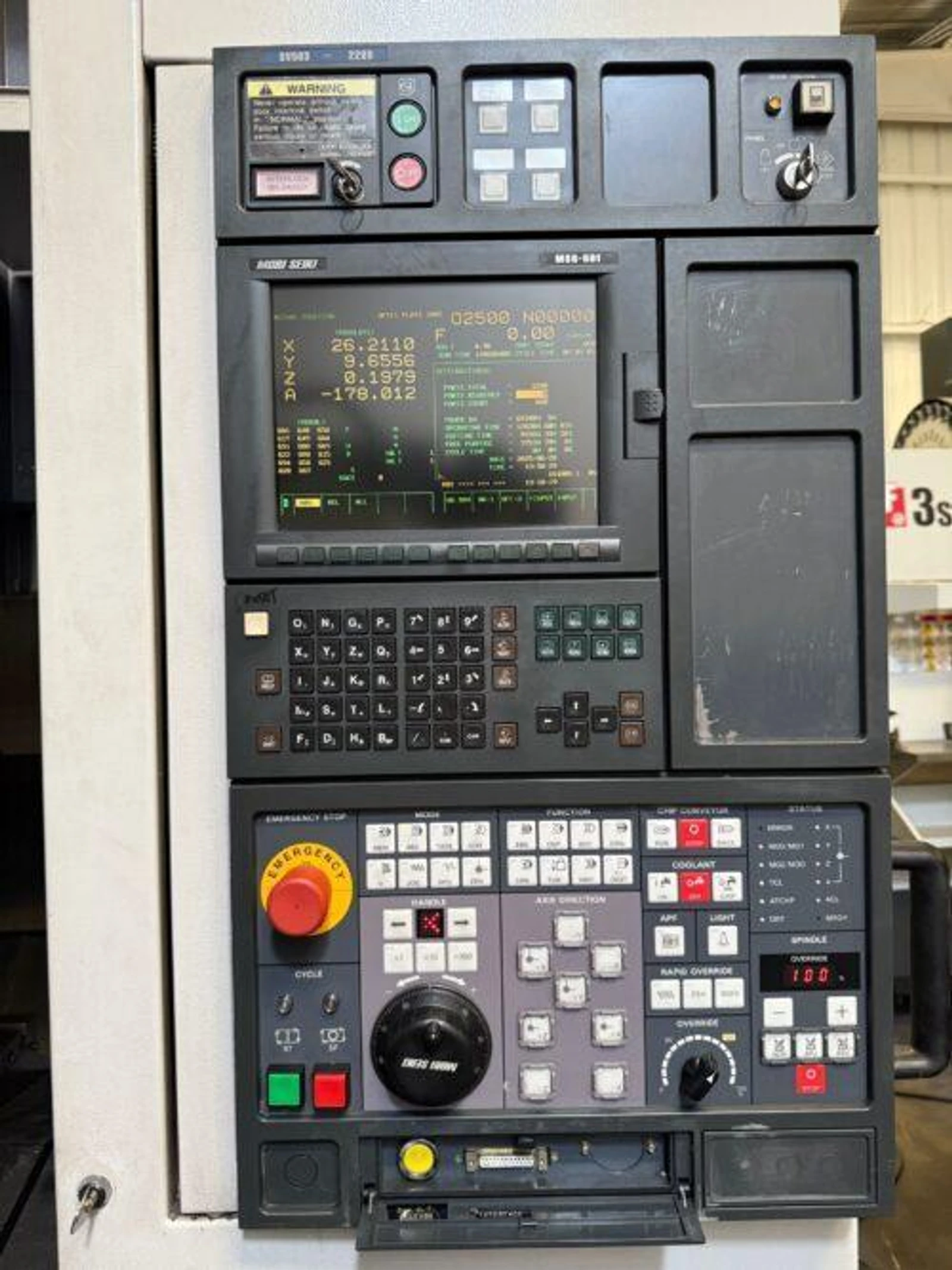

MSG 501 ( Fanuc ) CNC Control
4th Axis Ready
Box Way Construction
CAT-40 Taper 12,000 RPM Spindle

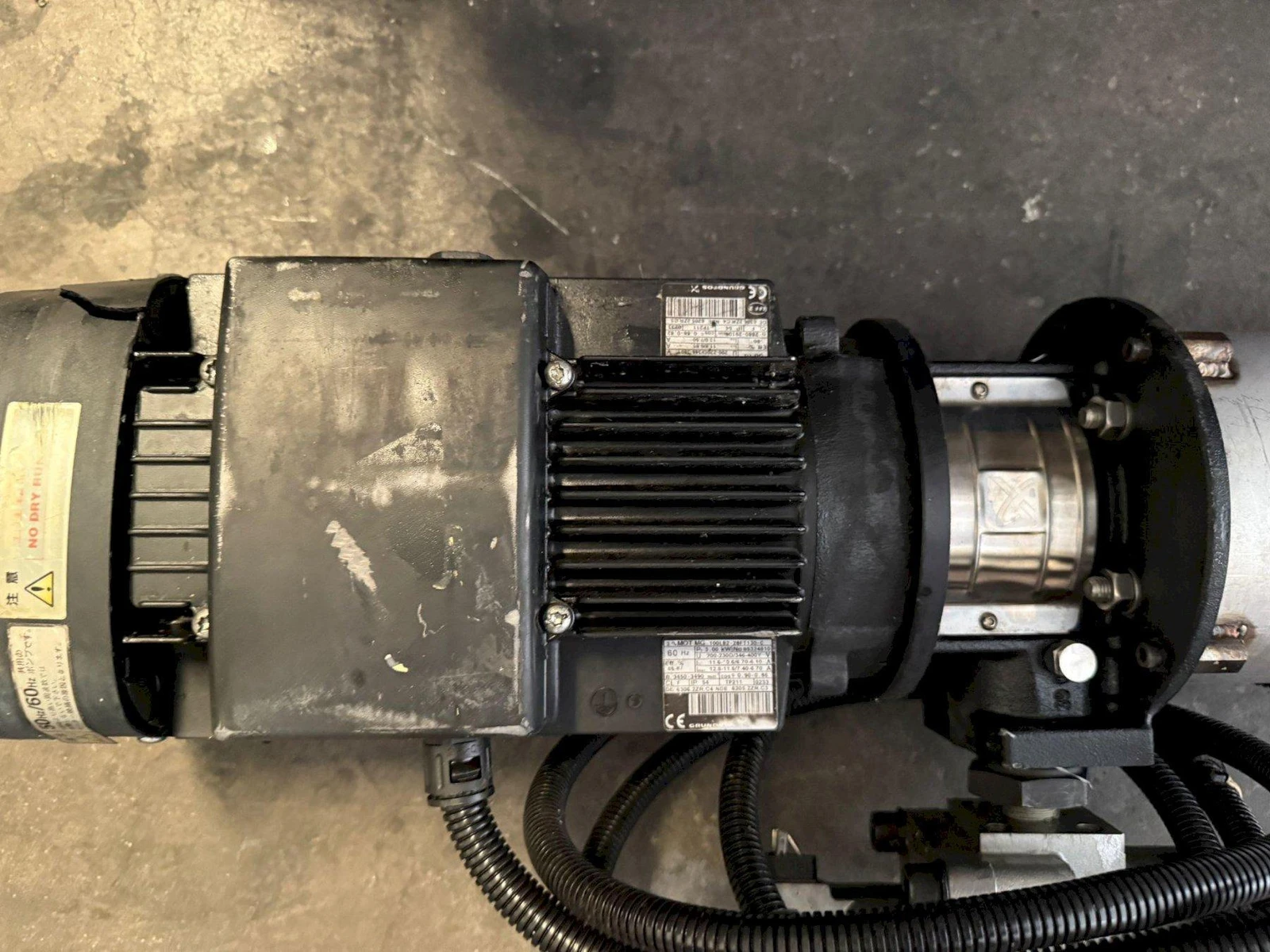

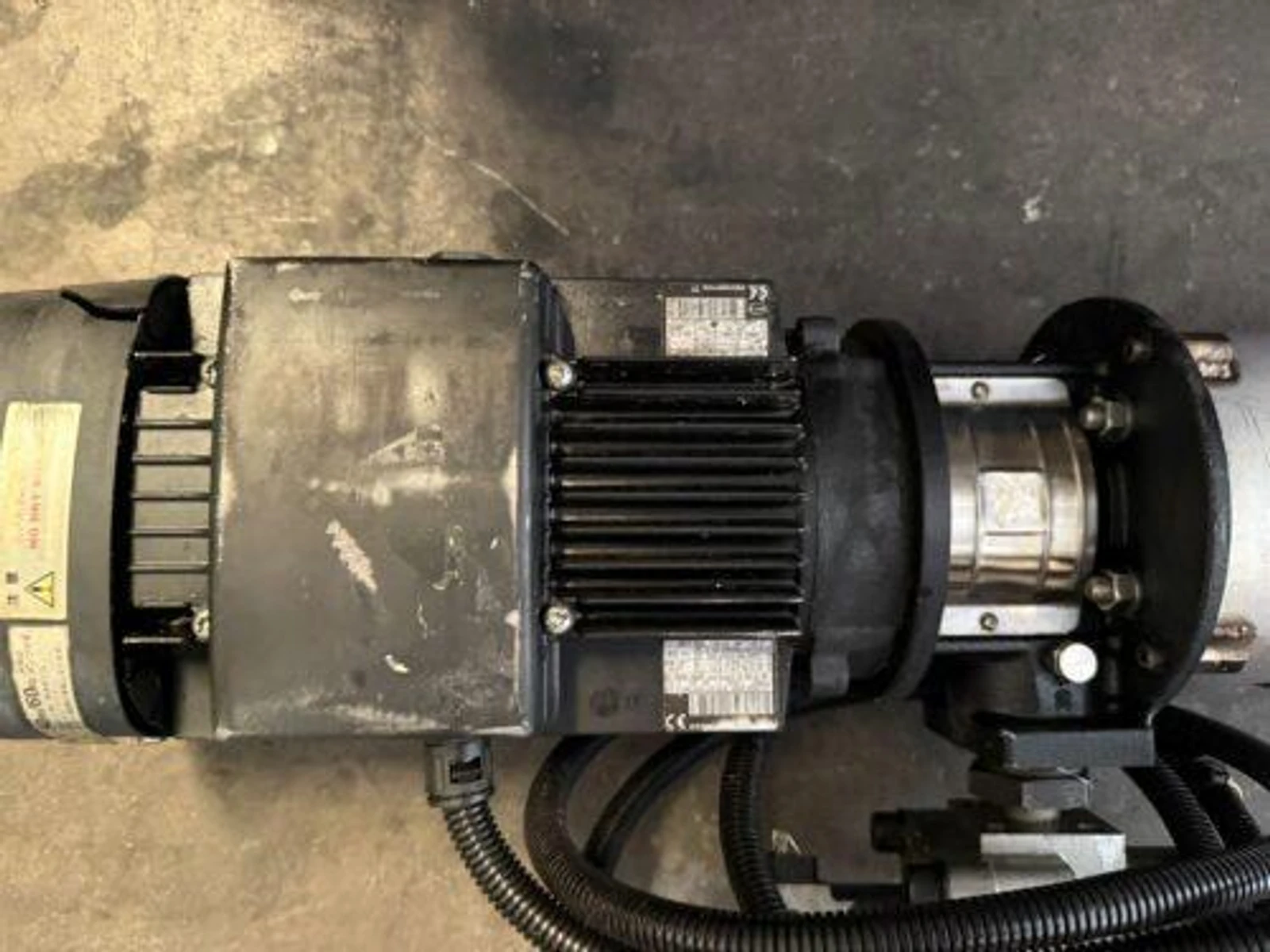

Through Spindle Coolant
40 Station Automatic Tool Changer
Powerful 30 HP high torque Spindle Motor
Spindle Orientation
Rigid Tapping
Spindle Chiller Unit
Automatic Lubrication System
Coolant System

Travels:
X-Axis: 31.5″
Y-Axis: 20.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

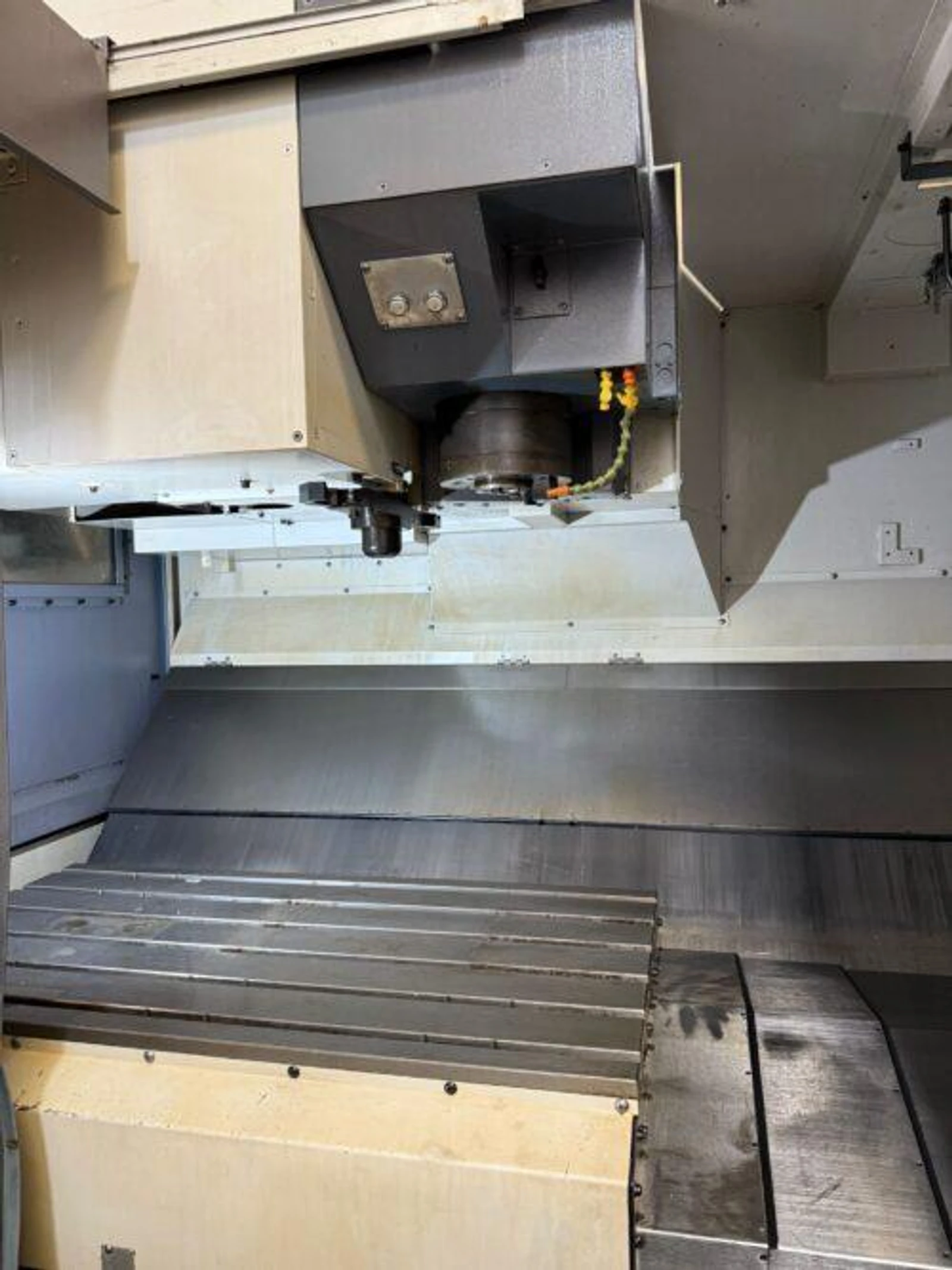

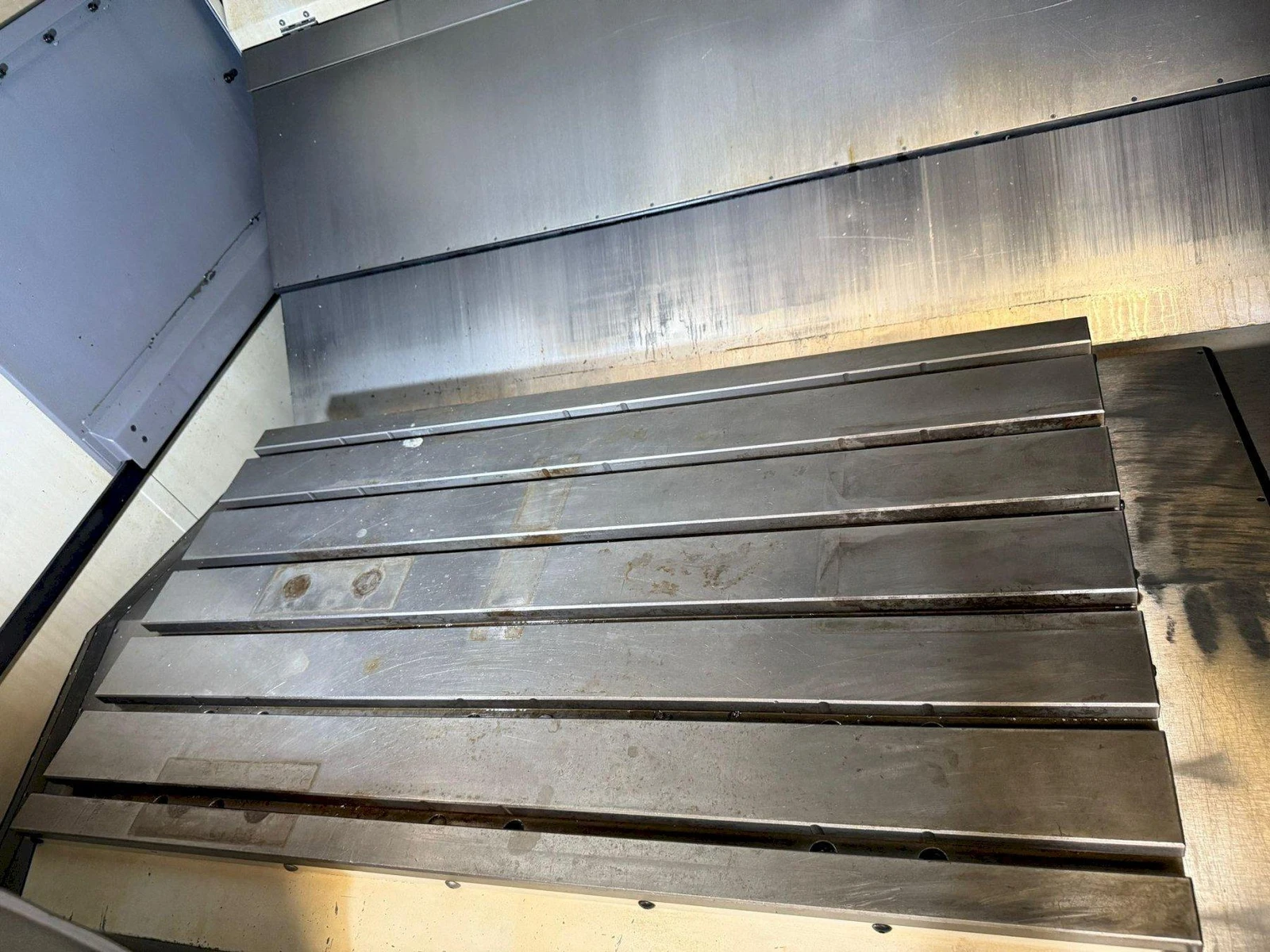

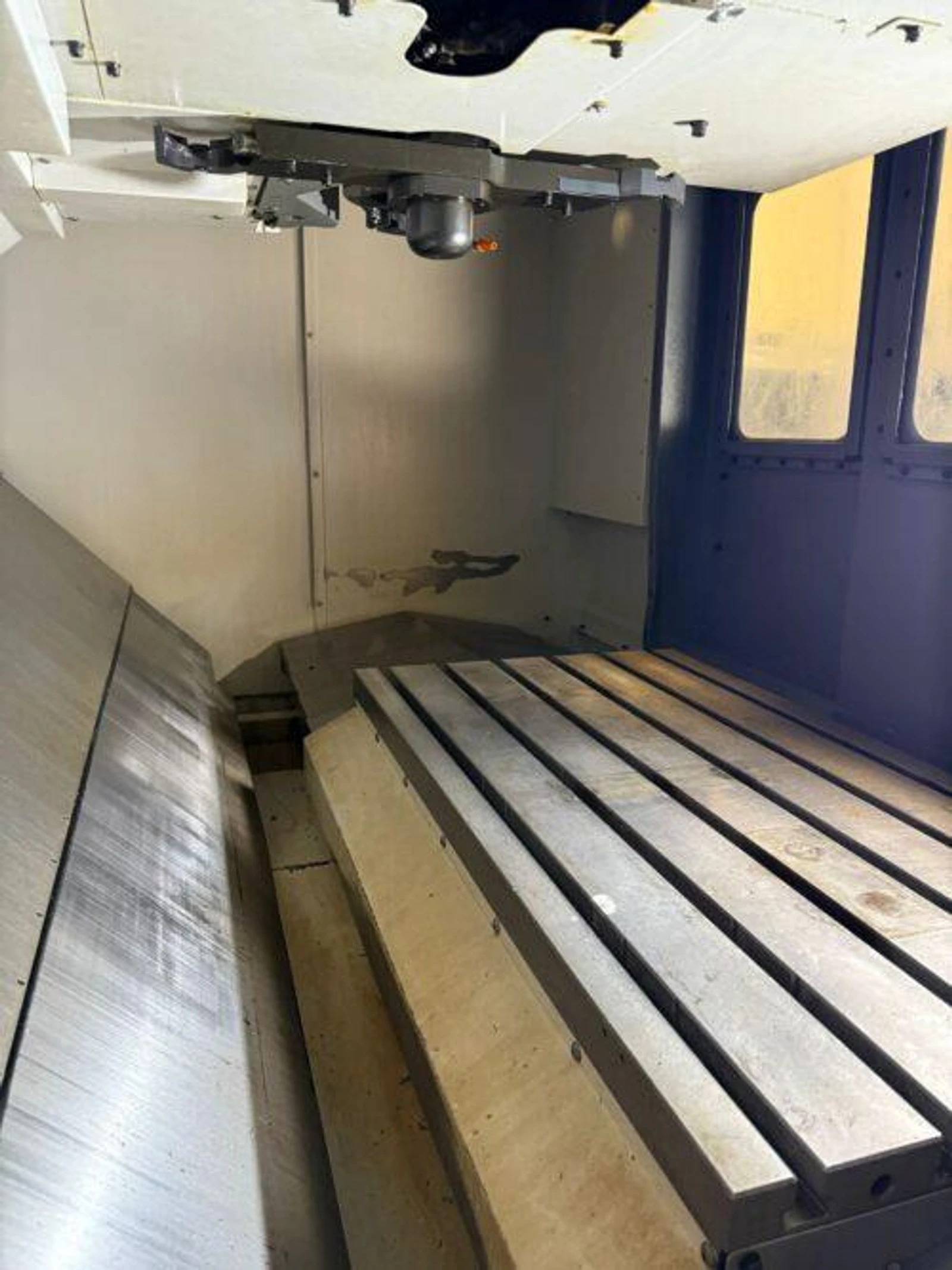

Table:
Length: 43.31″
Width: 23.62″
Max Weight on Table: 2200 lbs

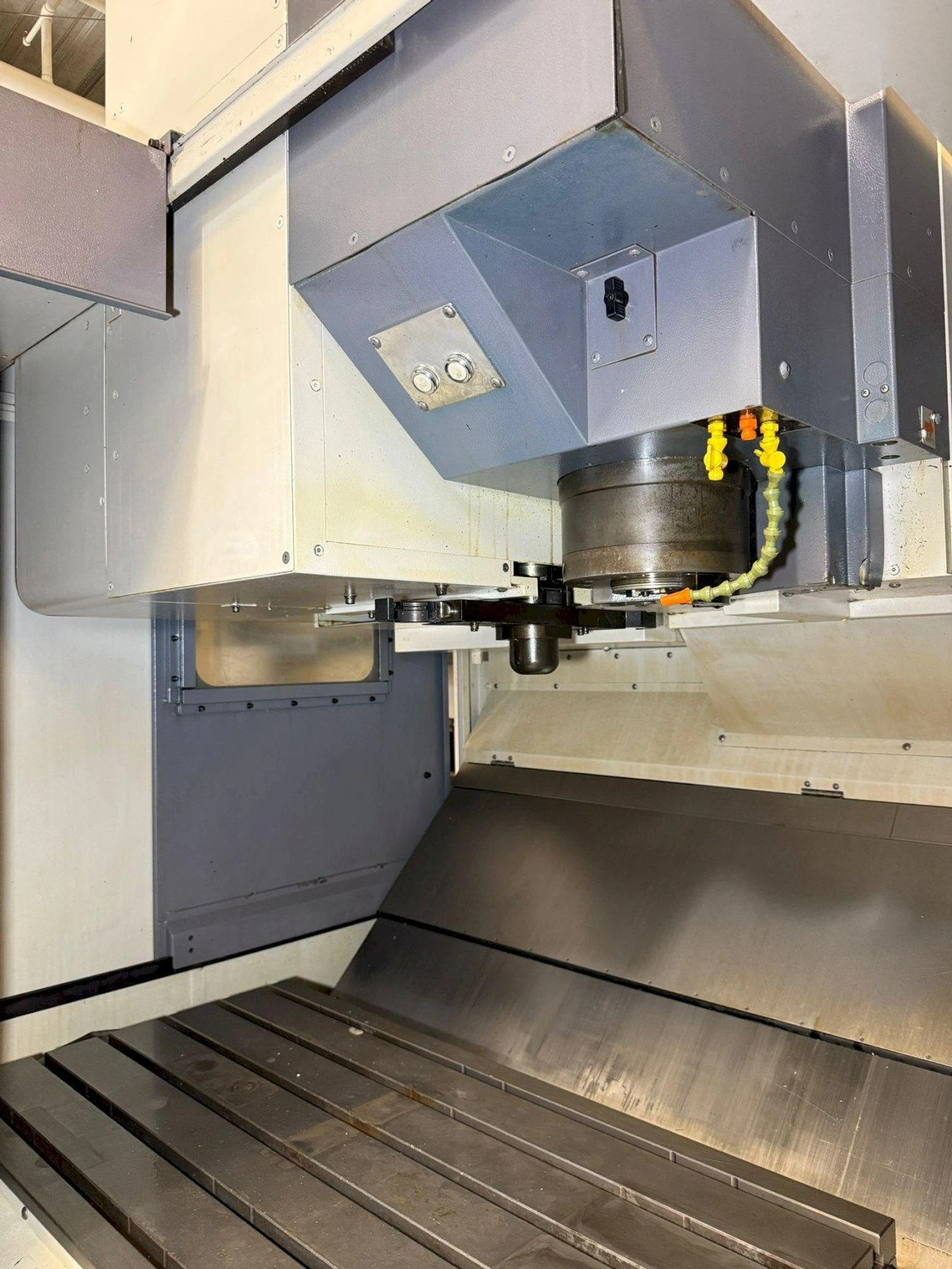

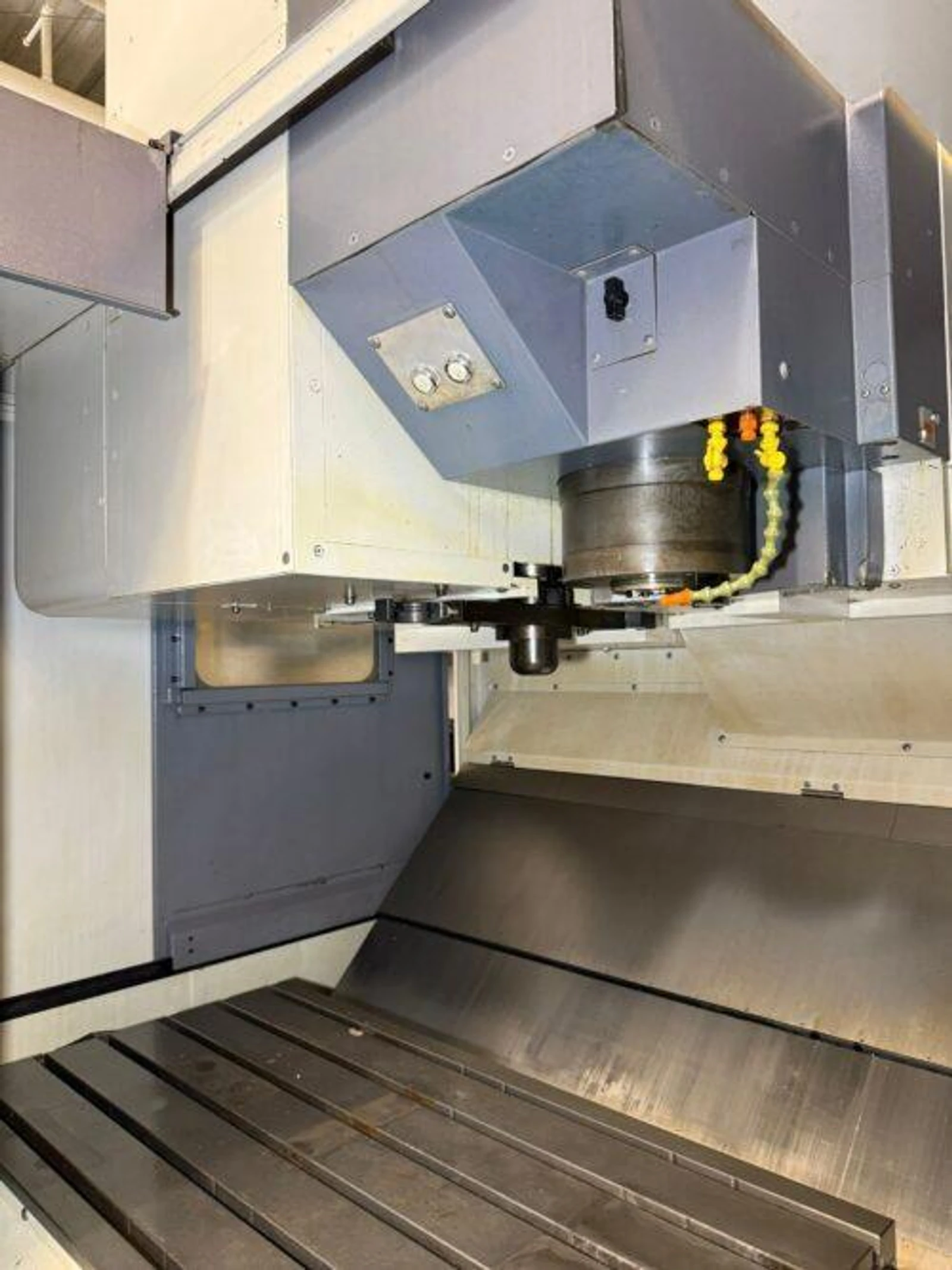

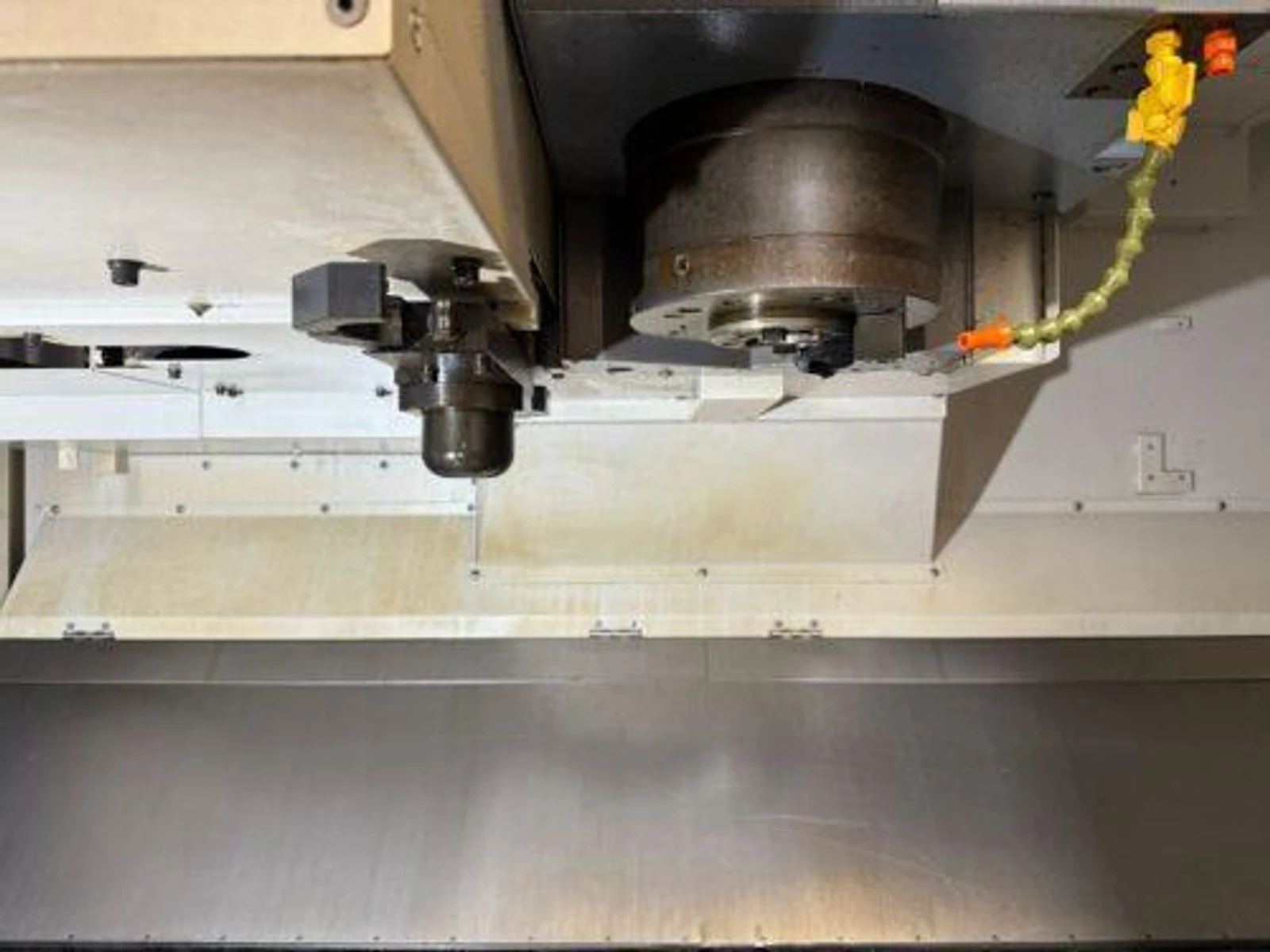

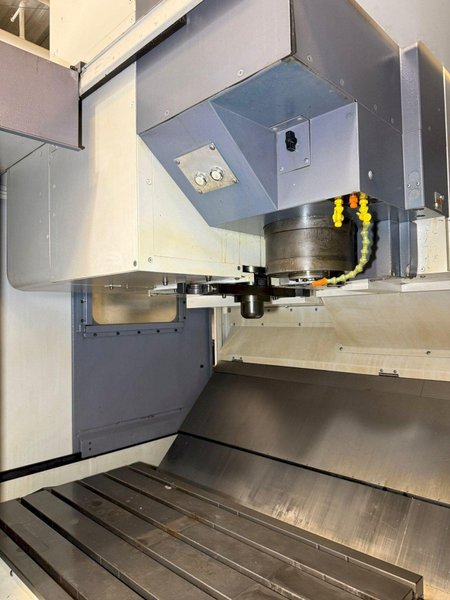

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Feed Rate:
Rapid X Y & Z: 1260 inch/PM
Cutting Feed rate: 630 inch/PM

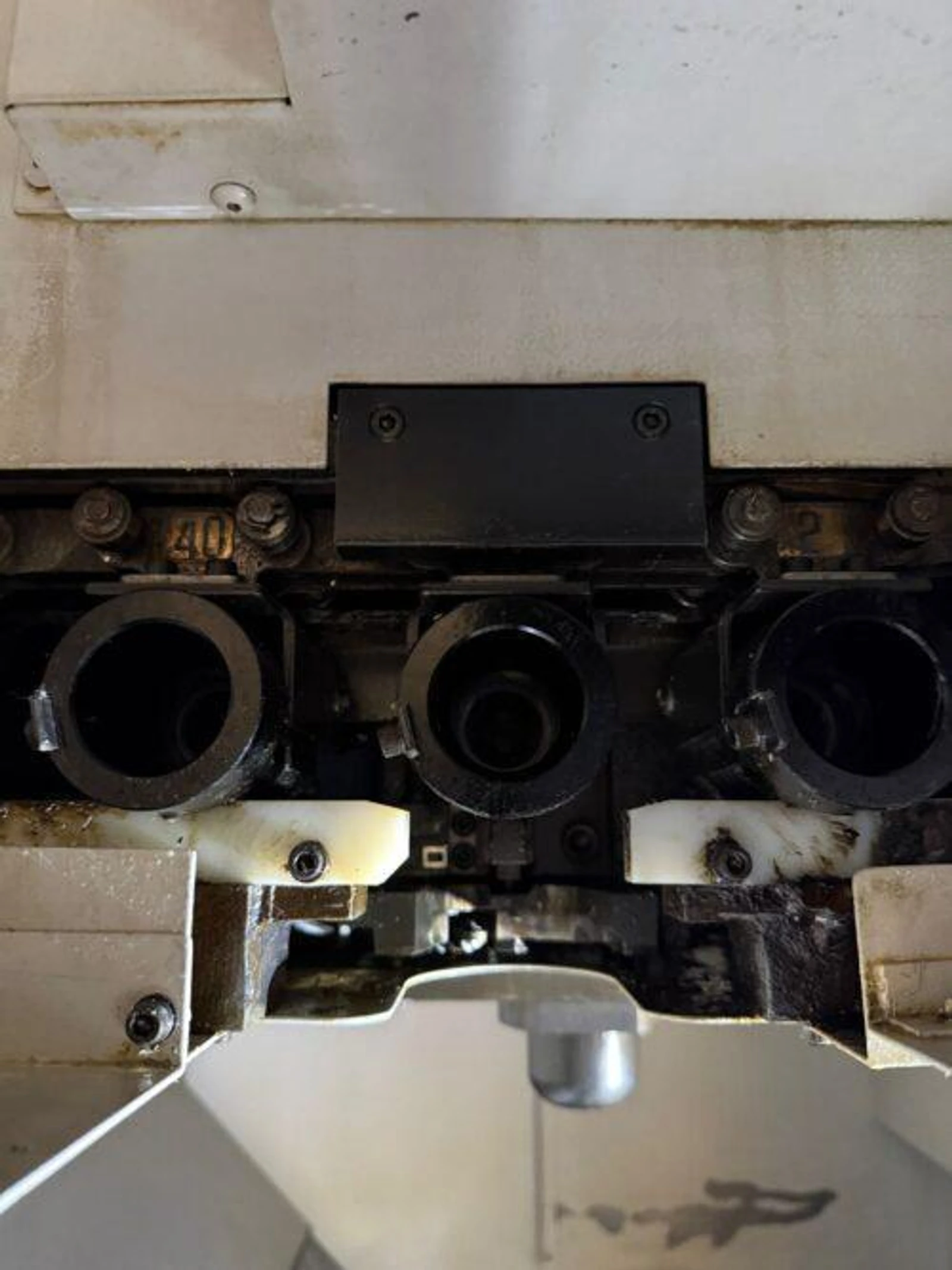

Automatic Tool Changer:
Capacity: 40 Tools
Max Tool Weight: 33 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″

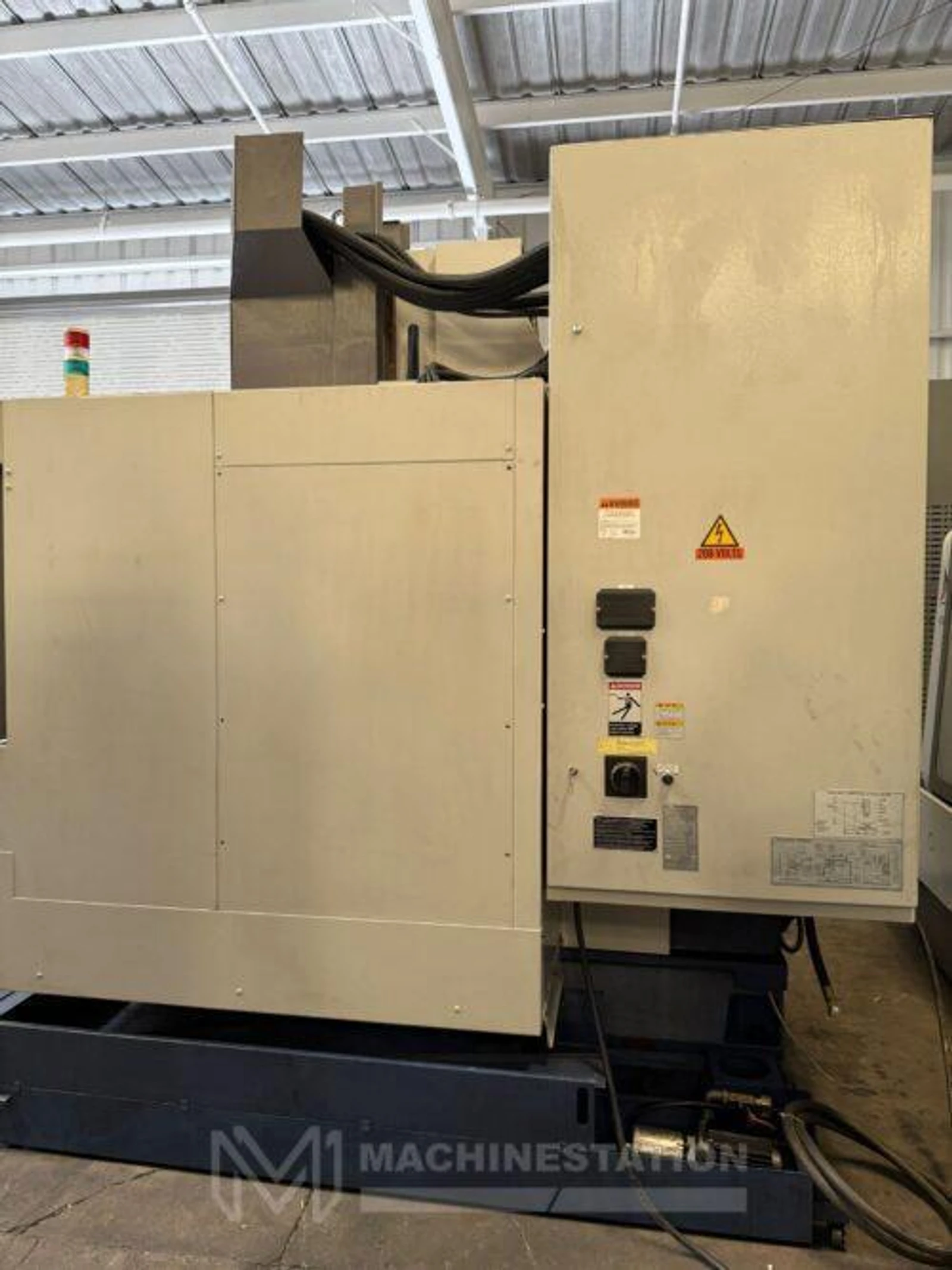

General:
Air Required: 80 psi 4 scfm
Power: 205-220v / 66FLA / 3-Phase / 55 kva
Overall Dimensions: 180″ L X 102″ W X 120″ High
Weight: 15,430 lbs

No files or videos to display
