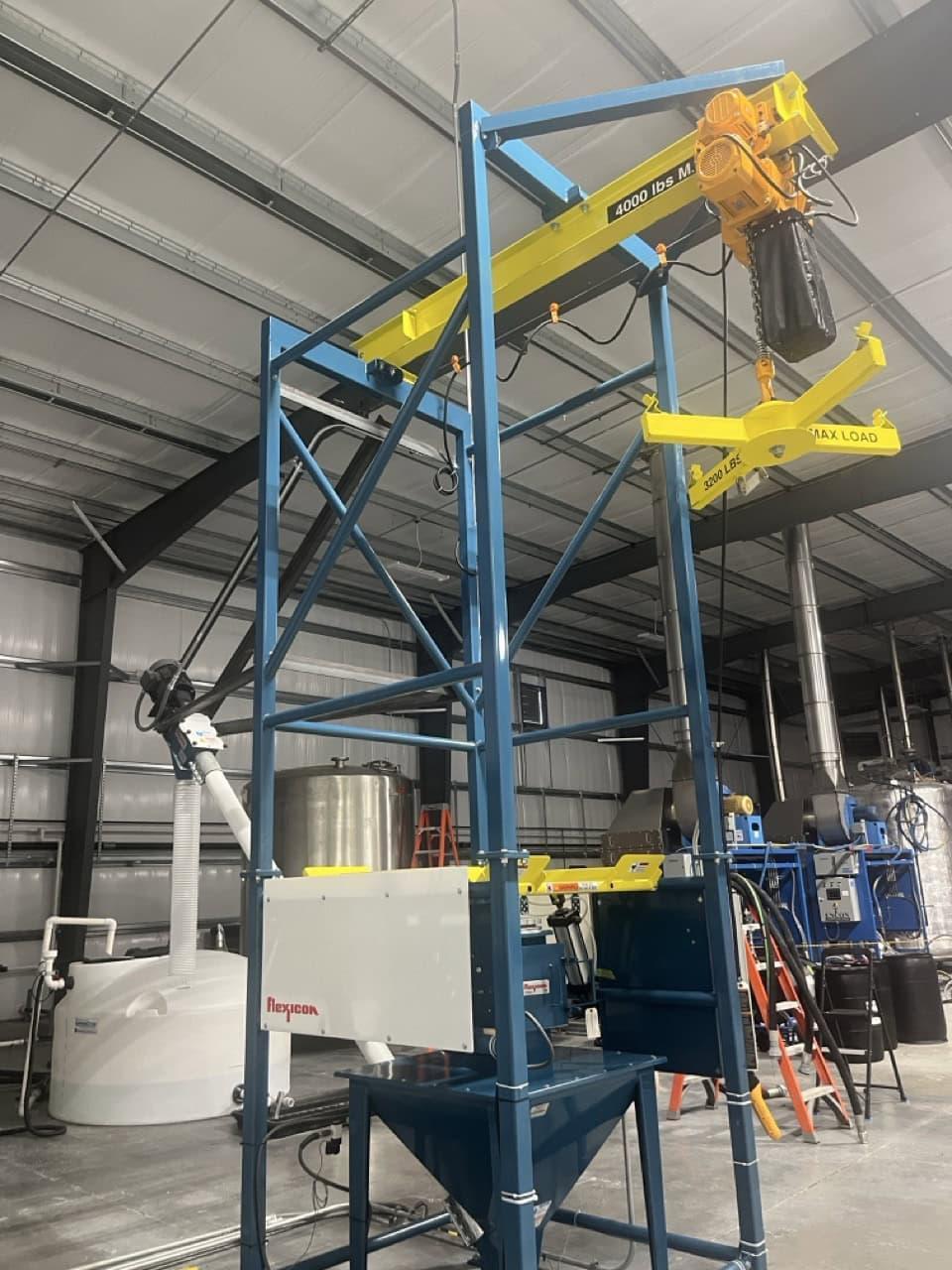

2024 Flexicon Bulk-Out Bulk Bag Unloader System with Inclined Screw Conveyor and Flow-Flexer Agitation

Specs: Capacity Bag Capacity: 3,200 Lb Bag Size: 32” x 36” flat (48” max when full), up to 72” high Hopper Volume: 9 Cu Ft Conveyor Length: 10 Ft

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Performance Lift Speed: 14 Ft/Min Hoist Motor: 2.4 HP Trolley Motor: 0.54 HP Conveyor Drive Motor: 3 HP, 1725 RPM, 3 Ph, 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Variable Speed Control Panel with VFD PLC-Governed Operation 4” Touchscreen HMI Jog/Off/Auto Switch for Agitator Adjustable Cycle Timing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accessories FLOW-FLEXER Agitation System Iris Valve – 12” Hopper Interface Chute with Snap Action Door Pneumatic Turbine Vibrator Proximity Level Switch Discharge Adapter Flexible Downspout (6” Dia x 4’ L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities Electrical: 230 VAC, 3 Ph, 60 Hz (motors), 24 VDC (controls) Pneumatics: 60–80 PSI for vibrator and agitation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions Footprint: Approx. 96” x 75” Hopper: 36” Square x 42” High Overall Height: ~199”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installed Options FLOW-FLEXER Agitation Pneumatic Vibrator Touchscreen HMI Control Panel Flexible Downspout

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feature Spotlight Cantilevered I-beam with electric hoist and trolley Bulk bag interface chute with dust-tight access Integrated vibration and agitation for poor-flow materials Fully enclosed and reinforced flexible downspout
