E-Pack Hot Fill Line for Jams and Jellies, 2023 – With Piston Filler, Spindle Capper, Open Frame Labeling System

Used E-Pack Hot Fill Line for Jams and Jellies, 2023 – With Piston Filler, Spindle Capper, Open Frame Labeling System:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Previous use: hot filling 1.5oz jars with metal caps and 6oz jars with metal lug-style caps with jams and jellies at 185F, pulling from a 100 gallon kettle at a rate of 10-15 jars per minute.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Line includes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

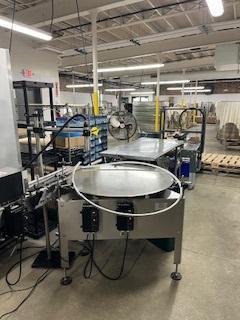

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,40″ Loading Turntable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 304 stainless steel top

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 304 stainless steel frame construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Standard line height 32″-38″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Clockwise or counterclockwise rotation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Single rail system with HDPE bottle contact surface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Tool-less adjustable rail brackets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Variable speed controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

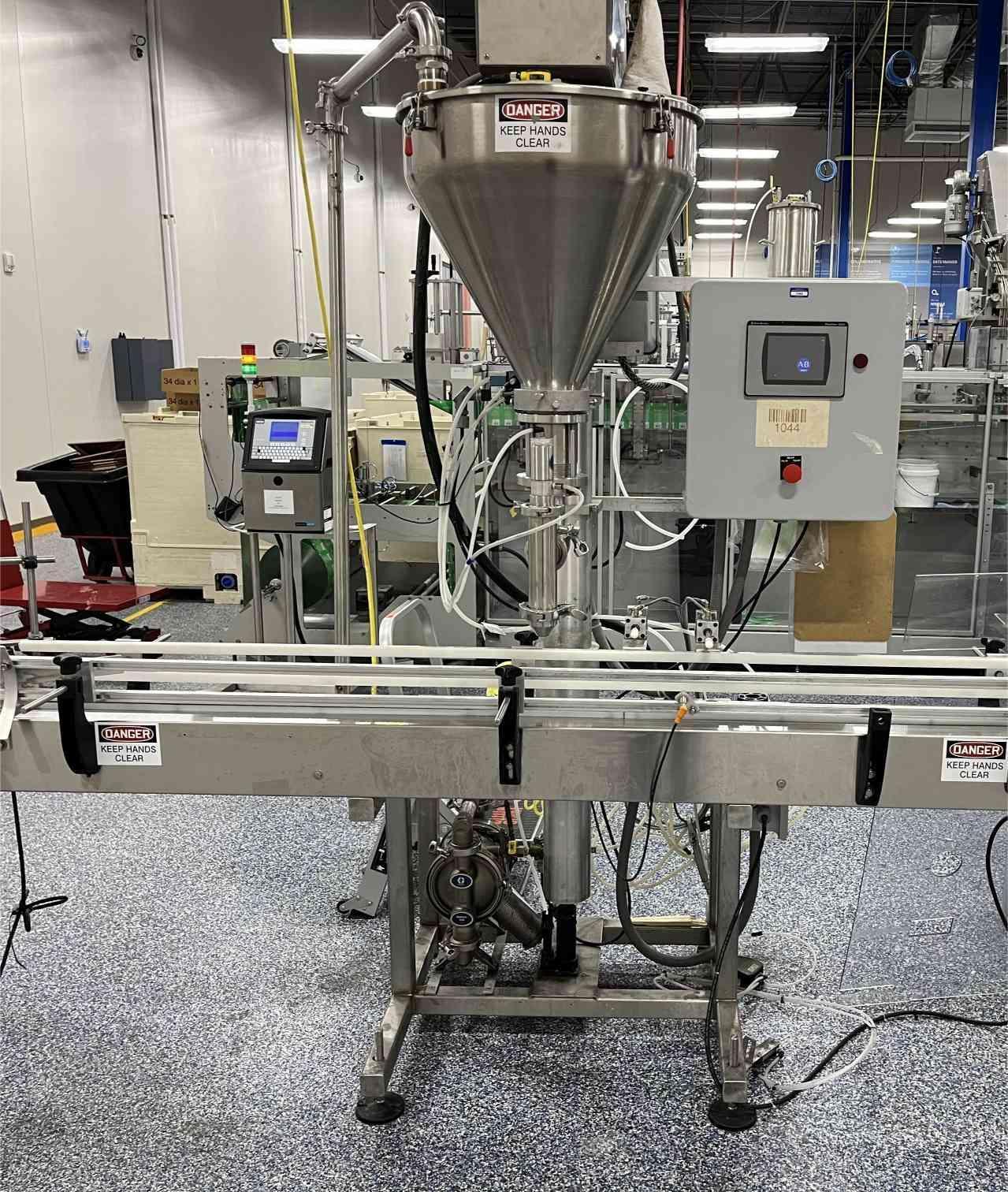

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(2) Single Head Sanitary Piston Fillers Model FPV-1025

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Fills thin, thick, and/or chunky liquids

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Total fill range 15ml-250ml (.5oz-8.5oz)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Recommended fill volume 50ml-250ml (1.7oz-8.5oz)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Stainless steel base and product cylinder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Remote-mounted 3/8” bottom close nozzle with silicone tubing and tri-clamp fitting

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 316 stainless steel food grade contact parts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Silicone O-rings & gaskets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Includes a complete set assembled in the machine & (1) complete extra set for changeover

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Fill volume adjustment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Product suction and dispensing speed adjustment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 9 gallon 316 stainless steel hopper with lid

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Direct draw kit for hot products: Enables the operator to draw thinner products directly from a bulk reservoir (tank, vat, drum) directly into piston filler. This eliminates the need to regularly fill the machine mounted hopper with product. Simply remove the hopper and attach the hose. Kit includes: – (2) Sanitary Tri-clamp, quick-disconnect fittings – 6ft FDA approved hot product fill hose good to 200+ oF

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Approximate dimensions:  11″ W x 37″ L (base only)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Requires 2-6CFM @ 90PSI clean, dry, compressed air

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automation Package, no remote fill head included:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Stainless steel stand with height adjustment & castors to accommodate 2 fillers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Automatic pin indexing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Photo sensor counter system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Fill head tube extension for proper positioning over a conveyor for each filler

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 115V/1ph/60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,10’ Sanitary Filler Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 304 sanitary stainless steel shell construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 4.5″ wide Delrin chain belt

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Standard line height range 32-38″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Single stainless steel rail system with HDPE wear strip

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Tool-less adjustable rail brackets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Variable speed controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Wash-down duty motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

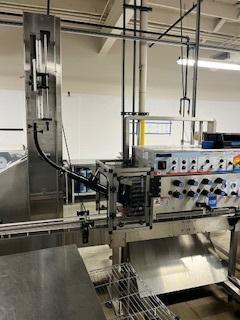

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic 4-Station Spindle Capper

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 304 stainless steel frame construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Independent base designed to mount over existing conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 304 stainless steel and anodized aluminum internal components

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Cap sorting elevator, stainless steel with 10″ wide cleated belt & narrow hopper

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Cap chute, 304 stainless steel & anodized aluminum, tool-less for ease of changeover

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Automatic full chute sorting device pause

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Variable speed drive controls for spindle wheels and gripper belts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Independent pneumatic clutch torque control for 2nd, 3rd & 4th spindle set, adjustable during operation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* First spindle set is reversible, for starting caps prone to cross-threading

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Power height adjustment on capping unit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Single, opposing ½” gripper belts, adjustable vertically and horizontally

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Cap stabilizer to assist in starting caps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Short guarding with interlocking entry door only

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Standard caster wheels

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Stainless steel leveling legs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 80-100psi compressed clean dry air

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 115V/1ph/50-60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,15’ Sanitary Capper Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 304 sanitary stainless steel shell construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 4.5″ wide Delrin chain belt

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Standard line height range 32-38″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Single stainless steel rail system with HDPE wear strip

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Tool-less adjustable rail brackets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Variable speed controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Wash-down duty motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Series 3 Open Frame Labeling System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Series 3 “Open Frame” Base: Robust stainless steel welded tubular frame & with electronics mounted on easy access drawers inside the machine base. Non-scuff locking castors & stainless steel leveling feet. Standard Line Height: 32” Min. up to 38.5”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Series 3 Touch Panel Controller: Swivel mounted; easy to use touch panel controller that can operate up to two (2) label heads. Controller activates all labeling modules. Easily accessible from both sides of the product conveyor. Controller can also store up to 100 product set-ups and recalled at the touch of a button.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Stainless-steel Product Conveyor: 4.5″W x 10’L: All motorized modules which are fitted to Tronics labelers are synchronized to the main product conveyor. Conveyor includes standard a servo motor drive (30mpm: Able to transport products weighing up to a total of 100lbs). Durable Delrin slat chain belt, tool-less adjustable height & width conveyor rails for rapid setup and changeover of different sizes of products. Note: The servo motor drive is a rugged gearbox, there are not and chains, belts, or sprockets to wear prematurely.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Product Spacer Wheel: Fully synchronized variable speed AC Drive Product Spacer Wheel. Ideal for inexpensive and flexible spacing of products. (Includes tool-less adjustment for varying width/diameter products).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Label Head (max. label web up to 8.5″H RHS): Fully synchronized stepper driven label head accurate up to + or – 1/32″ with tool-less vertical, horizontal, & 4-Way tilt adjustment. Includes durable solid stainless-steel shafts with reference scales for fast repeatable setup and changeovers. (Typically runs a No. 4 Unwind Label)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Standard Wrap Module (max. label up to 5.5”H x 18.5”L): Fully synchronized stepper driven Wrap Assembly with tool-less vertical height adjustment and tool-less “wind-in & wind-out” Teflon covered foam backing pad. All shafts are constructed of solid stainless-steel shafts with gradient scales for quick repeatable setup and changeover. (Used for wrapping a single label around a product).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Cut Down Wrap Belt & Backing Pad

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Adjustable height from 32” – 38.5”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* If required, Air: 30PSI & 5-10CFM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 120VAC/1ph/20 amps (some features may require 30 amps)
