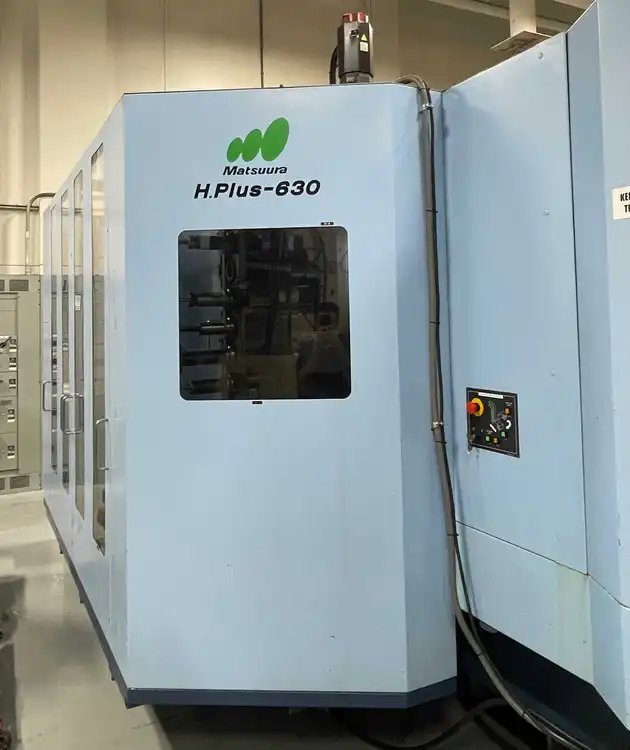

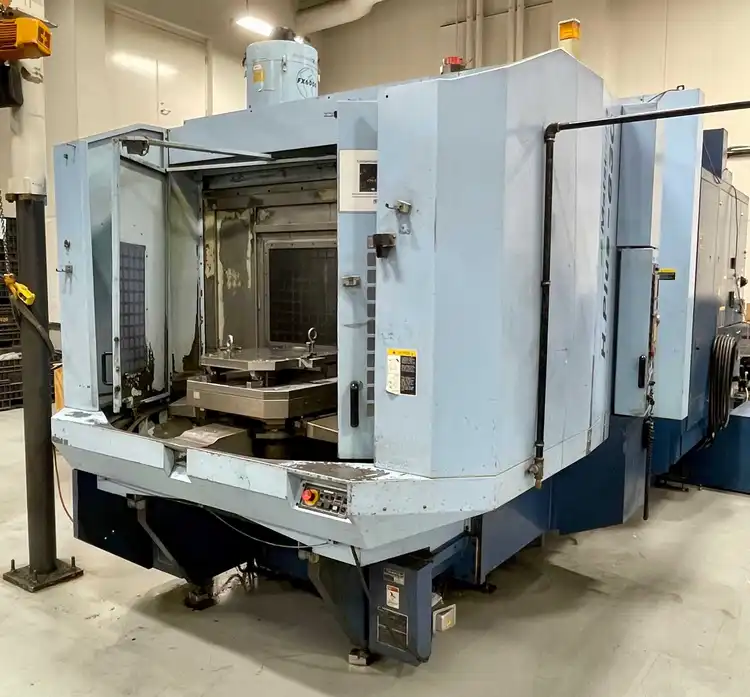

2007 MATSUURA H.PLUS-630 | Machining Centers, Horizontal

Brand
MATSUURA
Category
Machining Centers
Type
Machining Centers, Horizontal
Model
H.PLUS-630
Stock #
33921
Year
2007
Condition
Not specified

Location

Not specified
REQUEST FINANCING

2007 Matsuura H-Plus 630
25" Pallets, 41" x 36" x 39" Travels, 12K RPM, CT50, 50 HP, 60 ATC
Fanuc G-Tech 30L CNC Control, B-Axis, Probing & More

X-Axis1,050 mm41.339"
Y-Axis920 mm36.221"
Z-Axis990 mm38.976"
RPM12,000 RPM12,000 RPM
# ATC6060
TaperBT50BT50
Pallet-W630 mm24.803"
Pallet-L630 mm24.803"
# Axis33

Matsuura H-Plus 630 Dual 24" Pallet Horizontal Machining Center
New: 2007

Specifications:

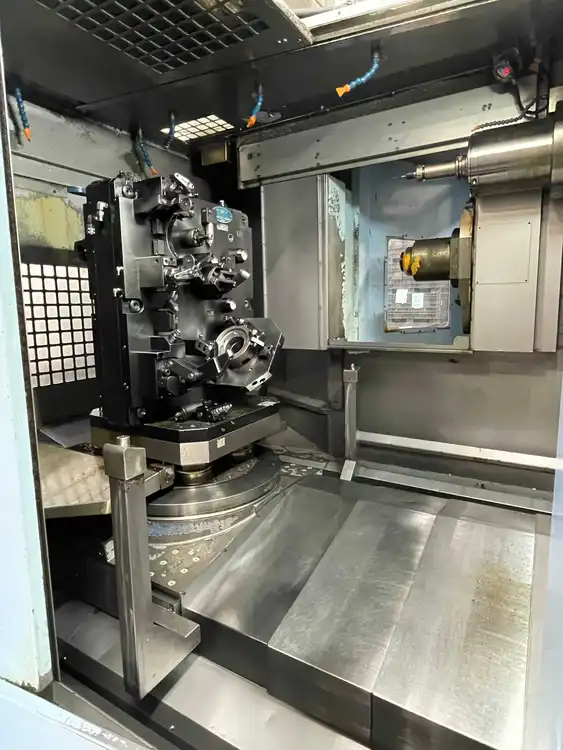

Pallet Size (2 Pallets): 24.8" x 24.8"
Pallet Indexing: 0.001 degree
Maximum Load On Pallet: 2600 Lbs
Travels:
X-Axis: 41.33"
Y-Axis: 36.22:
Z-Axis: 38.97"
Spindle Speed: 12,000 RPM
Spindle Taper: CT 50
Main Motor: 50 HP
Tool Changer Positions: 60 ATC
Rapid Traverse Rate: 2362 IPM
General Weight: 46,000 Lbs

Equipped With:

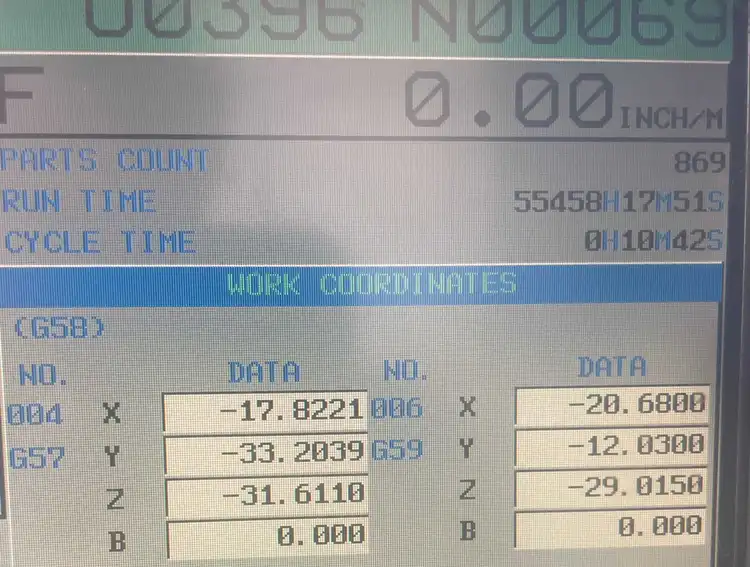

Fanuc G-Tech 30I 4-Axis Control
Full B-Axis

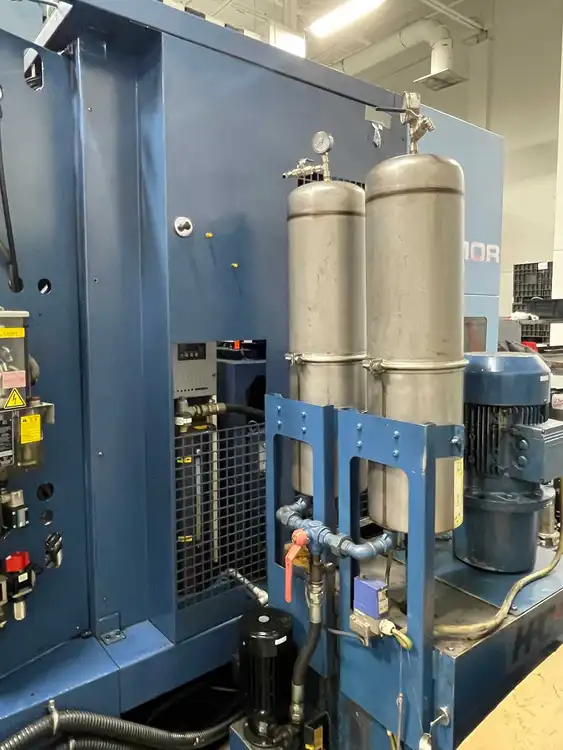

Spindle Chiller

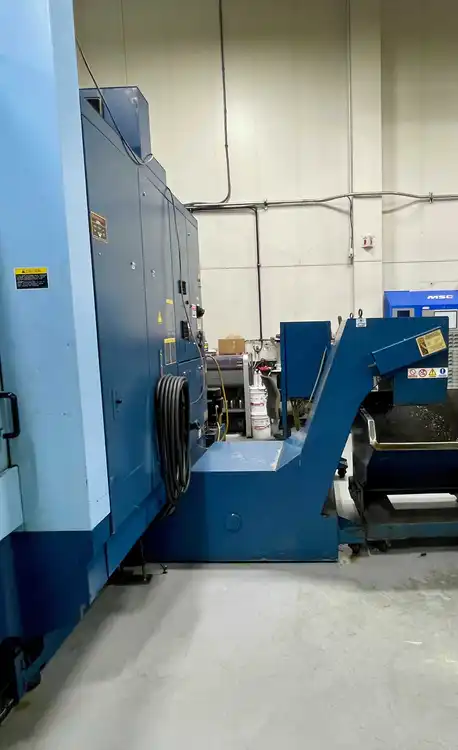

Chip Conveyor
Renishaw Probe
Auto Tool Length Measurement
Tool Breakage Detection
Through Spindle Coolant
High Pressure Coolant
Scale Feedback System

Fanuc G-Tech 30I 4-Axis Control
Full B-Axis
Spindle Chiller
Chip Conveyor
Renishaw Probe
Auto Tool Length Measurement
Tool Breakage Detection
Through Spindle Coolant
High Pressure Coolant
Scale Feedback System
