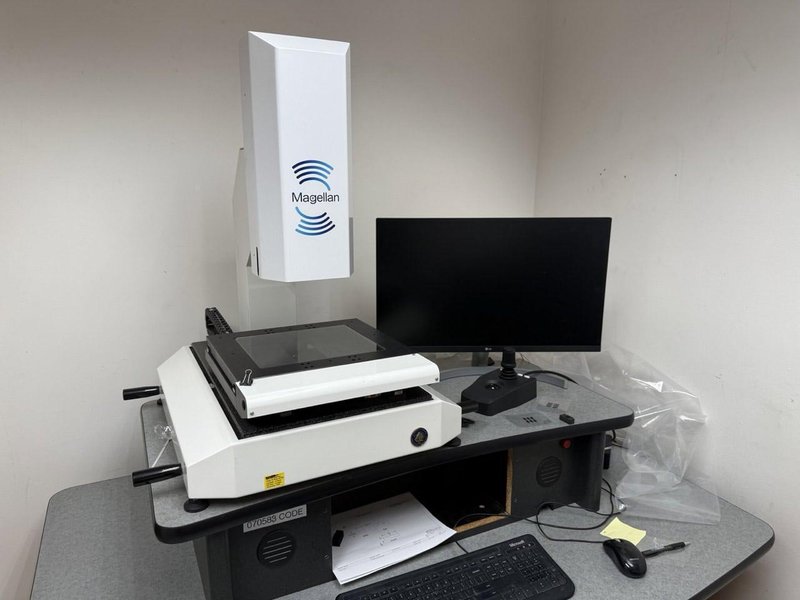

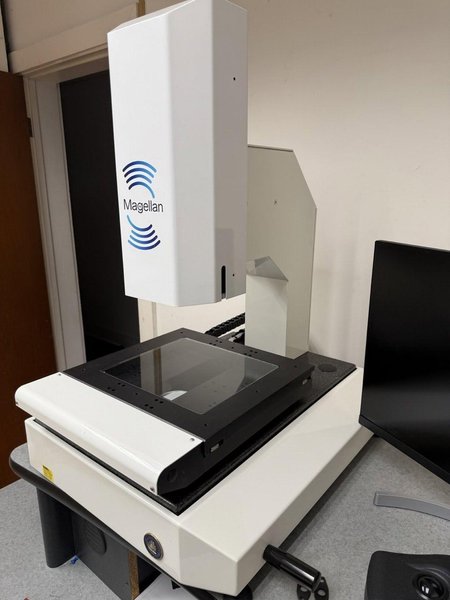

Magellan V200 CNC Visual Measuring System, 2023

FOV (field of view) video measuring machine

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measuring Range: X-axis: 8″ Y-axis: 6″ Z-axis: 8″ Machine Base: Bench Top Granite. Measuring Stage: Precision Mono-Rail Bearing. Control: CNC Technical Specifications Resolution: .0005mm/.00002” XY Accuracy: (3+L/100) micrometers Max Stage Load: 60 lbs 0x to 160x Par Central Motorized Zoom Lens

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Illumination: -Tele-Centric Profile LED -Quad Surface Ring Light -Proprietary VTL Inner Ring Light

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power: 110-240 VAC, 50-60Hz 70w

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Metlogix© Measuring Software

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-axis Travel: 8″ Y-axis Travel: 6″ With Heidenain

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
