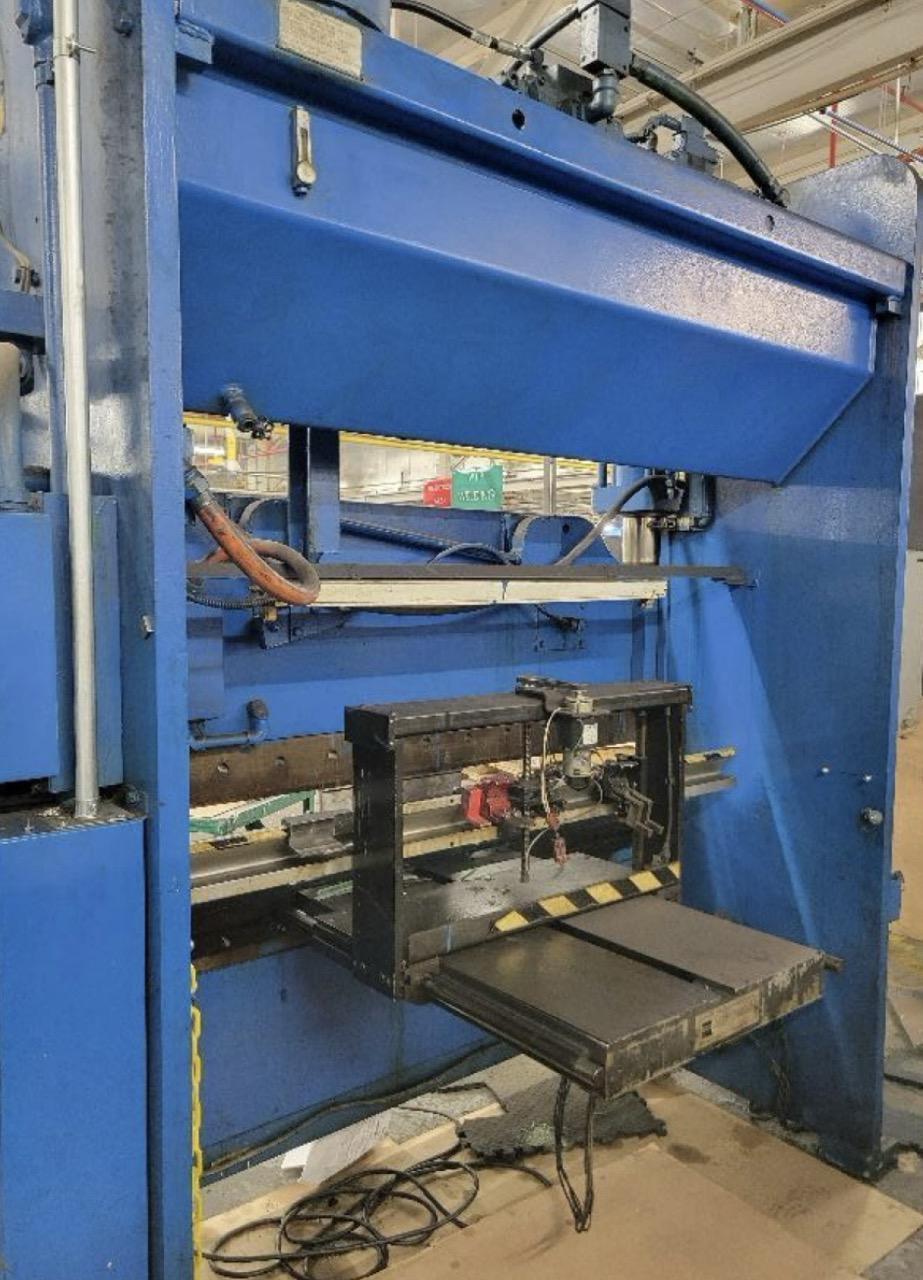

90 Ton x 6′ Cincinnati FormMaser CNC Hydraulic Press Brake, 1990s
Brand
Category
Type
Model
FormMaster
Stock #
665135
Year
1990
Condition
Not specified
Location
Not specified
|
Model: FormMaster 90FM
Tonnage: 90 Tons
Overall Bending Length: 72″ (6 Feet)
Distance Between Housings: 50″
Stroke Length: 8″
Open Height: 14″
Closed Height: 6″
Throat Depth: 8″
Ram Speed – Approach: 190 IPM
Ram Speed – Forming: 19 IPM
Ram Speed – Return: 165 IPM
Back Gauge Travel: 24″ (CNC Controlled)
Main Motor: 10 HP
Control System: Cincinnati FormMaster CNC (or PC-based Control)
Dimensions (L×W×H): Approx. 96″ × 48″ × 100″
Weight: 14,000 lbs
Power Requirement: 460V, 3-Phase, 60 Hz
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
