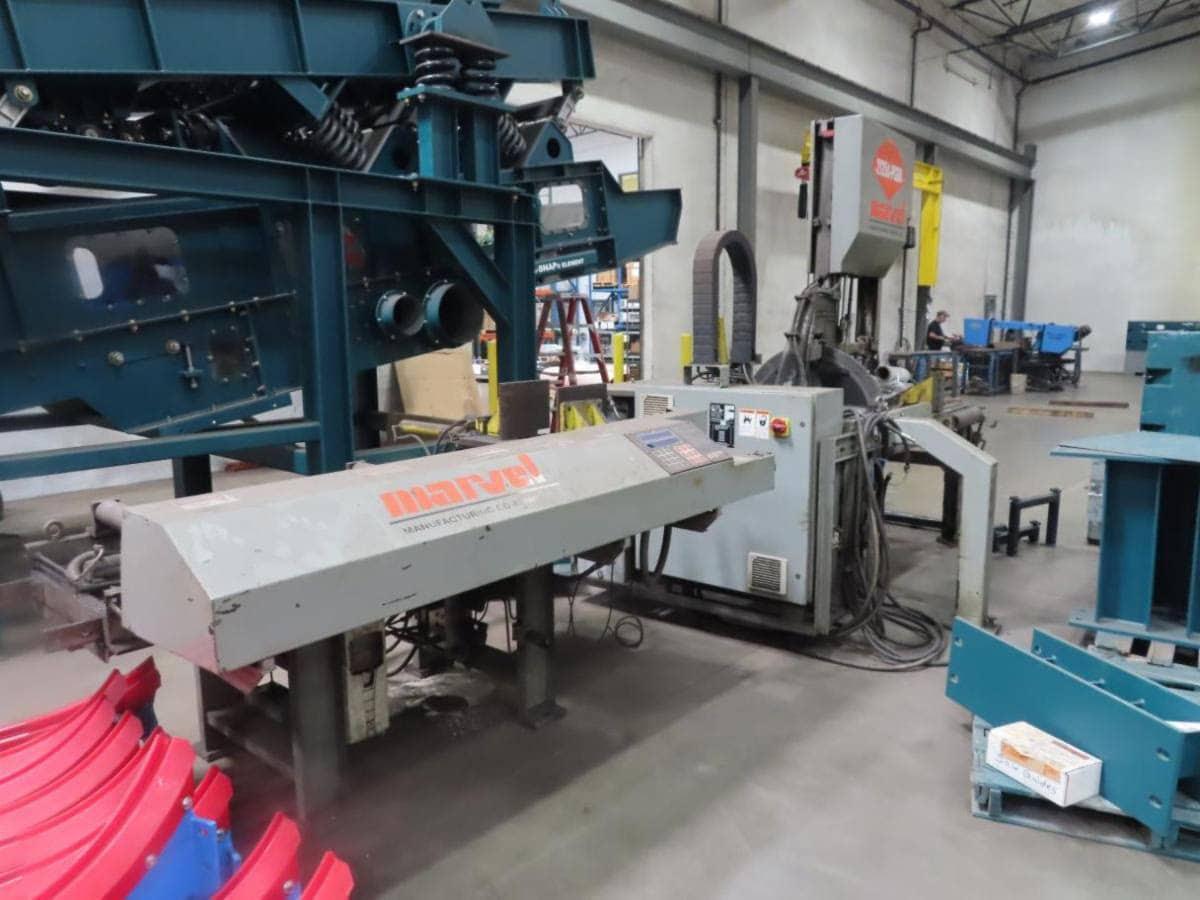

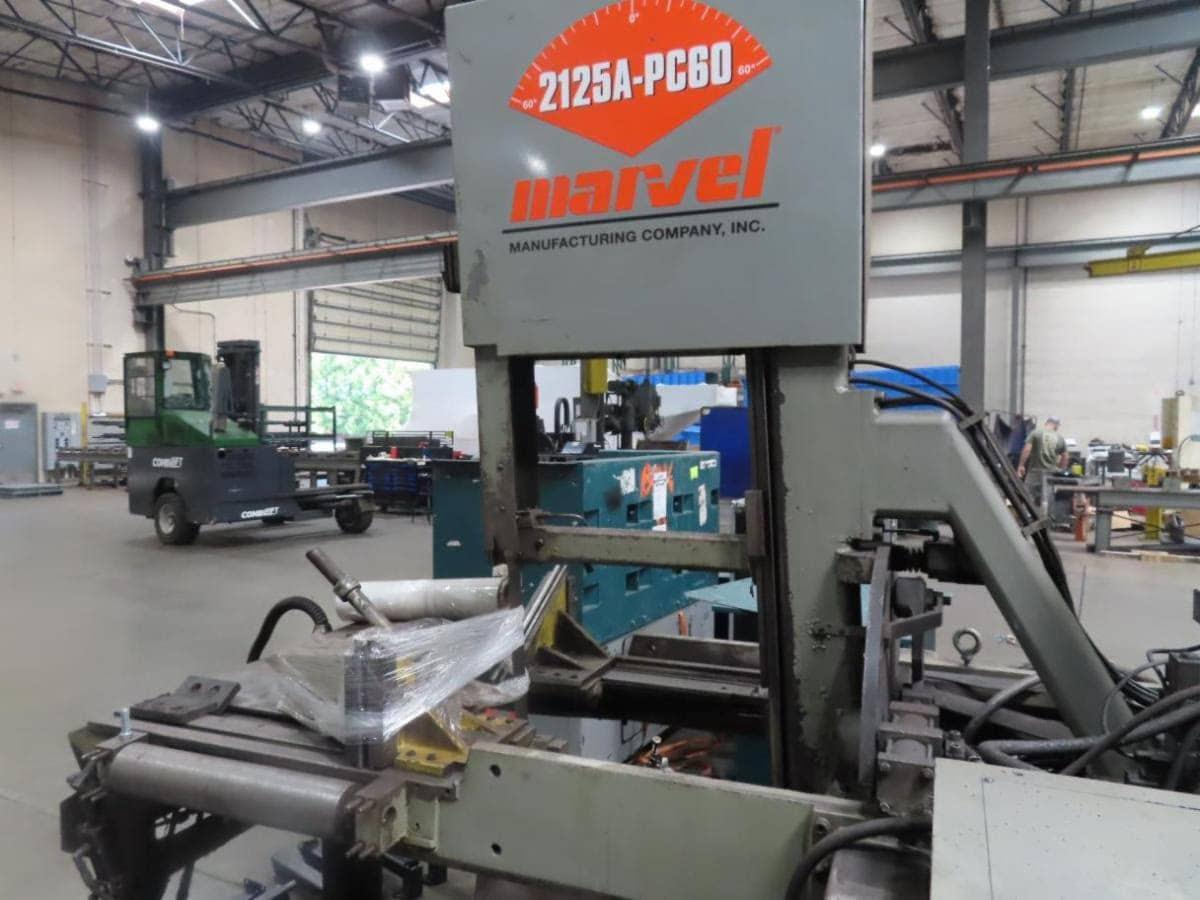

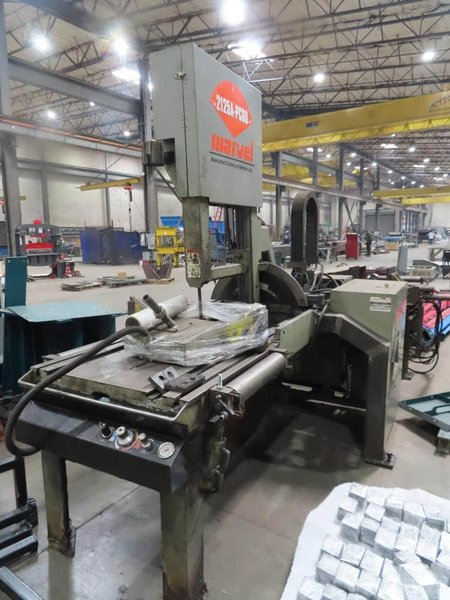

Marvel 2125A-PC60 Automatic Vertical Tilt-Frame Bandsaw, 2006

Model: 2125A-PC60 DOM: 2006 Electrics: 460 Volt, 3 Phase, 60 Cycle, 19.2 FLA Main Motor: 5 HP Features and Specifications:

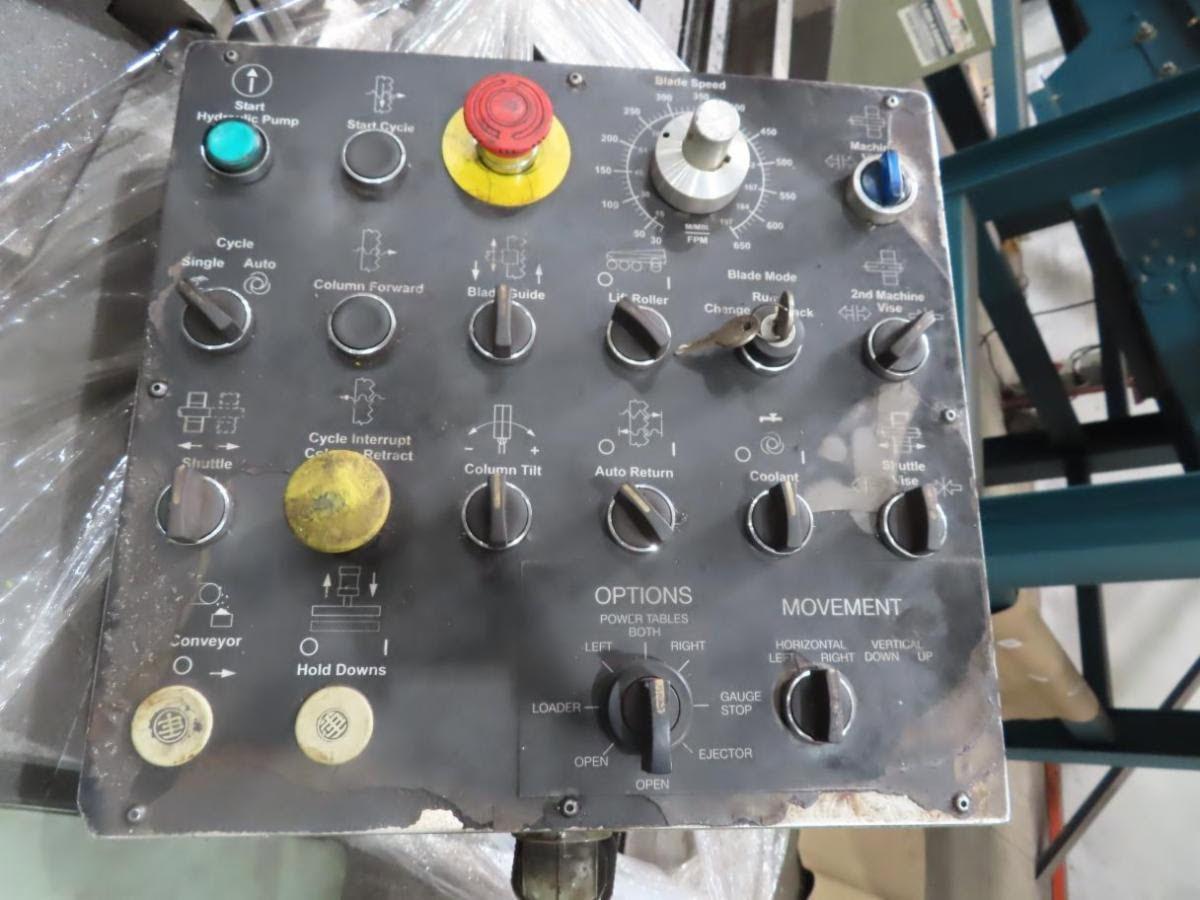

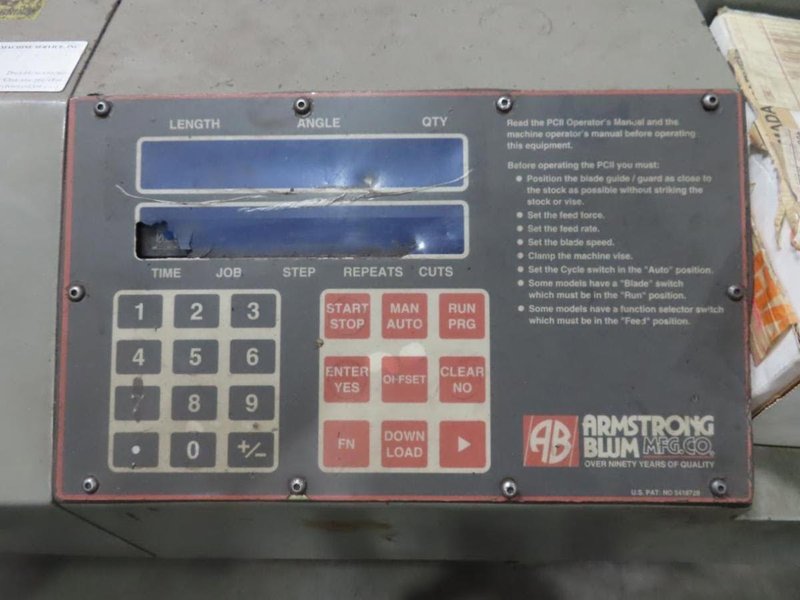

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– PCII Micro-Process Control – Operator Push Button Panel – Rectangular Cutting Capacities: – @ 90°: 20″ x 25″ – @ 45°: 20″ x 17″ – @ 60°: 20″ x 11.25″ – Round Cutting Capacities: – @ 90°: 20″ – @ 45 Degree: 17″ – @ 60 Degree: 11.25″ – Blade Size: 1.25” x 0.042” x 17’-6” – Blade Speed: 30 – 650 FPM – Feed Force: 0 – 350 lbs. – Band Wheel: 23.00” Ø – Table Load Capacity: 8,000 lbs. – Max. Vise Opening: 20.25” – Coolant System: – Capacity: 60 Gallons – Motor: 0.25 HP – Hydraulic System: – Capacity: 10 Gallons – Drive Motor: 3 HP – Pump Capacity: 7.8 GPM – Work Height: 38.00” – Feed Table: – Load Capacity: 14,000 lbs. – Shuttle Stroke: 24.00” – Column Tilt – Single or Automatic Cycle – Column Forward & Retract – Extra Blades – Spare Bearing Parts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Saw Machine Dimensions (approx.): 108” x 72” x 102”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Dimensions (approx.): 96” x 67” x 48”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight (approx.): 7,000 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,No Electric Feed function

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
