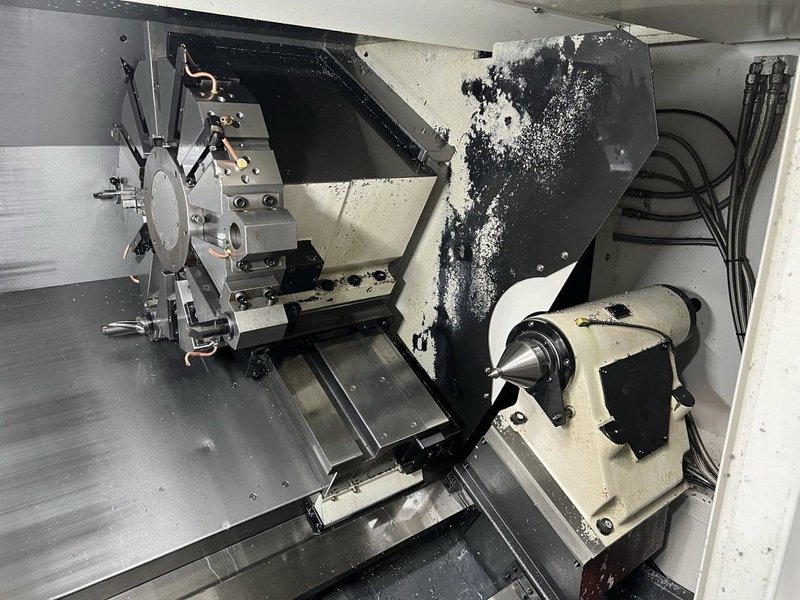

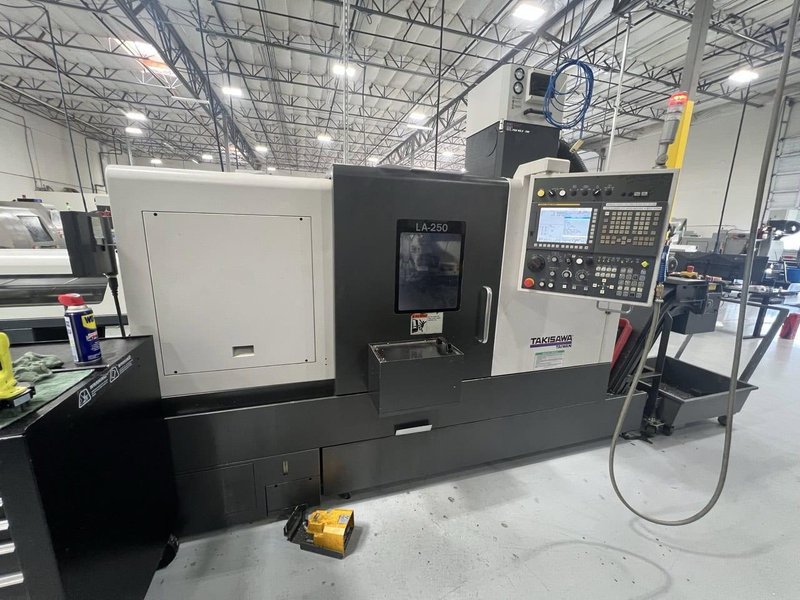

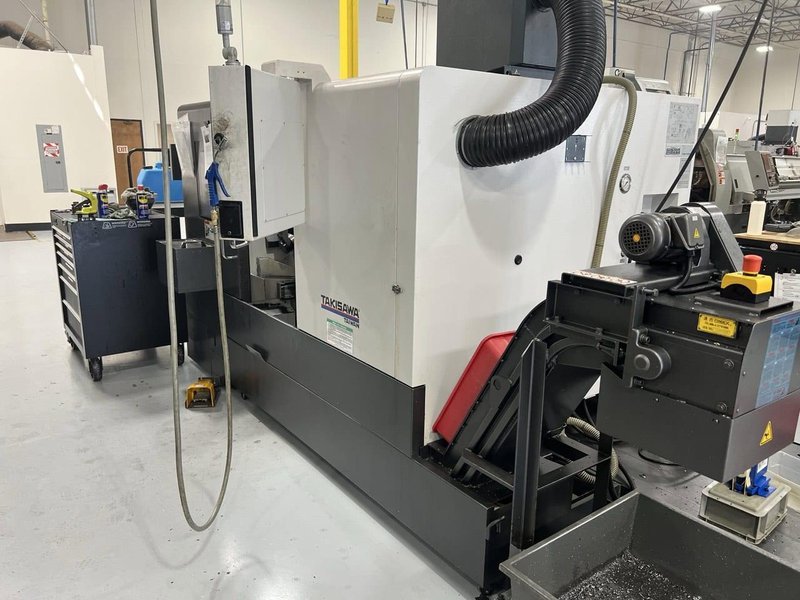

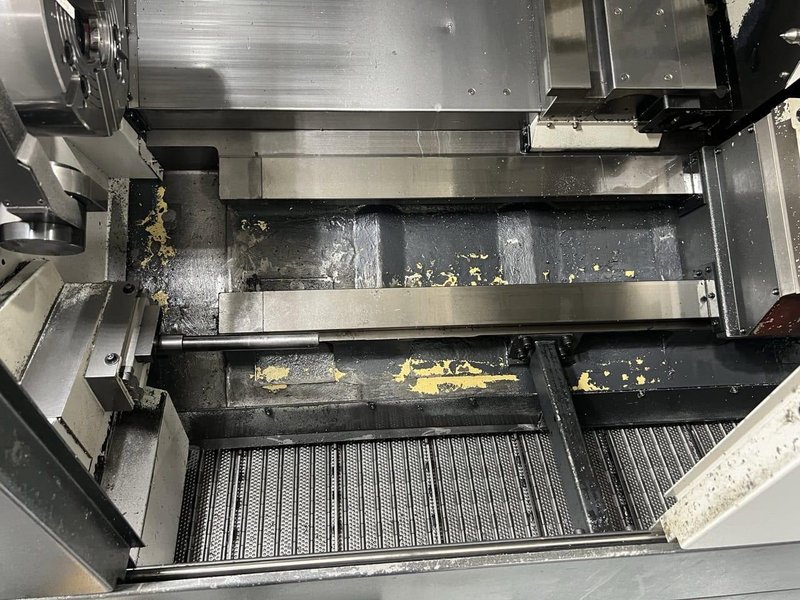

Takisawa LA-250 CNC Lathe, 2018 – Tailstock, Chip Conveyor, Parts Catcher

Distance Between Center: 34.6″ Chuck Diameter: 10″ Max Turning Diameter: 17.7″ Max Turning Length: 30.1″ Bar Capacity: 3″ X-Axis Travel: 10″ Z-Axis Travel: 31.5″ Spindle Speed: 3,500 rpm Spindle Nose: A2-8 Spindle Thru-Hole Diameter: 3.4″ Spindle Bearing Diameter: 4.7″ Turret: 12 station OD Tool Shank: 1″ square Diameter of Boring Bar Holder: 1-1/2″ Time of Tool Change: 0.6 sec Tailstock Stroke: 28.7″ Tailstock’s Shaft Stroke: 5.9″ Tailstock Taper: MT #5 Tailstock’s Shaft Hole Diameter: 4.3″ X-Axis Rapid: 630 ipm Z-Axis Rapid: 787 ipm Jog Feed Rate X-Axis: 0-50 ipm Jog Feed Rate Z-Axis: 0-50 ipm Spindle Motor: 25 / 20 HP

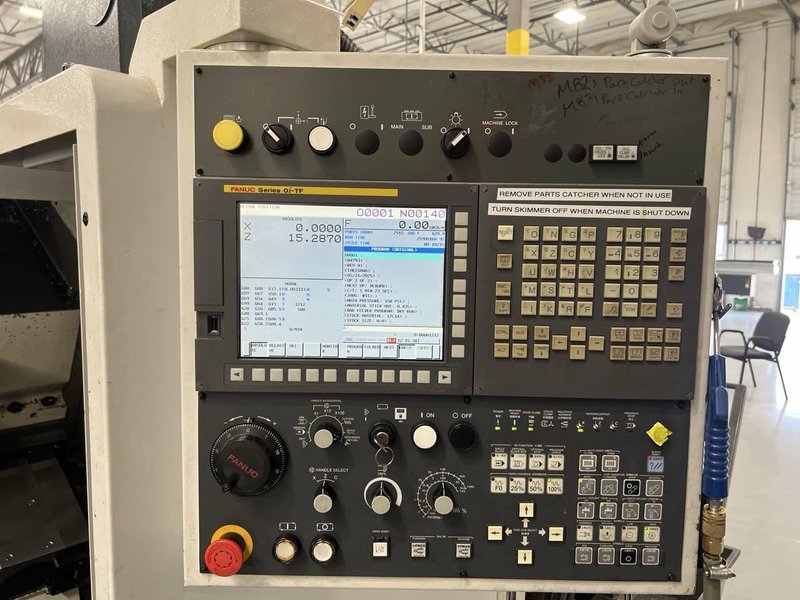

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 0i-TF Control Tailstock

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
