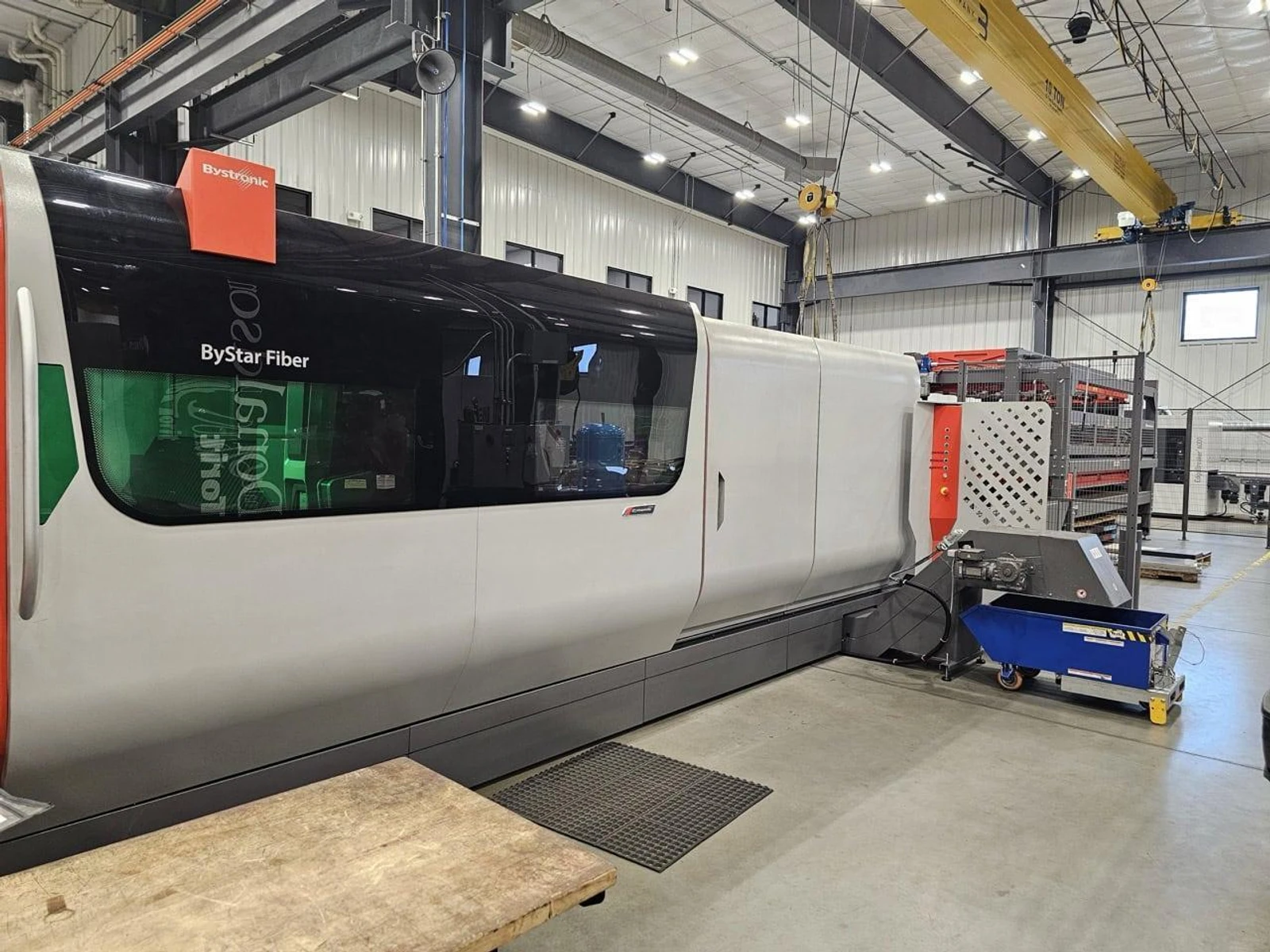

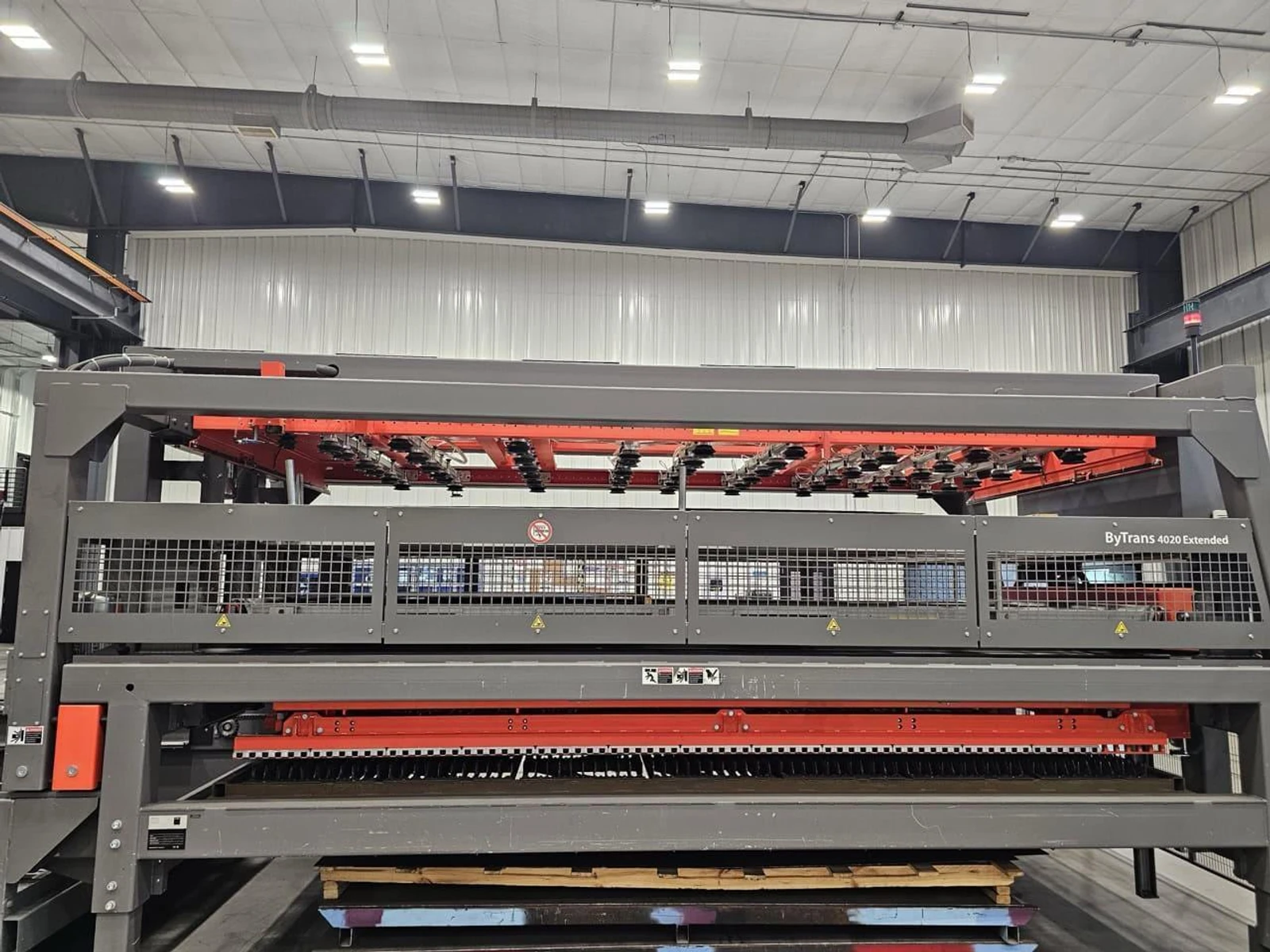

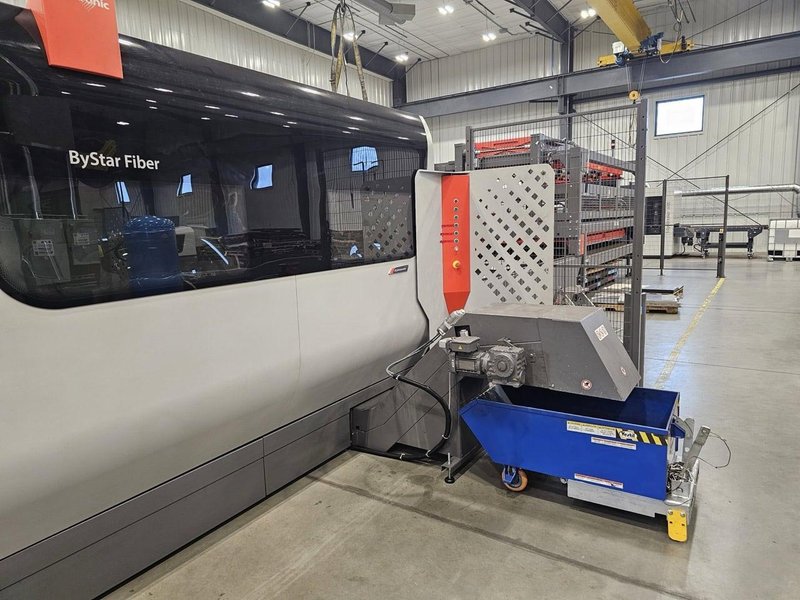

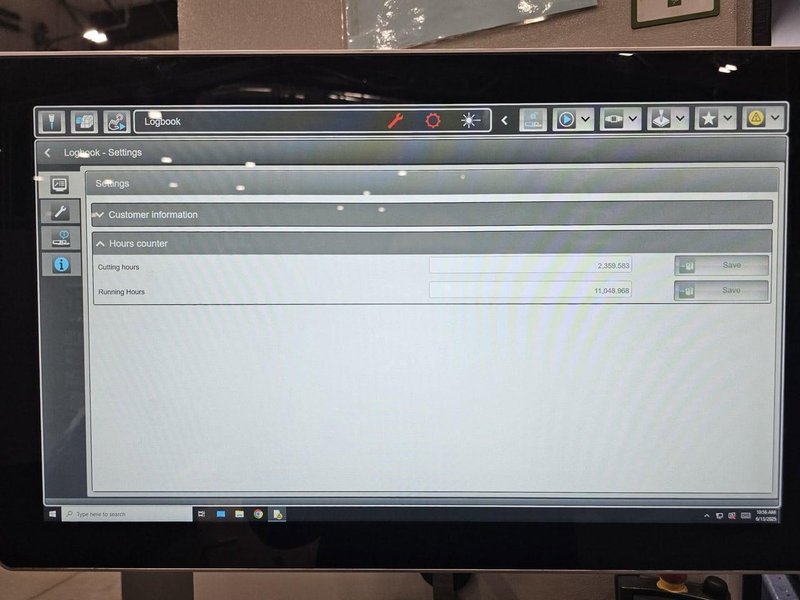

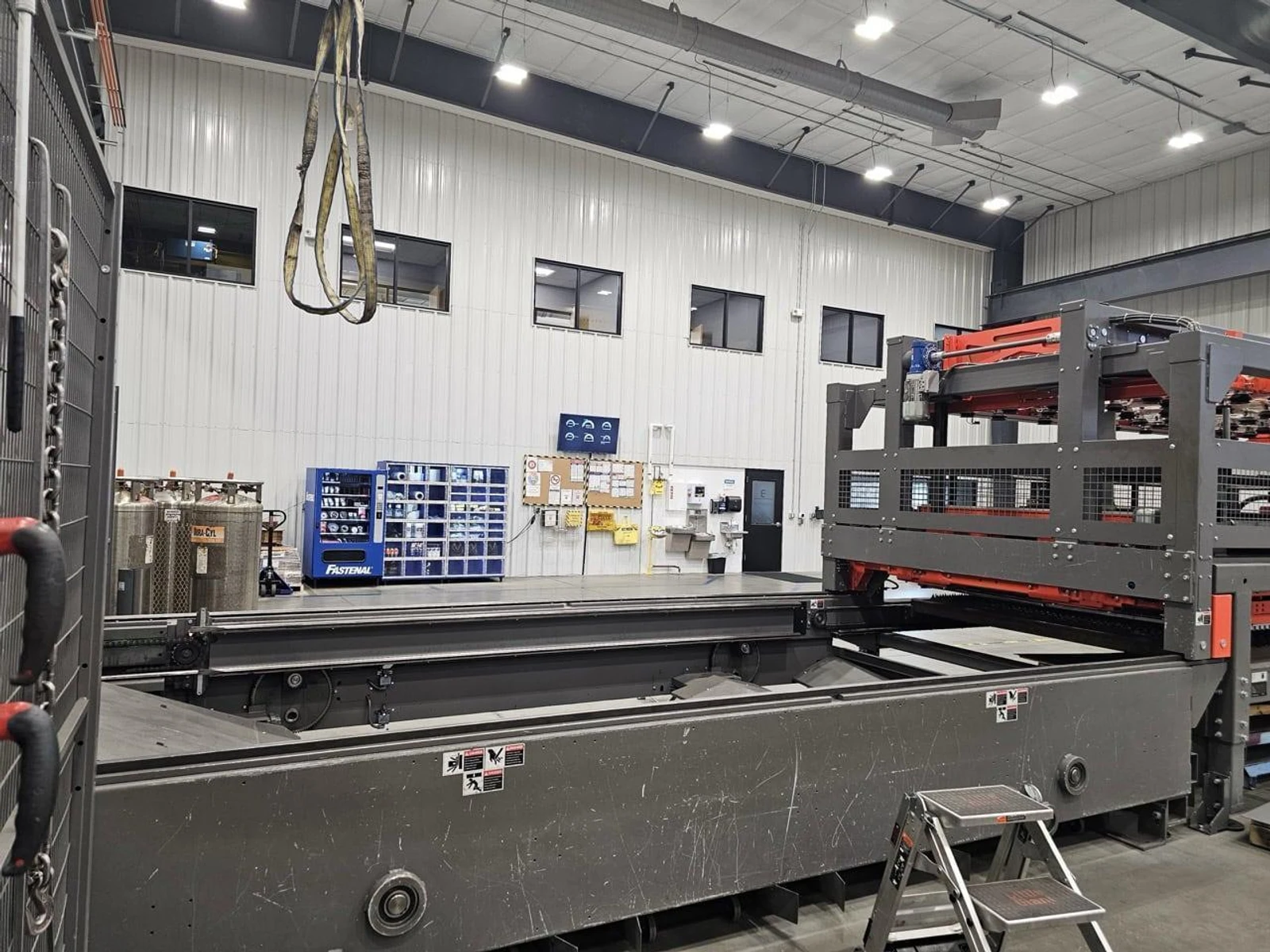

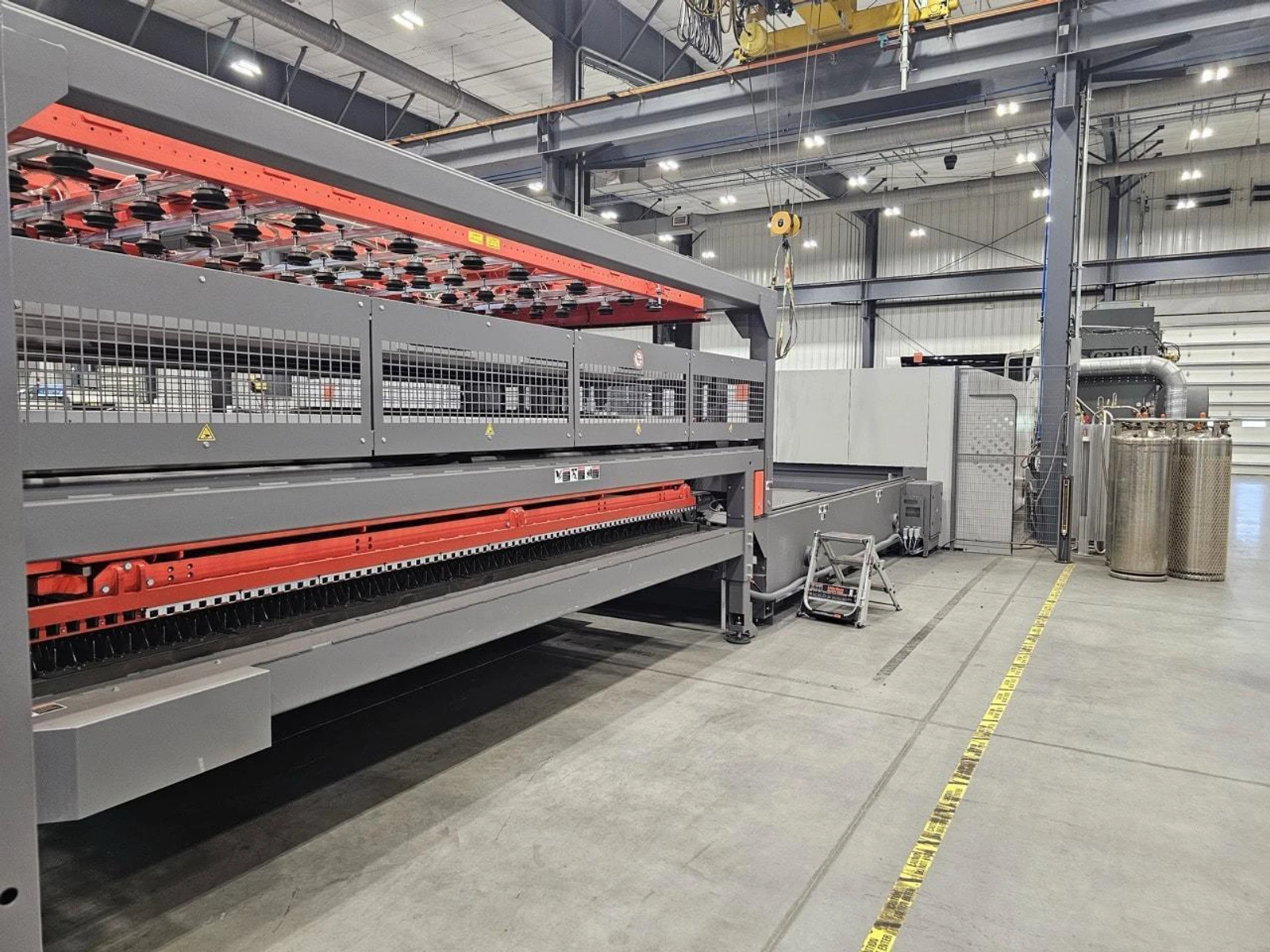

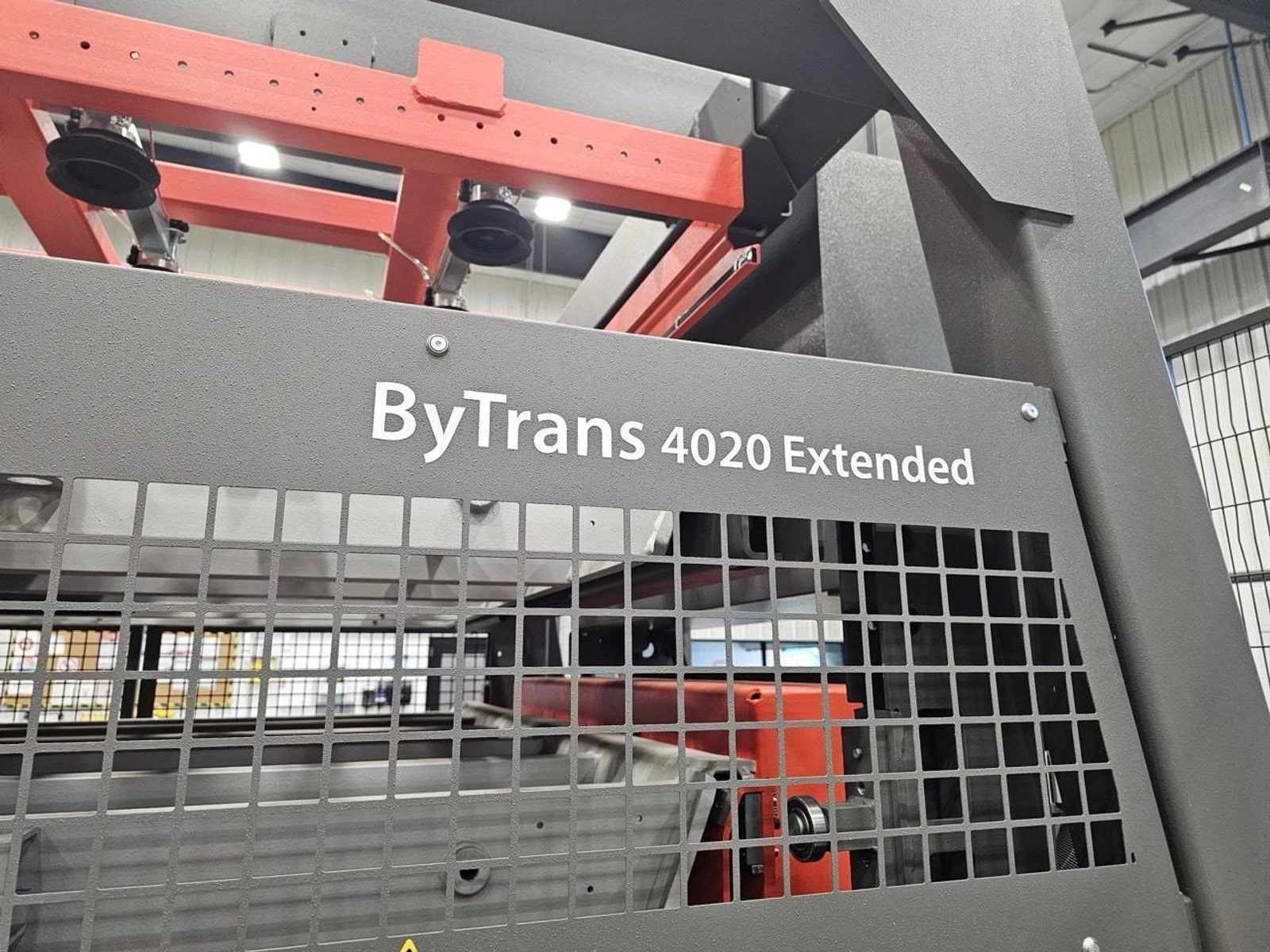

15,000 Watt 4020 Bystar Bystronic Fiber Laser, 2021 – W/ByTrans Extended Automation, Very Clean, Low Hours

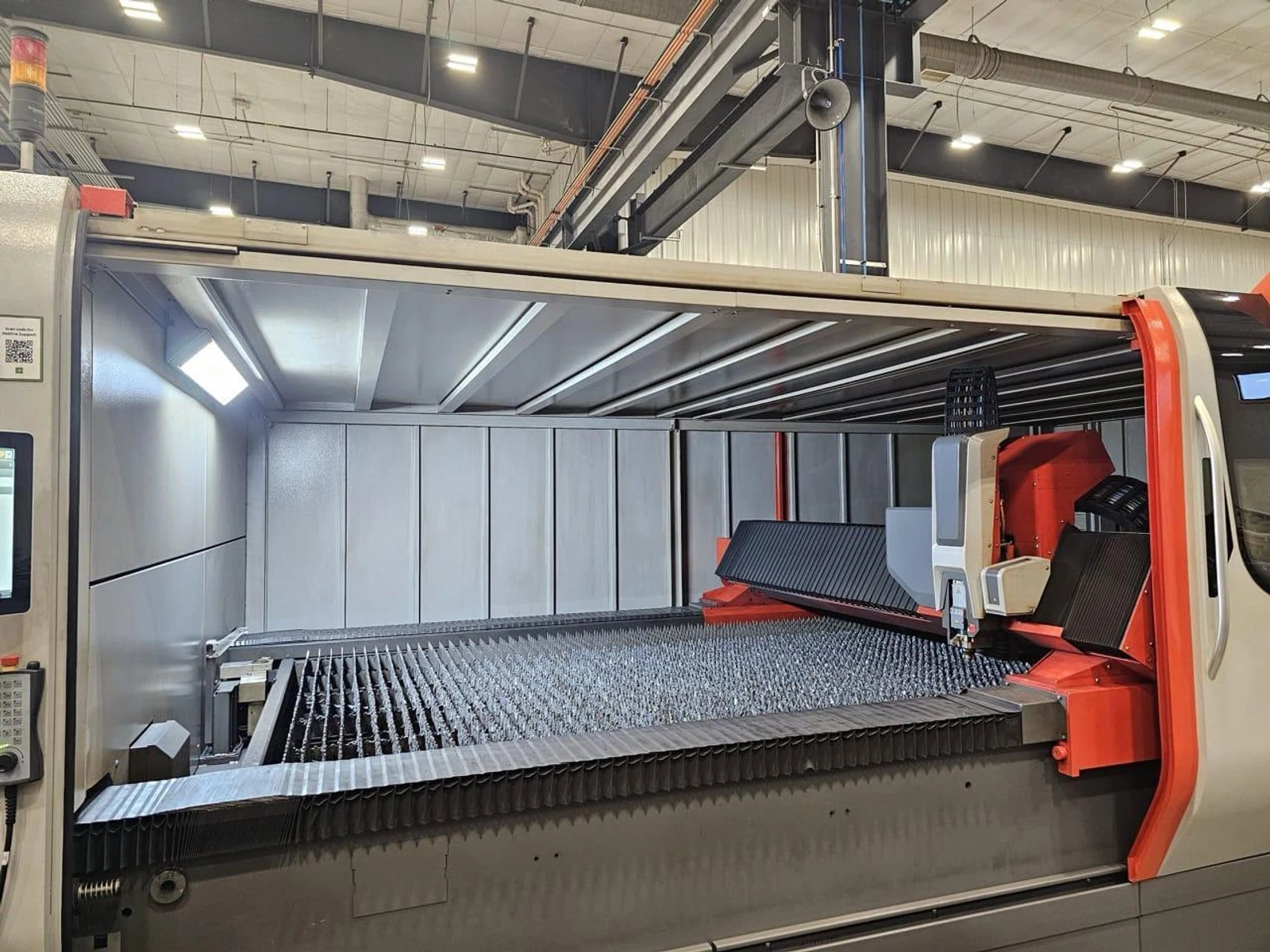

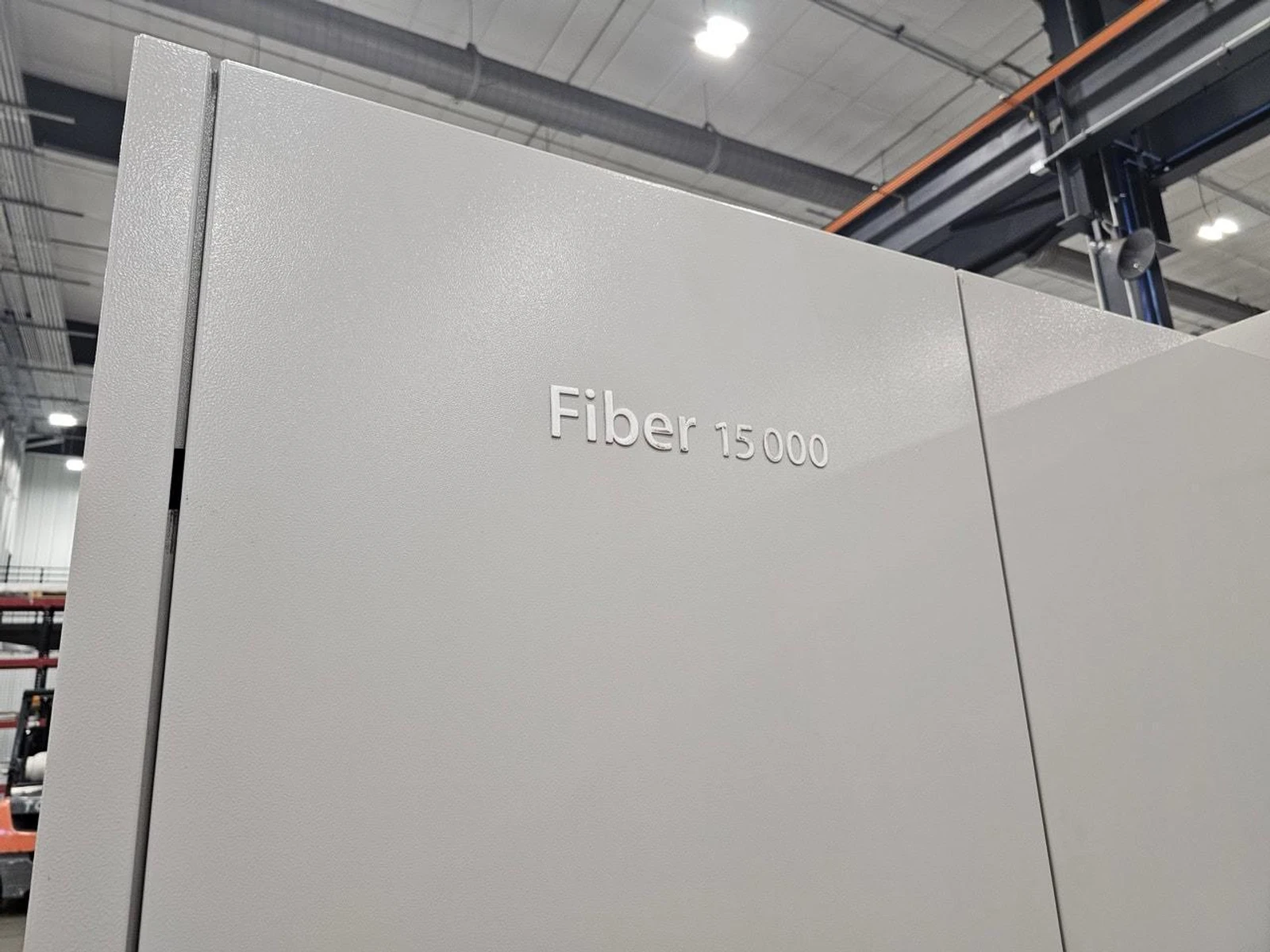

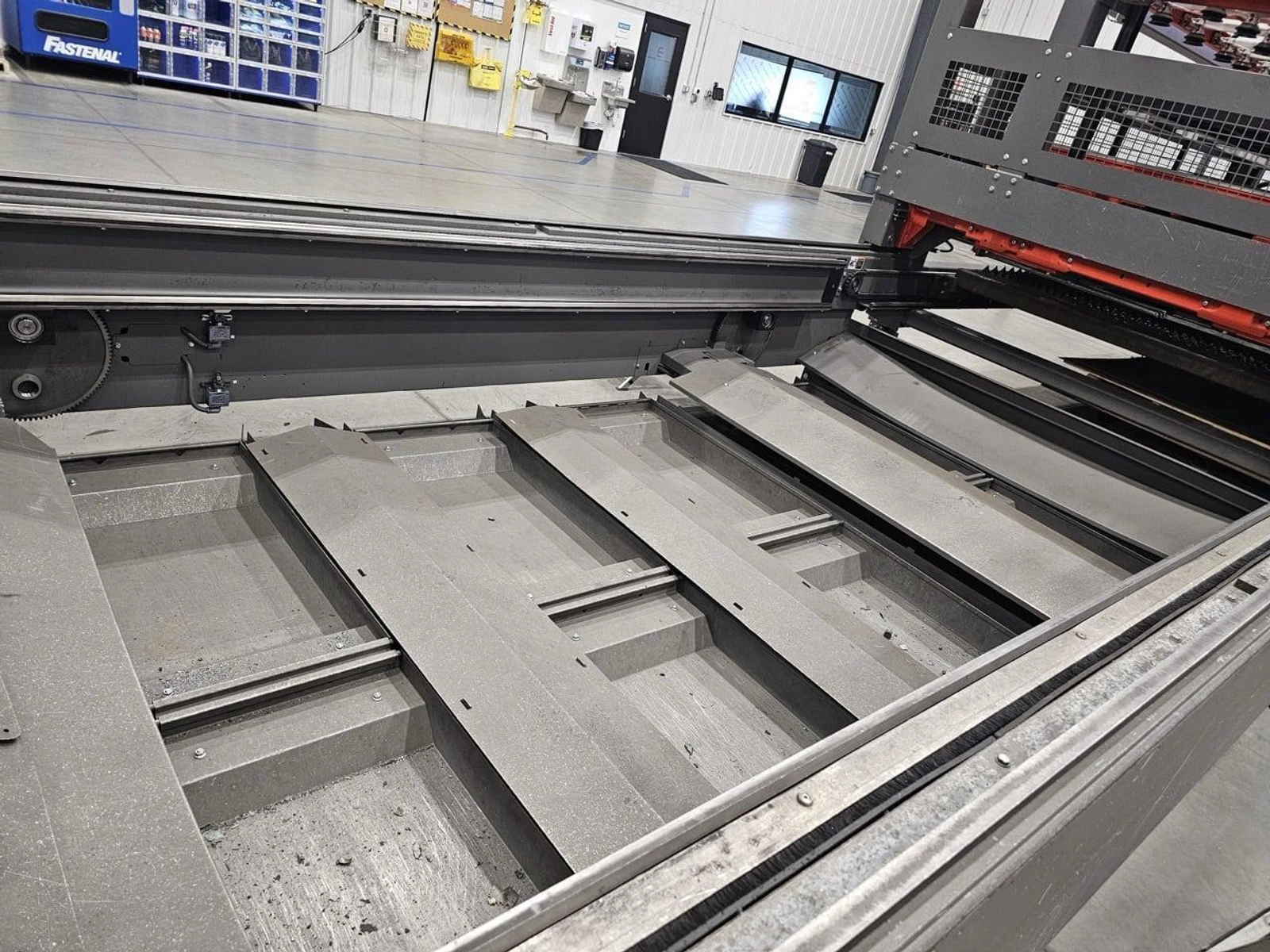

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Length, approx. 559 in Width, approx. 248 in Height, approx. 126 in Nominal sheet size (X) 160 in Nominal sheet size (Y) 80 in Cutting area (X) 162 in Cutting area (Y) 83 in Cutting area (Z) 4 in Max. positioning speed parallel axis X/Y 4724 in/min Max. positioning speed simultaneous 6681 in/min Bilateral repeatability of positioning of one axis R (following ISO 230-2:2014) All specifications are assumed to be correct but must be confirmed by the purchasing entity.,0.001 in All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Average bilateral position deviation of one axis M (following ISO 230-2:2014) All specifications are assumed to be correct but must be confirmed by the purchasing entity.,0.002 in Edge detection accuracy ± 0.02 in Max. workpiece weight 4190 lbs Max. allowed workpiece weight on both shuttle tables 7080 lbs Machine weight (excl. exhaust and conveyor) 32,000 lbs Table change time 28 s Laser source Fiber 15000 Power 15000 W Range of adjustment 400-15000 W Wavelength Fiber Steel (max. cuttable sheet thickness) – /* advanced applications 1/1.96* in Steel (with BeamShaper option) 1.18 in Stainless steel (max. cuttable sheet thickness) – /* advanced applications All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1.57/1.96* in All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Aluminum (max. cuttable sheet thickness) – /* advanced applications All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1.57/1.96* in Brass (maax. cuttable sheet thickness) 0.75 in Copper (max. cuttable sheet thickness) 0.75 in Total electric consumption of system (incl. exhaust, chiller) * 27 kW All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
