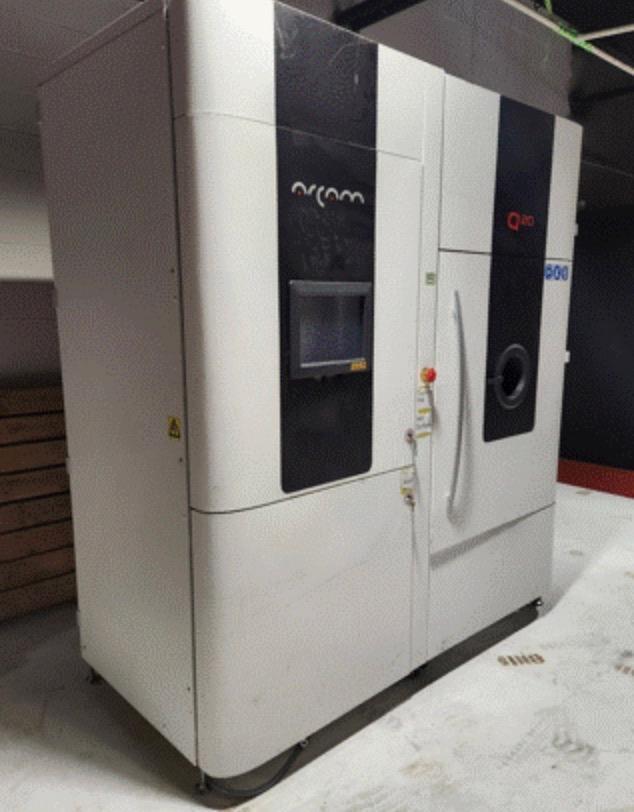

Arcam Printer Q20 3d Printer, 2014

250 Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Process type: Hot powder bed / high vacuum (temperature material-dependent)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max. build size: 350 x 380 mm (Ø/H) Max. beam power: 3000 W Cathode type: Single crystalline Min. beam diameter: 180 µm Arcam MultiBeam™ technology: Multiple melt pool process Repositioning time: 10 ms Translation speed, melting: Continuously variable Active cooling: Water-cooled heat sink Vacuum base pressure: 1×10⁻⁴ mbar Build atmosphere: 4×10⁻³ mbar, partial pressure of He He consumption, build process: 4 l/h He consumption, build cool down: 100–150 l/build Process control: Layer verification camera system Power supply: 3 x 400 V, 32 A, 7 kW Size: Approx. 2300 x 1300 x 2600 mm (W x D x H) Weight: 2900 kg Process computer: PC CAD interface: Standard: STL Network: Ethernet 10/100/1000

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
