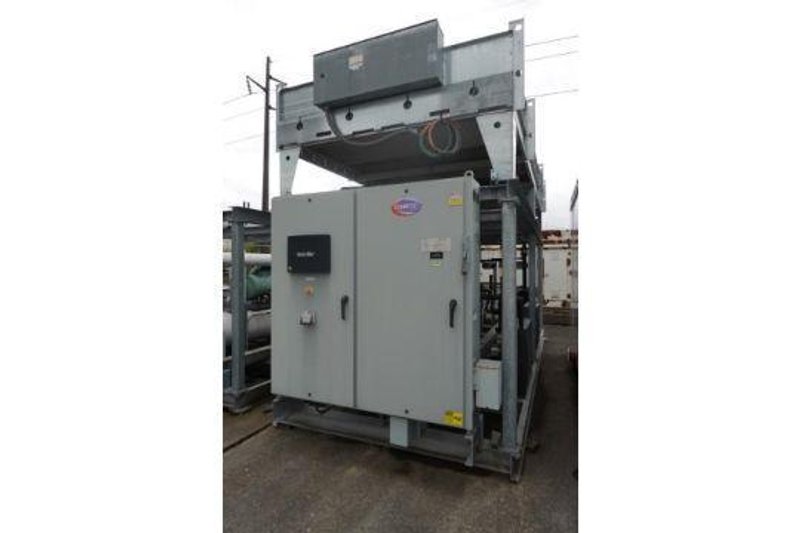

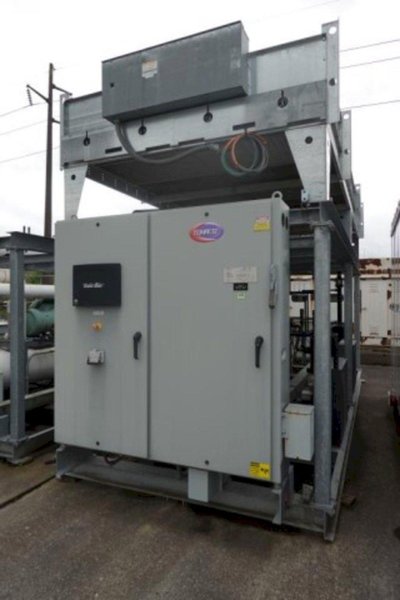

40 Ton Tempest Inc. LTAC-40-D Cold Water Process Chiller System, 2015 1
Brand
Not specified
Category
Type
Model
LTAC-40-D
Stock #
997314
Year
2015
Condition
Not specified
Location
Michigan
|

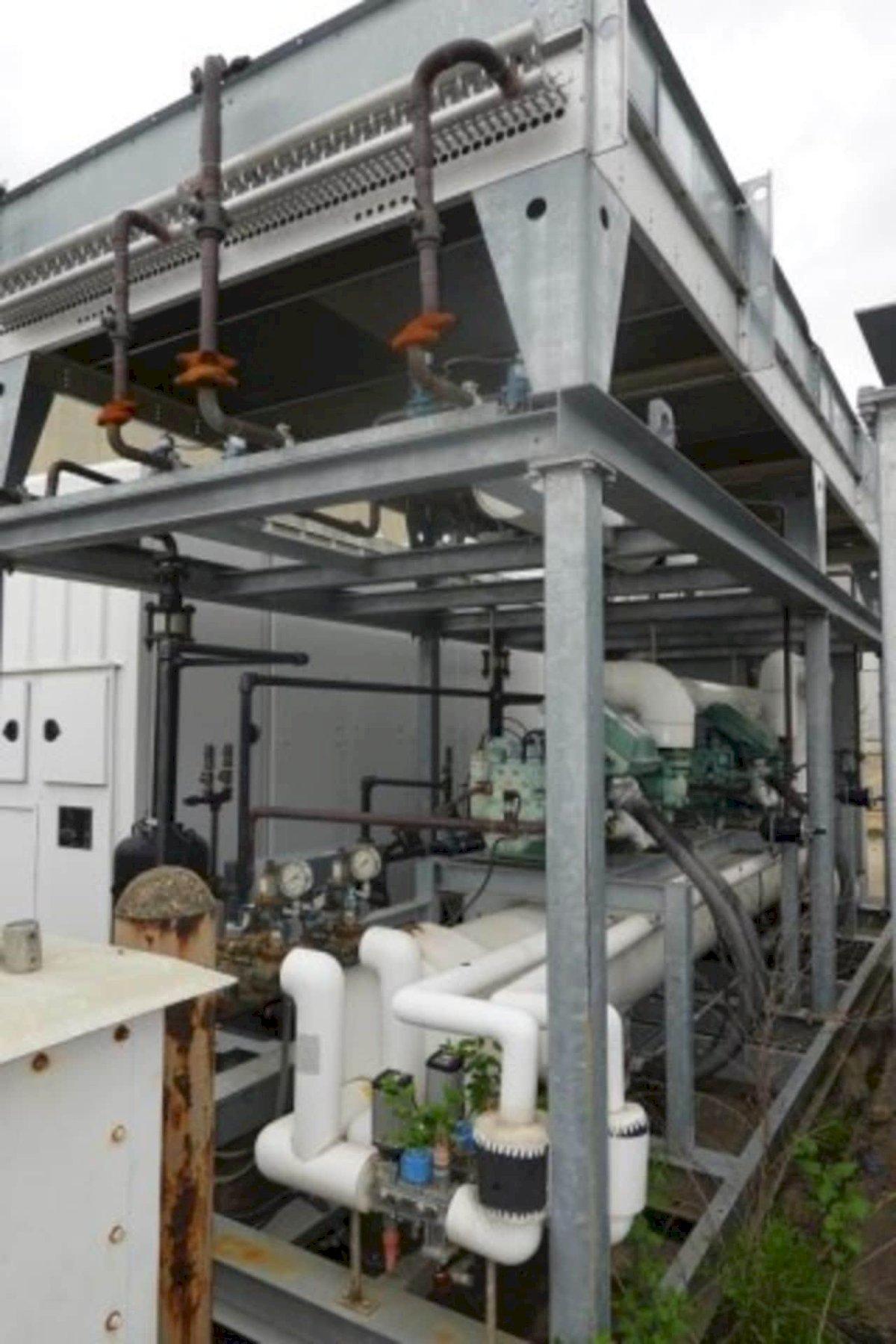

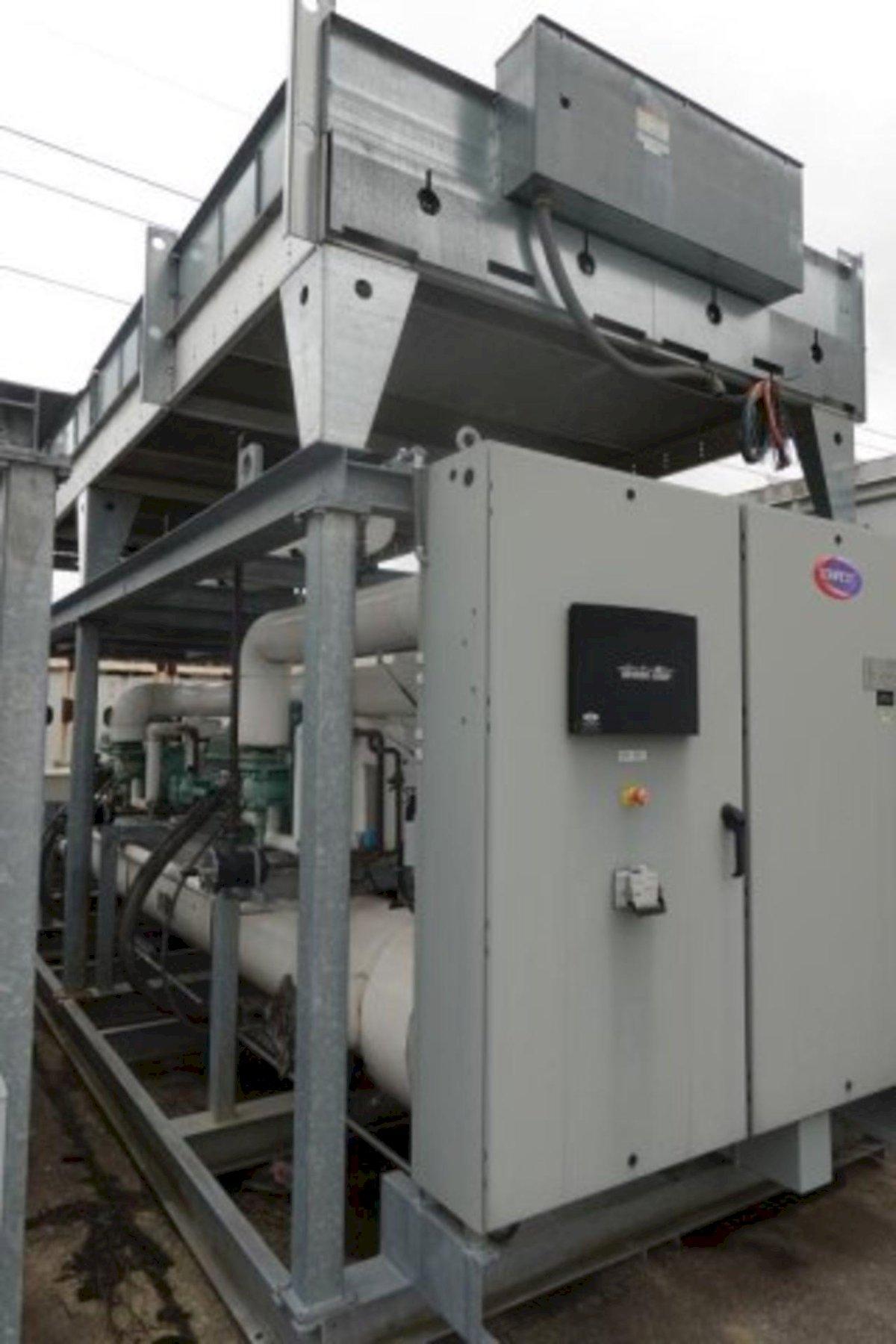

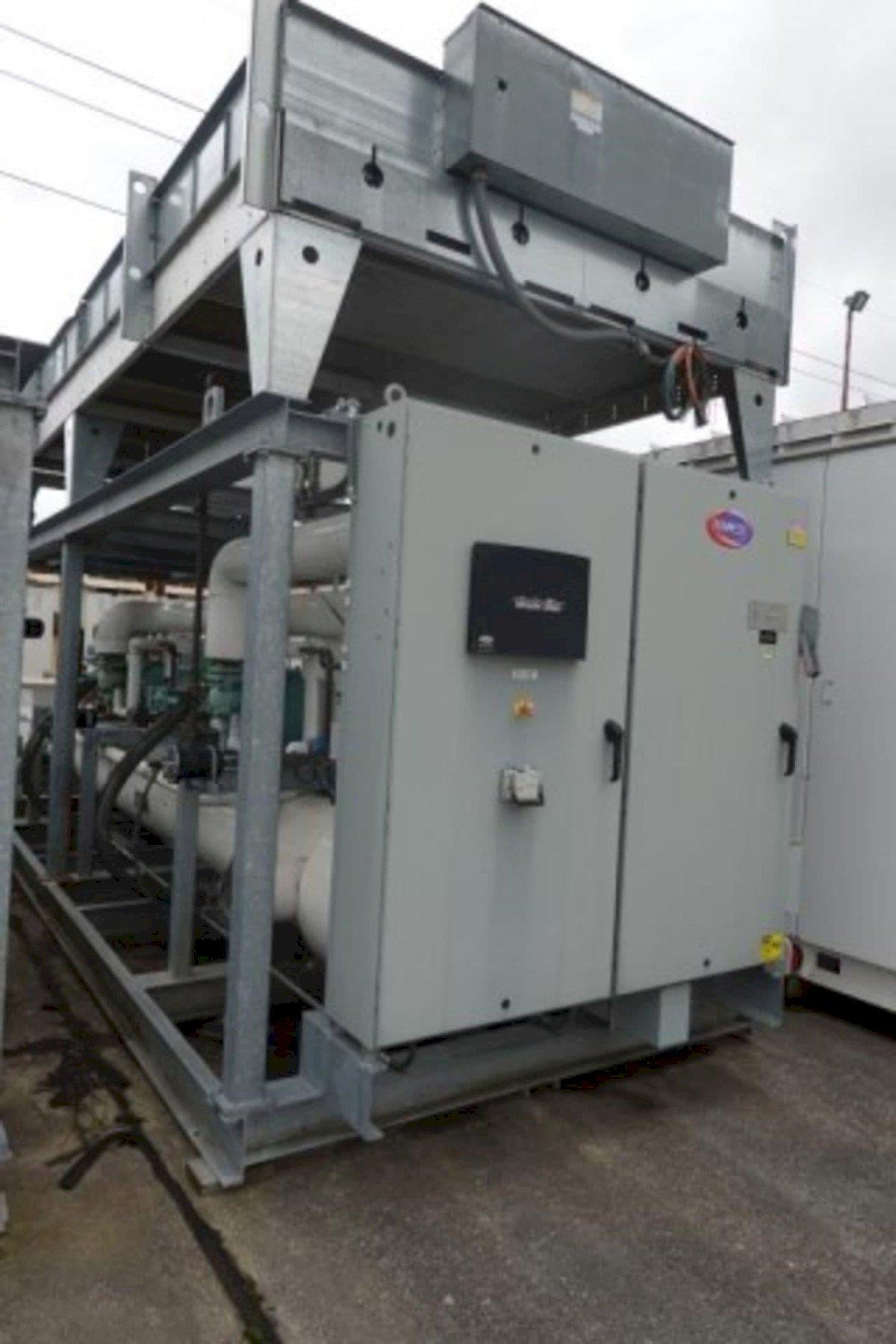

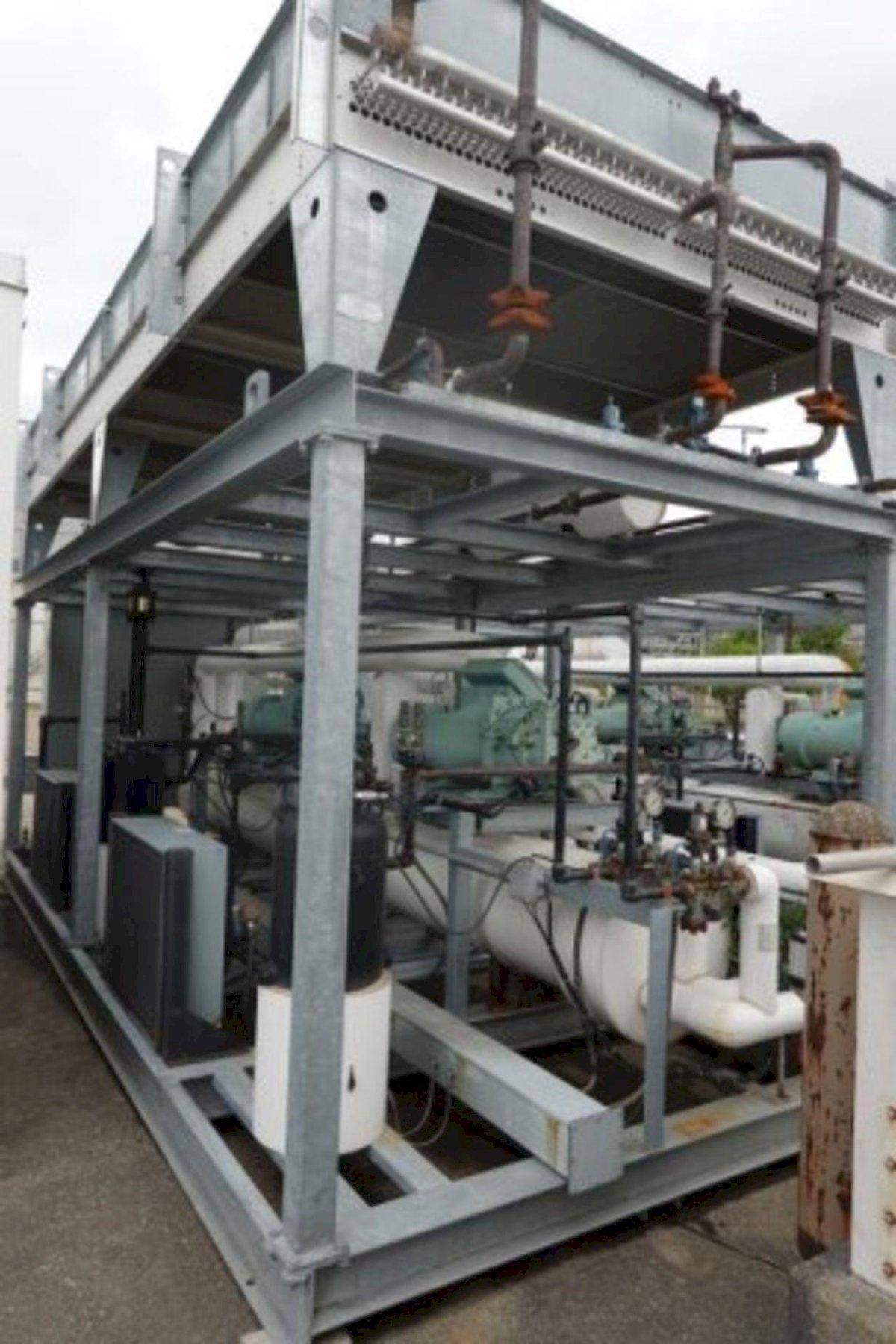

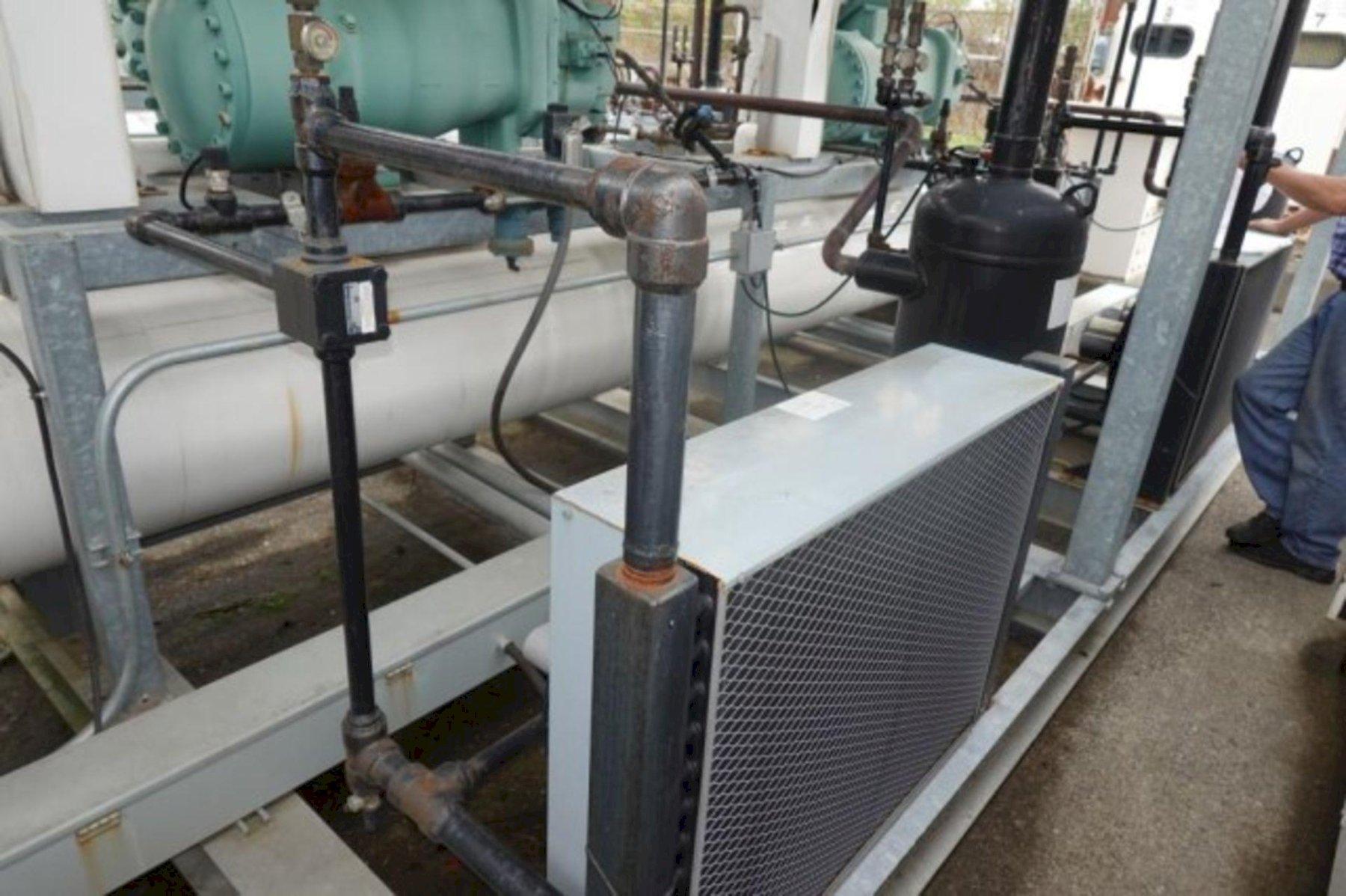

Tempest Inc. LTAC-40-D Cold Water Process Chiller System

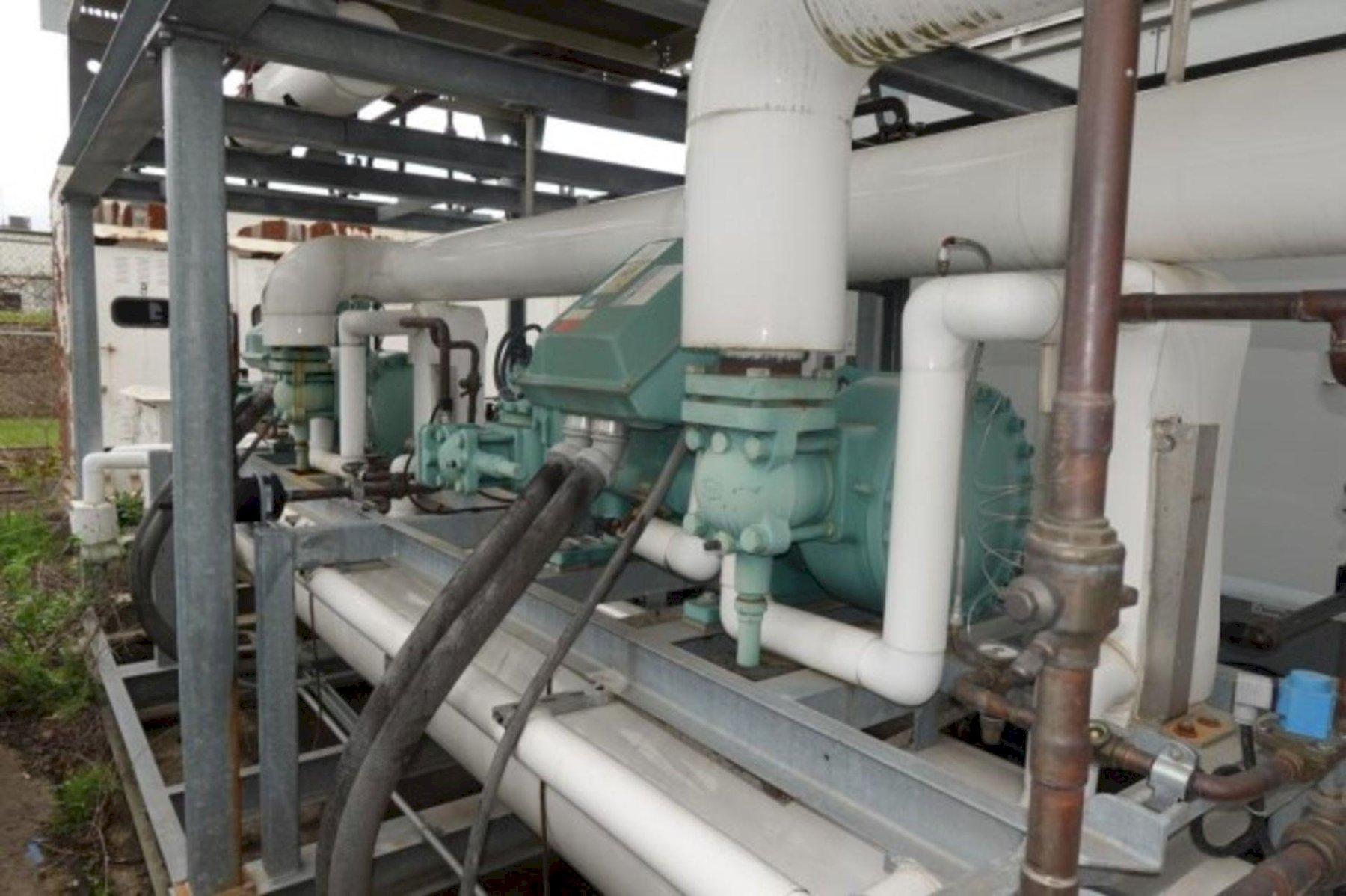

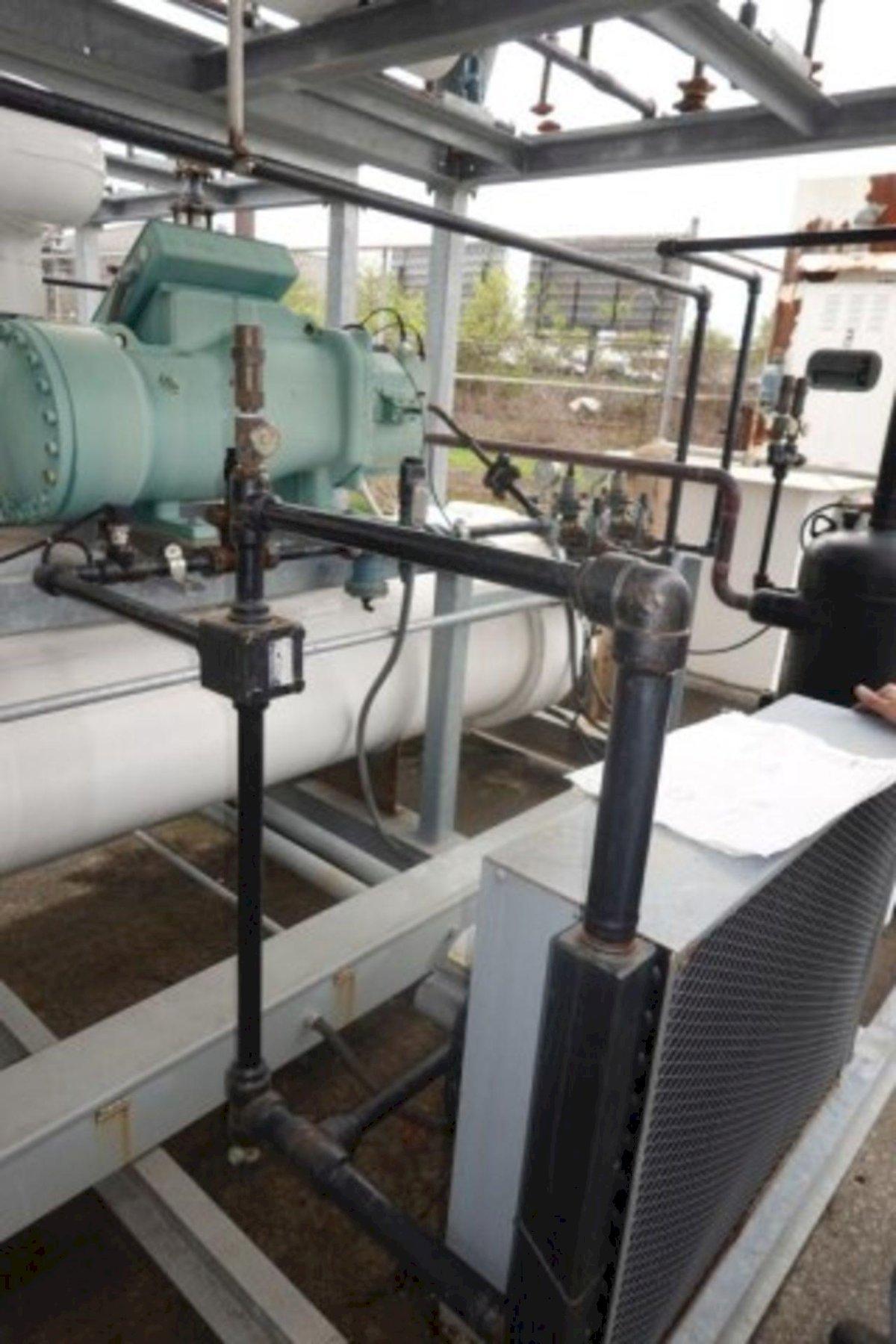

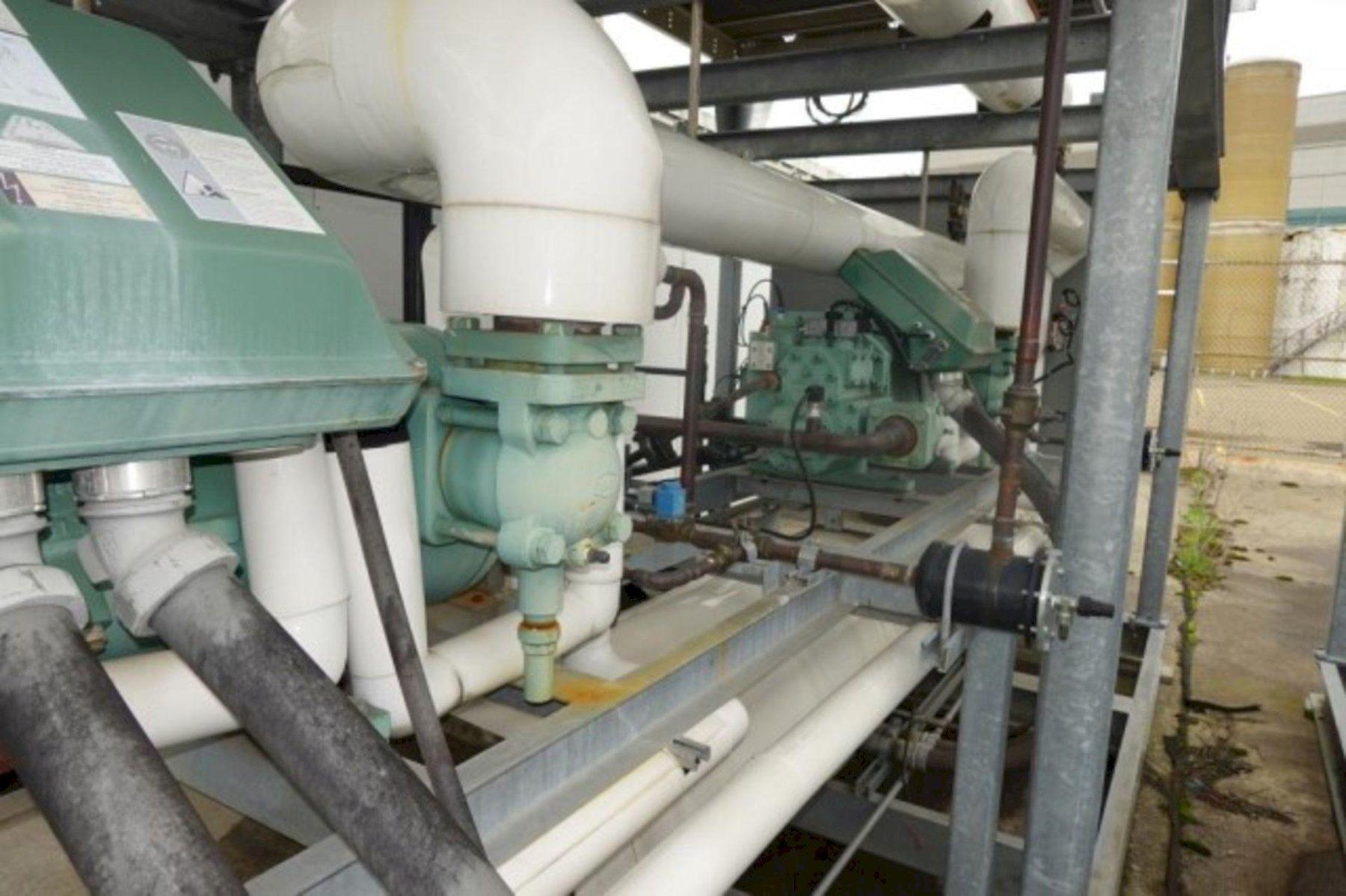

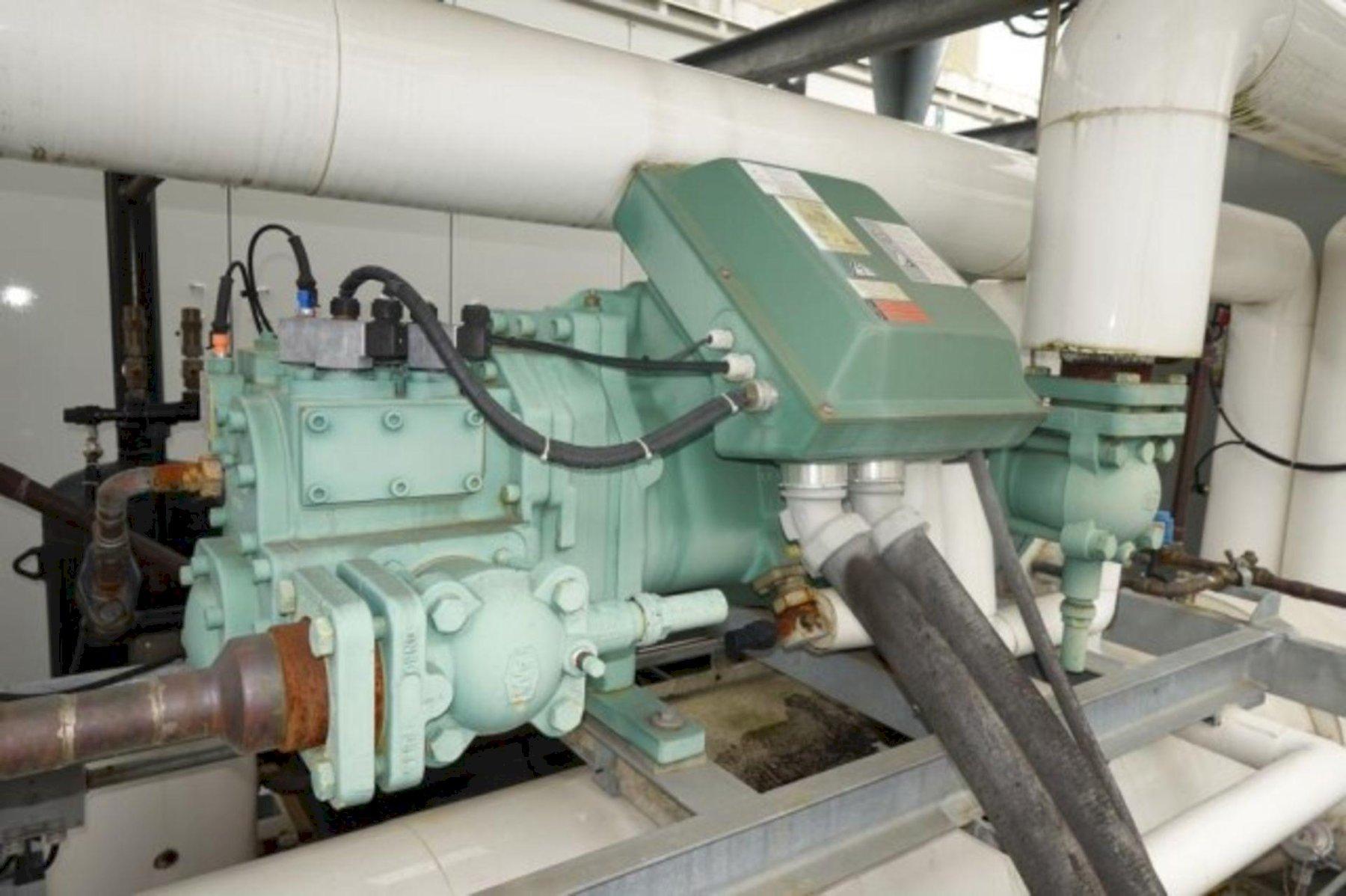

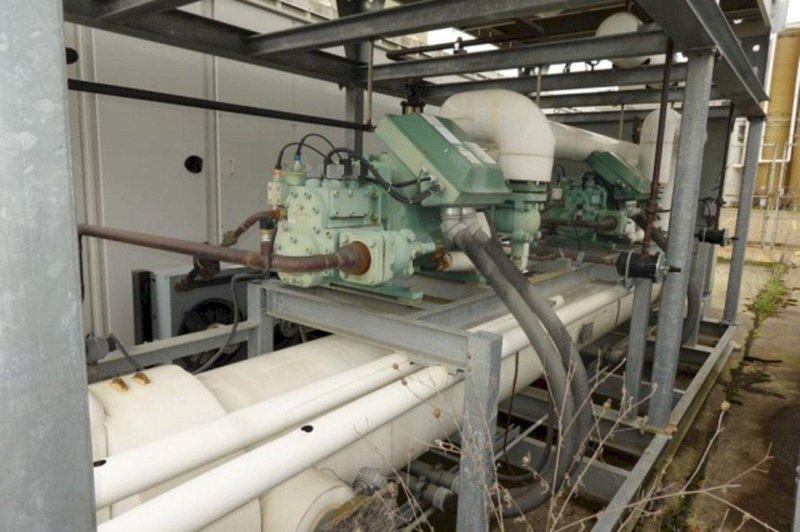

125-HP Compressors
3500 RPM
460v, 3-Ph, 60Hz,
Fans 2-HP, 1140 RPM, 3-Ph, 60Hz,

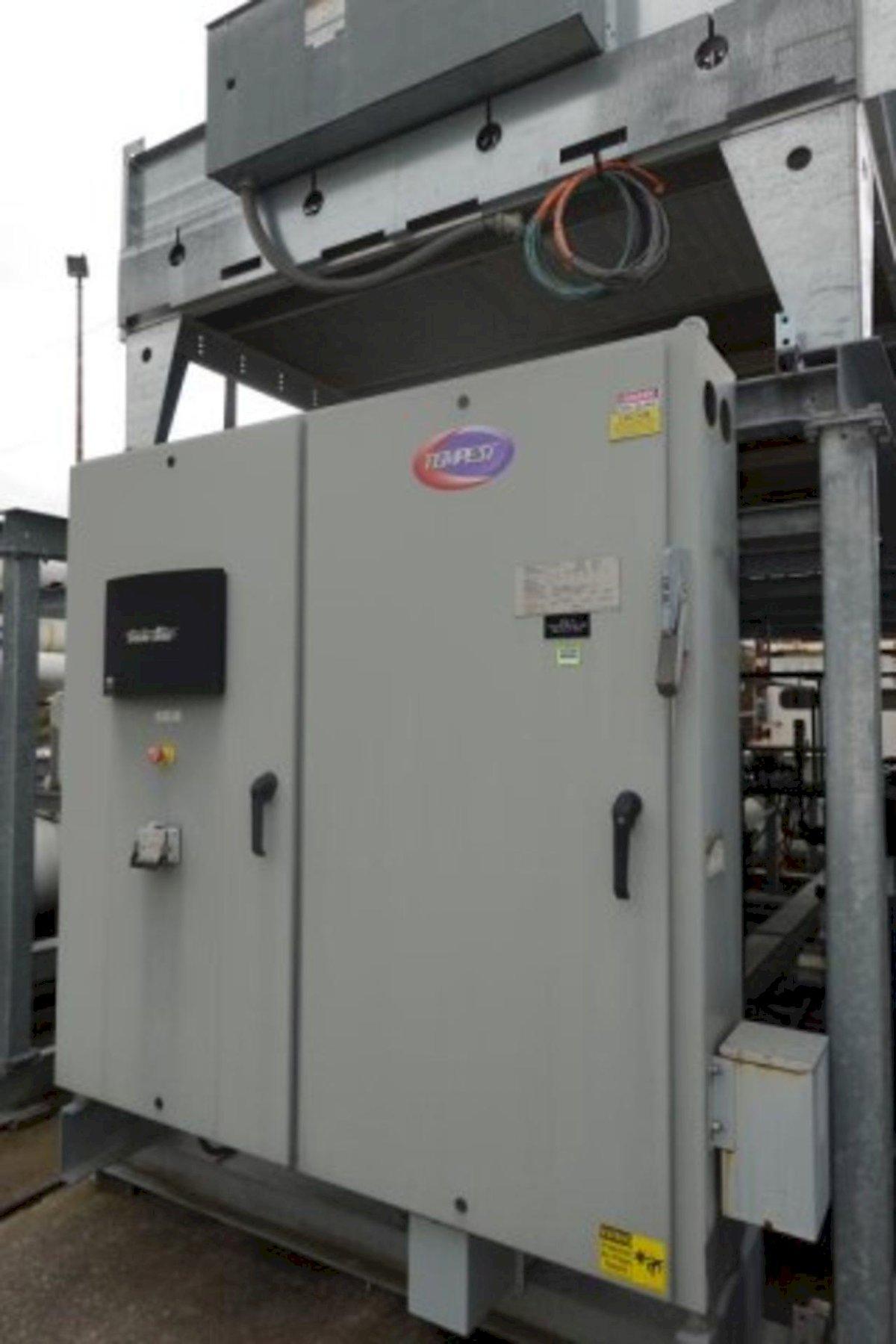

Control Circuit 3 KVA, Short Circuit Current 100KA RMS Symmetrical 600V Max. MWP:
Hi Side 400, Low Side 275,
Refrigerant: R507,
Refrigerant Charge Weight 200 lbs. Each,
Oil Type SOLEST 170,
Service Fluid 63% Ethylene Glycol,
Flow 127 GPM,
Inlet Temp: -30F,
Outlet Temp -40F,
Nominal Tons 40,

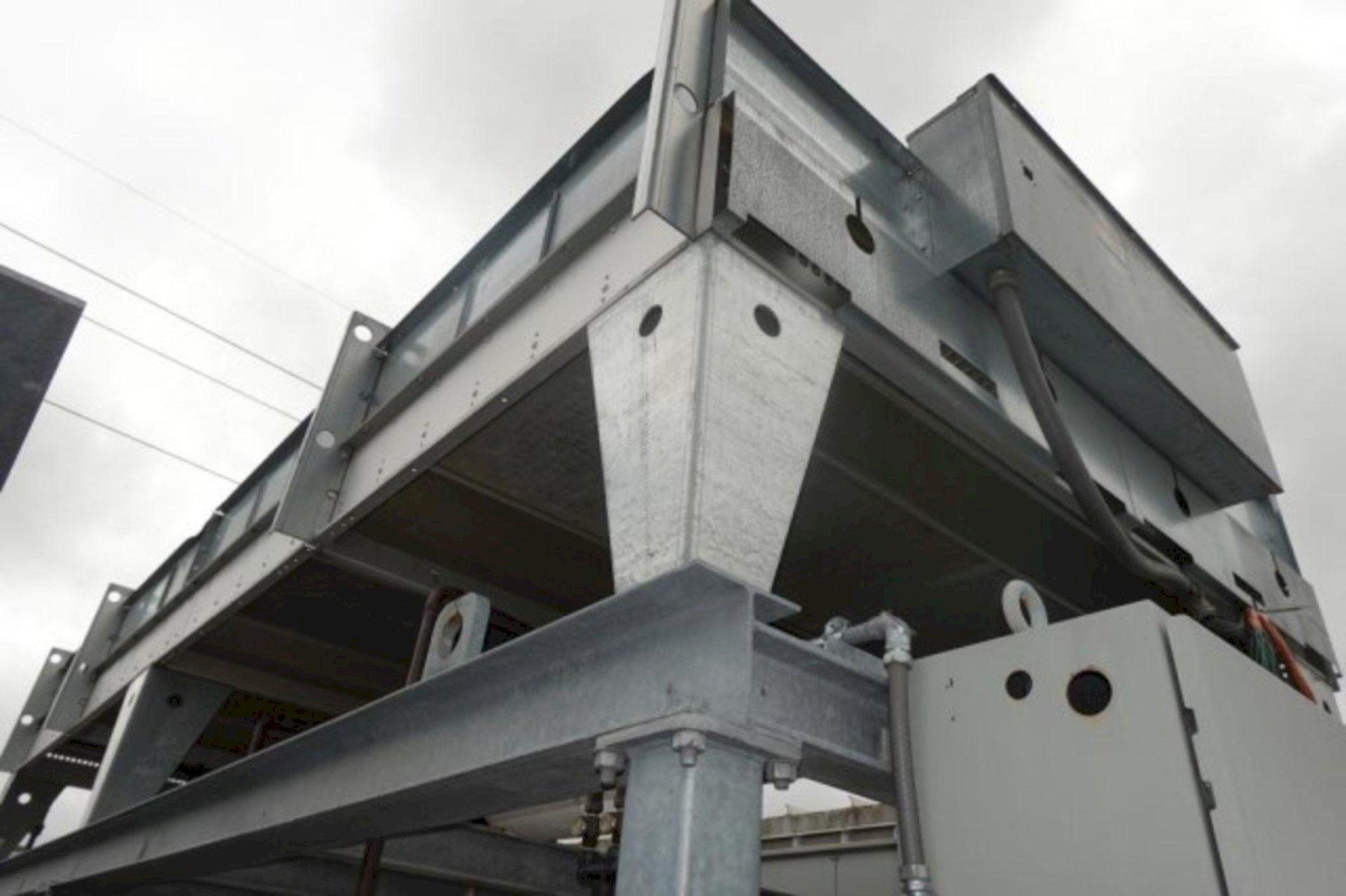

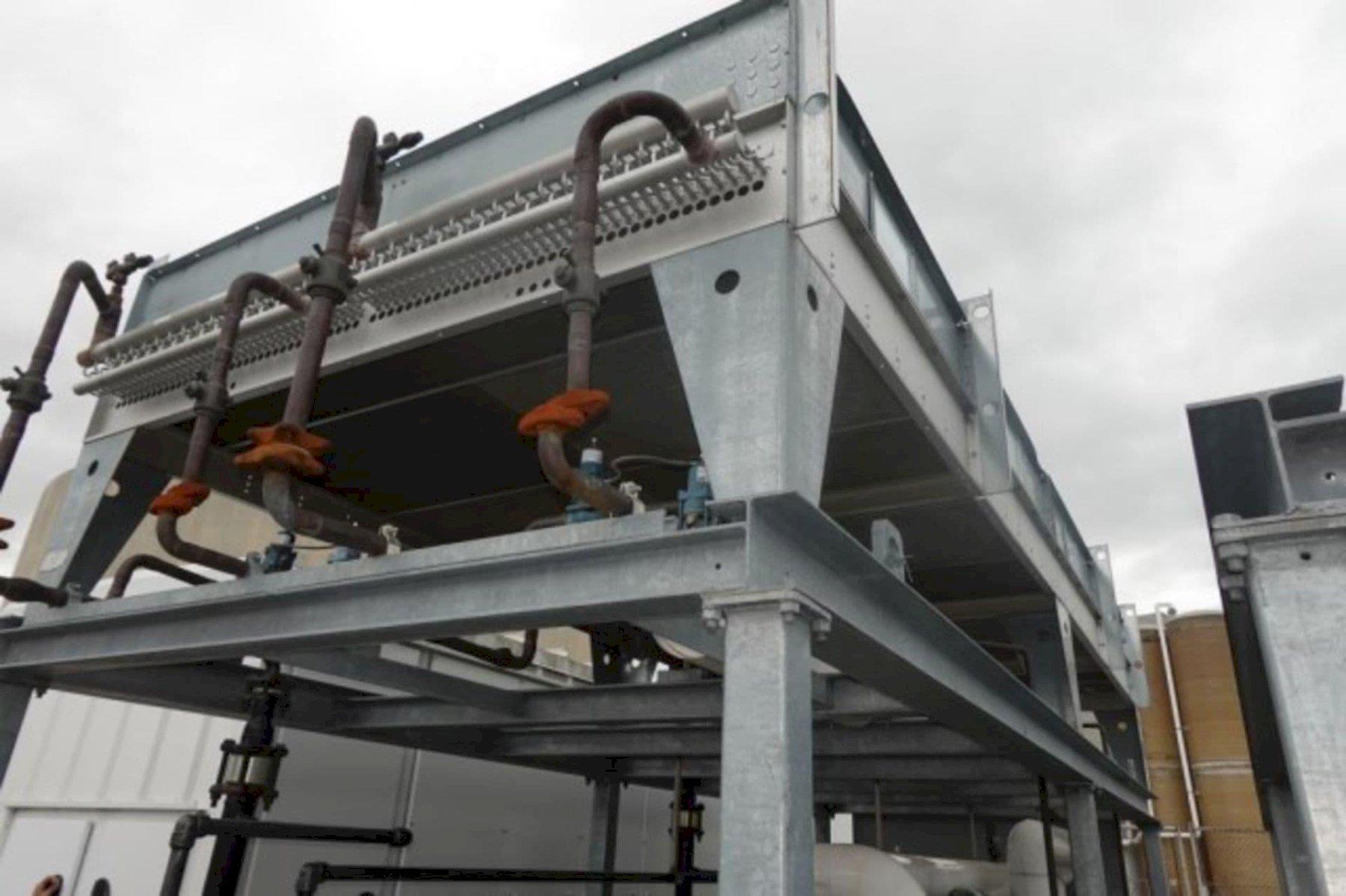

Evaporator: Carbon Steel Shell Tubes. Condenser Blygold Coated Copper Coil With Aluminum Fin.
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
