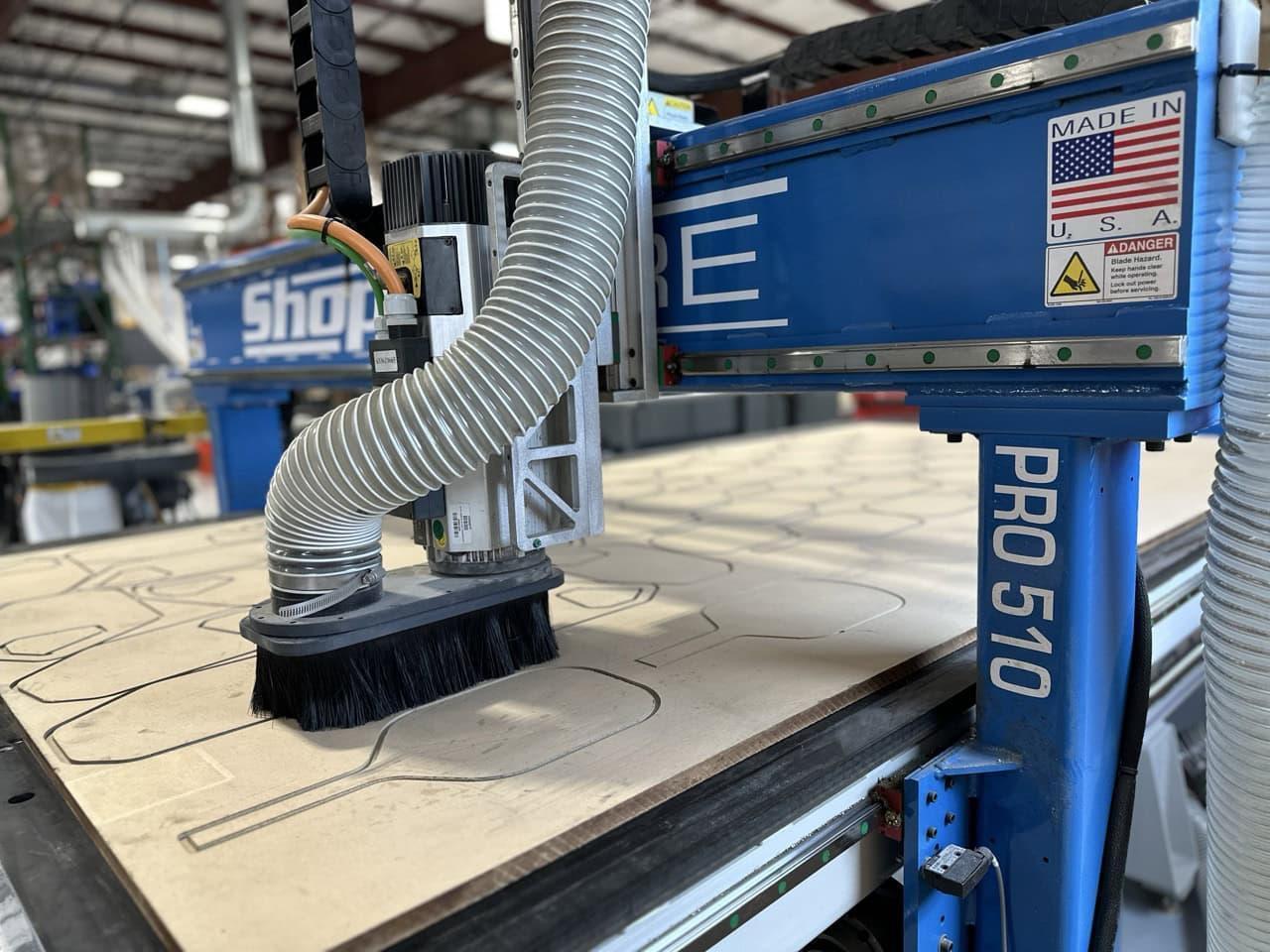

Table Bed Cut Area: 72” x 125”
Gantry Clearance: 12″
Maximum Travel Speeds on X & Y: 1200IPM
Maximum Travel Speeds on Z: 800IPM
Spindle Speed: 24,000 RPM
Spindle Taper: ER32
Z Travel: 16”
ATC: 5
Machine Weight: 4700 lbs
Machine Foot Print (Including Gantry): 92” x 155”
Machine Structure: Steel Tube Frame- Welded
Gantry Structure: Over-Sized Steel Tube Birdge with Tube Steel Uprights
Drive System: Dual Y Axis Anti-Backlash Harden Steel Ball Screw
Bearing System: 25MM Linear Guide Rails and Bearings with Quad Roller Sets and Triple Seal

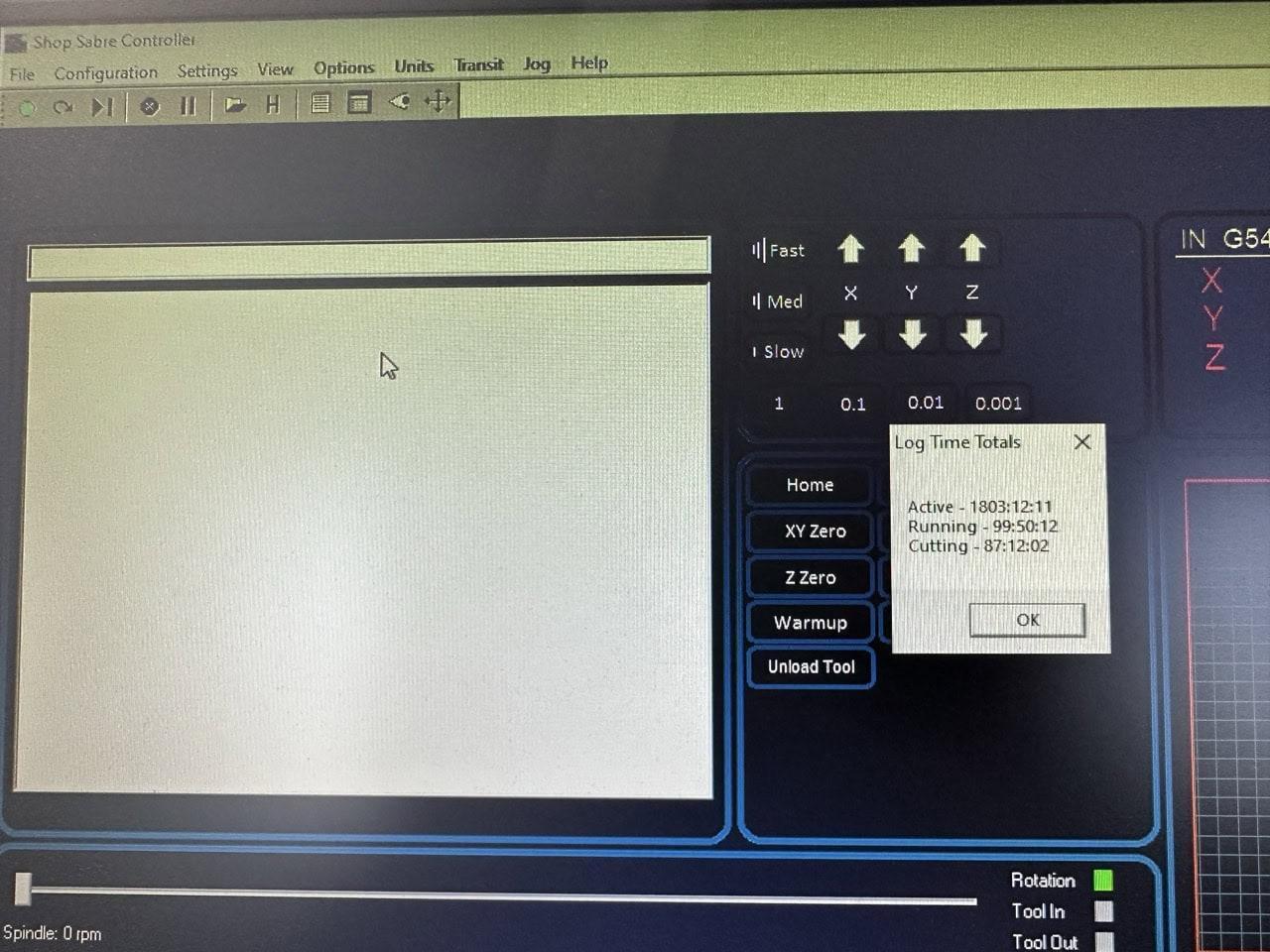

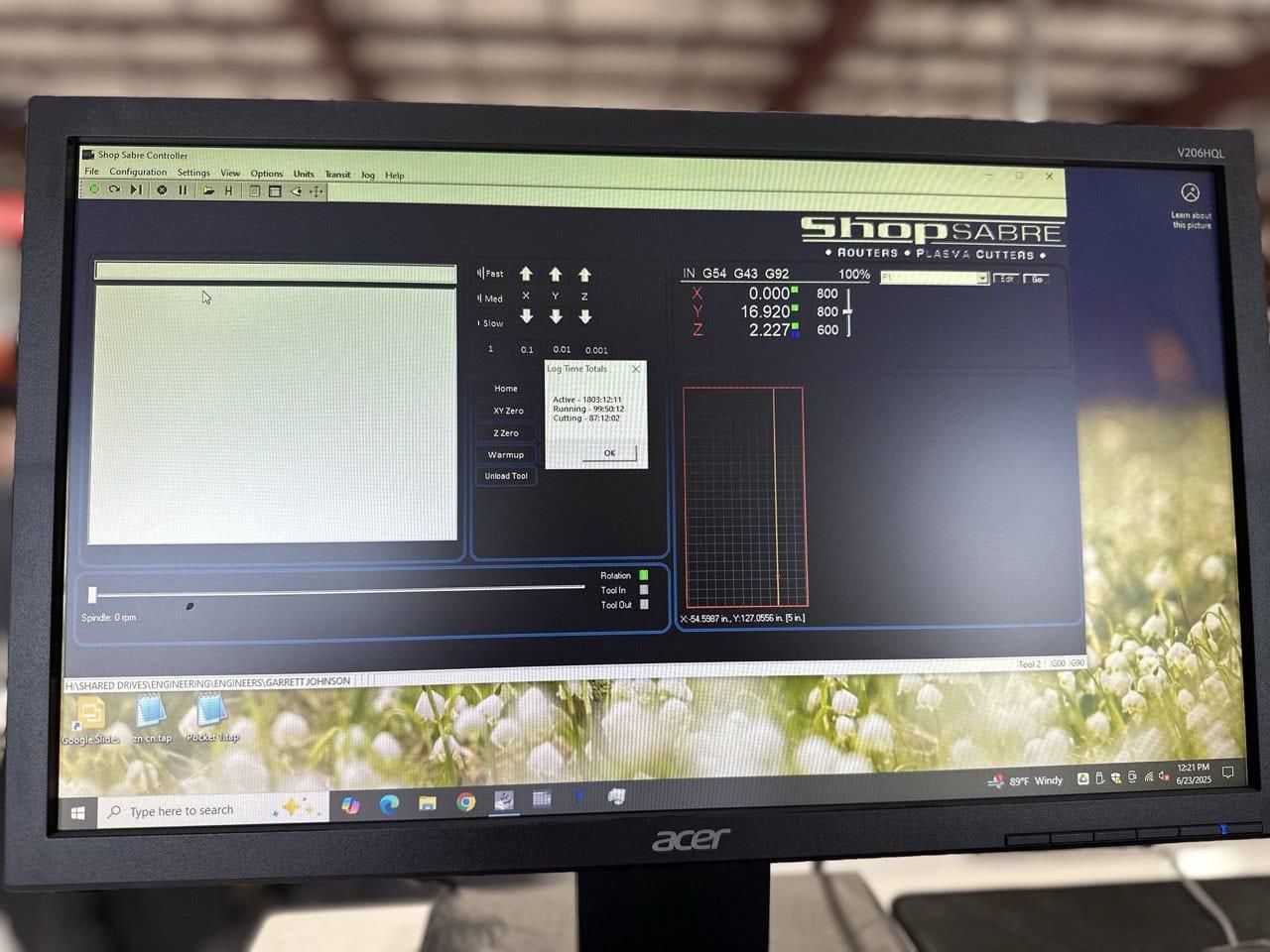

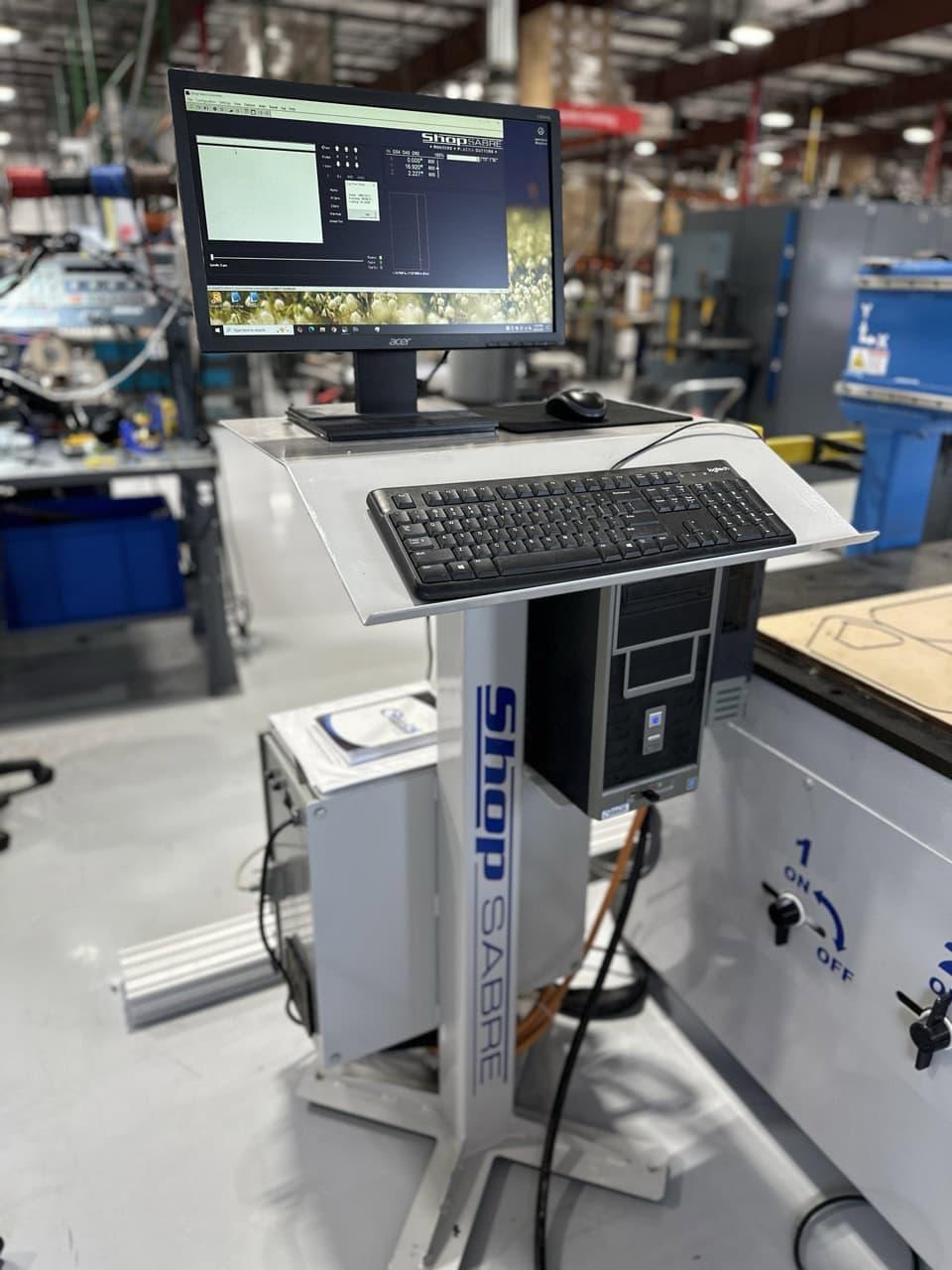

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ShopSabre WINCNC Industrial Controller Hardware & Software Phenolic Table Top 20 HP FPZ Vacuum System Industrial Pop-Up Table Tool Measure Switch Material Height Pad 8KW 10 HP HSD Auto Tool Changer (5 Position) Limit Switches on X,Y,Z Axis with Auto Squaring and Boundary Alarms Emergency Stop Switch Digital Brushless A/C Digital Servo Motors with Amplifiers ShopSabre Auto Stabilization Steel Machine Operator Control Stand Dust Dock Dust Skirt with Containment Design All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
