CNC Control | yes |

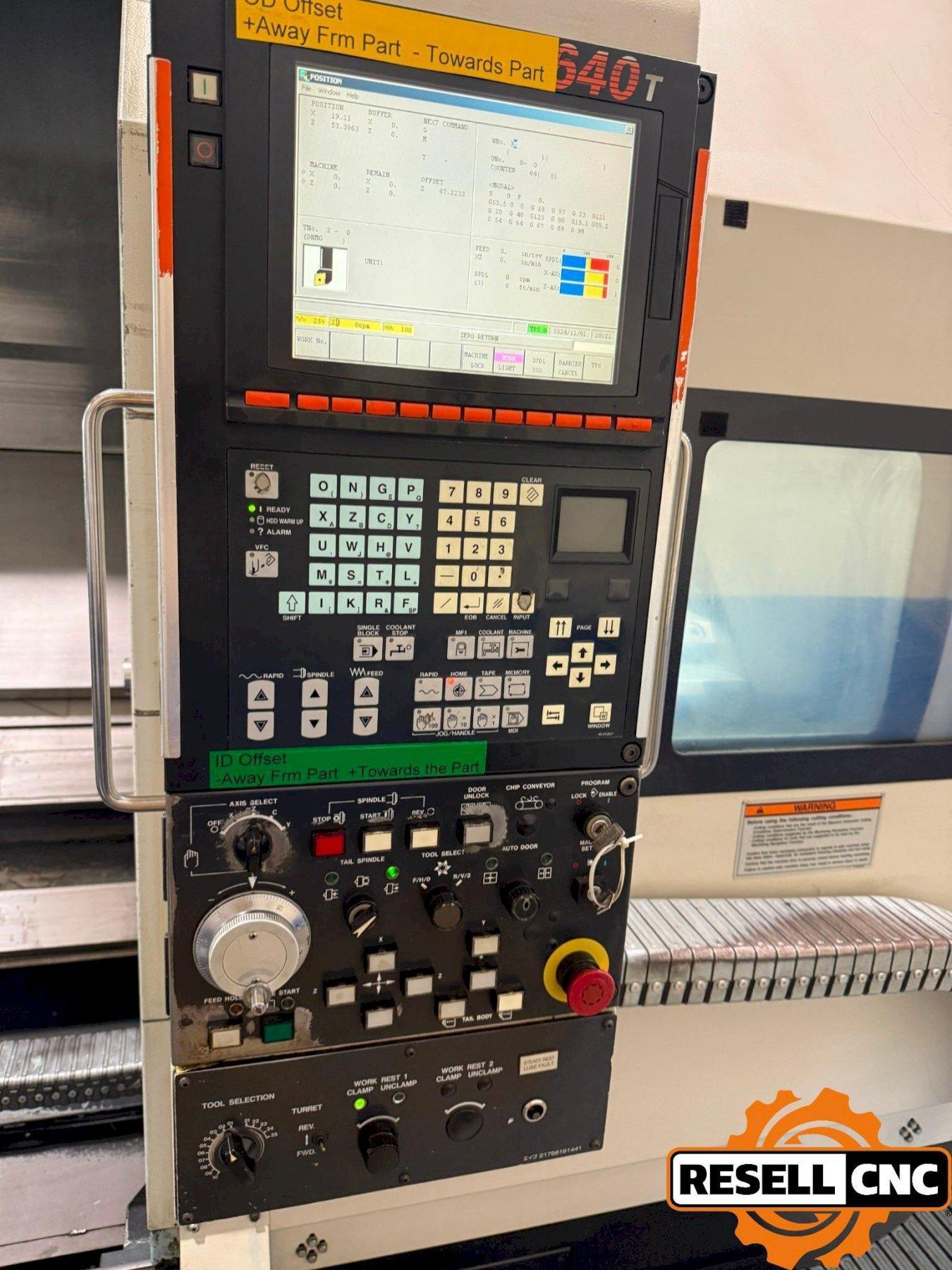

Type Of CNC Control | Mazatrol 640T CNC Control |

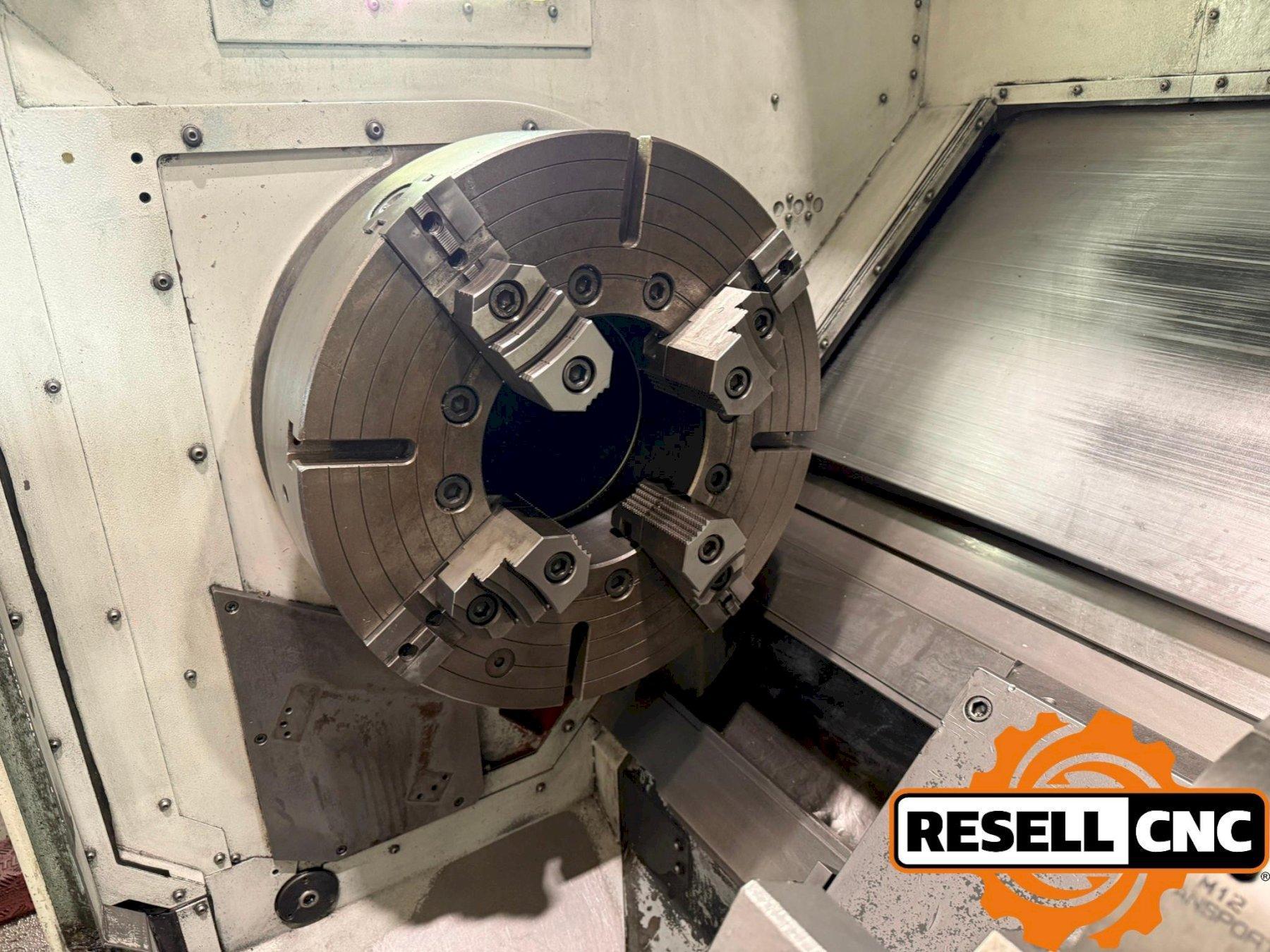

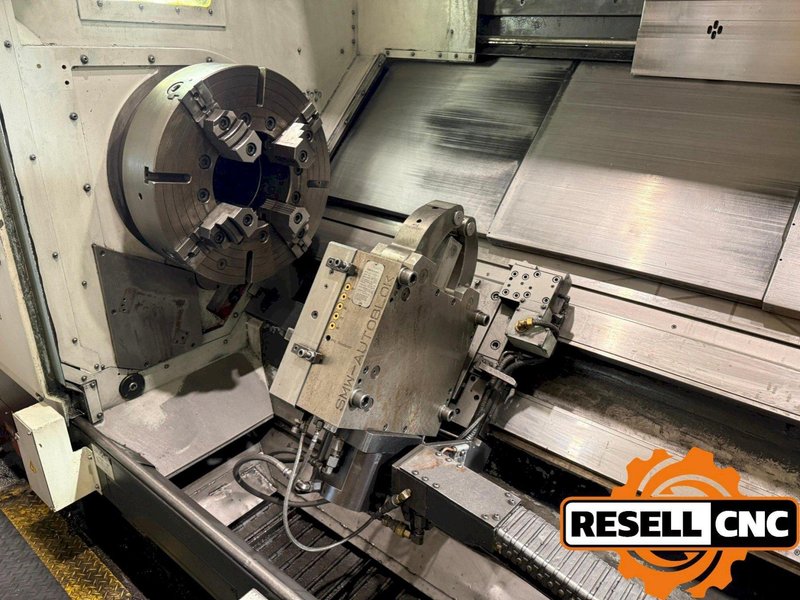

Chuck Size | 24 inches |
Swing | 32 inches |
Turning Diameter | 32 inches |
Center Distance | 80 inches |
Bar Capacity | 10.8 inches |
Spindle Bore | 10.8 inches |
X Axis Travel | 25 inches |
Z Axis Travel | 80 inches |
Spindle Speed (RPM) | 1000 |
Main Motor | 50 |

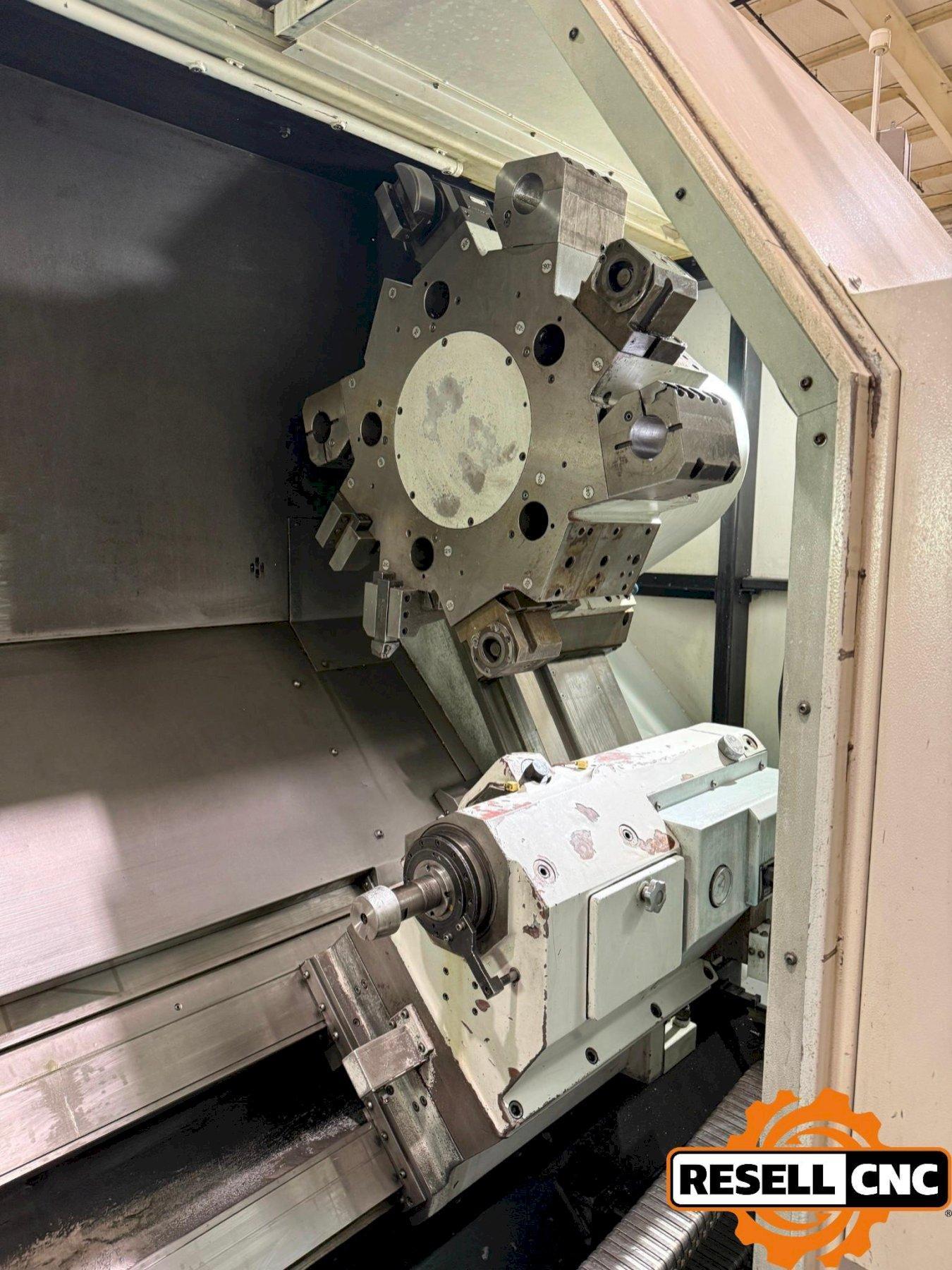

Turret Capacity | 24 |

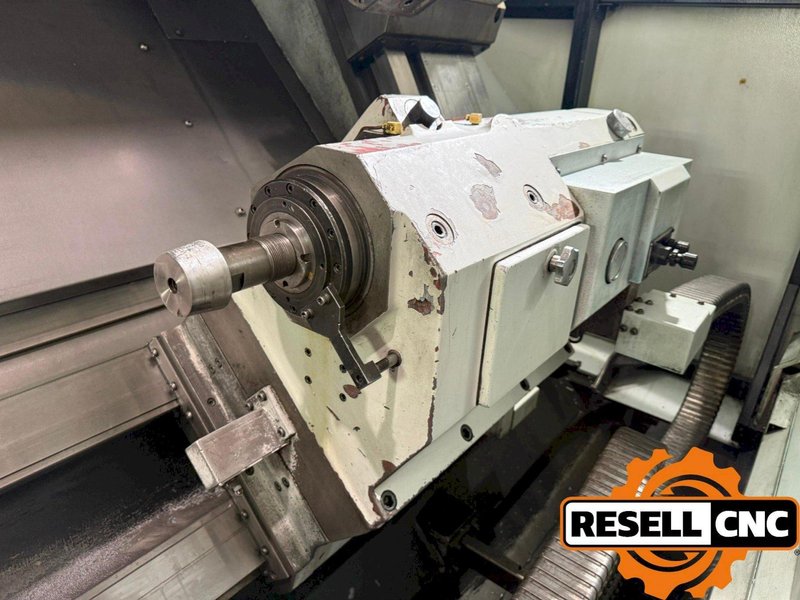

Tailstock | yes |
Dimensions | 232" x 100" x 103" |
Weight | 30800 pounds |
Power | 50 horsepower |

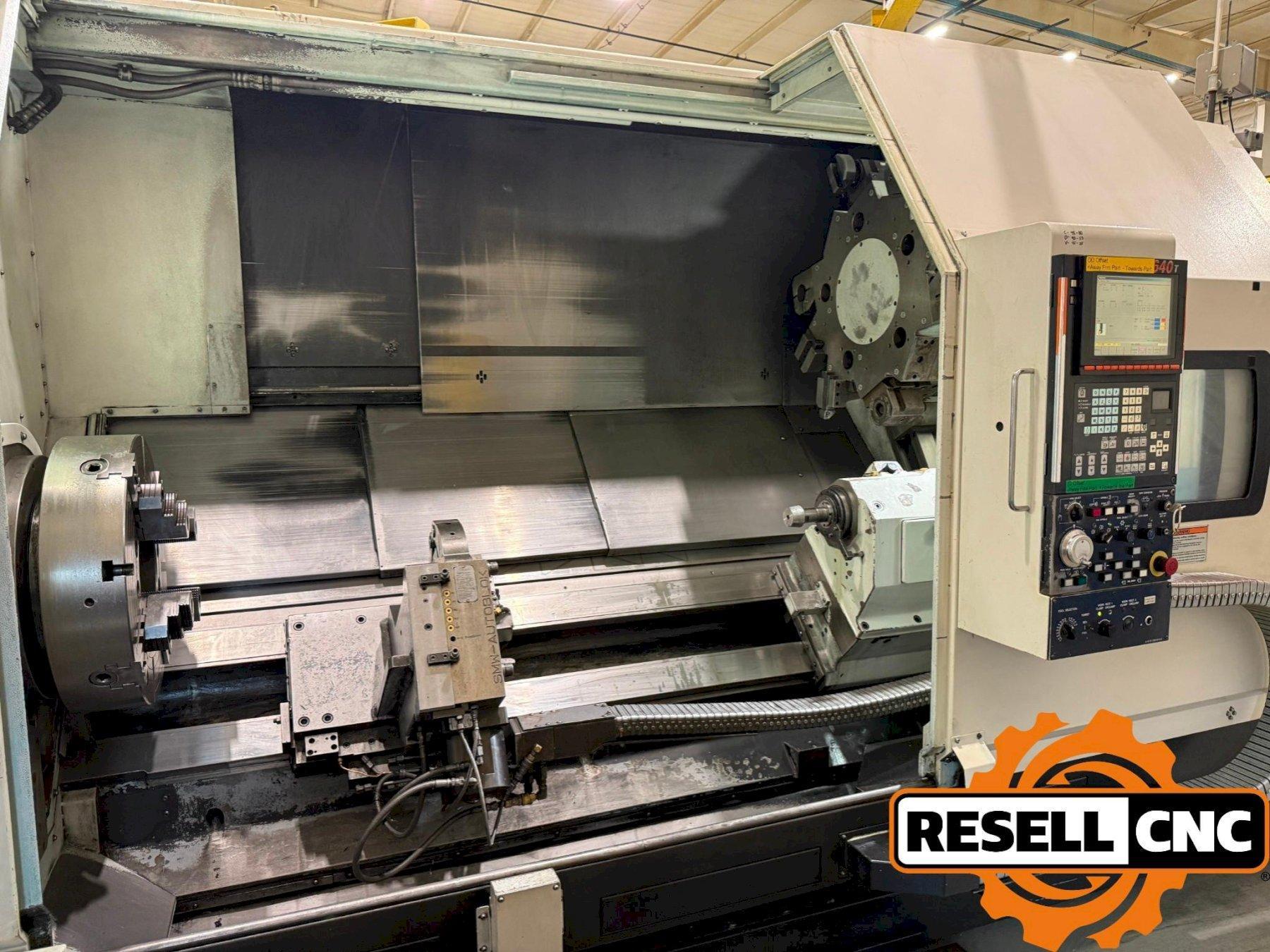

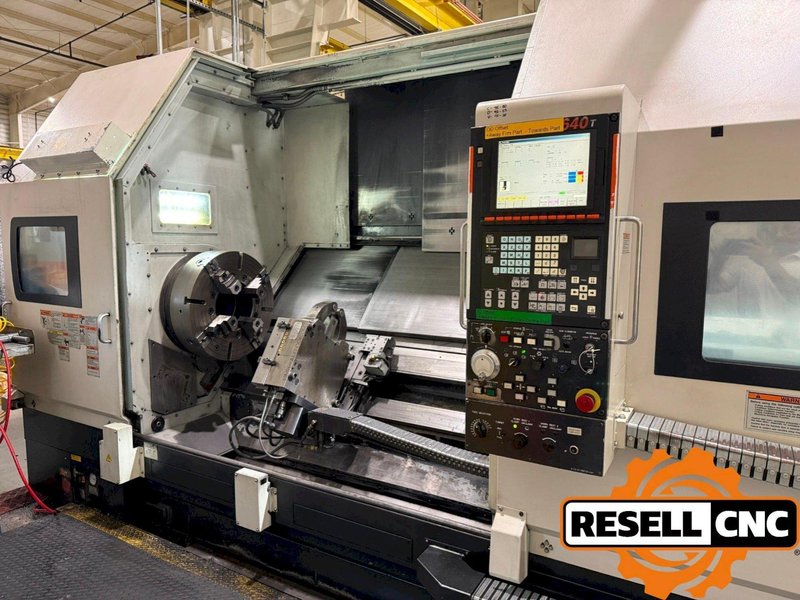

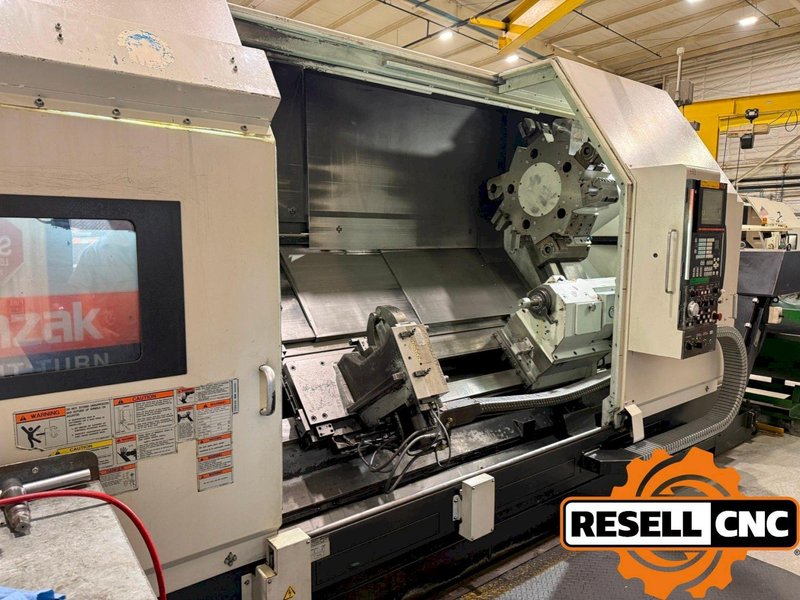

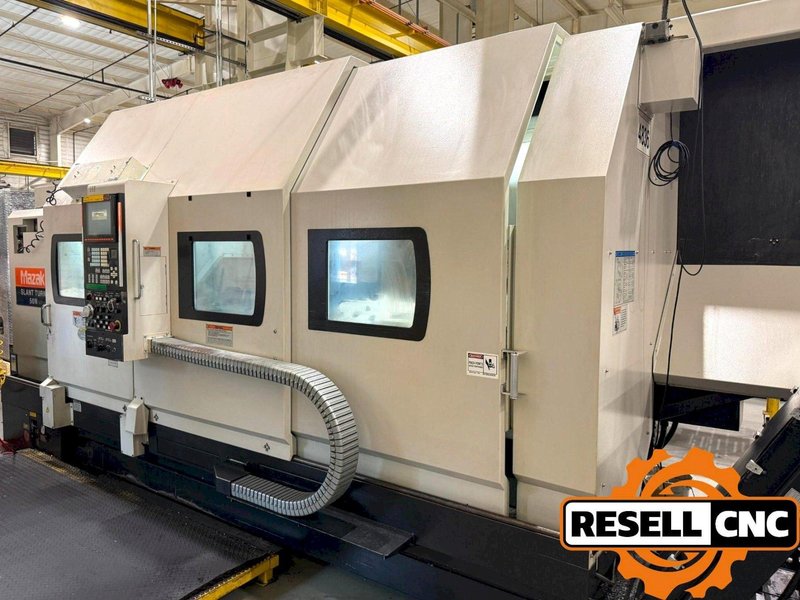

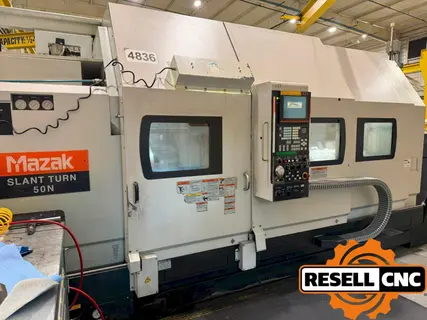

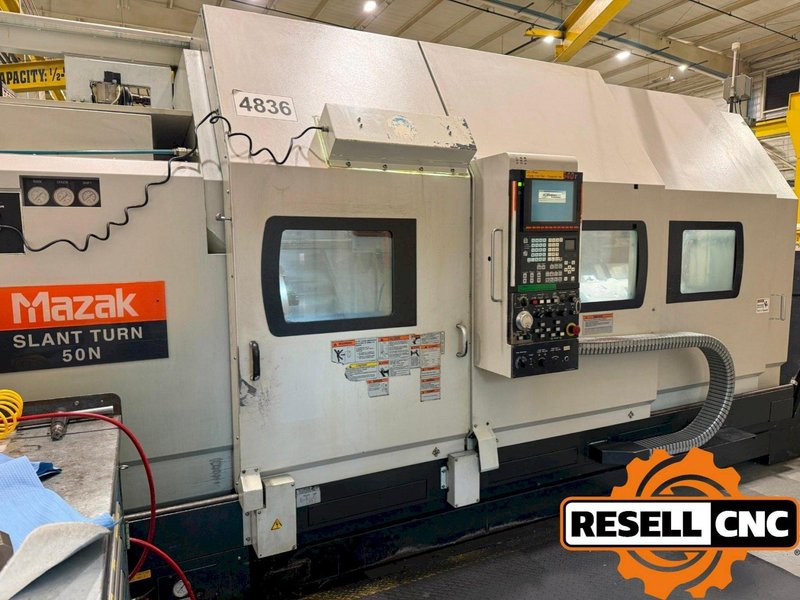

The Mazak Slant Turn 50NR CNC Lathe is designed for heavy-duty turning operations, offering robust construction and high precision. It features a slanted bed design, enhancing rigidity and stability during machining, which is ideal for handling larger workpieces with high accuracy. The lathe’s powerful spindle and high-torque motor enable efficient cutting of tough materials, while the generous swing and bed length accommodate a wide range of part sizes.
Equipped with Mazatrol CNC control, the Slant Turn 50NR simplifies programming, making it user-friendly for operators and reducing setup time. The machine supports live tooling and C-axis capabilities, enhancing versatility by allowing milling, drilling, and other operations within a single setup. Its automatic tool changer and rigid tailstock provide additional support and efficiency, ensuring the lathe meets the demands of high-production environments with consistent performance and precision. |
