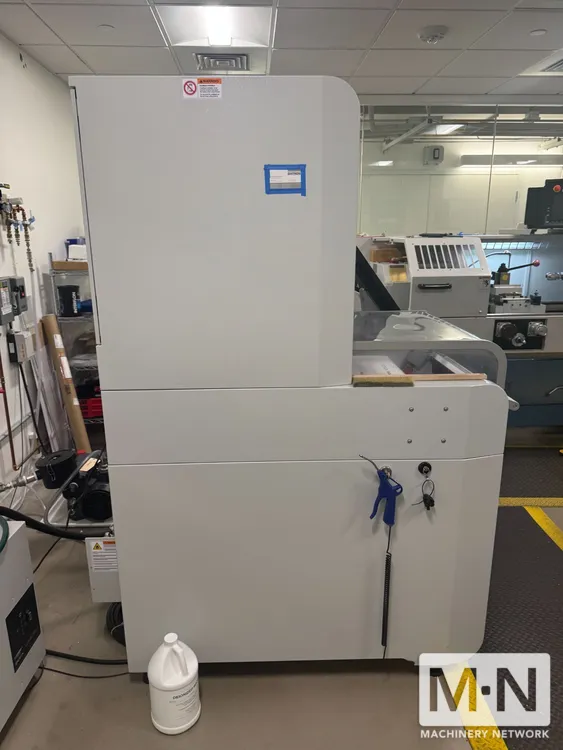

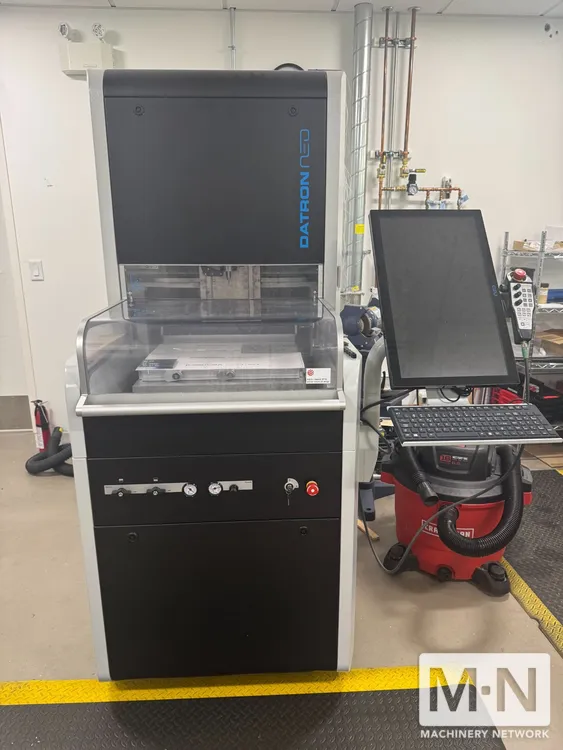

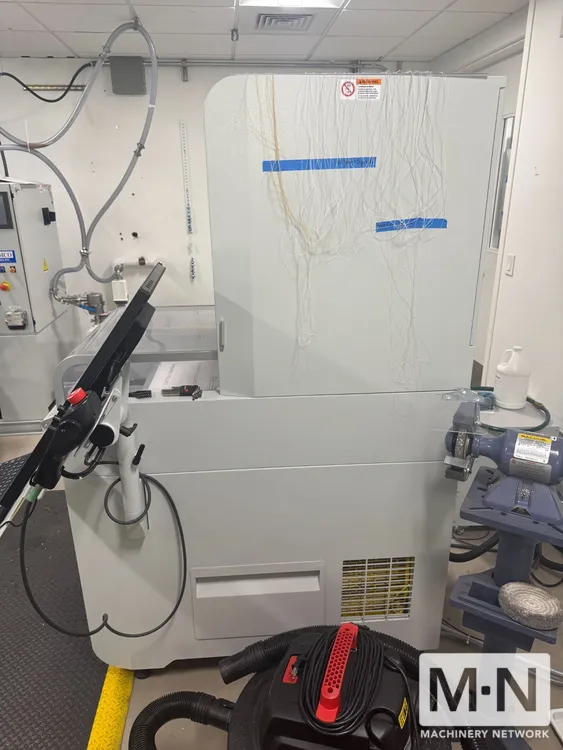

Datron Neo CNC Vertical Machining Center, 2018

Name: Used DATRON NEO For Sale 52257
Brand: DATRON
SKU: 52257

Brand

DATRON

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers

Manufacturer:

DATRON

Model:

NEO

Year:

2018

Stock #:

52257

Status:

For Sale

Description

Aluminum table with integrated air ports

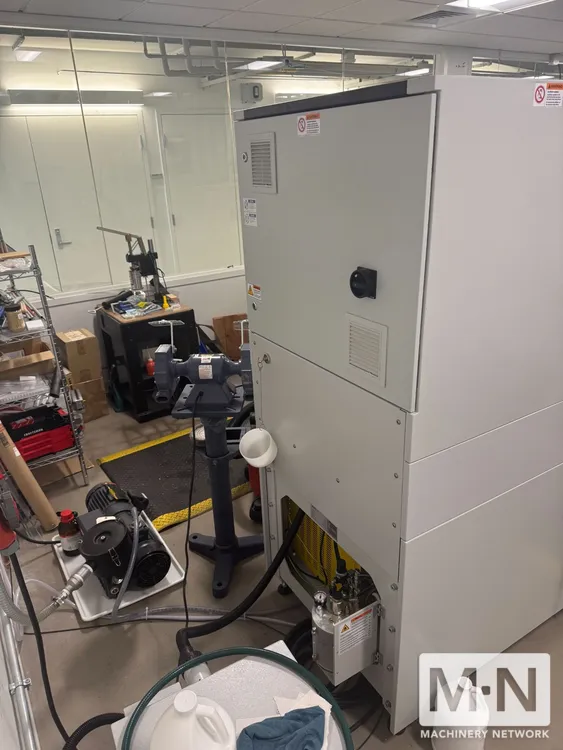

Integrated spindle chiller with housing inside the machine
DATRON 3D (XYZ) probe
Workspace camera system
Brushless, digital servo, direct-drive ballscrew on each axis
Integrated microjet
Minimum-quantity coolant system w/ 2 liter tank
24' High-definition touch-screen display
Multi-function hand-held remote

Specifications

ImperialMetric

X Axis Travel	20"	508 mm
Y Axis Travel	16.5"	419.1 mm
Z Axis Travel	9"	228.6 mm
Spindle Motor	2 kW	2.7 hp
Spindle Speed	40,000 RPM	40,000 RPM
# Axis	3	3
Cut Hours	160 hr.	160 hr.
Table-L	19.5"	495.3 mm
Table-W	7.87"	199.9 mm

Equipped With:

** $136k replacement cost ** (160 hours cut time)
Datron next/neo+ Software
Surface Profile (Auto Measuring & Compensating)
Tooling Starter Set
Vacuum Chuck -19.68" x 7.87" Clamping Area
Module Plate
Dust Vacuum Kit

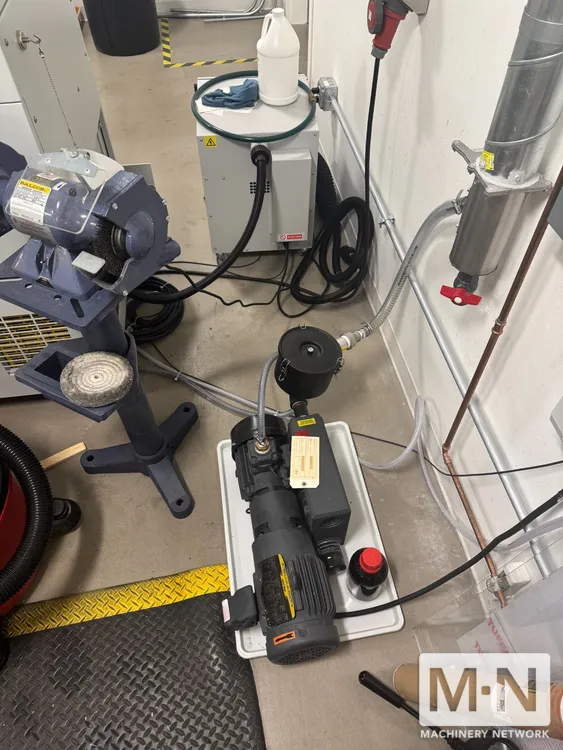

Busch Pump Kit
11 KVA Electrical Transformer - Output of 400V, 3 Phase

No files or videos to display
