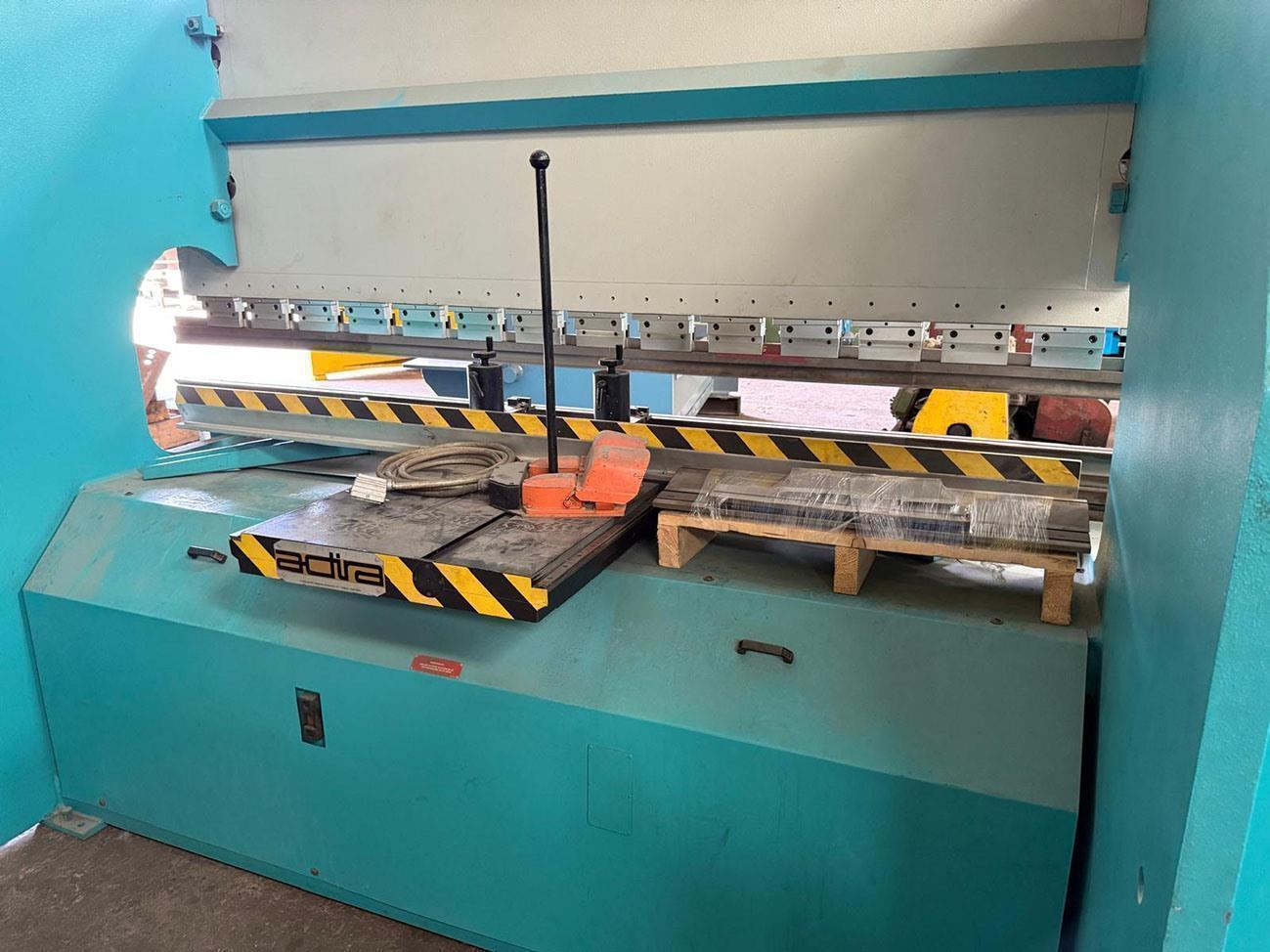

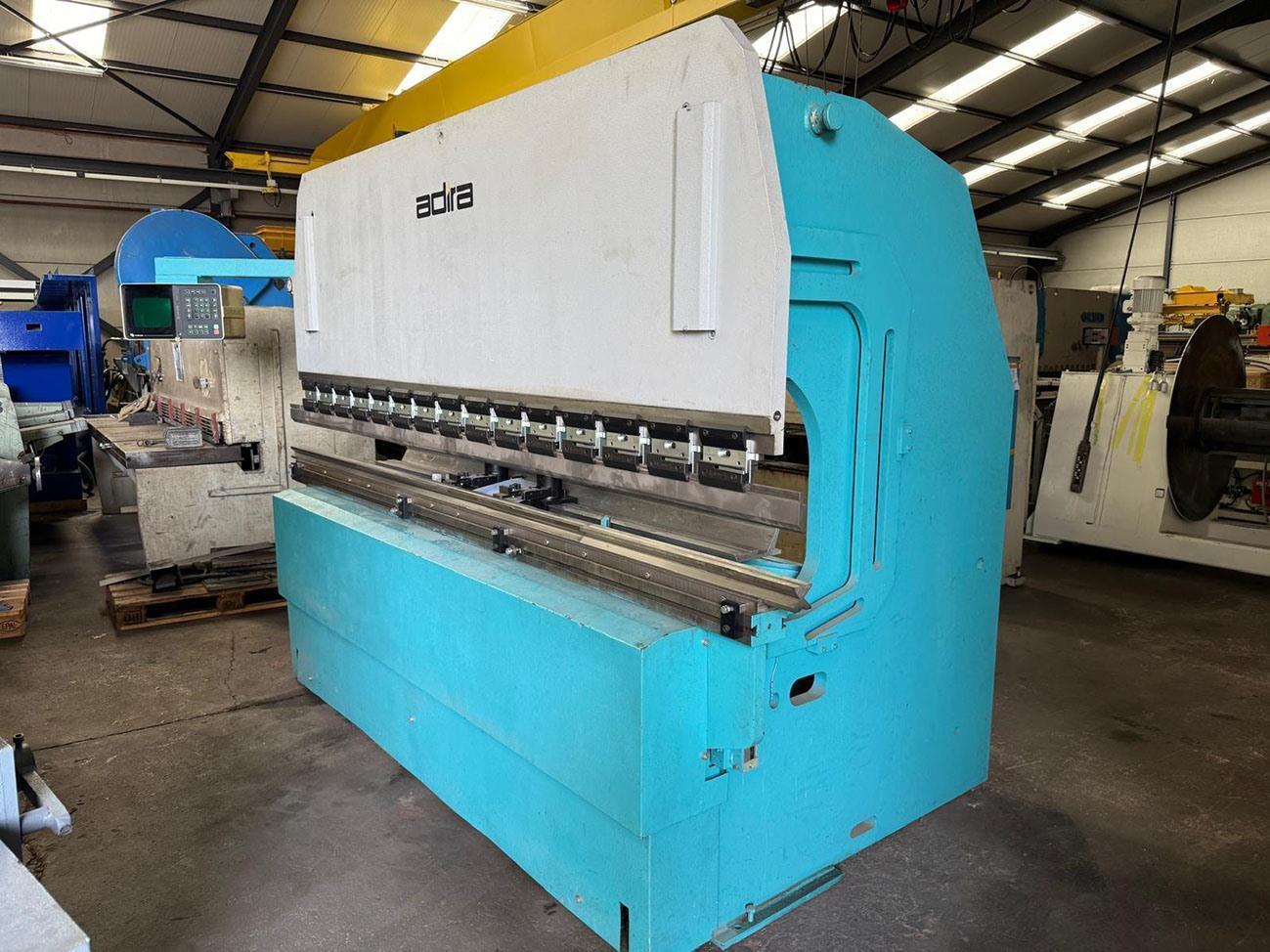

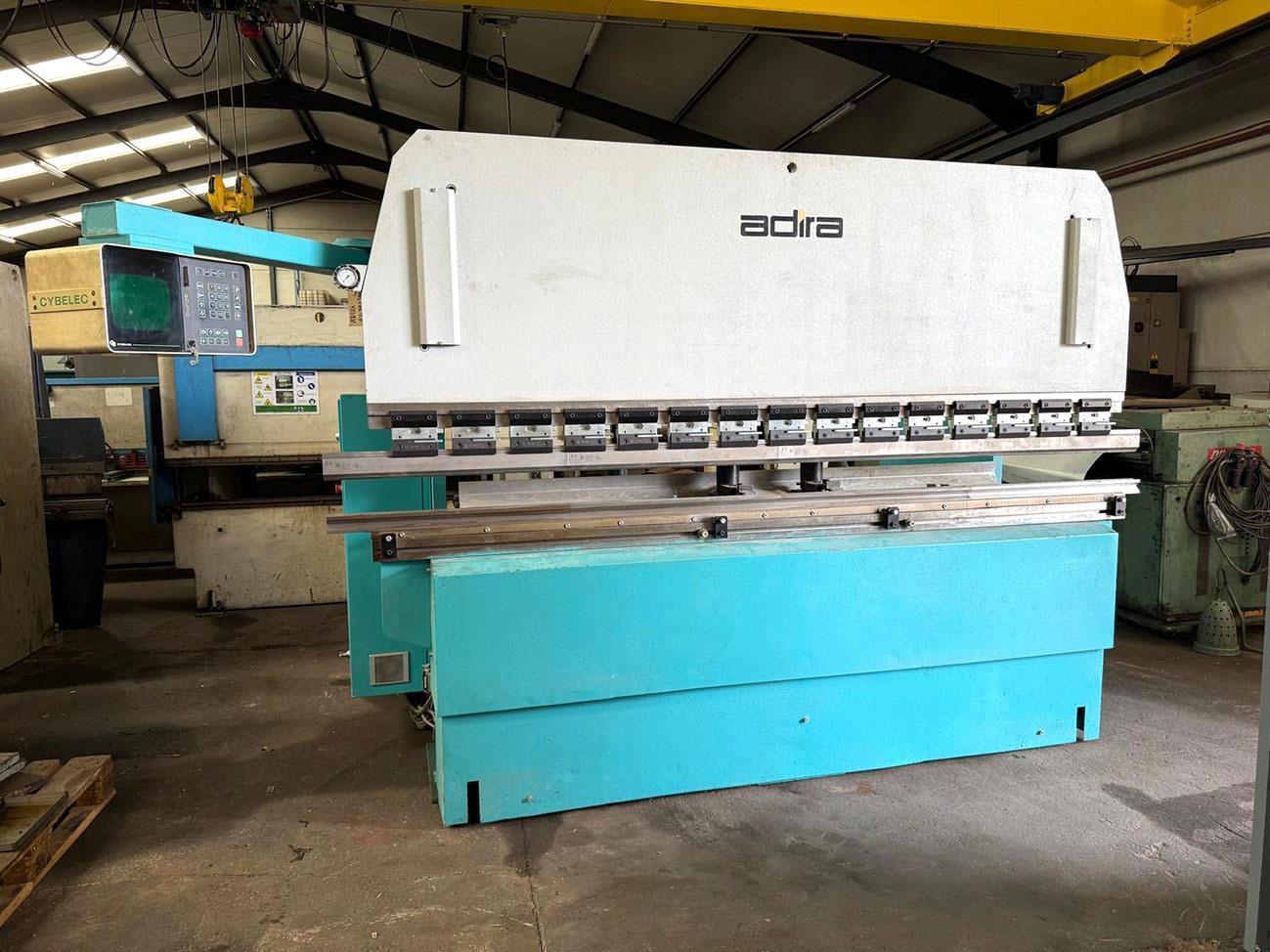

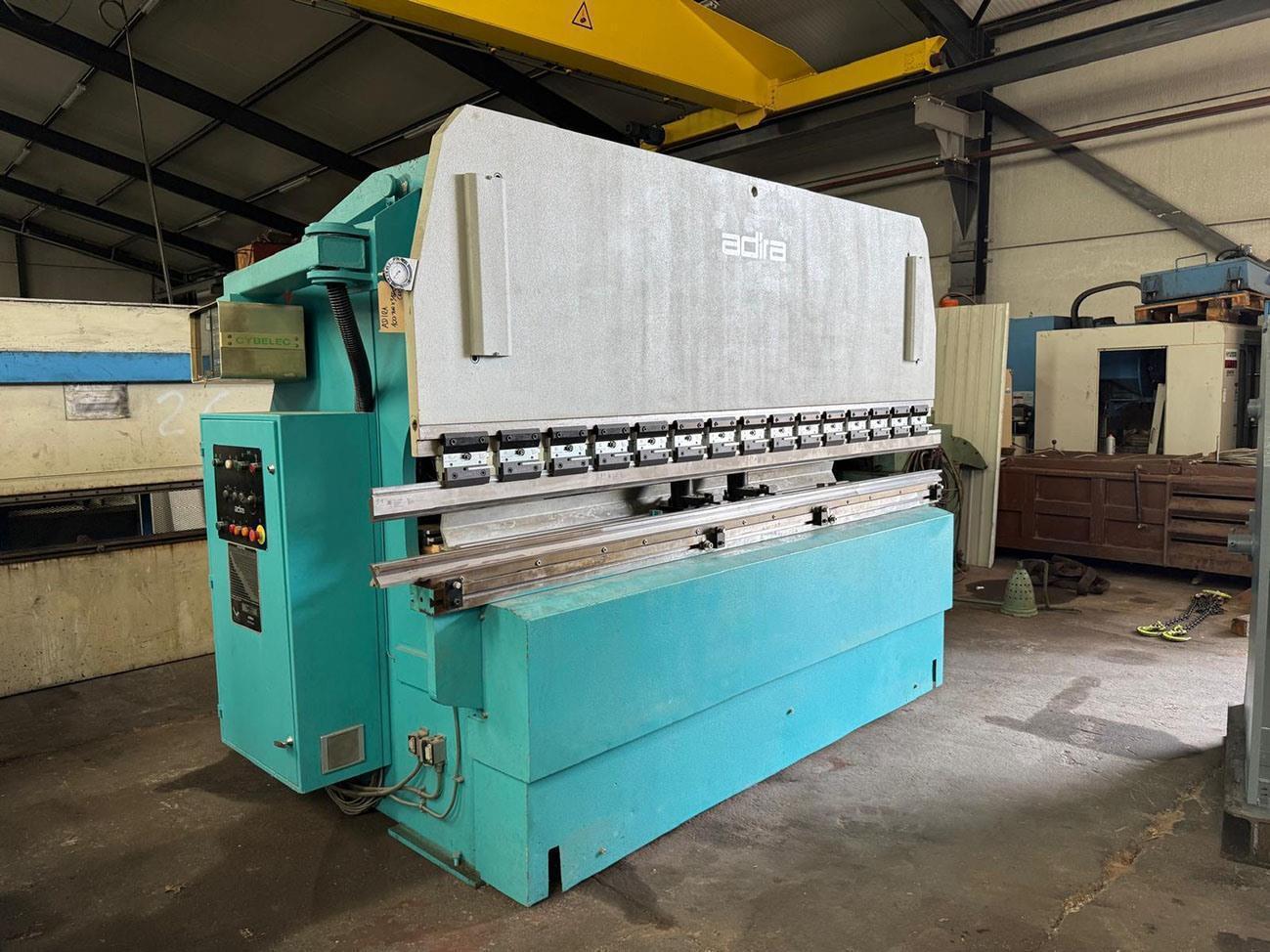

Adira QHA 125 ton x 3100 mm CNC

Brand
ADIRA
Category
Bending & Forming Equipment
Type
Brakes, Hydraulic
Model
QHA 125 ton x 3100 mm CNC
Stock #
O.01 14021
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 125 Ton x 3000 mm
  • Backgauge CNC

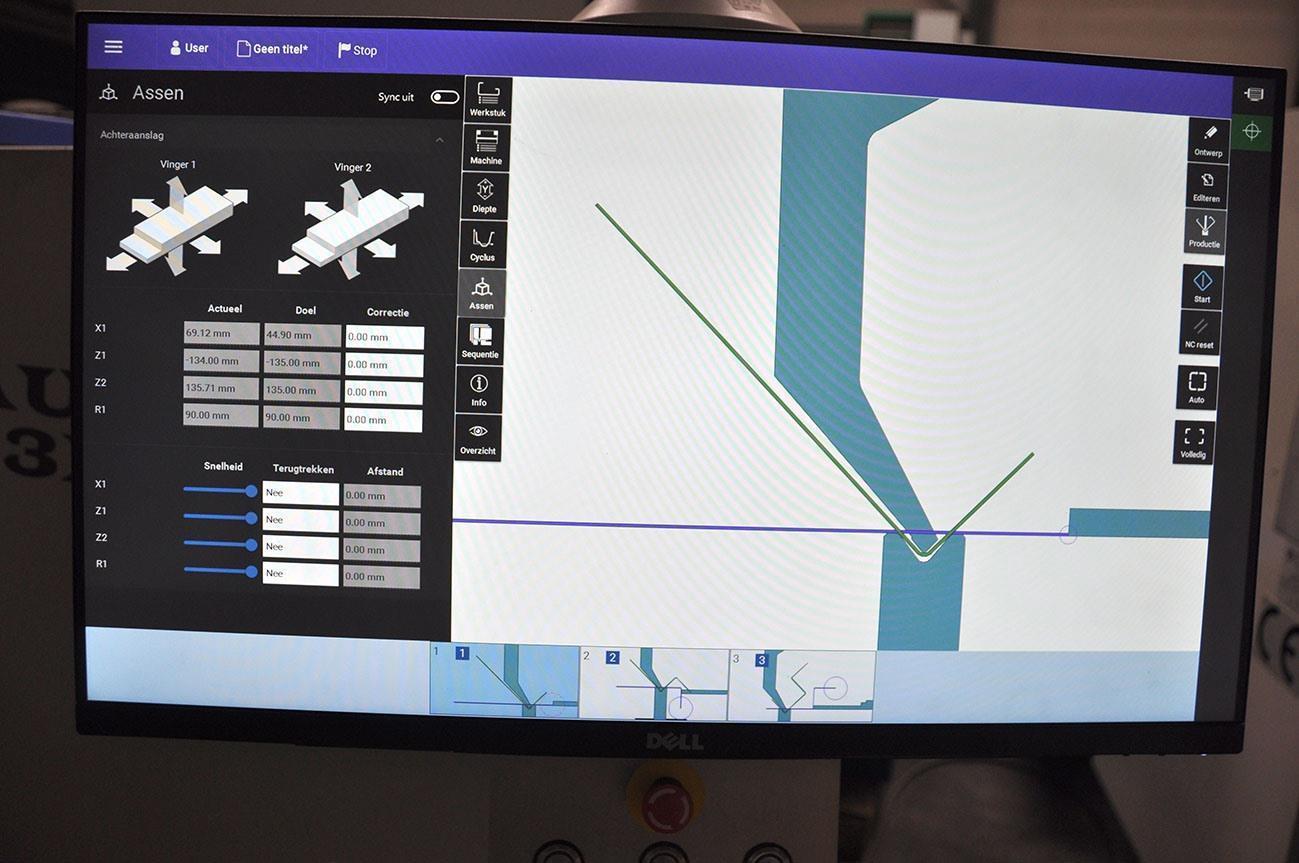

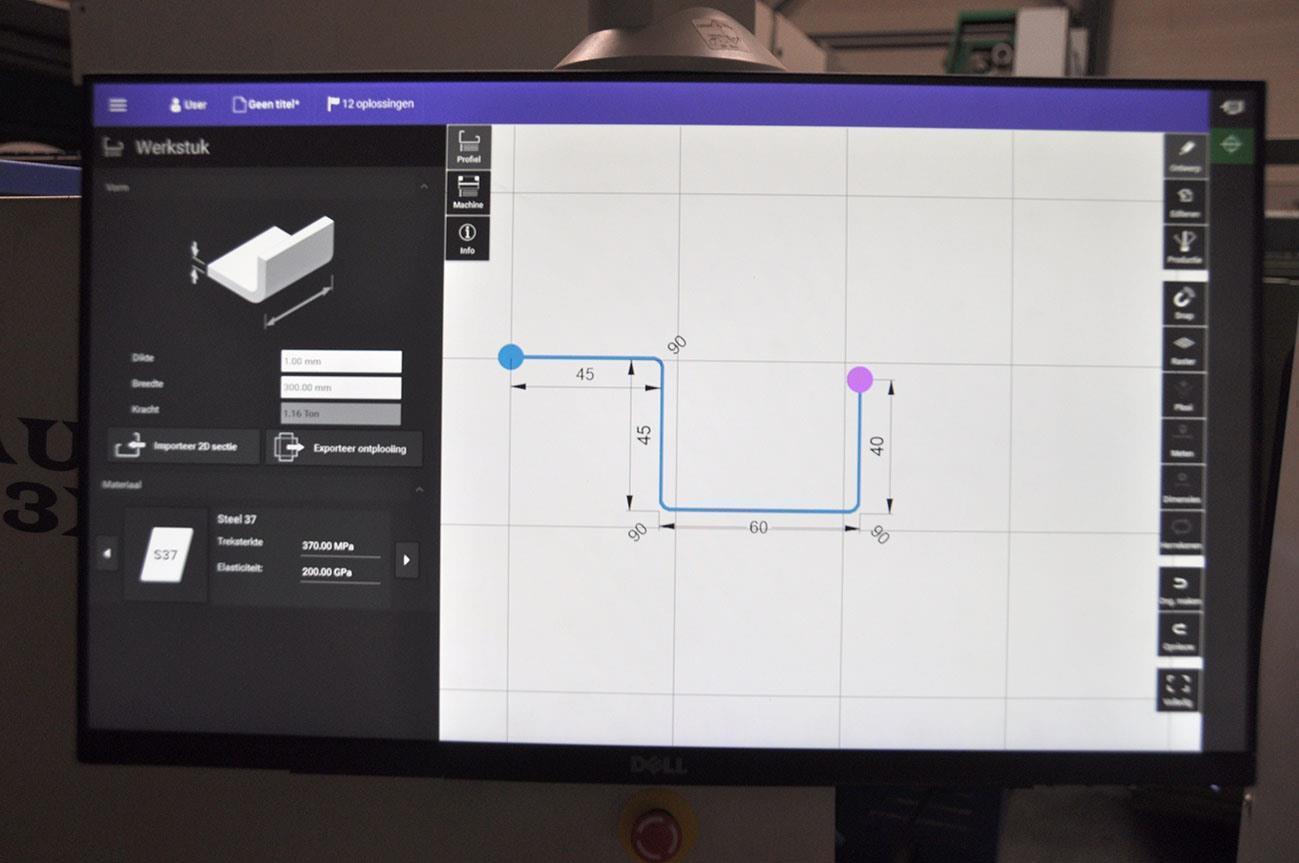

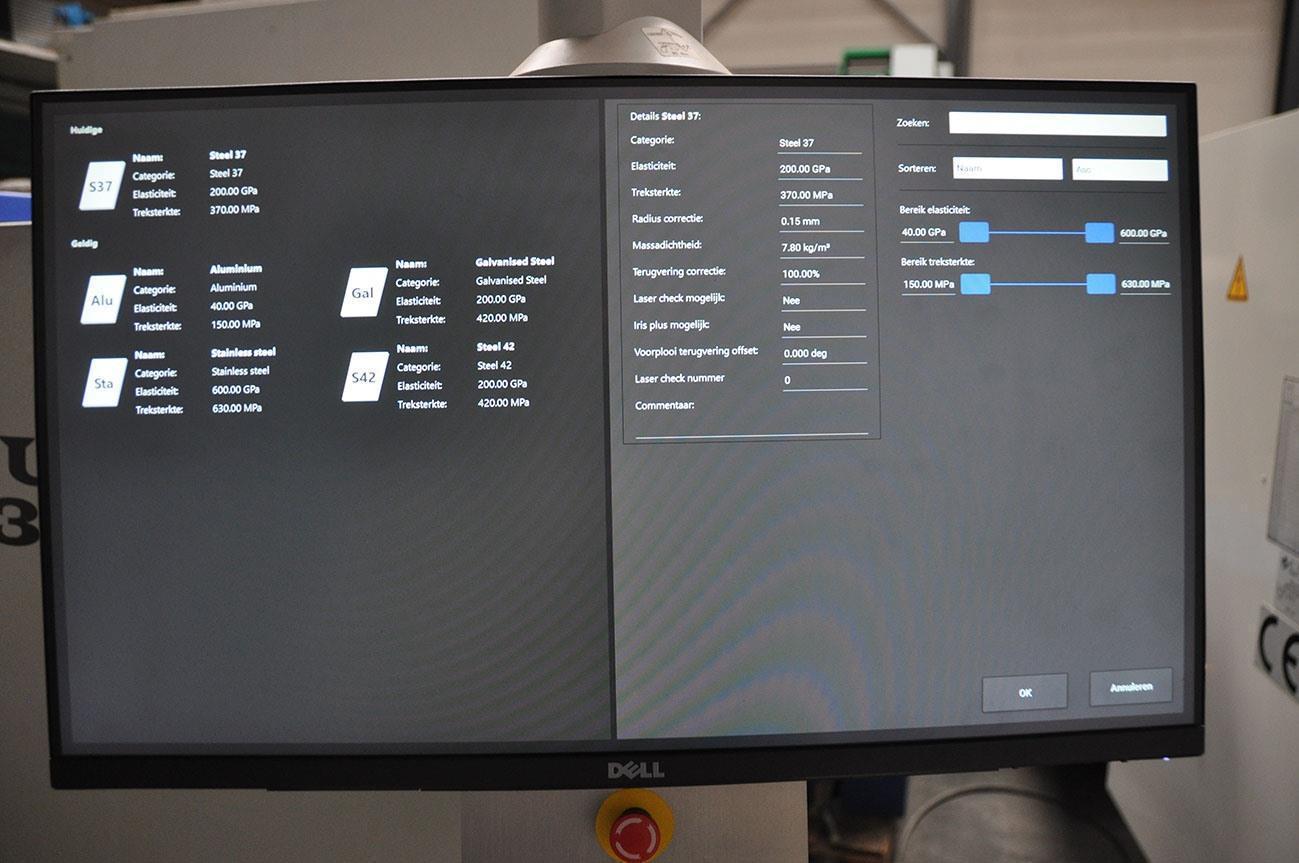

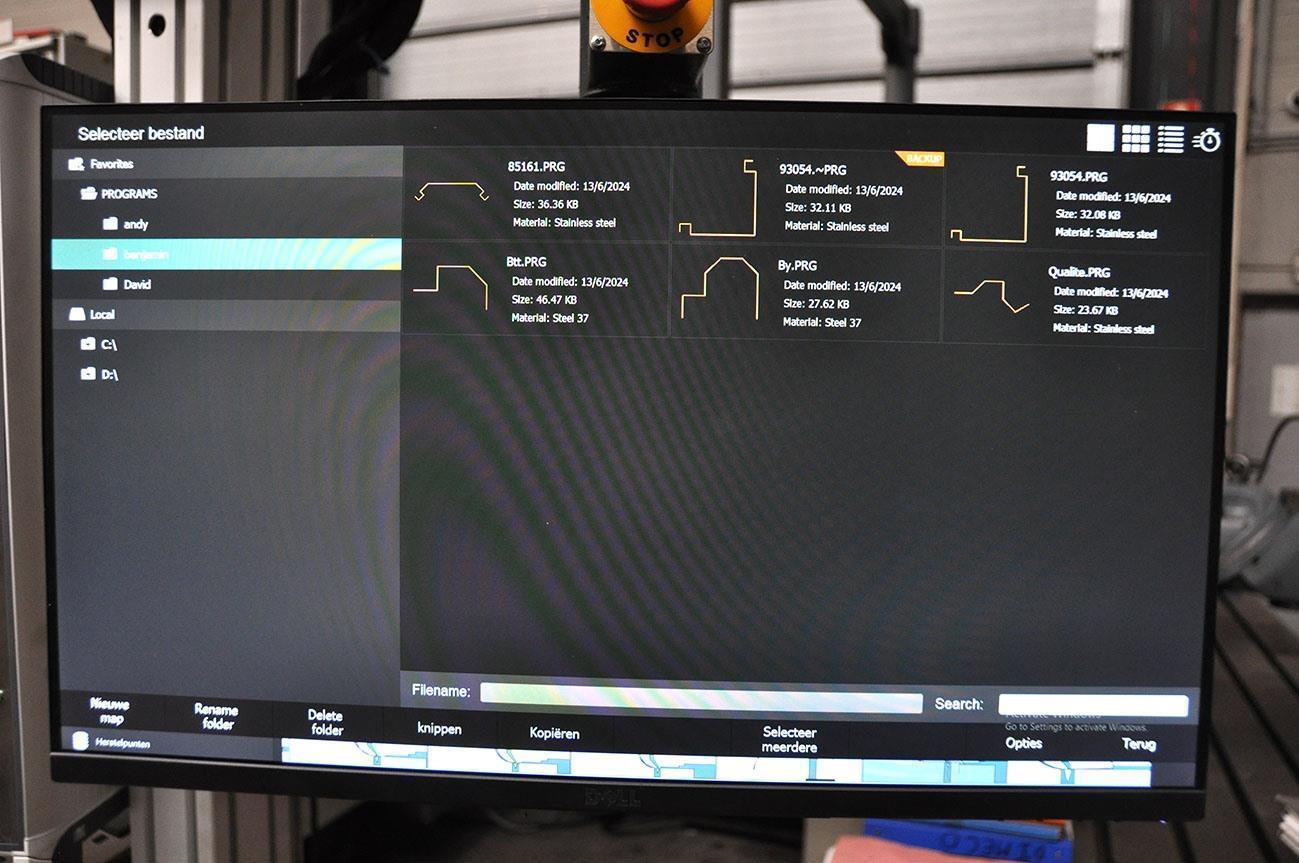

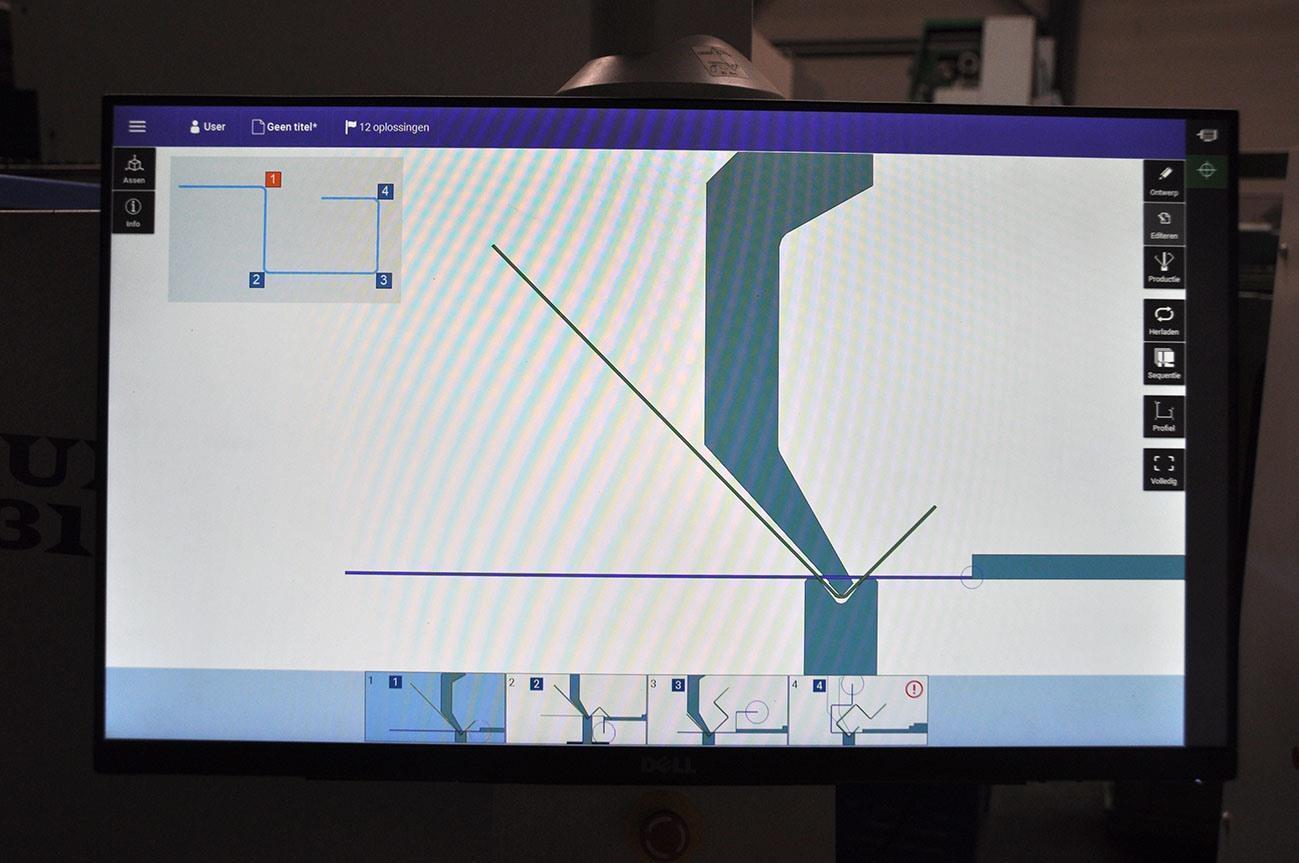

  • Control 2D Touch
  • Passage between uprights 2550 mm
  • Max stroke 100 mm
  • Max distance between table -- ram 310 mm
  • Depth of throat 450 mm
  • Locking speed 45 mm/sec
  • Working speed 7.5 mm/sec
  • Returning speed 50 mm/sec
  • Electric motor (power) 7,5 kW
  • Length 3300 mm
  • Depth 1660 mm
  • Height 2360 mm
  • Weight 8 ton

Additional info

  • 3 axes: Y1 / Y2 / X

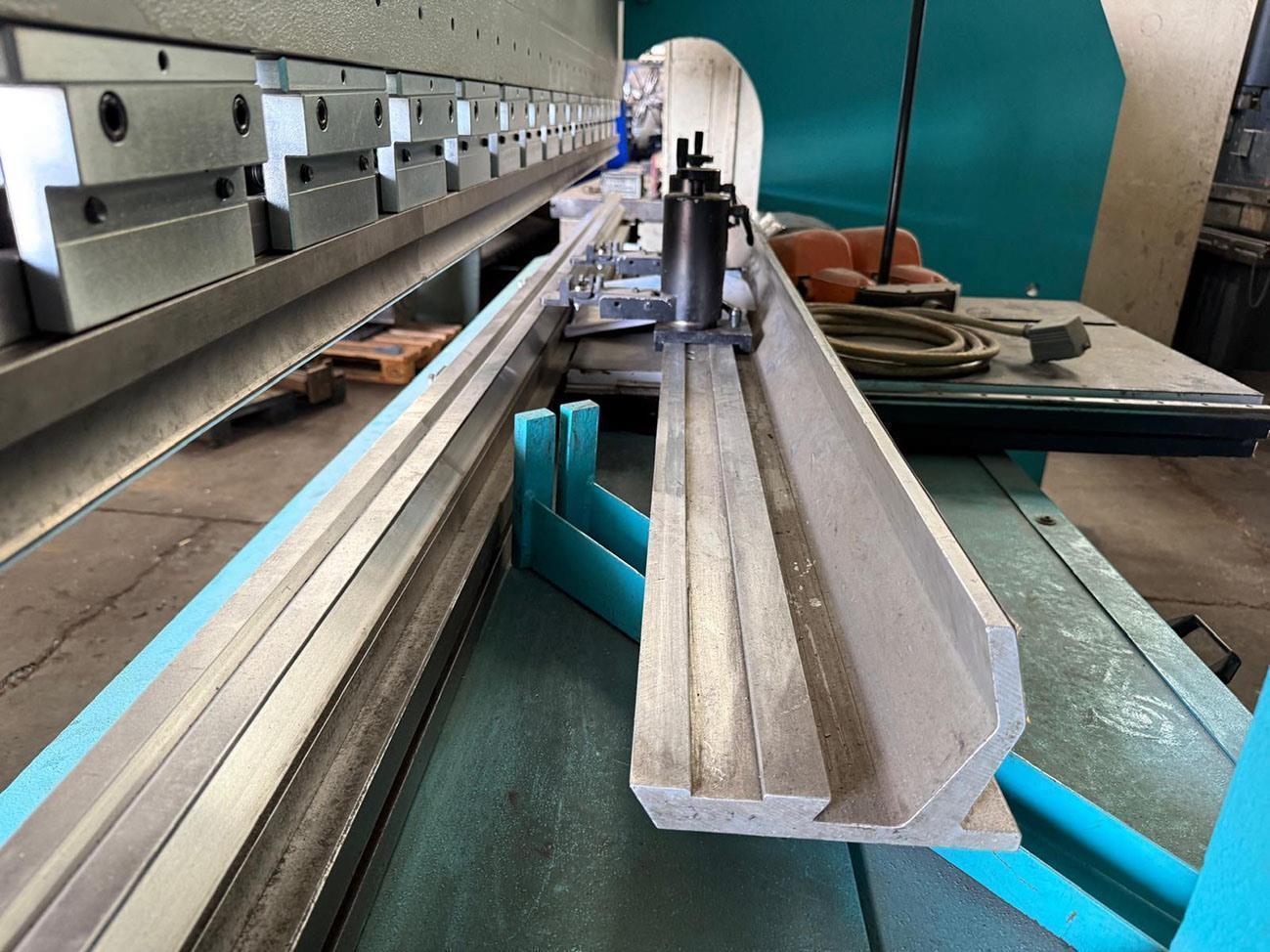

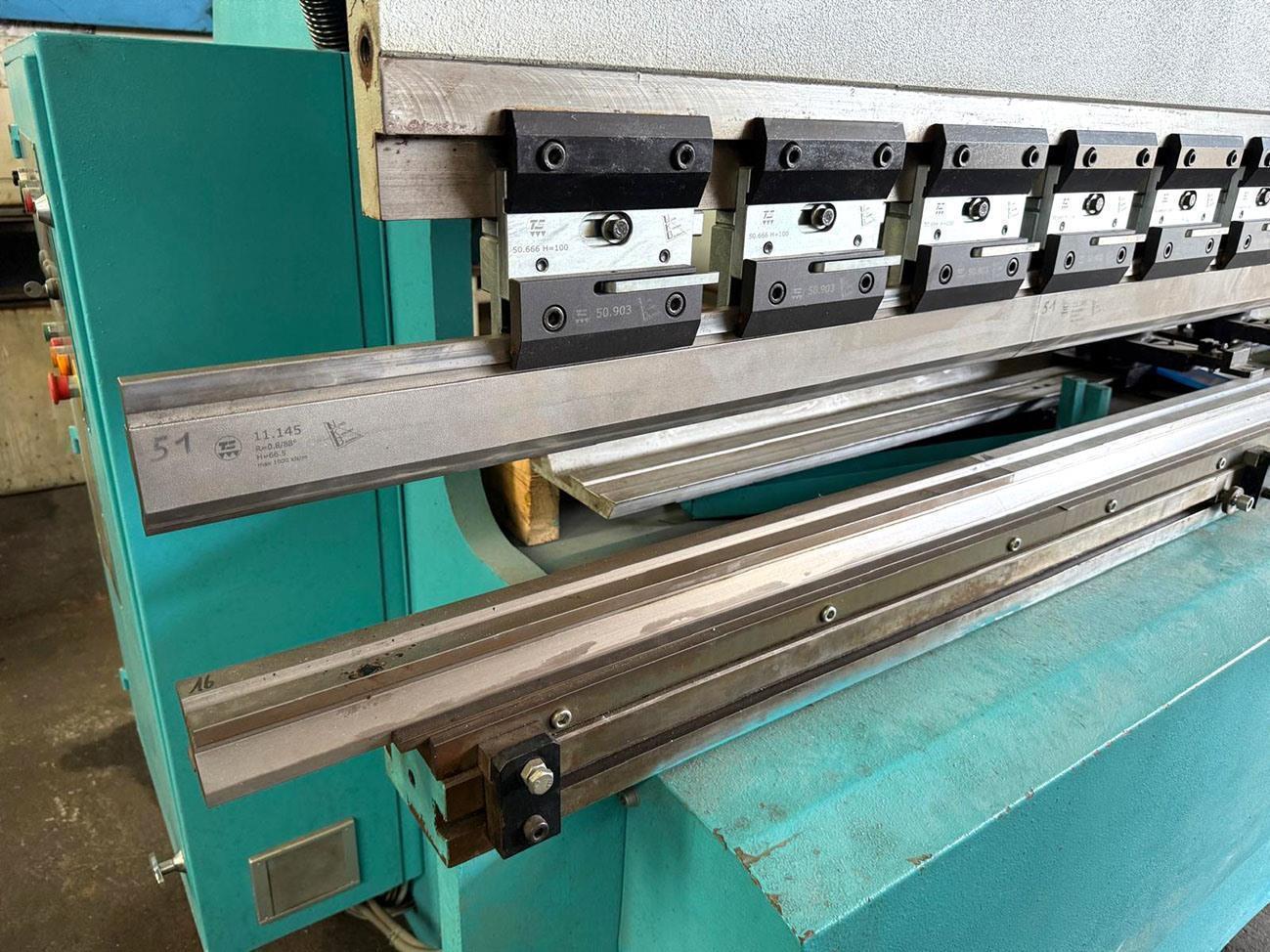

    upper & lower amada system tooling
    Height of the machine is only 2300mm!!
