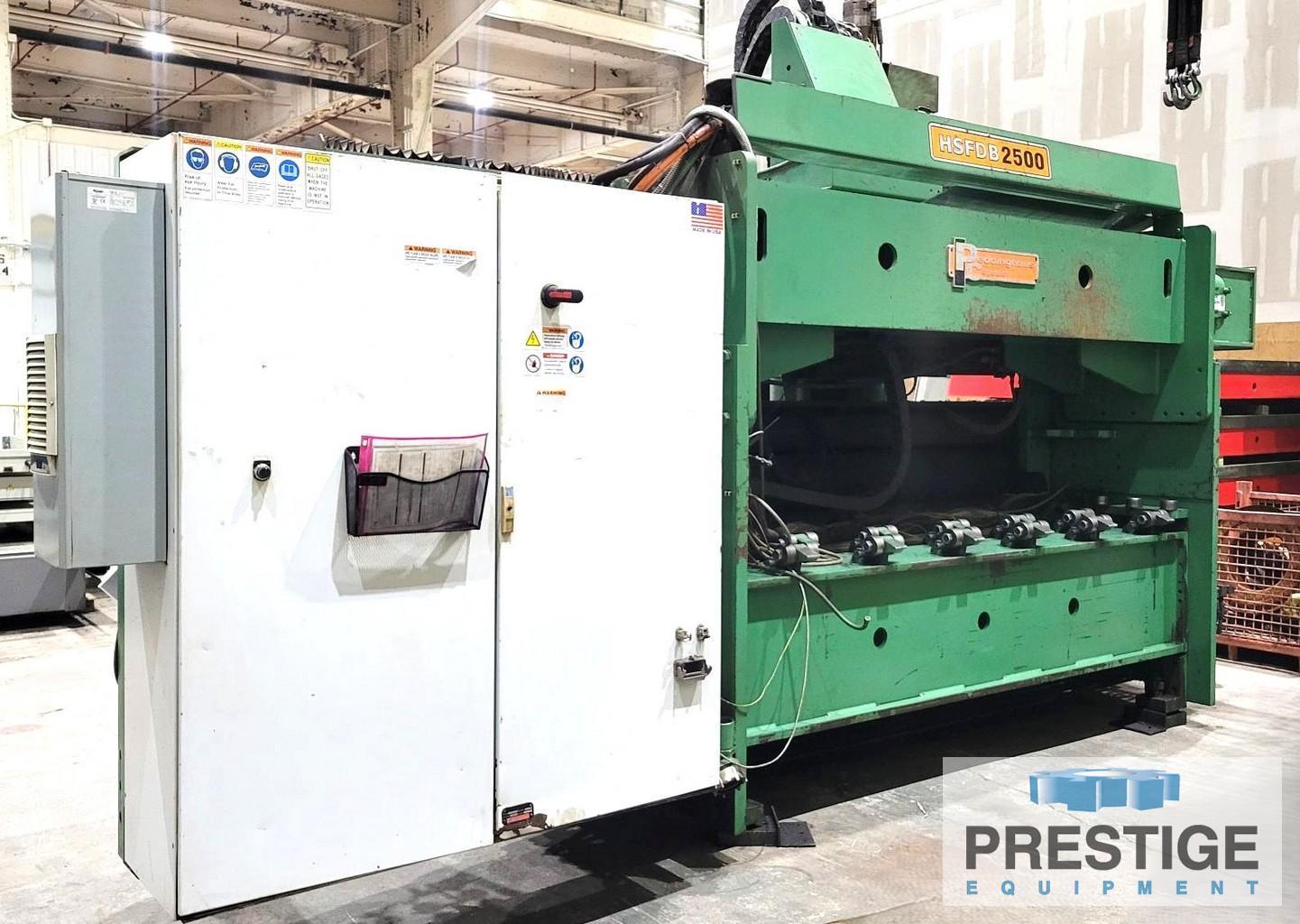

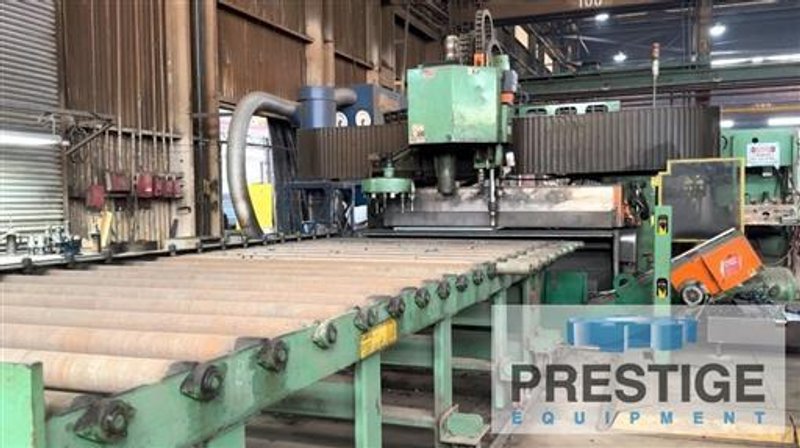

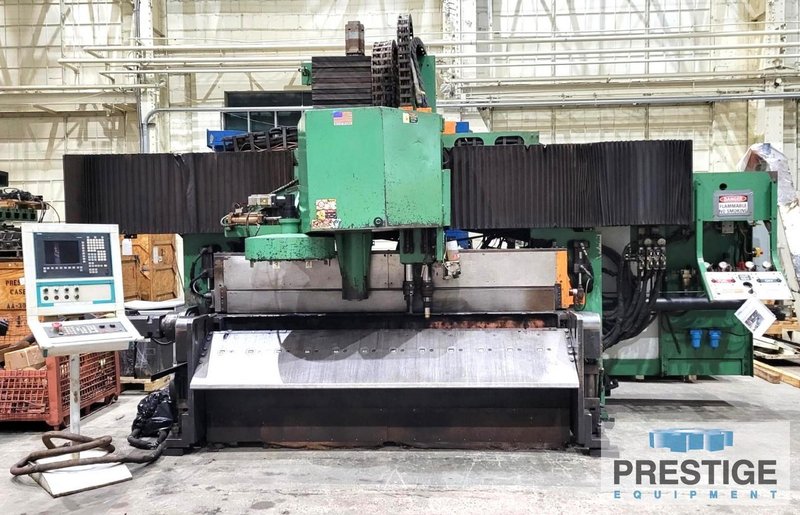

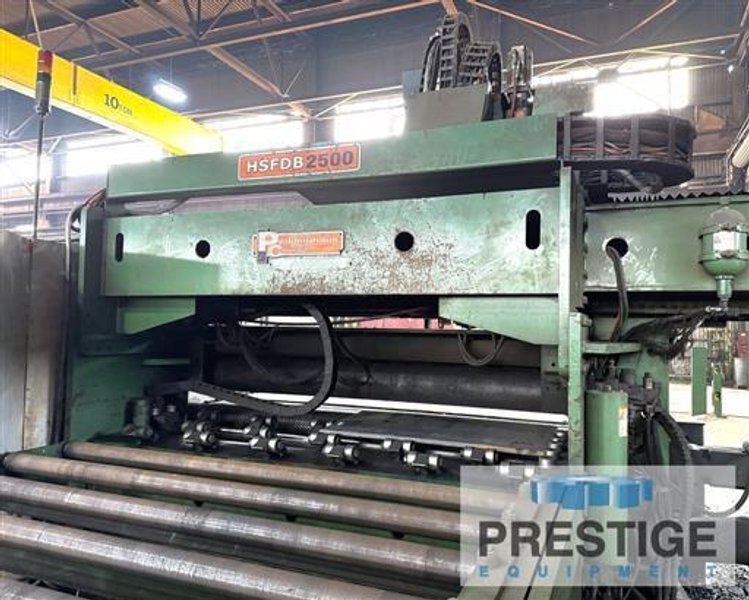

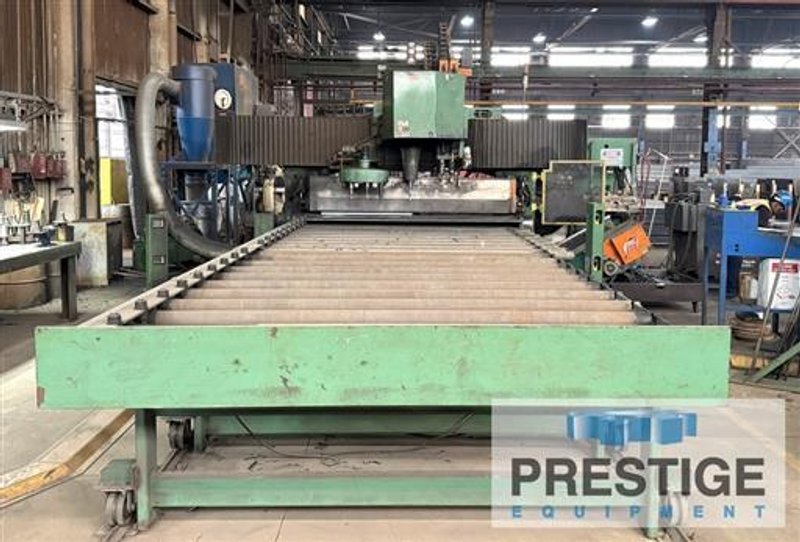

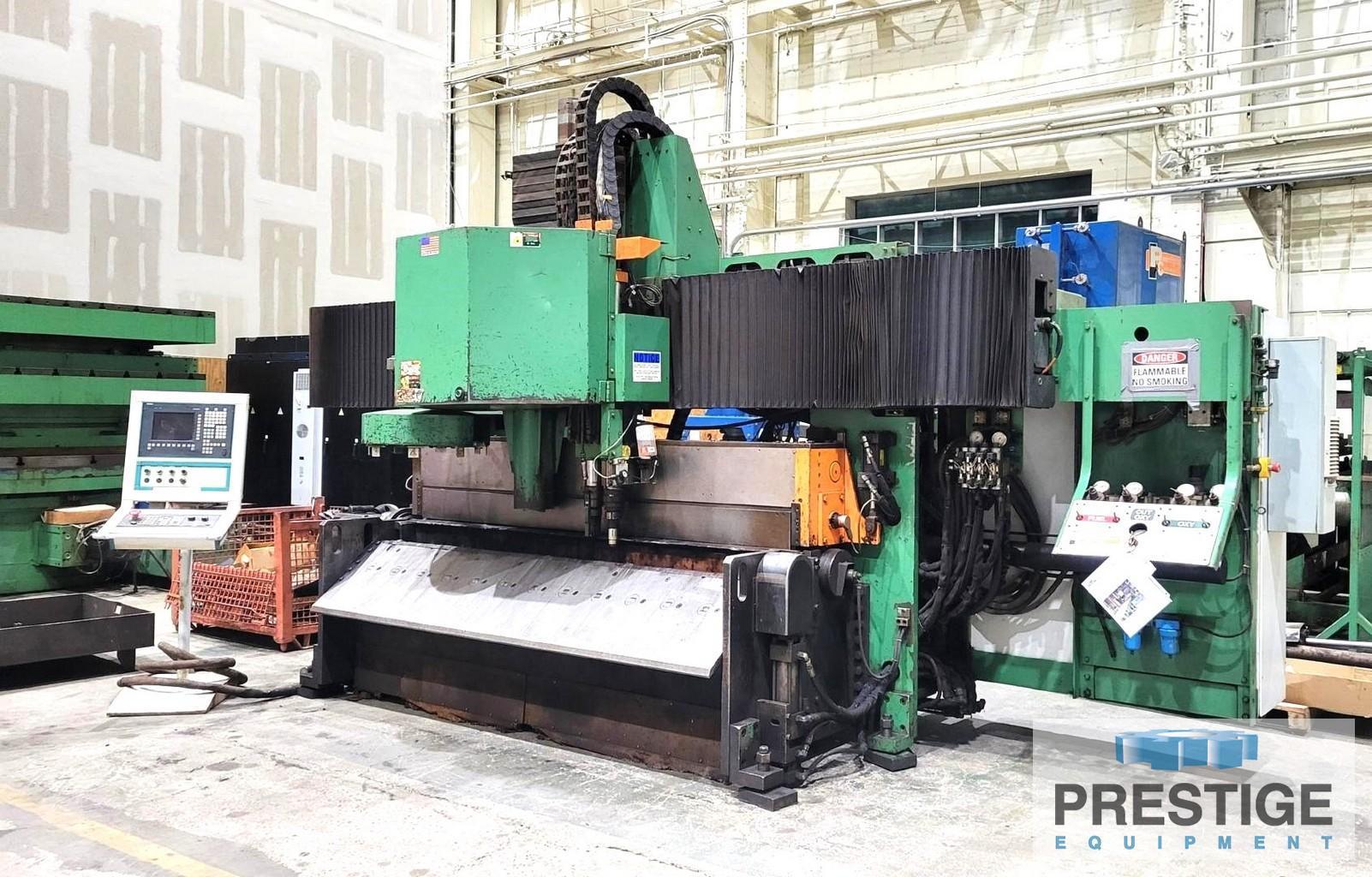

Peddinghaus HSFDB 2500/B Heavy Plate Processor

CAPACITY:
Maximum Material Width 96"
Minimum Material Length 52"
Maximum Material Weight 20,000 Lbs.
Spindle Power 48 HP
Min-Max Plate Drilling Range 1/4" to 3"
Min-Max Plasma Cutting Range 1/4" to 2-1/2"
Spindle Speed 0-2250 RPM
Available Tools in Tool Changer 8
Spindle Taper #50
Machine Weight 35,488 Lbs.



Equipped With:

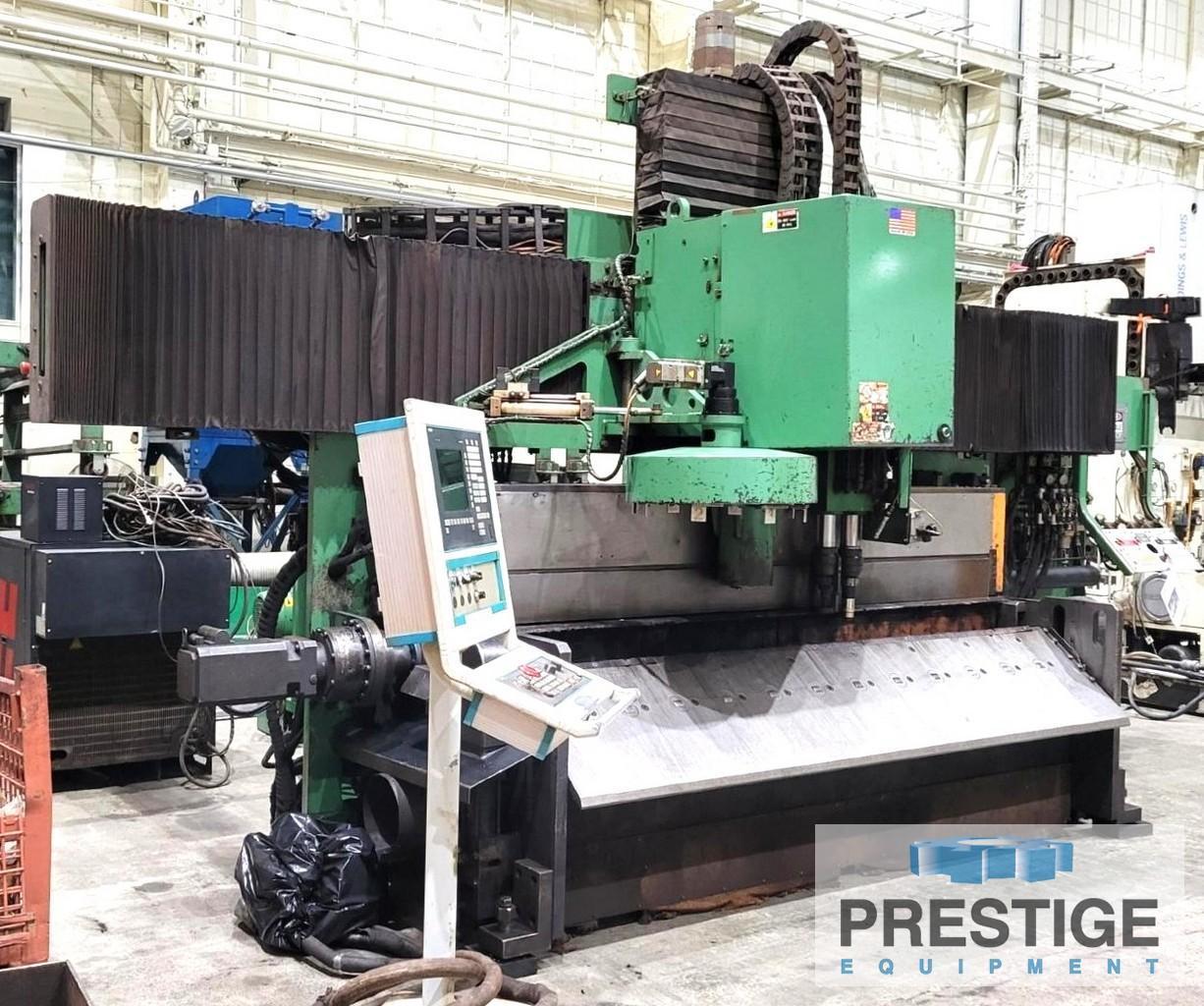

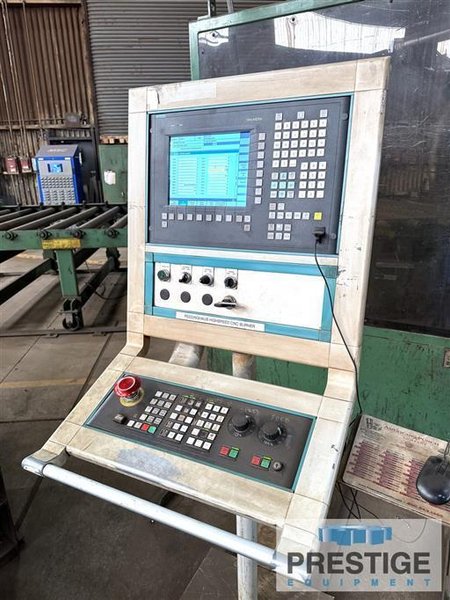

Siemens 840 CNC Control

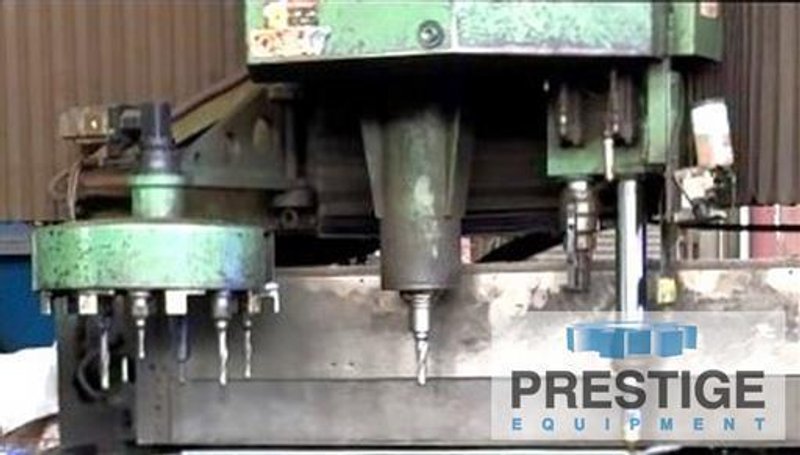

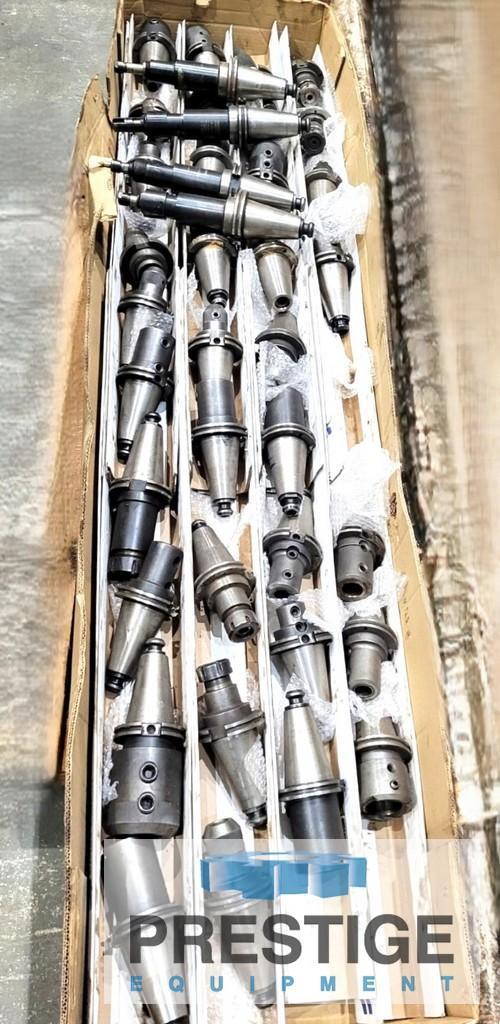

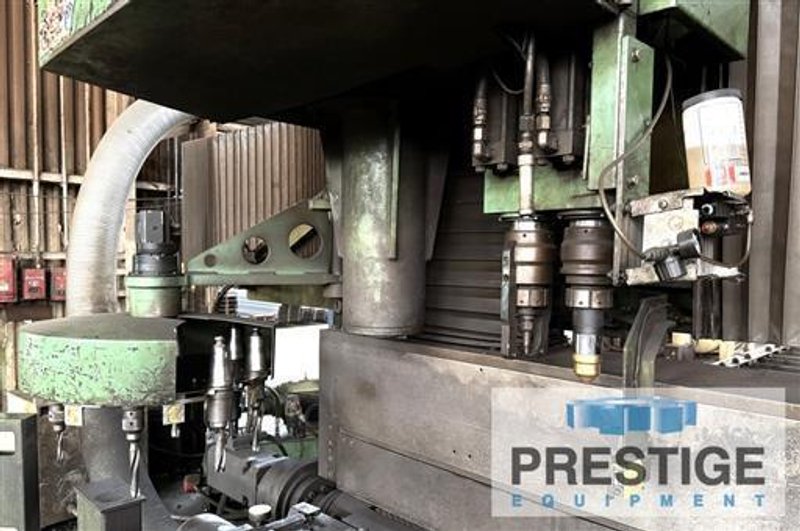

(1) Single Spindle Drill With 8-Station Automatic Tool Changer
(1) Signoscript Carbide Scribing Tool
Automatic Tool Length Measurement
Thru Tool Lubrication System

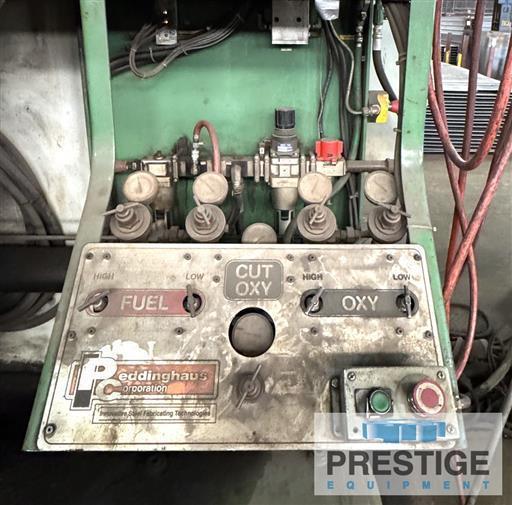

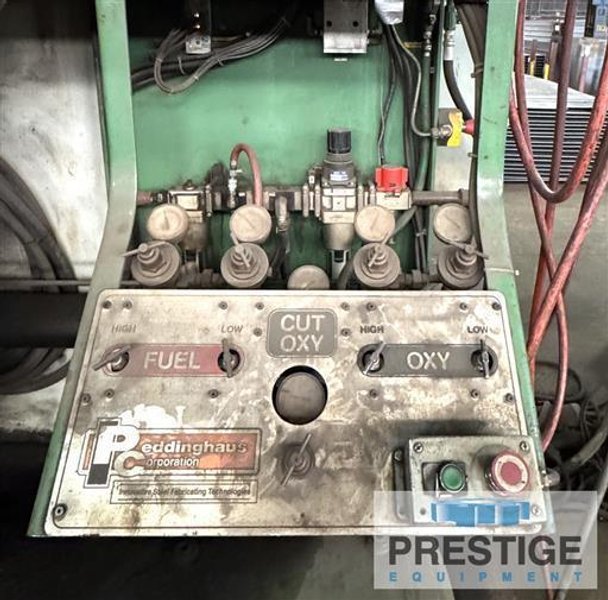

(1) Oxy Fuel Cutting Torch
(1) Plasma Cutting Torch

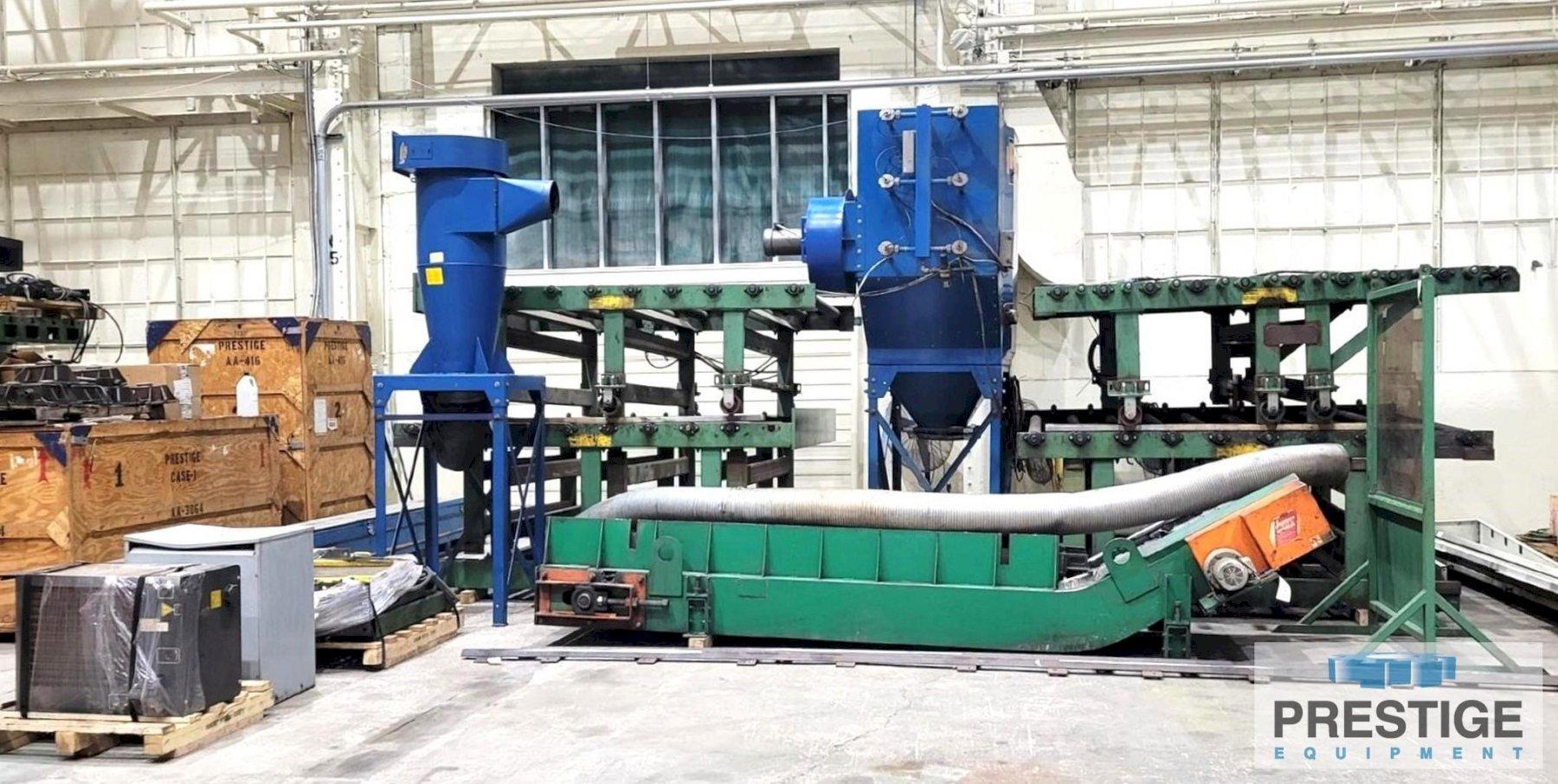

Jorgensen Slug Conveyor

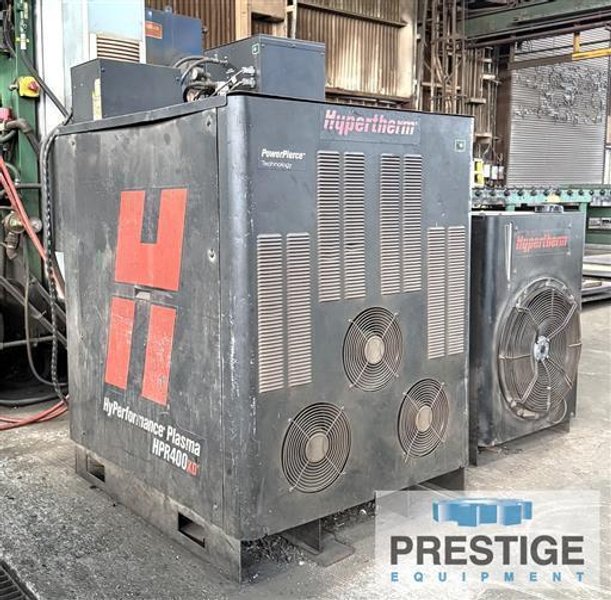

Hypertherm HPR400-XD Plasma Power Supply

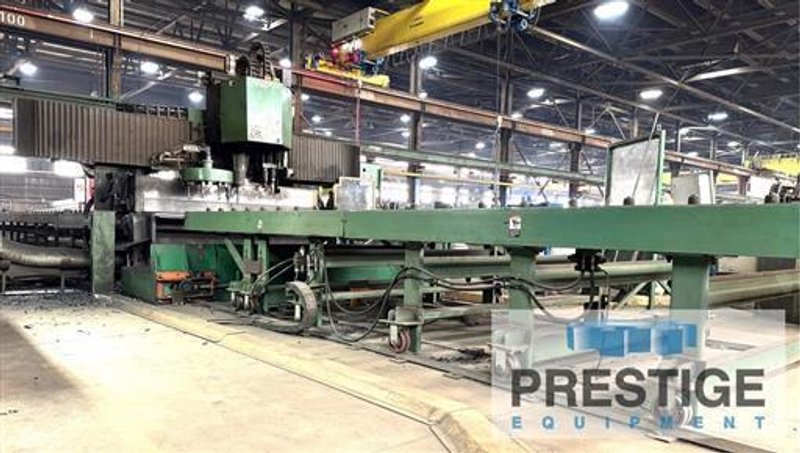

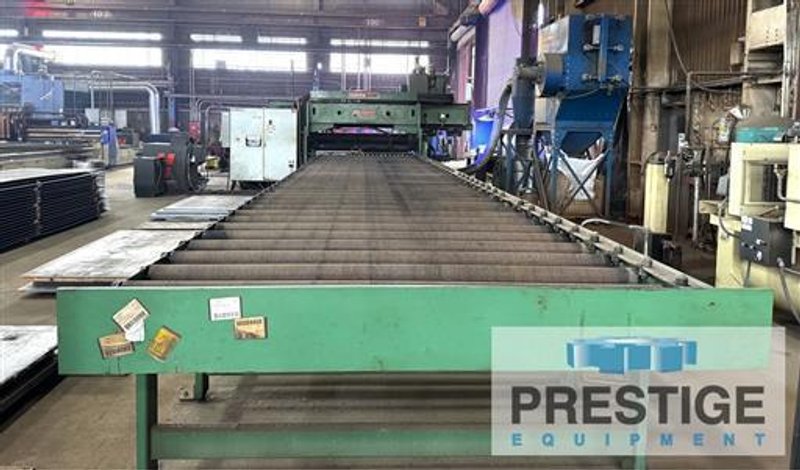

40' Infeed & 20' outfeed Conveyor

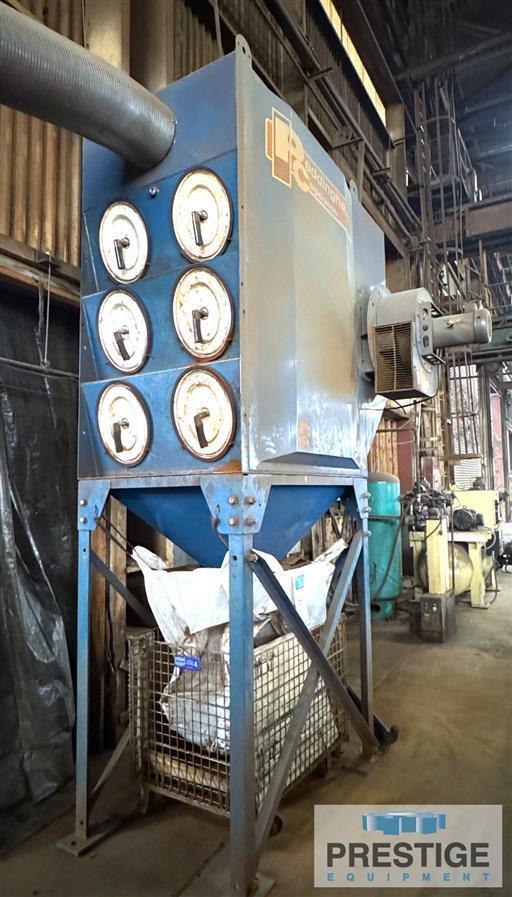

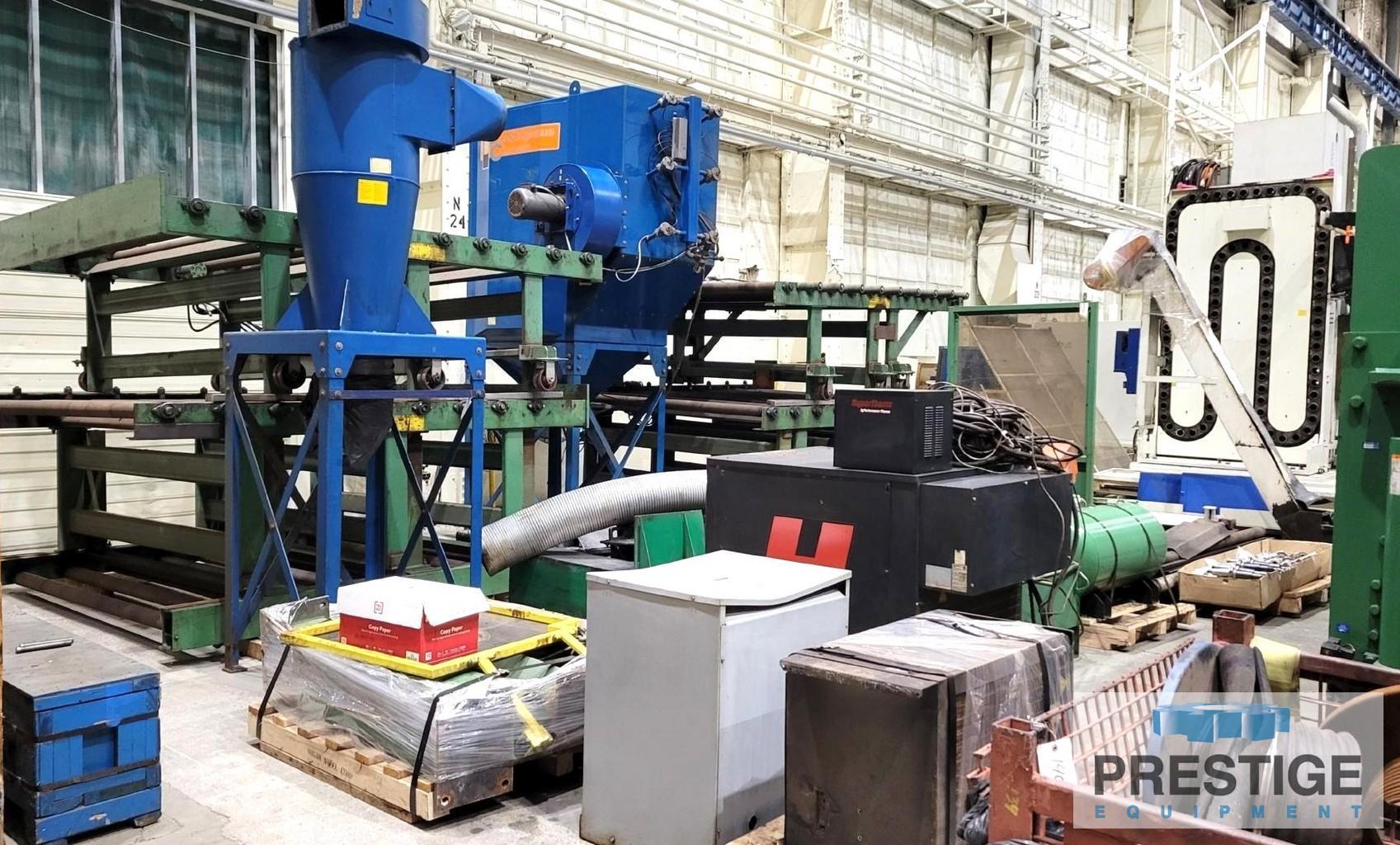

Donaldson Dust Collector


NOTE: Inspect In Plant Under Power
