DAVI MCA 0615 5/16" x 24" 4-Roll Hydraulic Plate Roll

CAPACITY:
Bending Capacity 5/16" Ga.
Pre-Bending Capacity 1/4"
Rolls Length/Free Access 26"

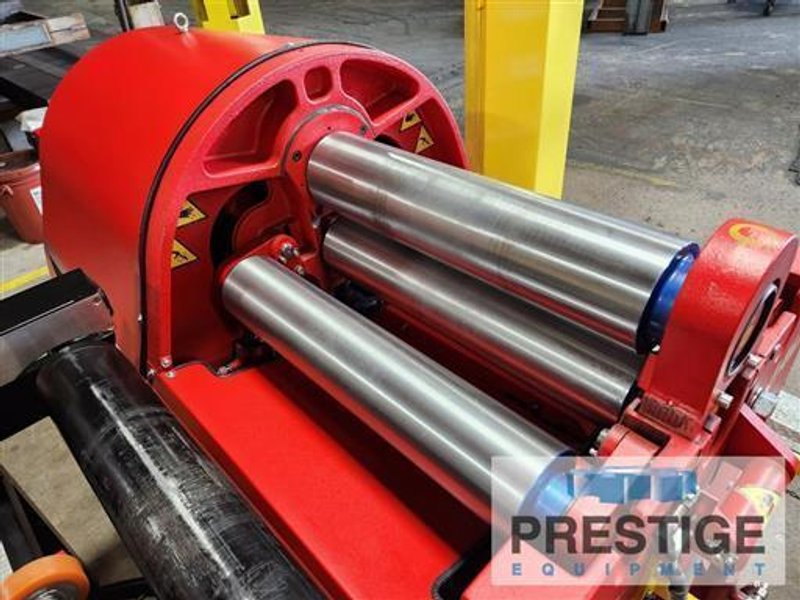

Top Roll Diameter 6"
Bottom Roll Diameter 5.5"
Side Rolls Diameter 5"
Smallest Possible Diameter 6.6"
Rolling Speed 20 Ft/Min
Power 6.6 HP



Equipped With:

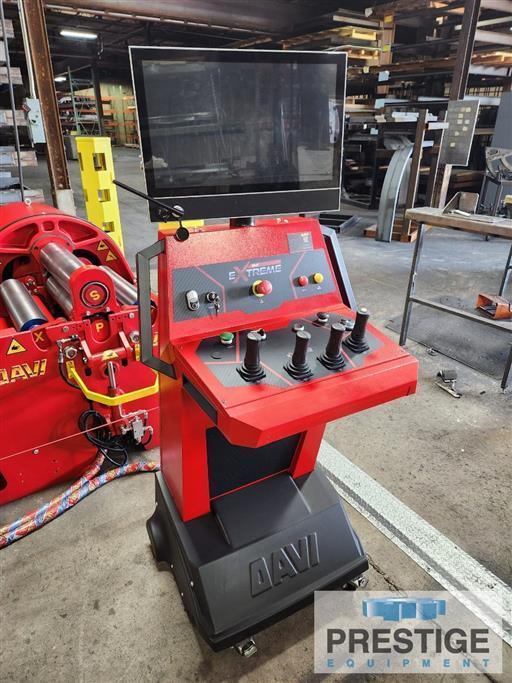

Davi CNC Control
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
Linear Transducer with Accuracy of 0.004"
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
Two Independent but Integrated Parallel Systems
Both Clamping Rolls are Driven in Rotation as Standard Feature
Stress-Less Transmission Drive System
Roll-by-Wire Digital Technology
High Quality Surface Finishing
Servo-Tronic Roll Parallelism
Permanent Lubrication Technology
Hardened Rolls
Cone Rolling Package
DG Gauge Small iD 6.7"<>78.9"

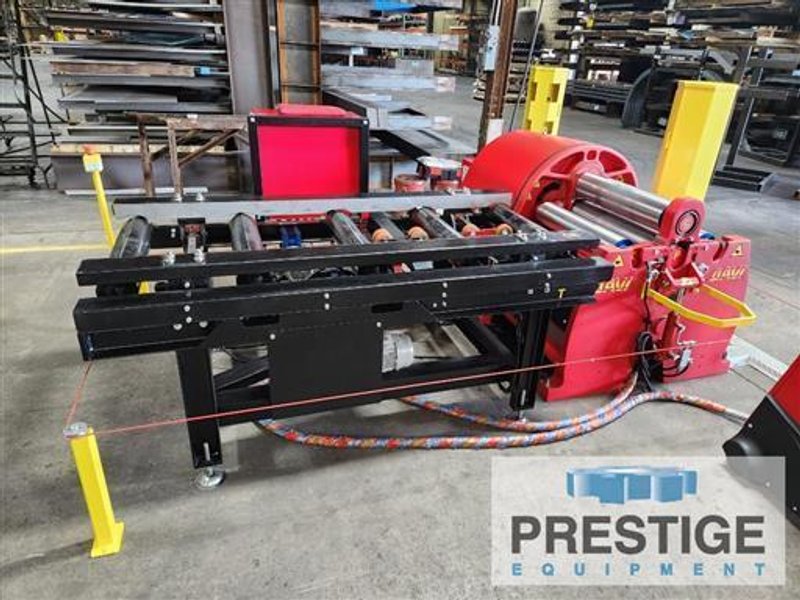

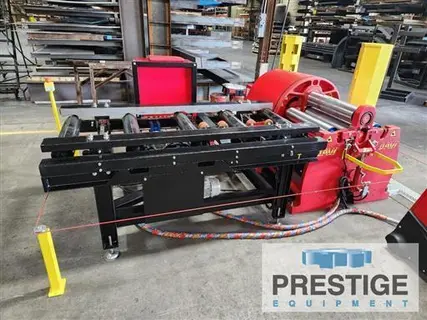

Powered Infeed Conveyor 6' Long

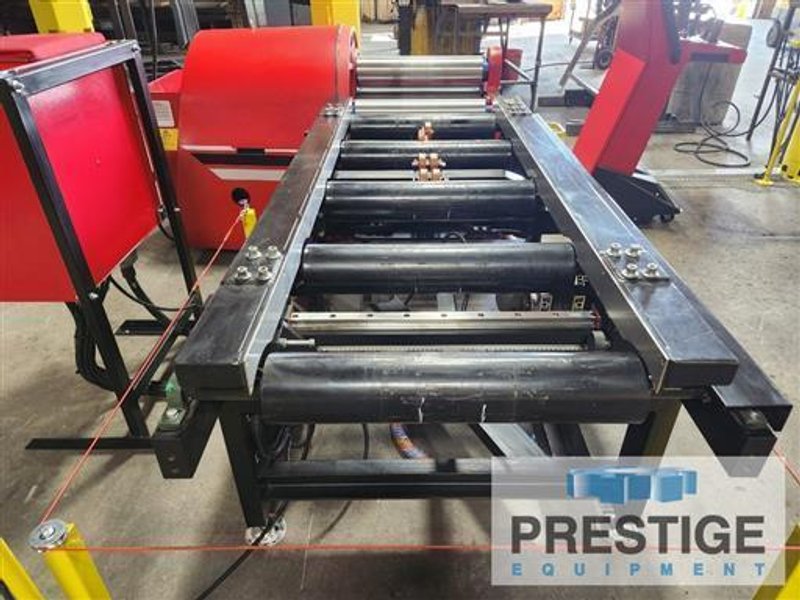

Powered Centering Device on Full Width Conveyor
Body Protection Large Resolution Light Curtain Set


NOTE: Like New, Inspect In Plant Under Power
