13" x 40" Clausing Metosa Lathe C1340S, Inch/mm, Newall DRO, 3 HP
Brand
Category
Type
Model
C1340S
Stock #
31922
Year
2000
Condition
Used
Location
Ohio
| Chuck Size | 6 inches |
| Spindle Speed RPM | 2500 |
| Main Motor | 3 |
| Swing | 13 inches |
| Centers | 40 inches |
| Spindle Bore | 1.65 inches |
| Power | 3 horsepower |
| Swing Over Cross Slide | 6.89 inches |
| CNC Control | no |
| Weight | 2200 pounds |
|

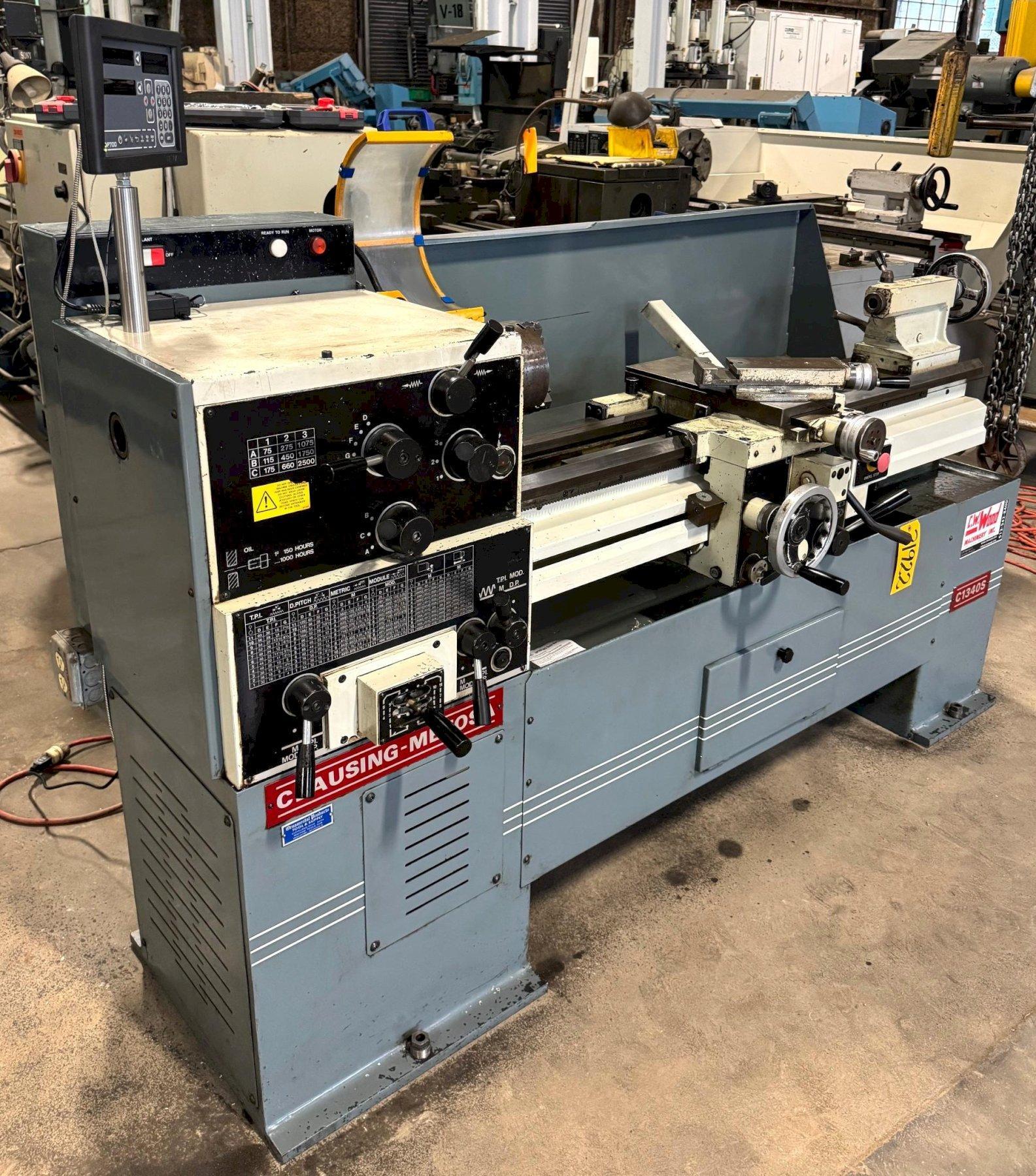

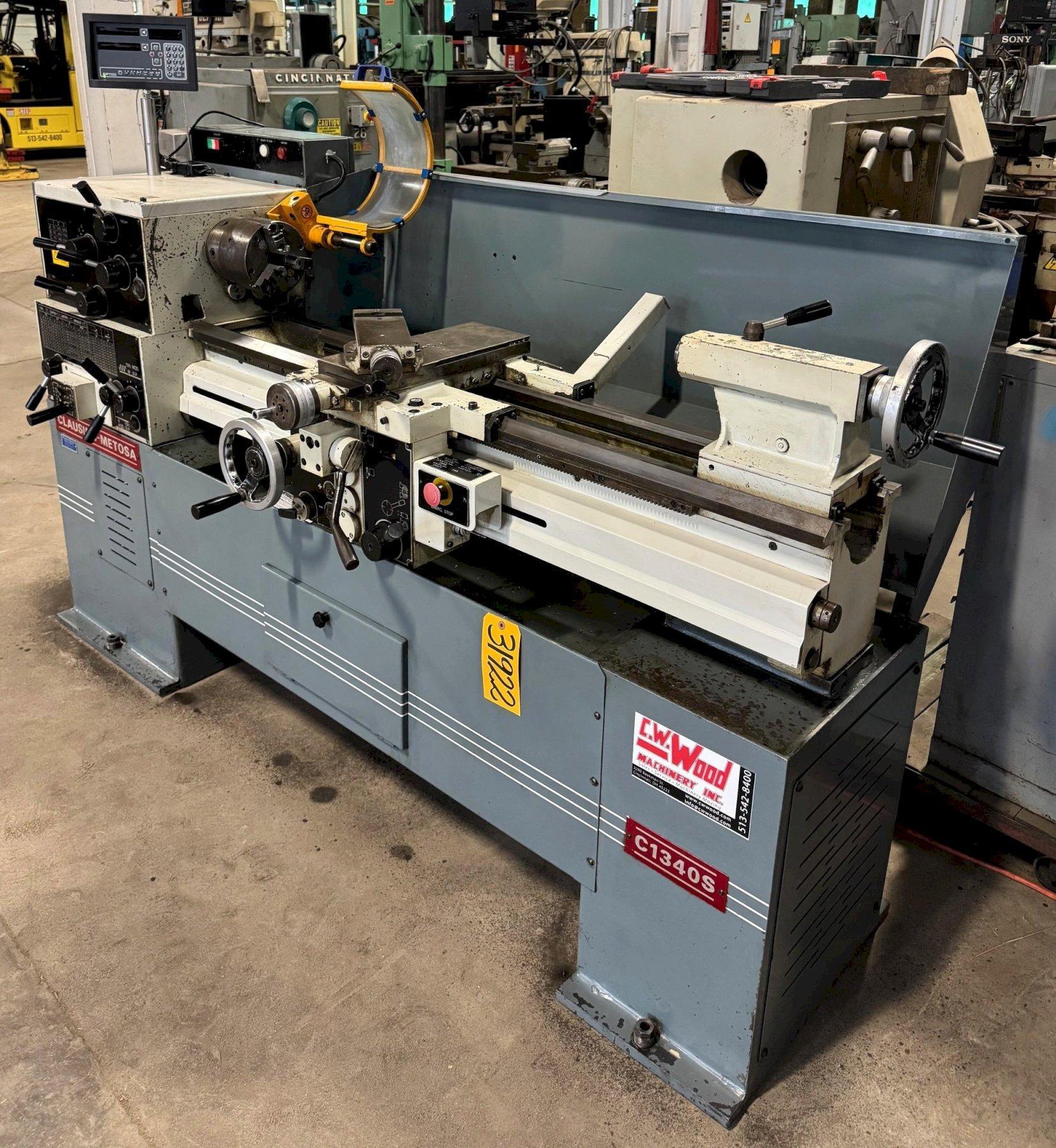

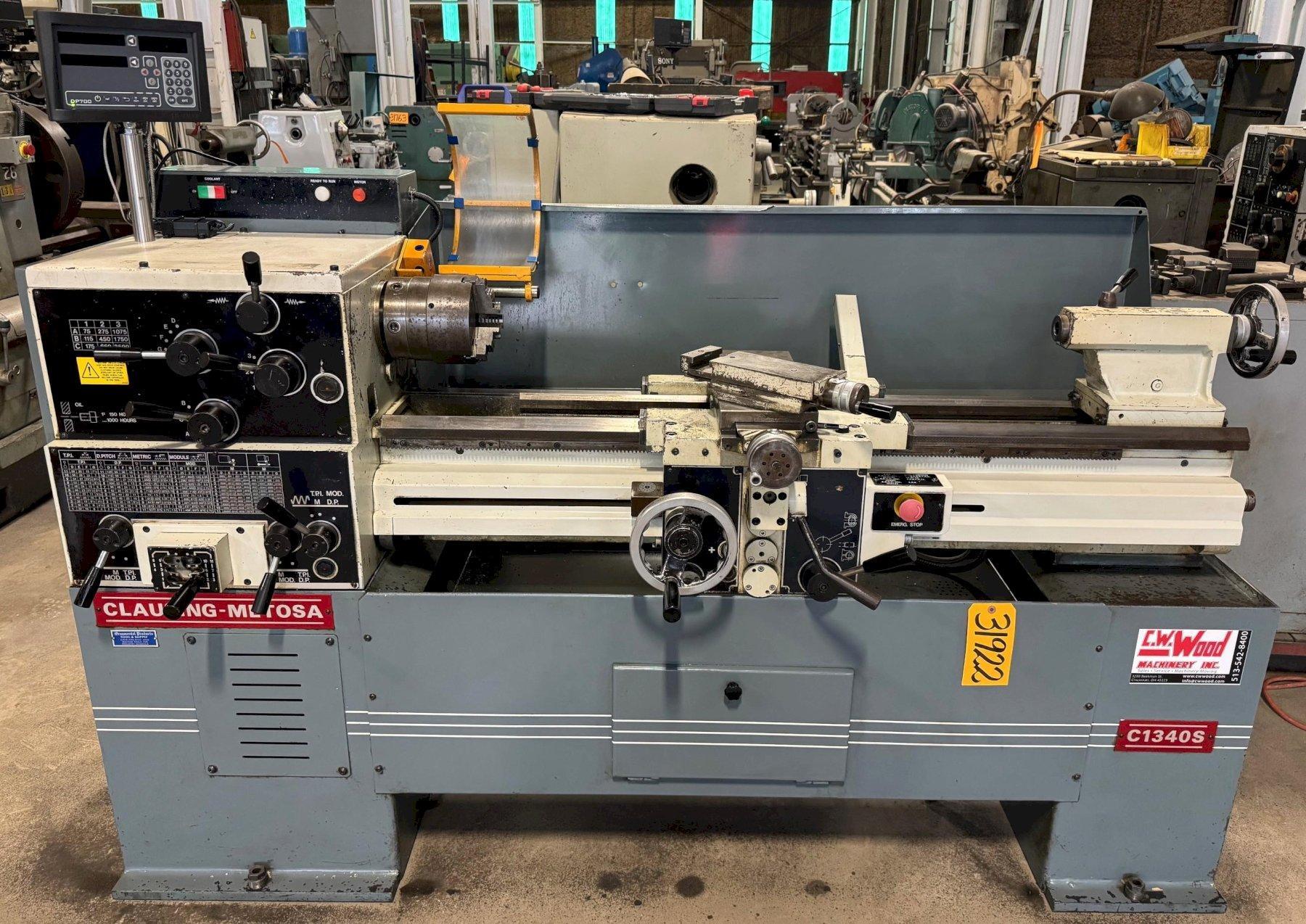

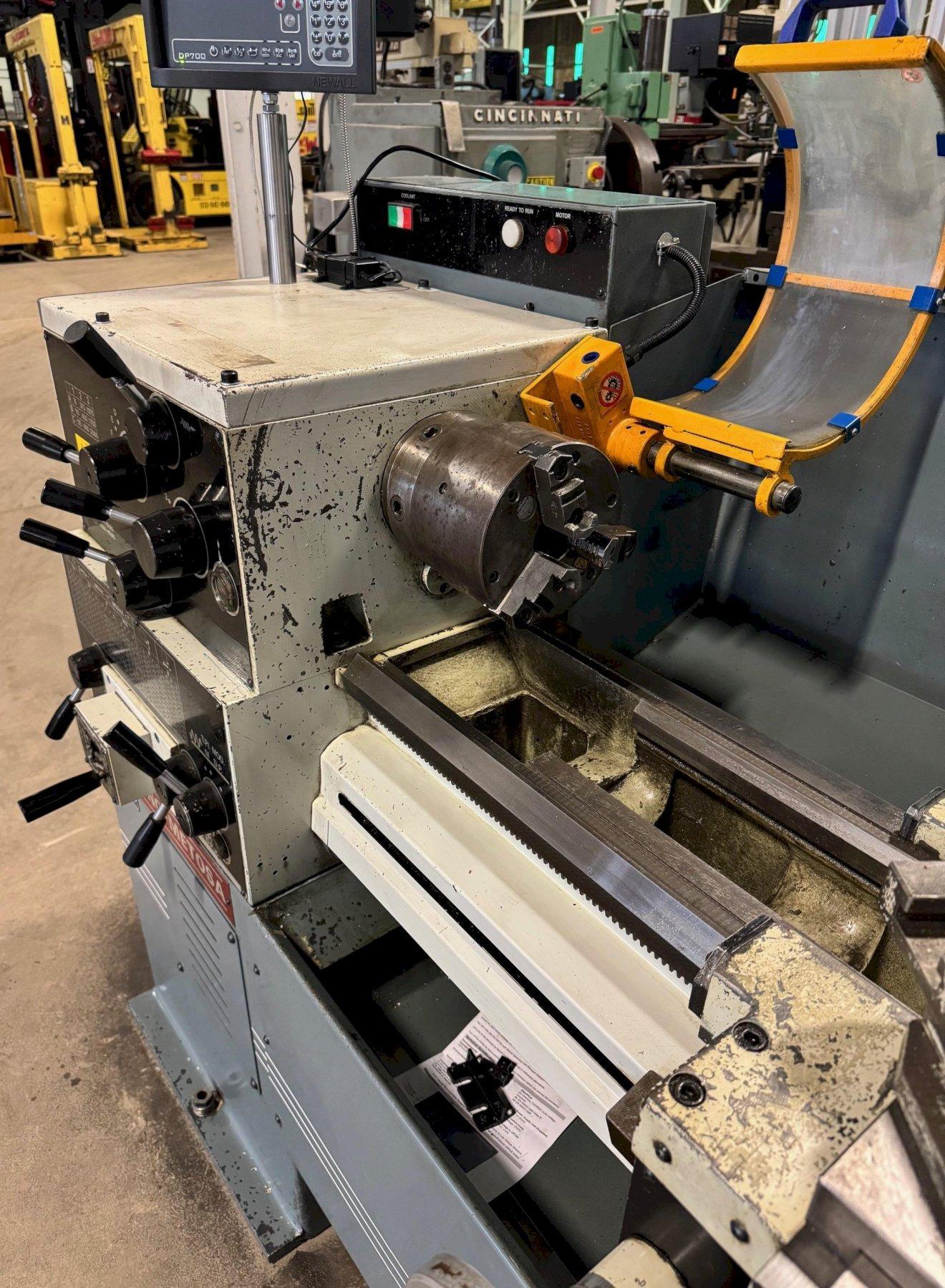

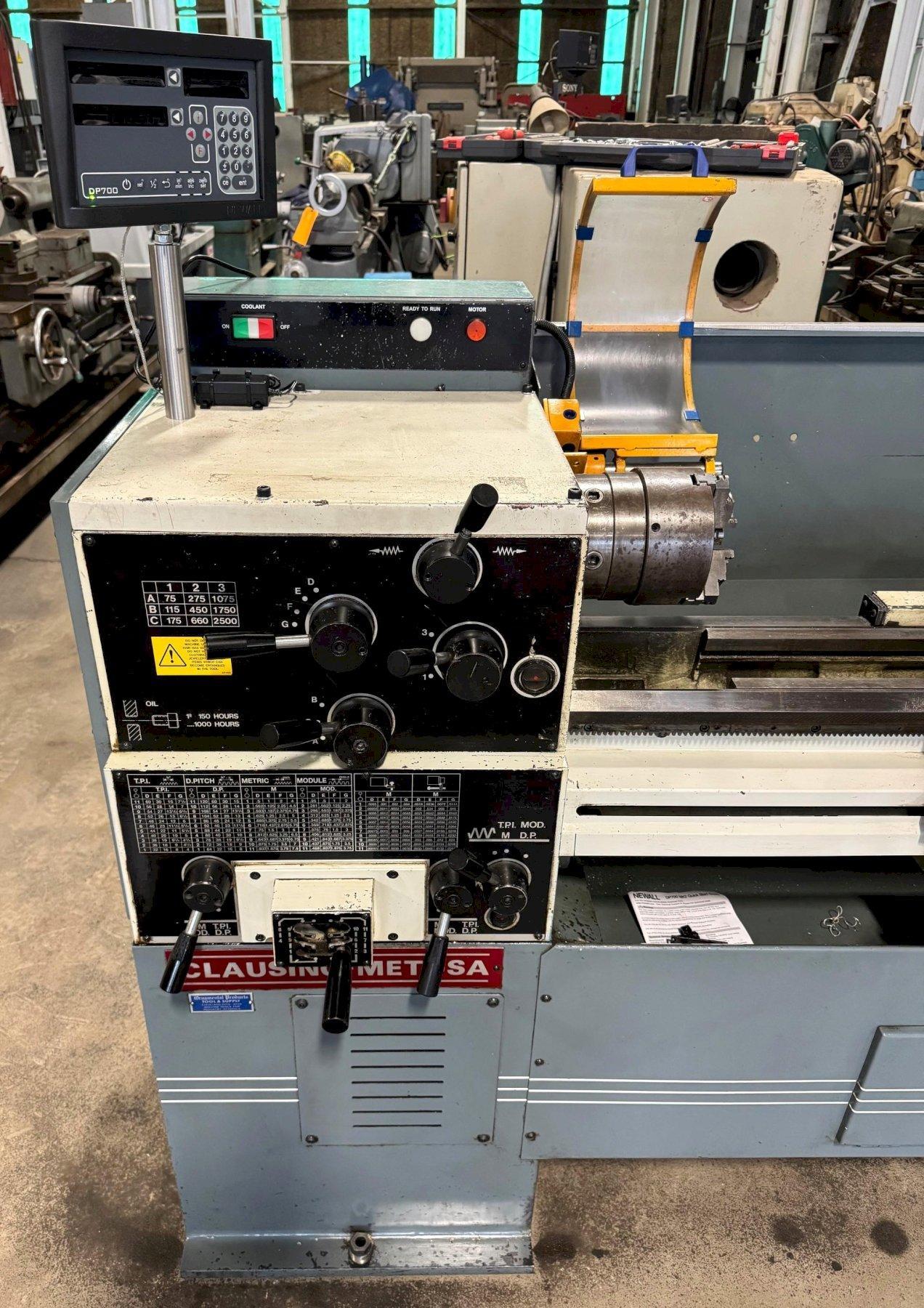

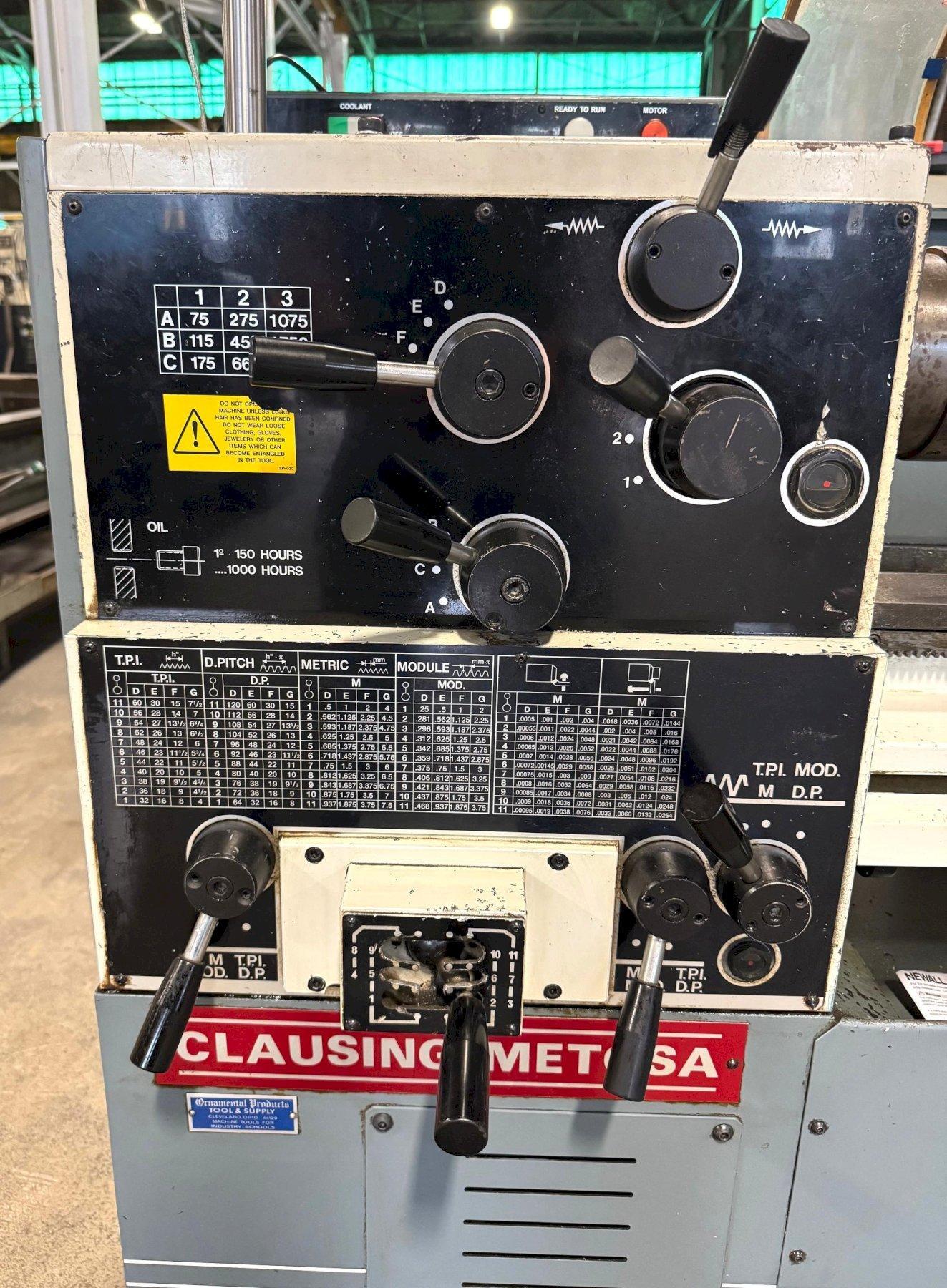

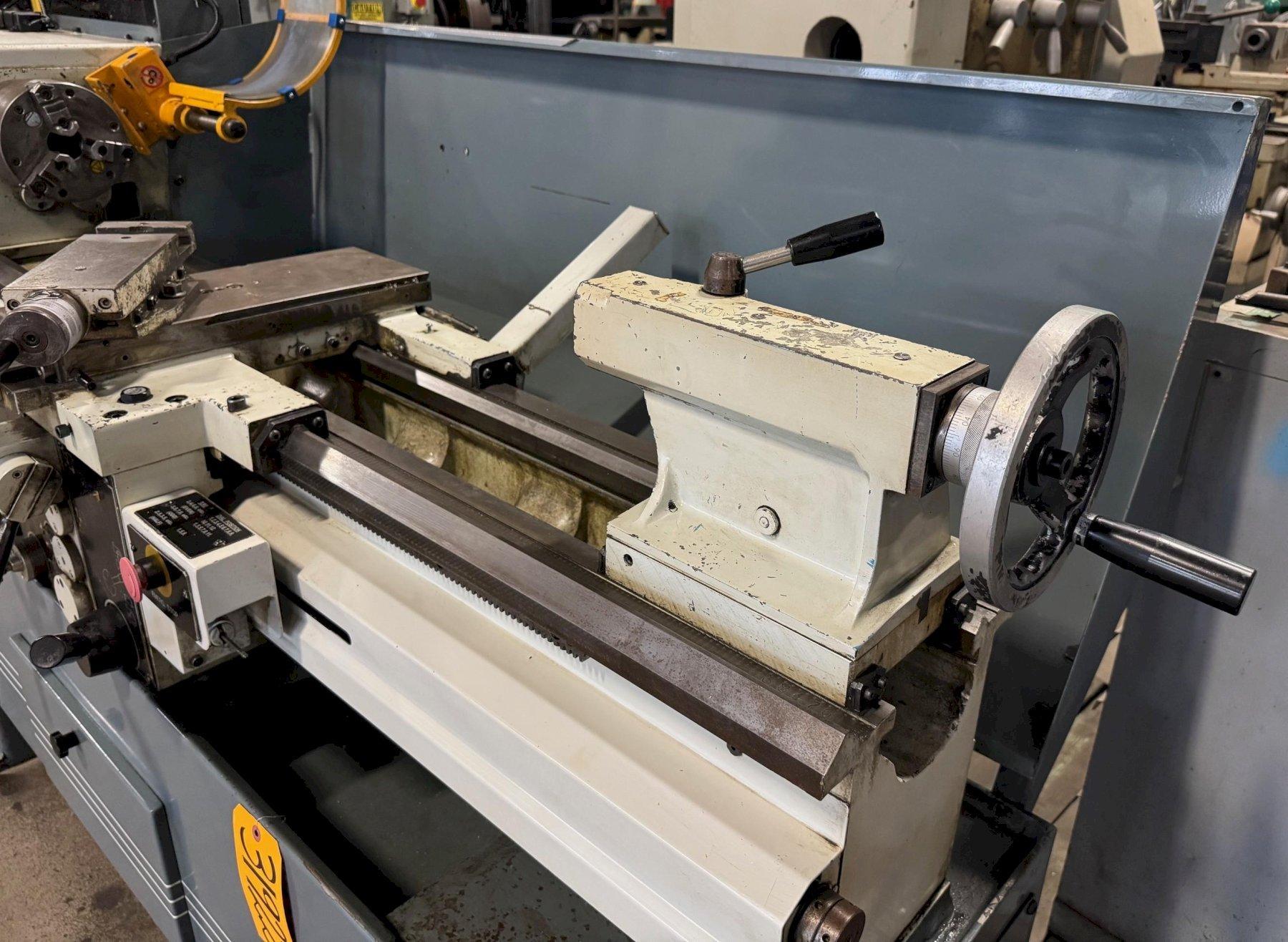

CLAUSING METOSA ENGINE LATHE

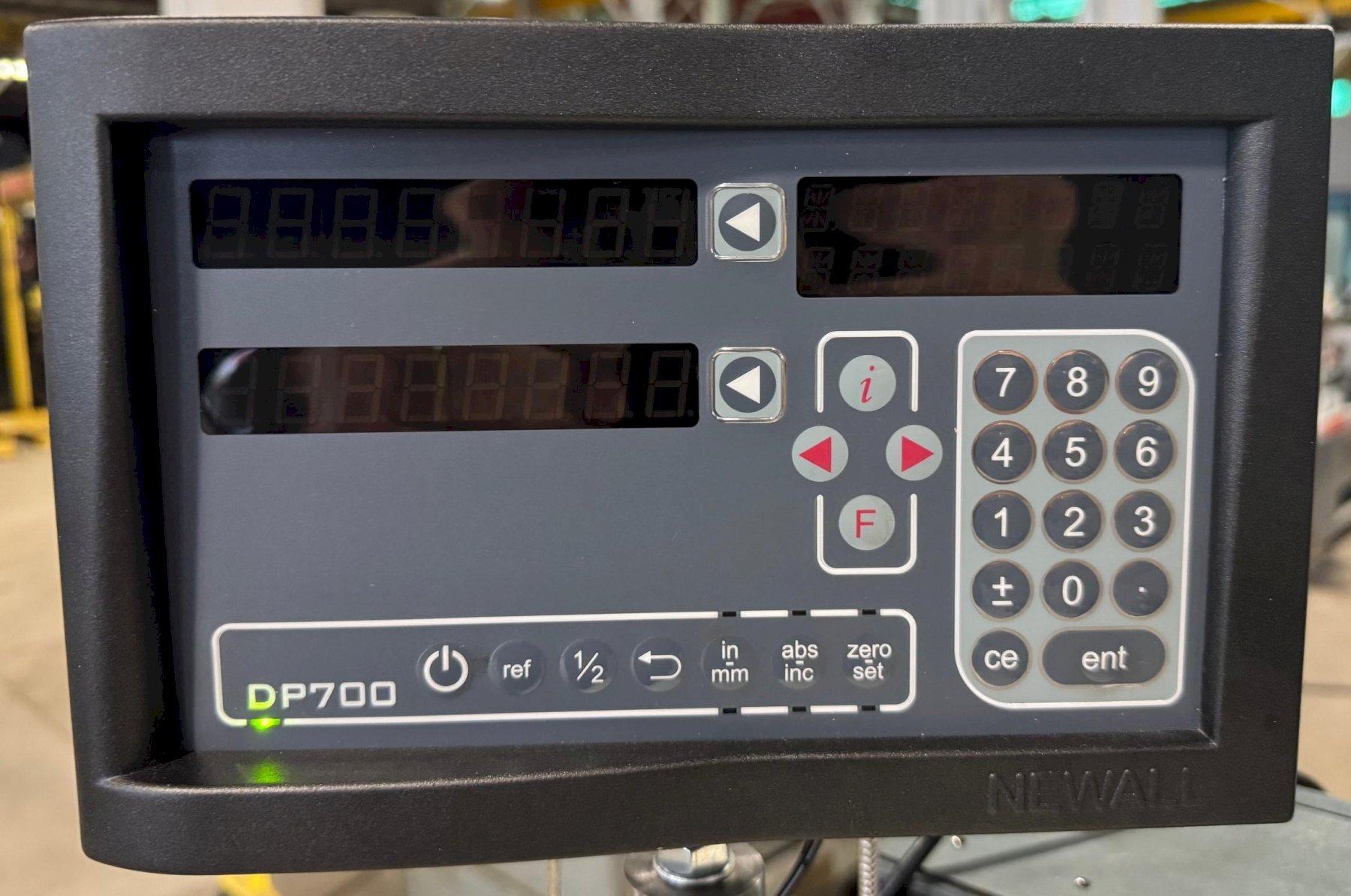

MODEL: C1340S SERIAL NUMBER: 38476 GENERAL SPECIFICATIONS Swing Over Bed: 13.2" Distance Between Centers: 40" Swing Over Cross Slide: 6.89" Spindle Bore: 1.65" Spindle Mount: D1-5 Camlock Spindle Speeds: (9) 75 - 2500 RPM Longitudinal Feed: .0018" - .0026" Metric Threads: (44) .5 - 7.5 mm Inch Threads: (44) 4 - 60 TPI Cross Slide Travel: 9.65" Top Slide Travel: 4.72" Tailstock Quill Diameter: 1.9" Tailstock Quill Travel: 5.51" EQUIPPED WITH 3 HP Spindle Drive Motor 6" 3-Jaw Chuck,, 8" 4-Jaw Chuck Thread Dial Inch/Metric Dials Newall DP700 Two Axis Digital Readout Chip Pan Splash Guard Approximate Weight: 2200 Lbs. Machine Dimensions: 40" x 84" x 60"H F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
|
