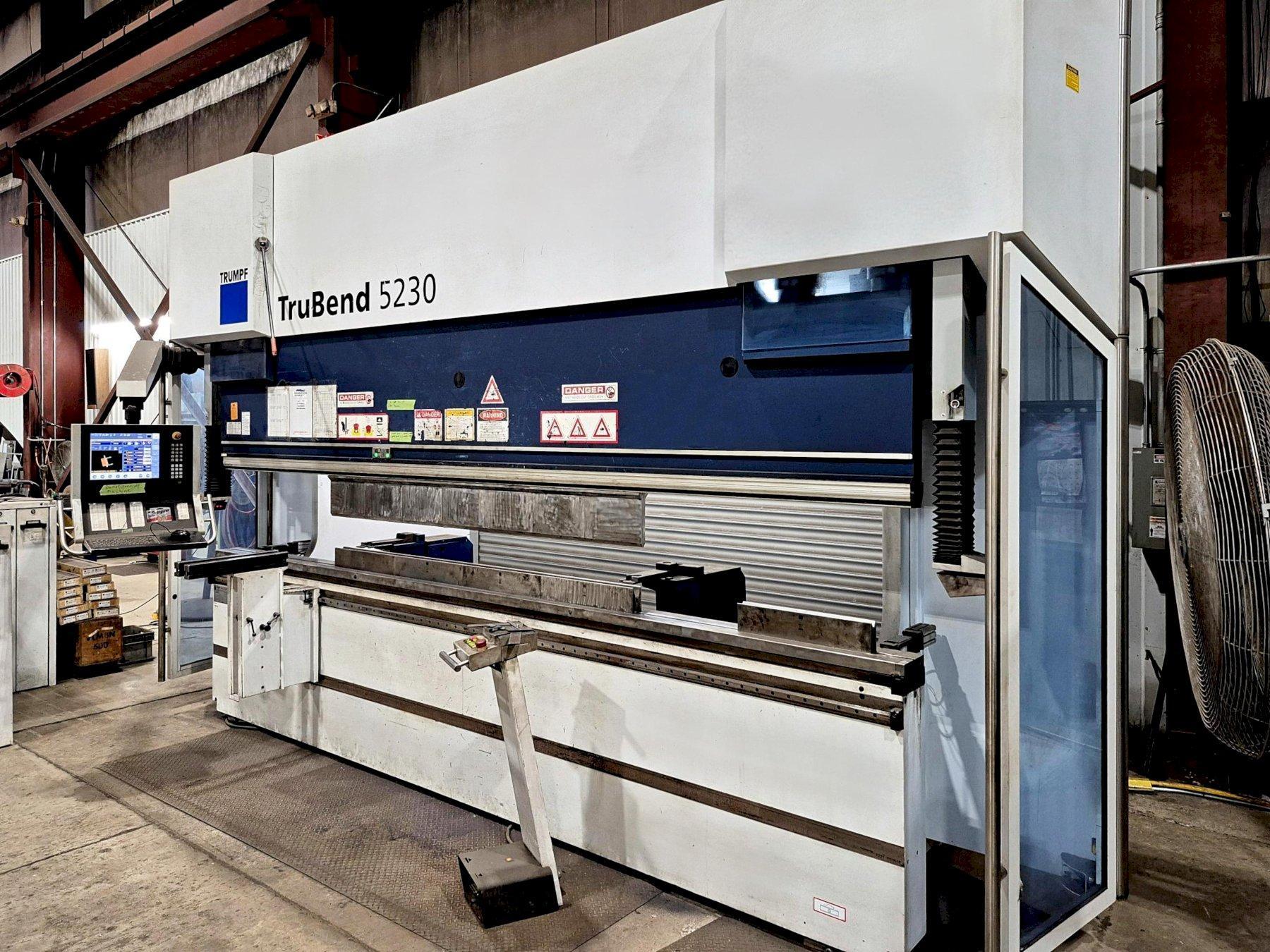

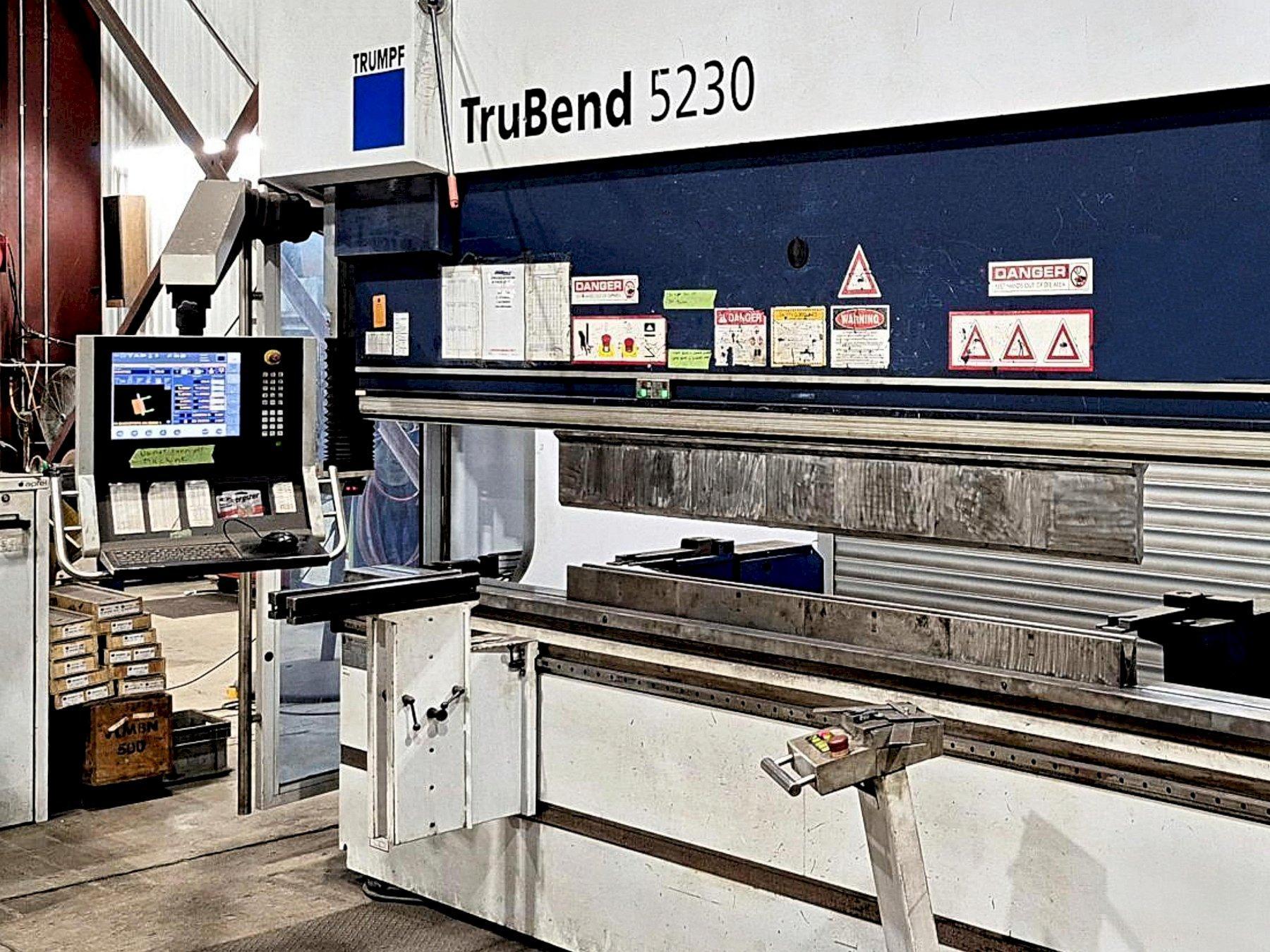

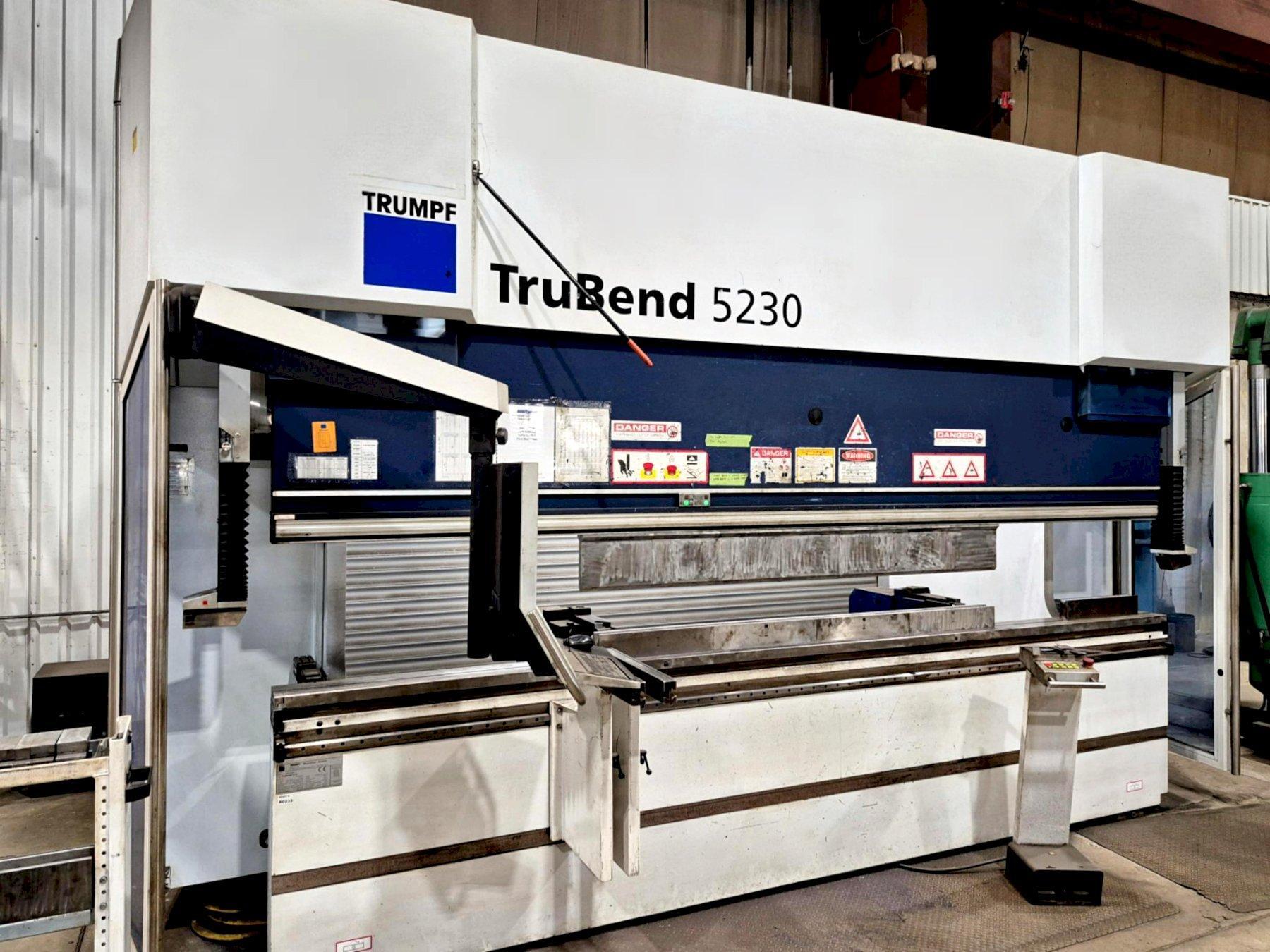

Trumpf TruBend 5230 Press Brake

Brand
TRUMPF
Category
Bending & Forming Equipment
Type
Brakes, Press
Model
TruBend 5230
Stock #
100586
Year
2012
Condition
Very Good

Location

Not specified
REQUEST FINANCING
Control TASC 6000
Press Force 230 Ton
Bending Length 167.32"
Width Between Columns 144.88"
Throat (C) 16.53"
Bed Width 7.086"
Usable Open Height 24.21"
Y-Axis Speed Rapid Down 8.66 IPS
Y-Axis Press Speed 0.0039 IPS
Y-Axis Rapid Up Speed 8.66 IPS
Y-Axis Stroke 17.51"
Backgauge 4 Axis
Ram Positioning Accuracy 0.00019"
Ram Tilt 0.393”
Dimensions L 168” X W 80” X H 122”
Weight 37,919 Lbs.

Equipped With:

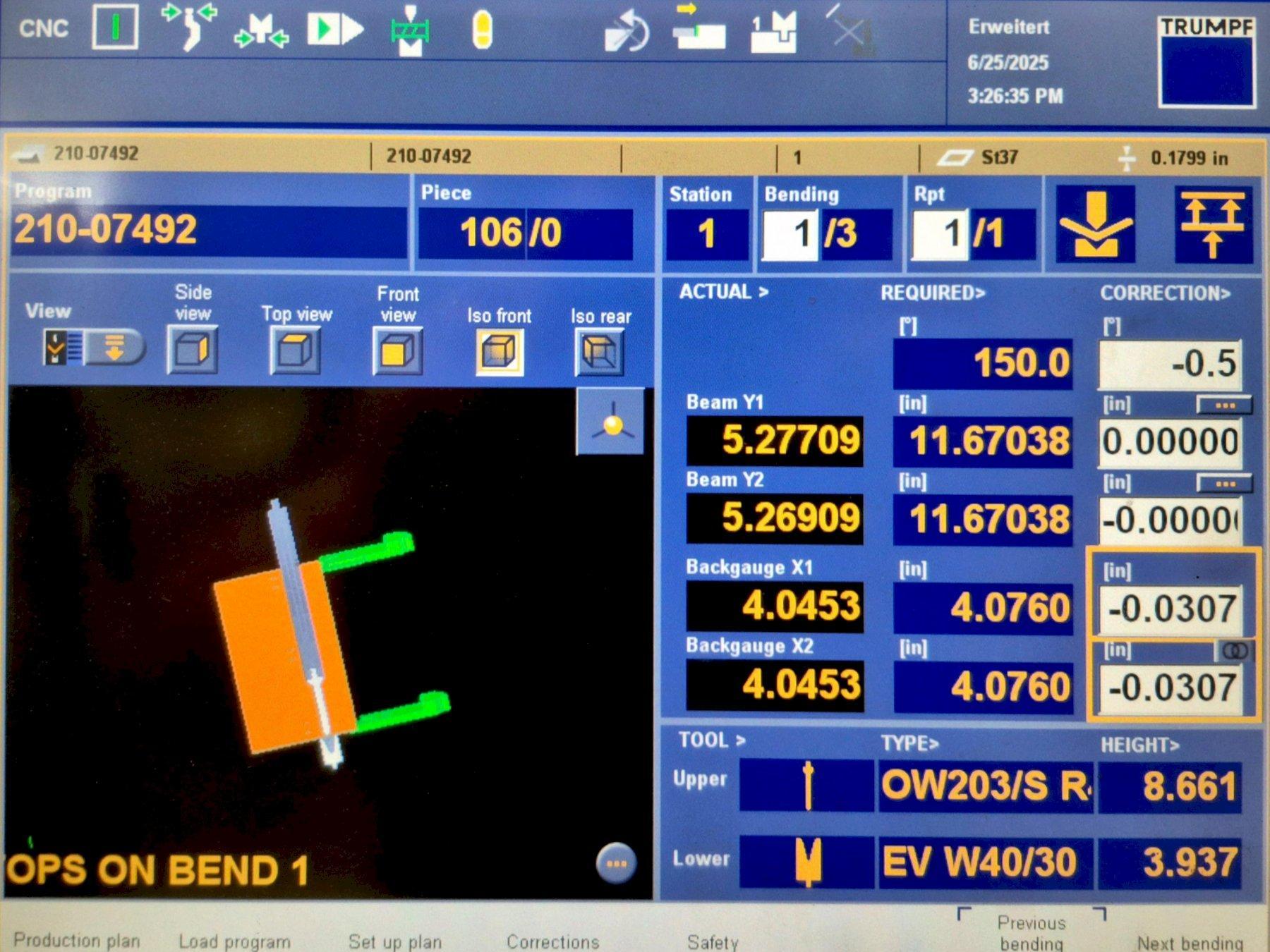

Trumpf TASC 6000 Control

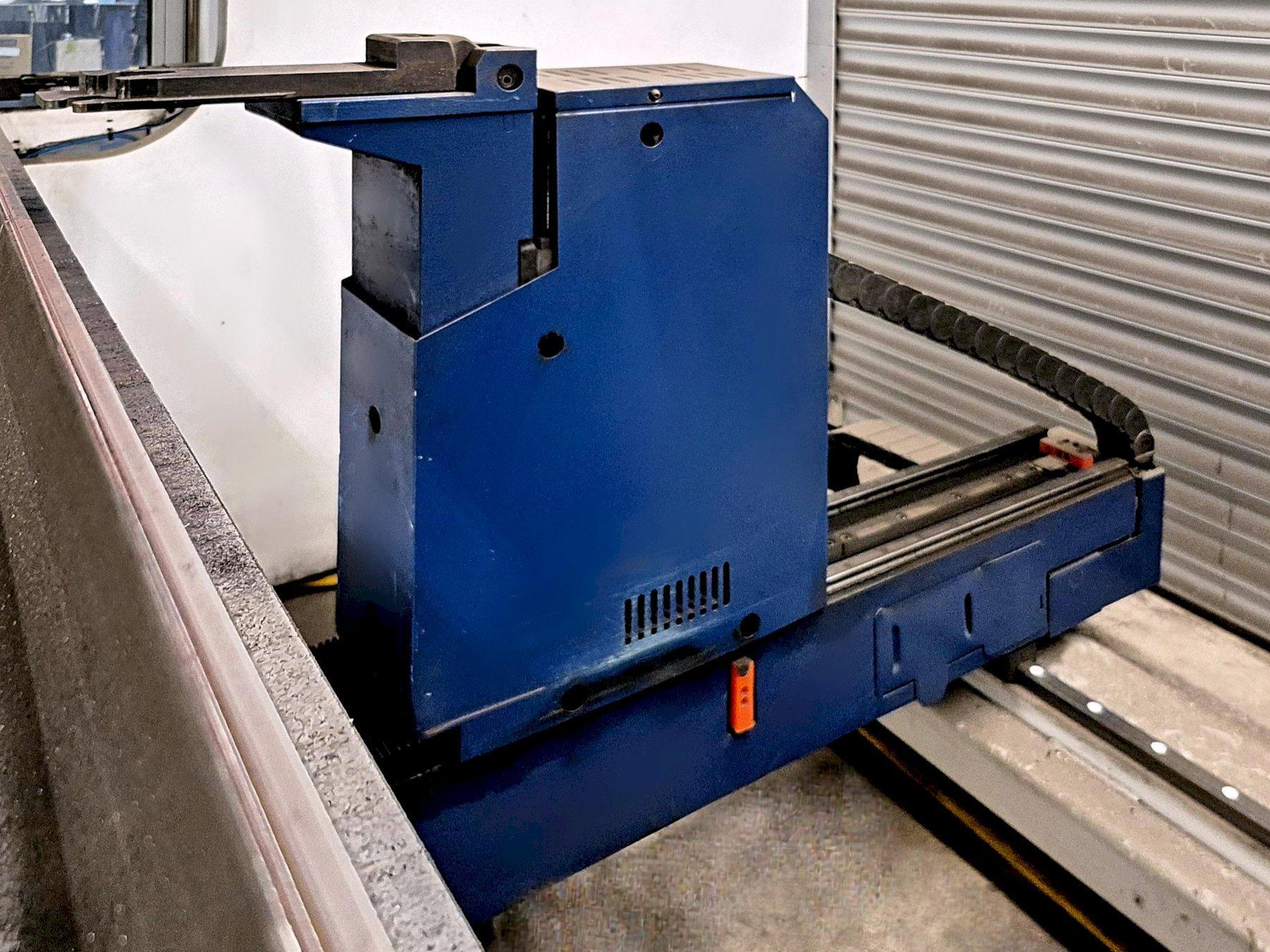

4-Axis CNC Back Gauge

CNC Programmable Crowning

Upper & Lower Hydraulic Clamping
Sheet Supports

Pedestal Control Station

Laser Light Guards

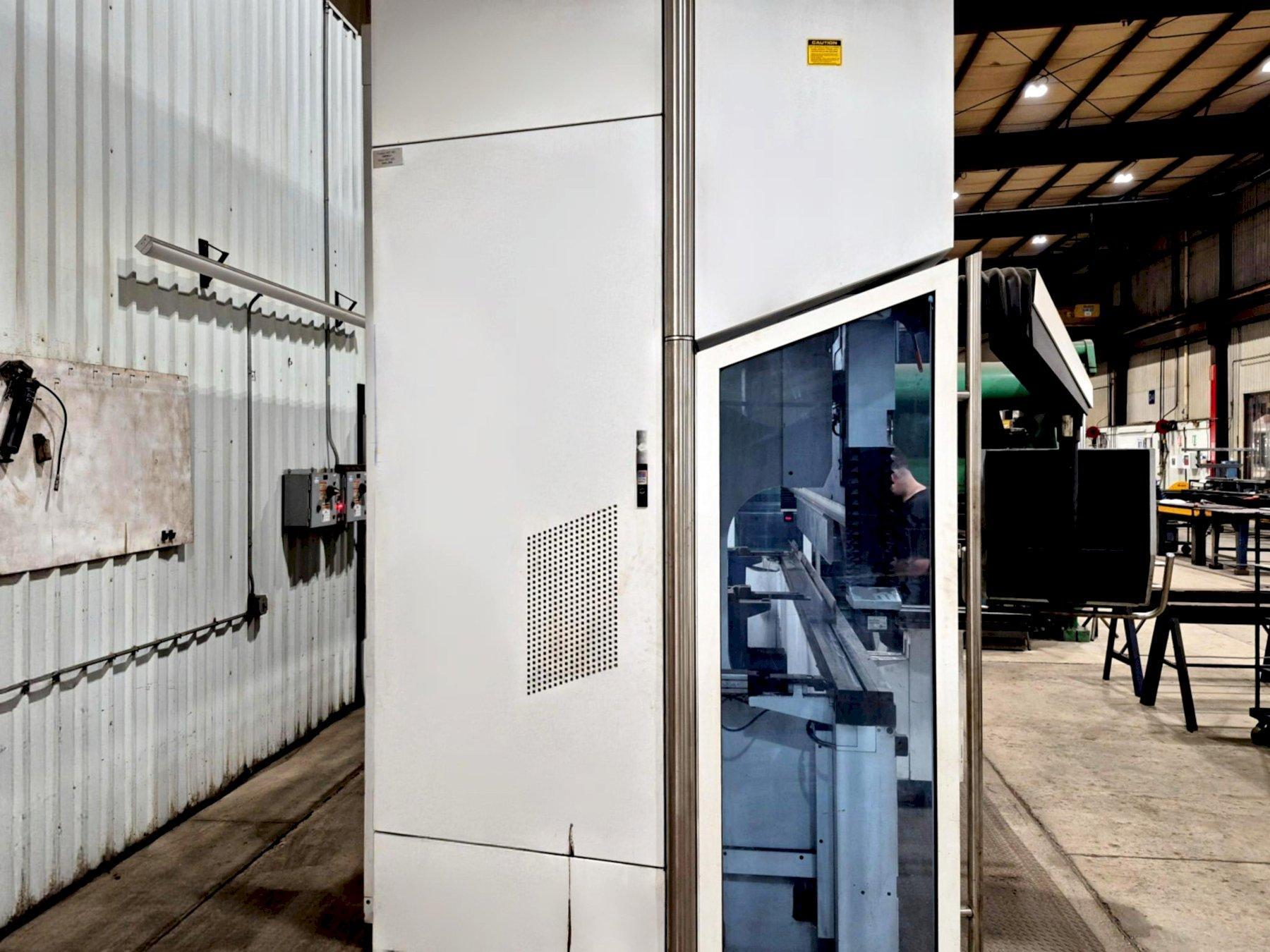

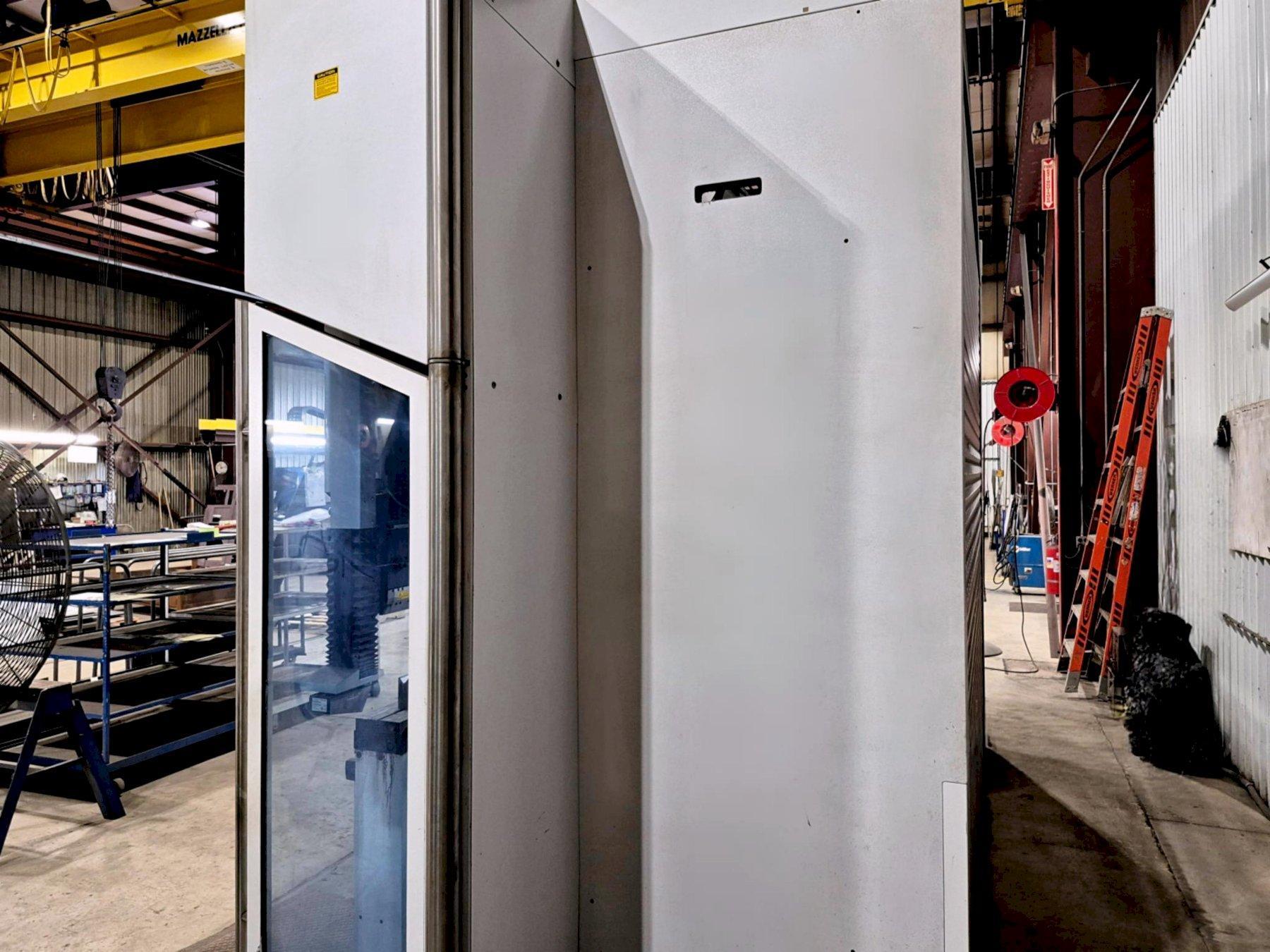

Rear Safety Enclosure
