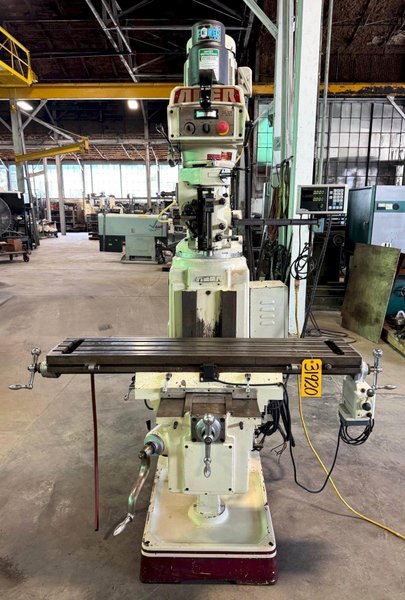

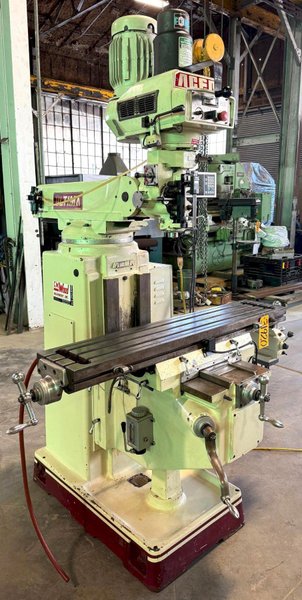

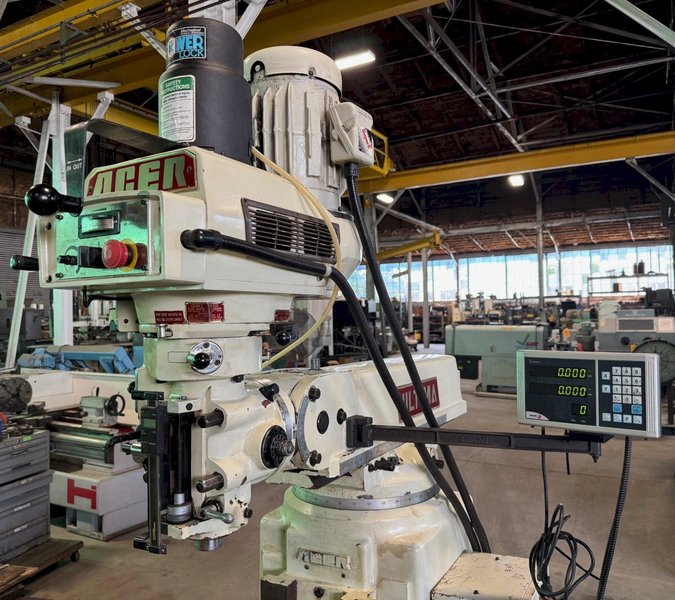

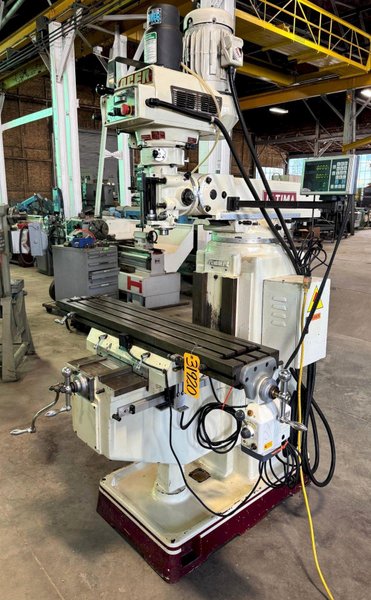

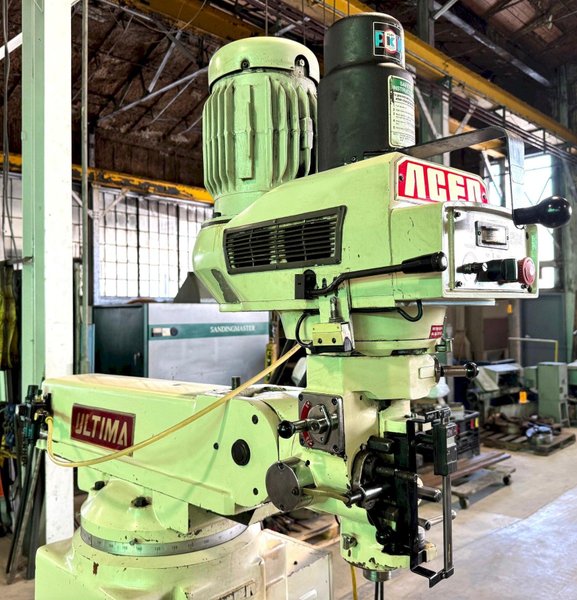

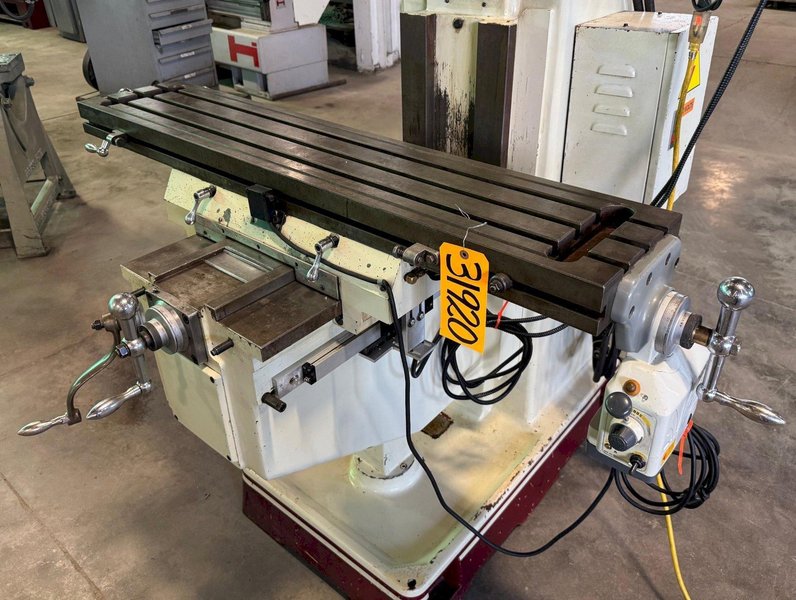

Acer Vertical Mill Ultima EVS-3VKH, 3 HP V-Speed, 10" x 50" P.F. Table, DRO
Brand
Category
Type
Model
EVS-3VKH
Stock #
31920
Year
Not specified
Condition
Used
Location
Ohio
| Table-W | 10 inches |
| Table-L | 50 inches |
| Travel-Long | 34 inches |
| Travel-Cross | 16 inches |
| Power | 3 horsepower |
| RPM | 4200 |
| Taper | R-8 |
| Weight | 3500 pounds |
|
ACER VERTICAL MILLING MACHINE

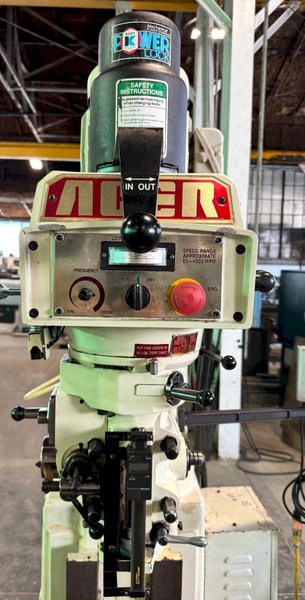

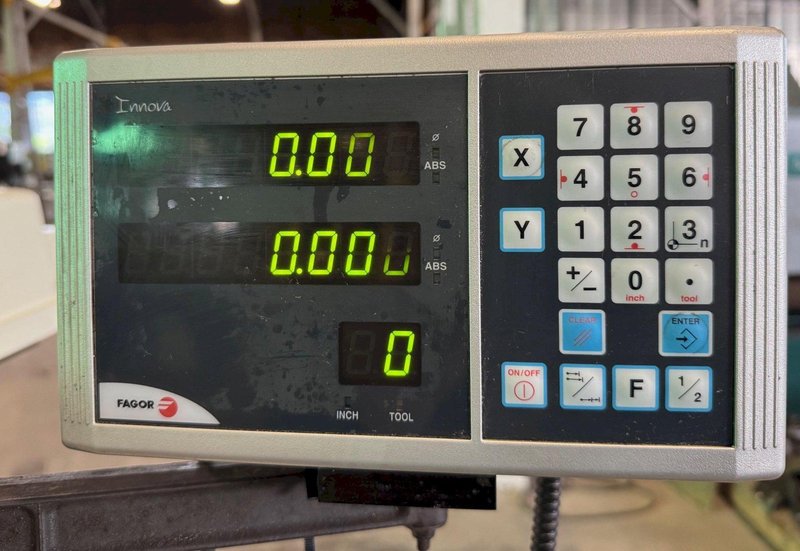

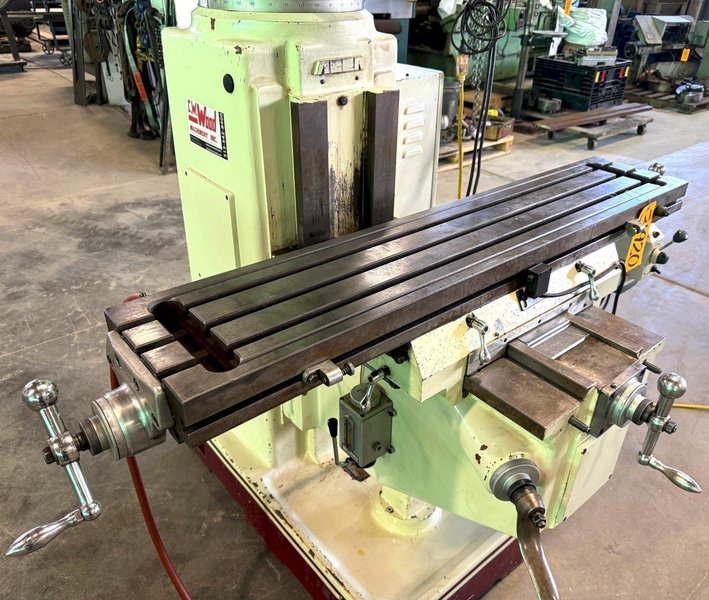

MODEL: Ultima EVS-3VKH Ultima SERIAL NUMBER: 98020220 GENERAL SPECIFICATIONS Table Size: 10" x 50" Longitudinal Travel: 34" Cross Travel: 16" Vertical Knee Travel: 16" Ram Travel: 20" Maximum Weight Of Workpiece: 850 Lbs. Turret Rotation: 360 Degrees Spindle Speeds, Variable: 60 to 4200 RPM Spindle Taper: R-8 Quill Travel: 5" Power Quill Feeds: (3) .0015, .003, .006 EQUIPPED WITH 3 HP Spindle Motor, 440/60/3 Electronic Variable Speed Fagor Two Axis Digital Readout Kurt Power Draw Bar ALS-500P Power Feed X-Axis One-Shot Lubrication Approximate Weight: 3500 Lbs. Shipping Dimensions: F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
|
