Haas UMC-500SS 5-Axis CNC Vertical Machining Center, 15K Spindle, Probing, TS Coolant, Swarf Chip Con - LIKE NEW - Installed Nov. 2024

Haas UMC-500SS 5-Axis CNC Vertical Machining Center, 15K Spindle, Probing, TS Coolant, Swarf Chip Con - LIKE NEW - Installed Nov. 2024

Name: Used HAAS UMC-500SS For Sale C1017
Brand: HAAS
SKU: C1017

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Control: Haas Next Generation CNC Control

Machine Travels X/Y/Z: 24" x 16" x 16"

Distance Spindle Nose to Platter: 4.0" - 20"

Max Part Swing Diameter: 18"

Max Cutting Feed Rates X/Y/Z: 650 IPM

Rapid Traverse X/Y/Z: 1,200 IPM

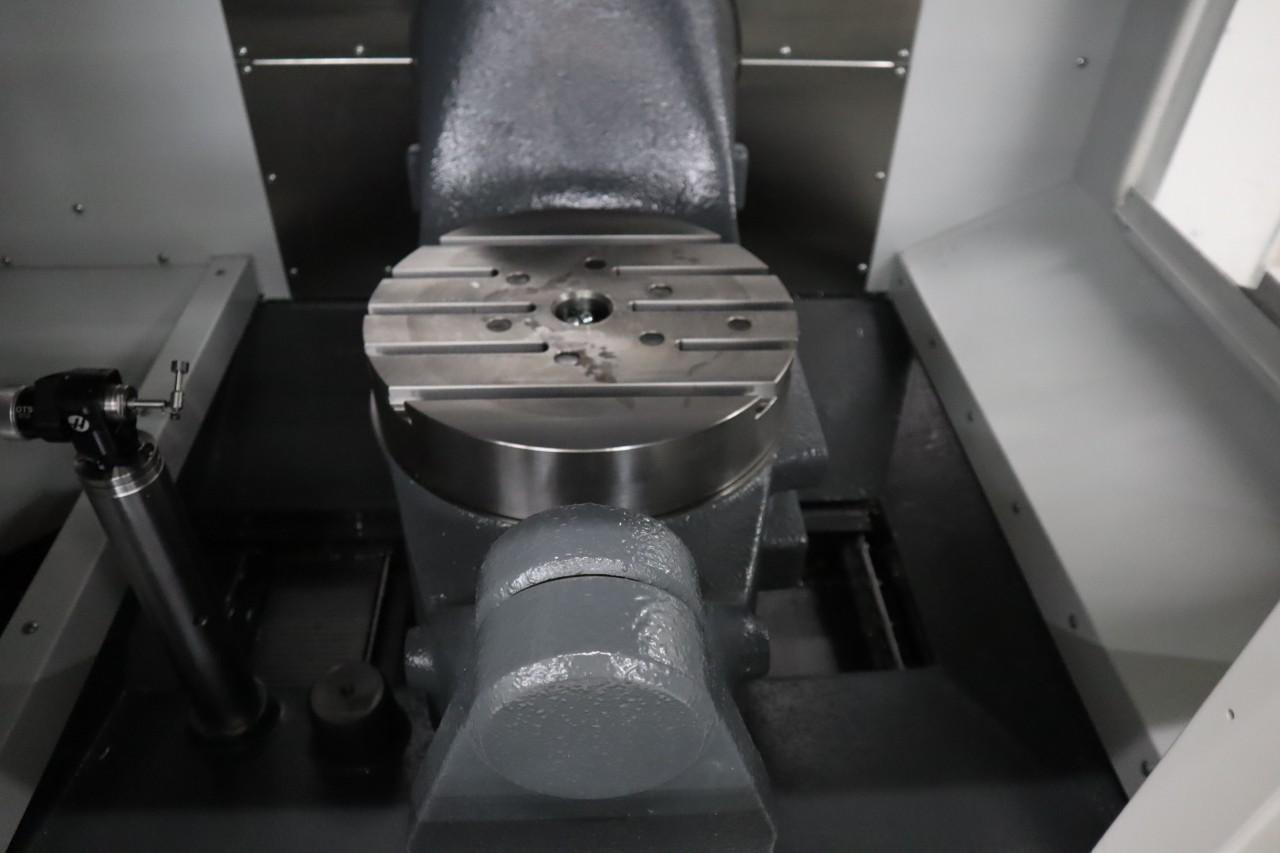

5-Axis Table Style: Integraded Trunnion Table

Table Size: 400mm Diameter Platter (15.74")

Max Weight on Table: 500 Lbs.

5th Axis Swivel (Tilt) Range: 120 to -35 Degrees

Max Table Tilt Speed: 179 Degrees / Second

C-Axis Rotation: 360 Degrees

C-Axis Rotation Max Speed: 179 Degrees / Second

Spindle Taper: CT40 Taper

Spindle Speeds: 15,000 Max RPM

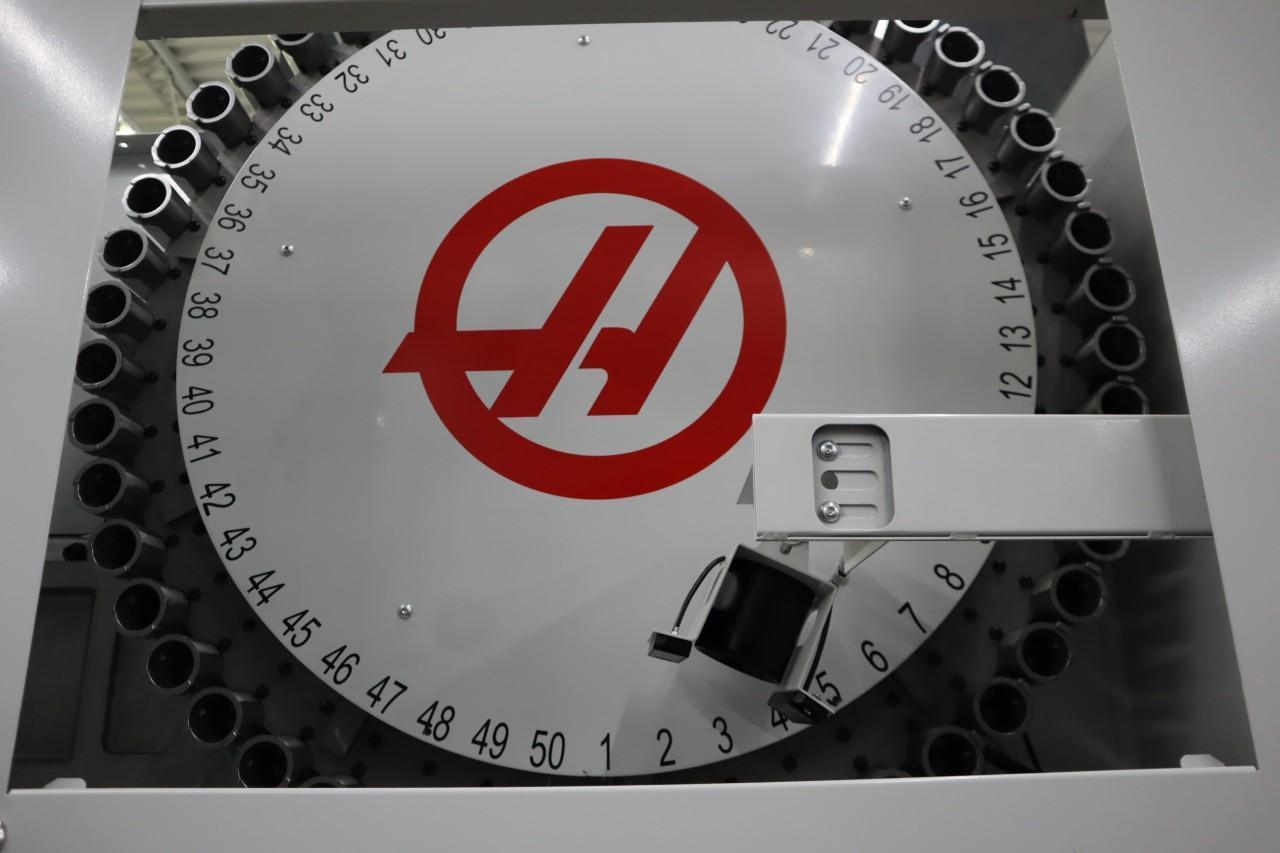

Tool Changer Capacity: 50 Station Automatic Twin-Arm Tool Changer

Tool Change Time: 1.8 Seconds Tool to Tool / 2.4 Seconds Chip to Chip (Avg)

Max Tool Diameter Full / Adjacent Station Empty: 2.5" / 5.0"

Max Tool Length from Gauge Line: 12"

Max Tool Weight: 12 Lbs.

Spindle Drive: 30 HP Vector Inline Direct Spindle Drive

Coolant Capacity: 55 Gallons

Equipped With:

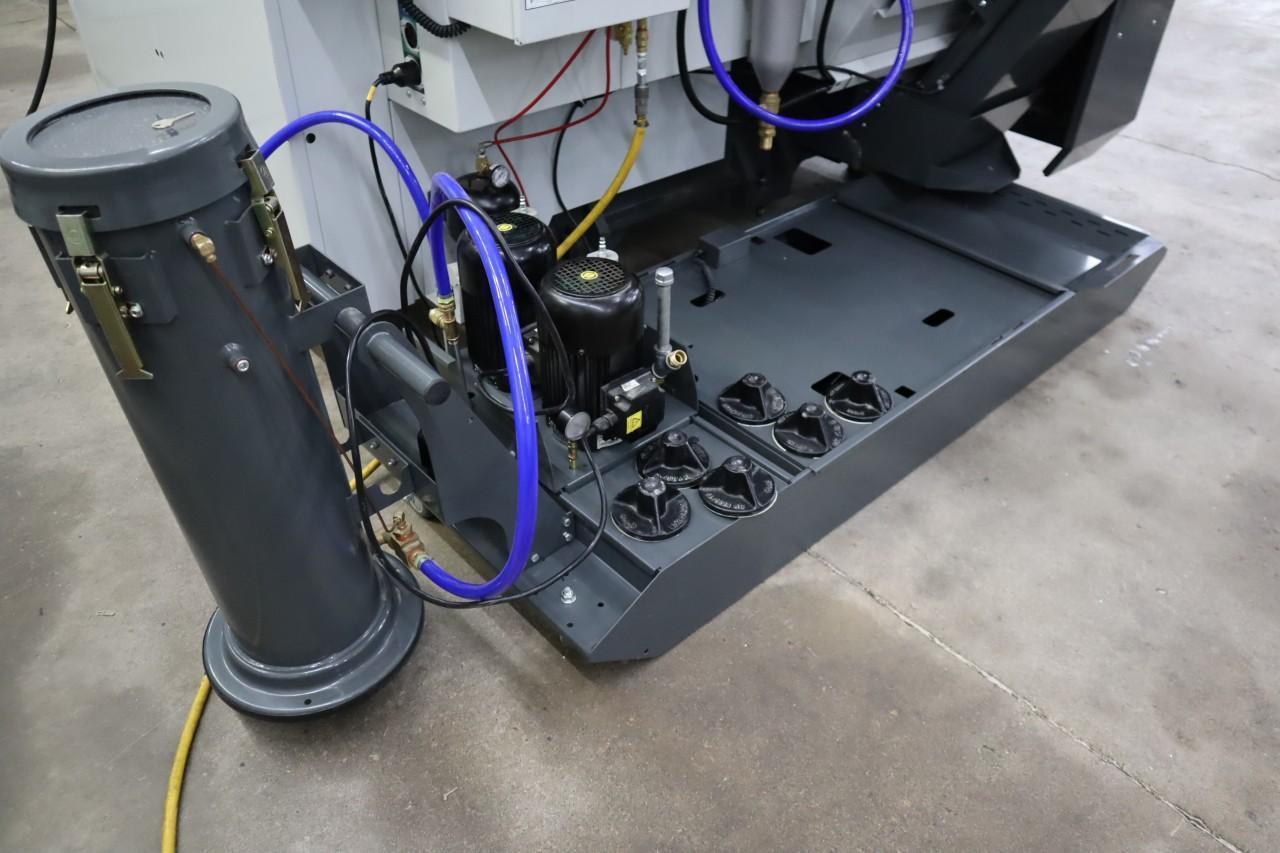

Haas Next Generation CNC 5-Axis Control with Dynamic Work Offsets and Tool Center Point Control, CT40 Spindle Taper, 15,000 RPM Max Spindle Speed, 50 Station Twin-Arm Automatic Tool Changer, Integrated 5th Axis Trunnion Table, Haas Probing System with Renishaw Tool and Parts Probes, Auto-Door, Auto Side Window, 1,000 PSI Thru-Spindle Coolant with Auxiliary Filter, Programmable Coolant Nozzle, Tool Air Blast, 32GB Expanded Memory, Haas Air Vise Clamping System with Air Vises, Swarf Unlimited Chip Conveyor System, Royal Filtermist Mist Collector. NOTE: Only 230 Spindle HOURS!

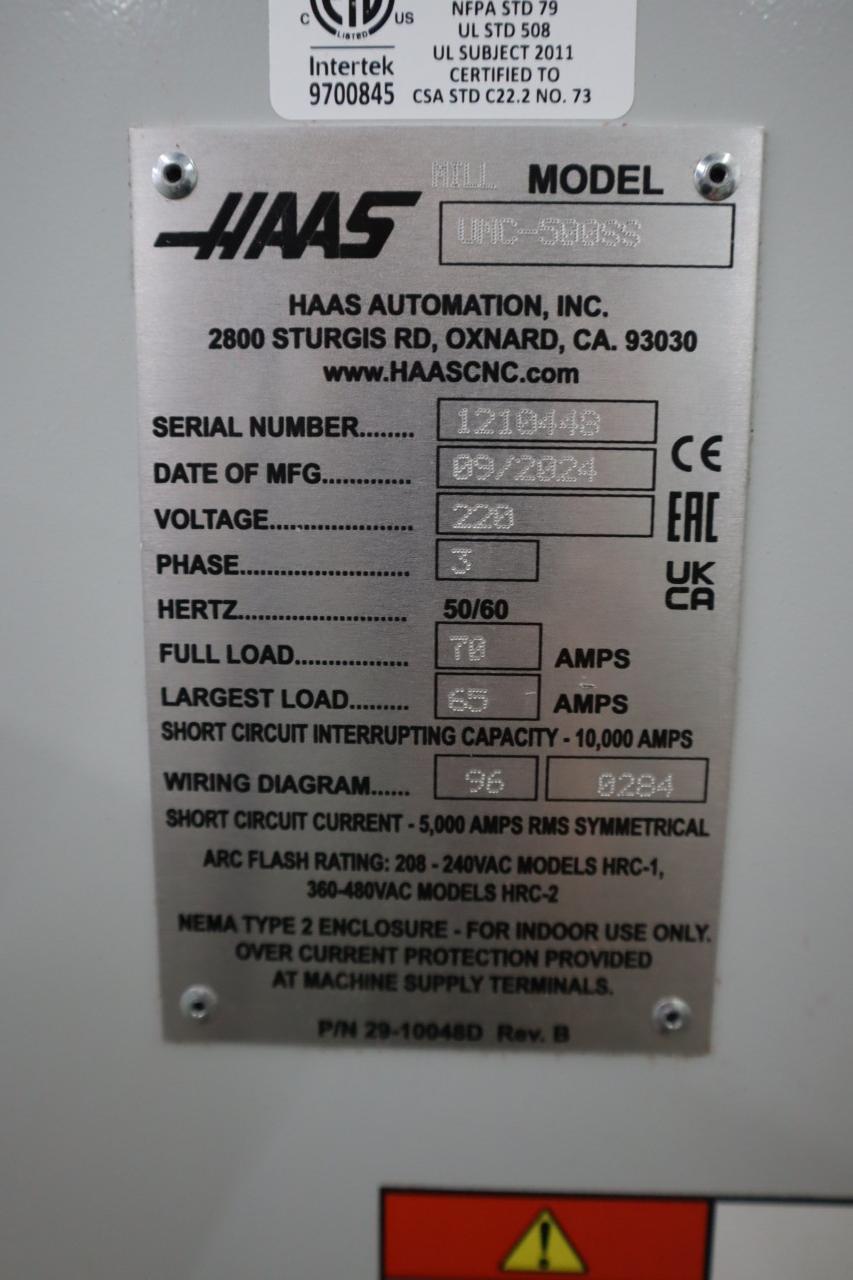

Electrics:

220 Volt, 3 Phase
