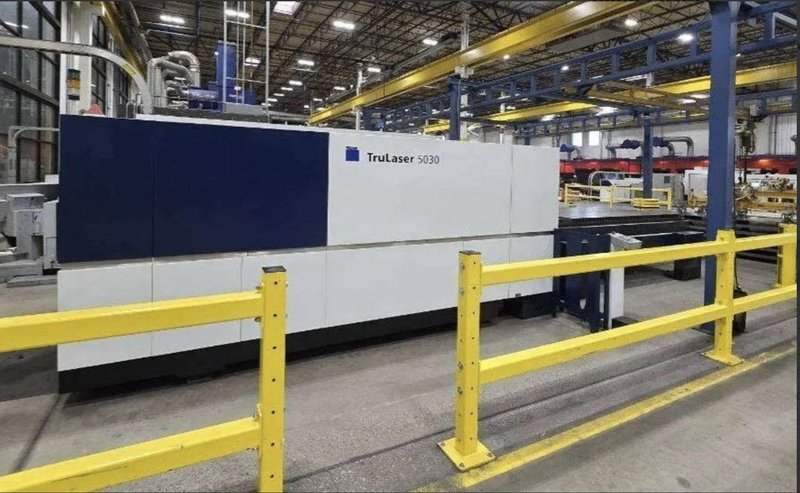

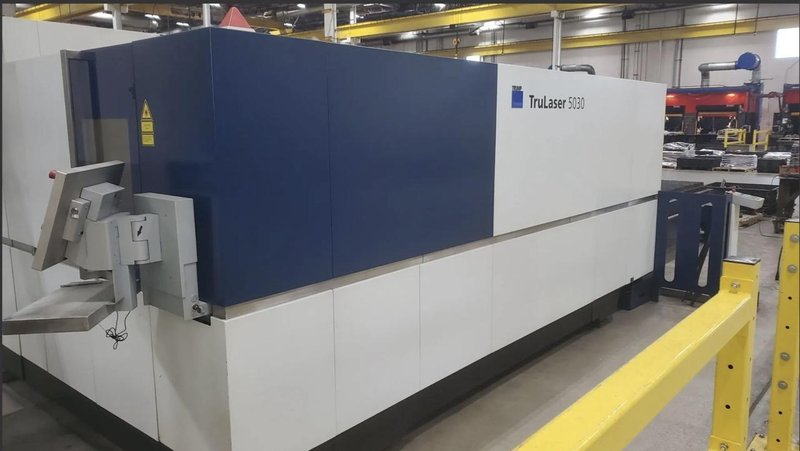

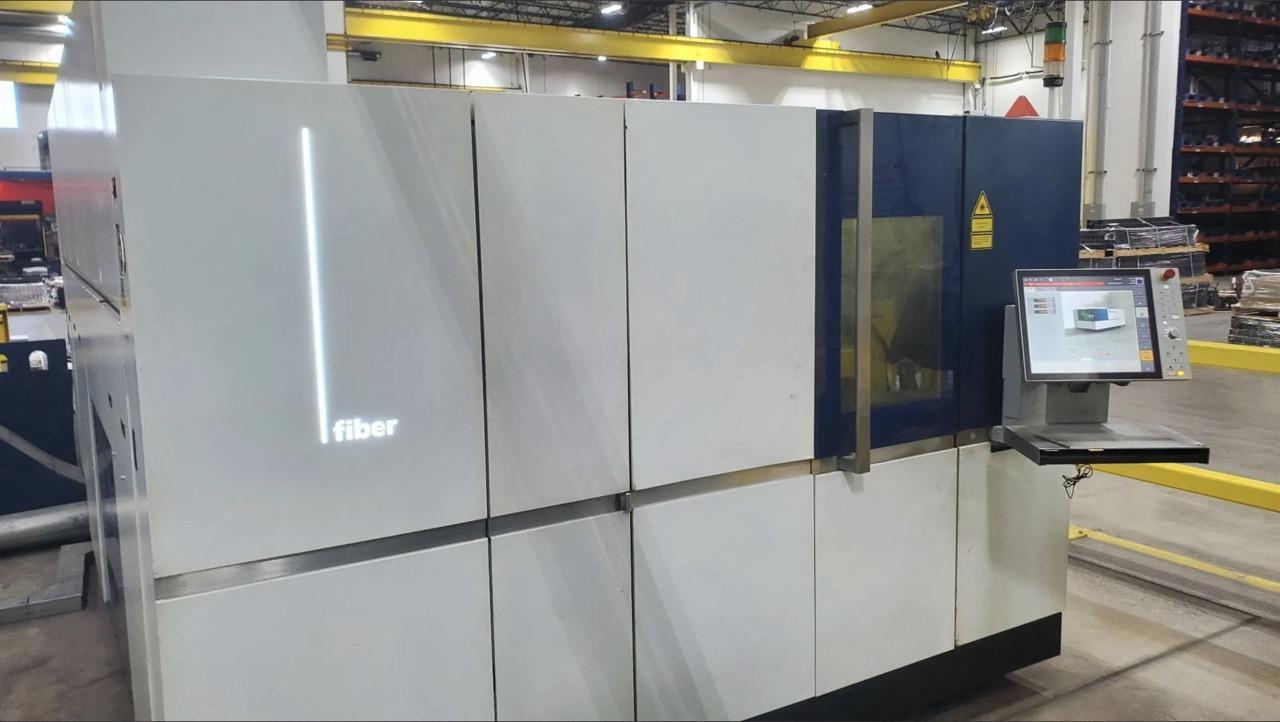

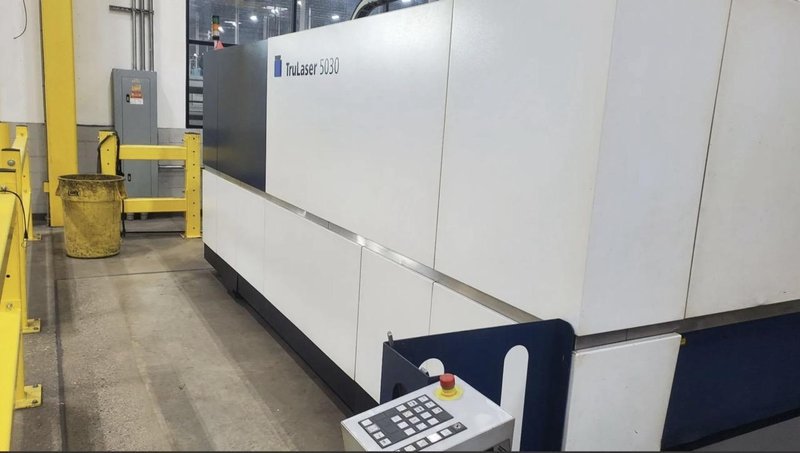

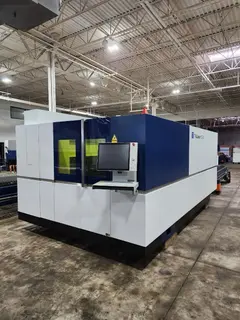

8000 Watt Trumpf TruLaser 5030 fiber, 2016 – REFURBISHED, 10,700 beam on hours – TruDisk 8001

Brand
Model
TruLaser 5030
Stock #
807077
Year
2016
Condition
Not specified

Location

Not specified
X axis: 120” Y axis: 60” Z axis: 4.5”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working Range: 120” x 60”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workpiece Max weight: 1984 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Thickness Mild steel: 1” Stainless steel: 0.8/1″ Aluminum: 0.8/1” Copper/Brass: 0.4”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Speed Simultaneous: 10,433” /min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Trumpf CNC Control: Siemens Sinumerik 840D SL

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accuracy Position deviation P: 0.002” Average position scatter P: 0.001”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: Length: 347” Width: 189” Height: 95” Weight: 26,456 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Laser: TruDisk 5001 Wavelength: 1.03 um

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Dust Collector 10,700 beam on hours left install BrightLine fiber nozzle changer nozzle inspection performance package Copper/Brass package CoolLine Smart Beam Control Proc. Monitoring Camera air cutting wide transverse conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
