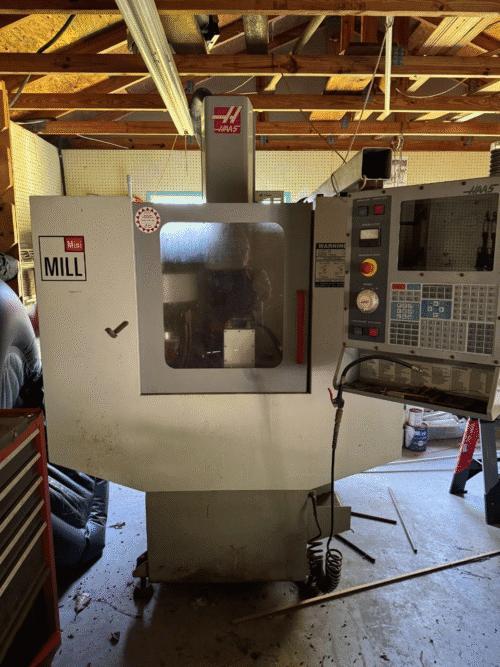

Haas Mini Mill CNC Vertical Machining Center

Name: Used HAAS SKU:112760Make:HaasModel No.:Mini Mill For Sale
Brand: HAAS

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112760
Make:	Haas
Model No.:	Mini Mill
Year of Manufacture:	2002
Condition	Used – Good

Equipped With:
Haas CNC Control
4th Axis

Table:
Length: 36.0″
Width: 12.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs

Travel:
X-Axis: 16″
Y-Axis: 12″
Z-Axis: 10″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 14″

Automatic Tool Changer:
Capacity: 10 Station
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″

Spindle:
Taper Size: Taper Size: 40
Speed Range: 0 – 6000 RPM
Spindle Power: 15 HP
Max Torque: 33.0 ft-lbf @ 1200 rpm

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 64″ x 100″ High
Weight: 4000 lbs

No files or videos to display
