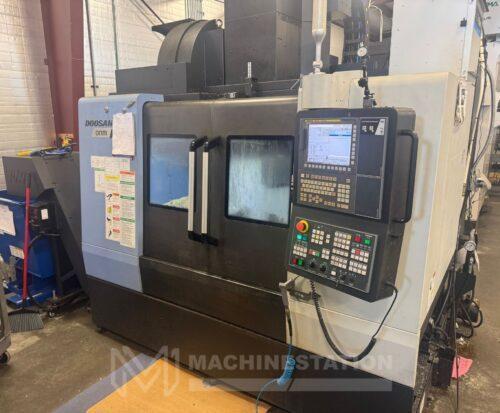

Doosan DNM 4500 CNC Vertical Machining Center – 2019 Mill

Brand
Model
DNM-4500
Stock #
115084
Year
Not specified
Condition
Not specified

Location

Not specified

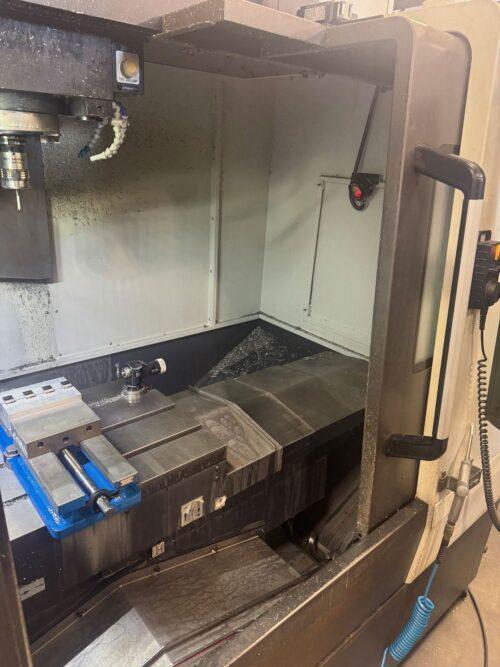

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Doosan
Model:DNM-4500
Year:2019
Condition:Used – Excellent



Equipped With:
Doosan-Fanuc i Series CNC Control
8,000 RPM Precision Spindle
1417 IPM Fast Rapids Traverse Rate
Through Spindle Coolant
30 Station High Speed Automatic Tool Changer
Renishaw Probing System (Probe Included)
Tool Presetter
CAT-40 Taper Spindle

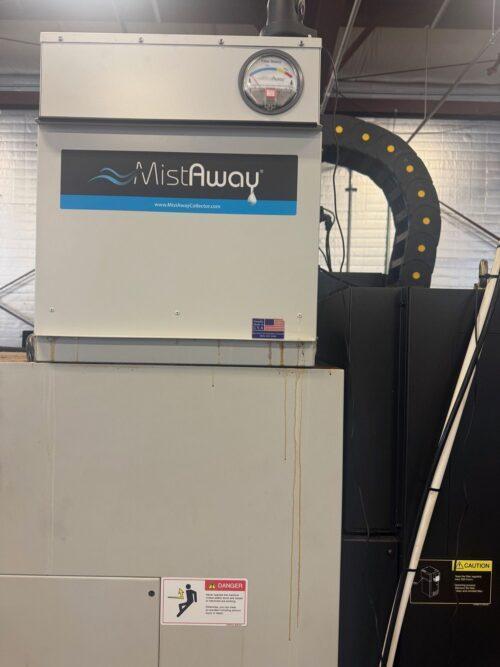

Mist Collector
USB Drive
PCMCIA Card Slot
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Coolant System
LNS Chip Conveyor



Travels:
X-Axis: 31.5″
Y-Axis: 17.7″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″



Table:
Length: 39.4″
Width: 17.7″
Number of Std T-Slots: 3
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 1322 lbs



Spindle:
Taper Size: CAT-40
Speed Range: 8000 RPM
Spindle Power: 25 HP



Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.2 Seconds



General:
Air Required: 80 psi, 4 scfm
Power: 220v / 29.5 kva / 3-Phase
Overall Dimensions: 103″ x 85″ x 117.5″ High
Weight:  11,023 lbs
