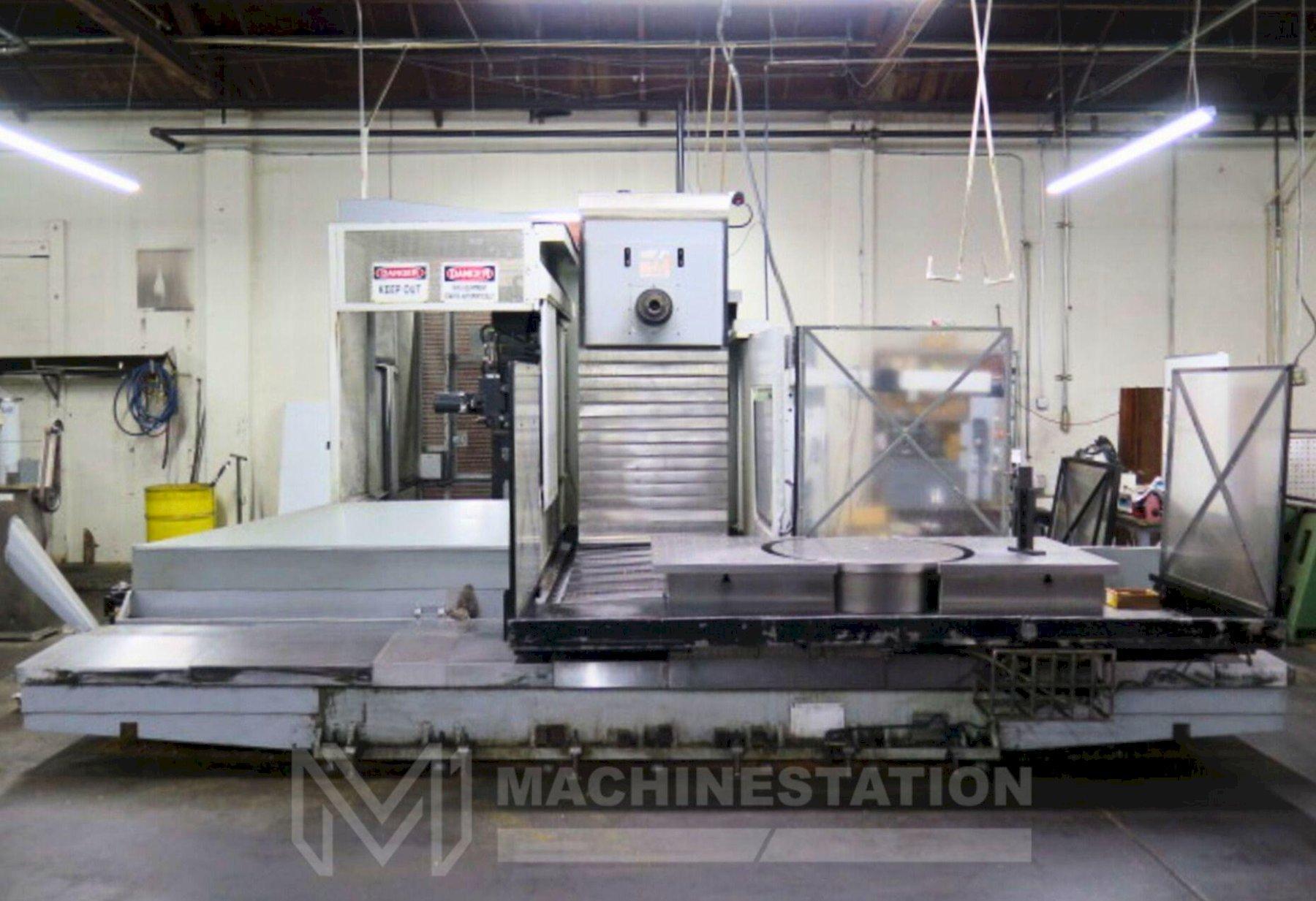

Haas HS-6R CNC Horizontal Machining Center – 5 Axis Ready 50 Taper Mill

Haas HS-6R CNC Horizontal Machining Center – 5 Axis Ready 50 Taper Mill

Name: Used HAAS HS-6R For Sale 112744
Brand: HAAS
SKU: 112744

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	HAAS
Model:	HS-6R
Year:	2007
Condition:	Used – Good

Equipped With:

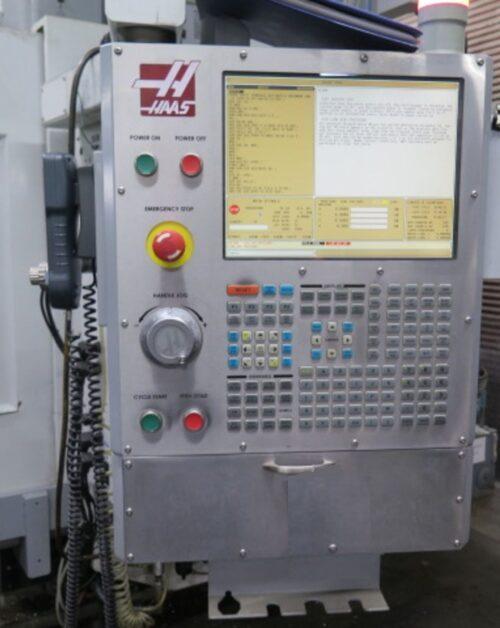

Haas CNC Control
5th Axis Ready

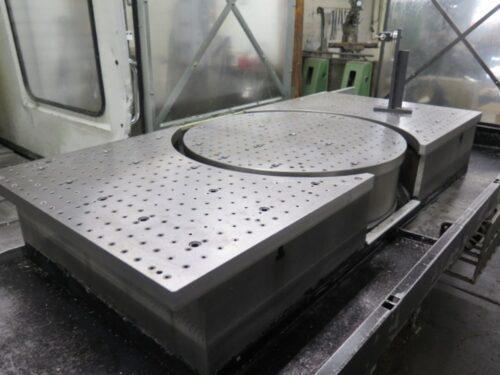

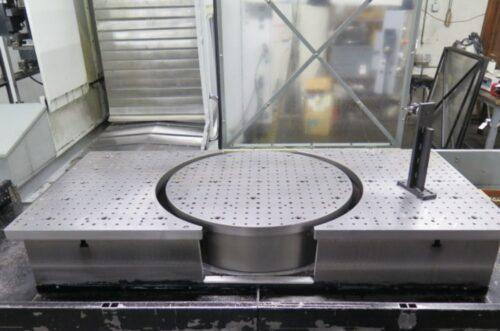

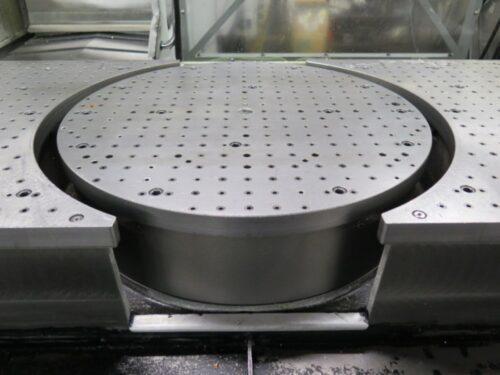

37” Diameter Built-In Full 4th Axis Rotary Table
5,000 RPM 2-Speed Gear Head Spindle
Through Spinde Coolant

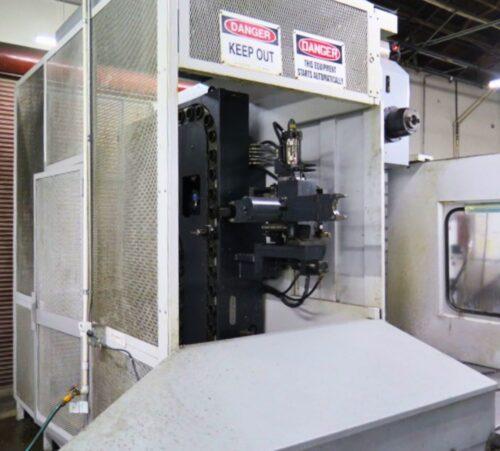

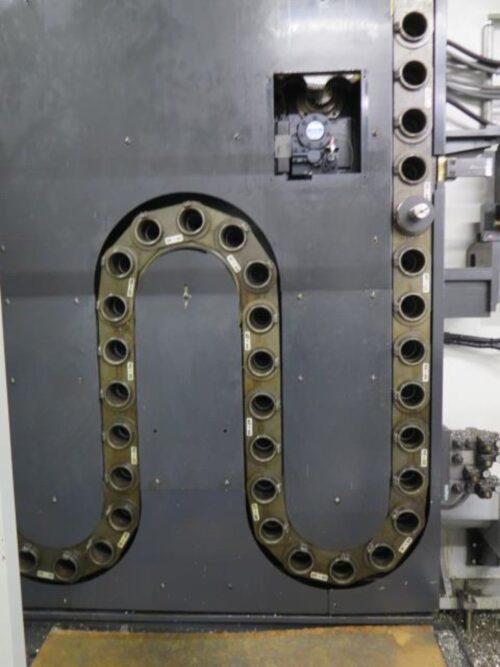

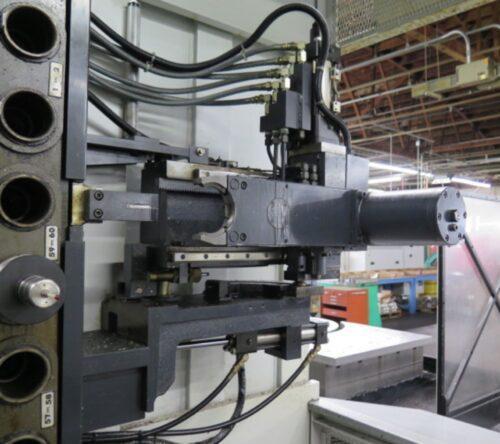

60 Station Automatic Tool Changer
BT-50 Taper Spindle

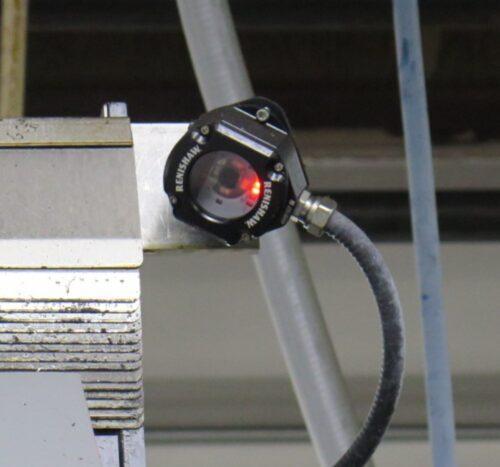

Renishaw Probing System Ready (Probe Needed)

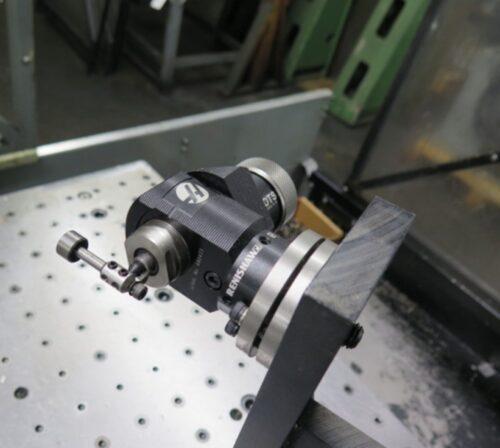

Tool Presetter
High Speed Machining
16mb Expanded Memory
Rigid Tapping
Spindle Orientation

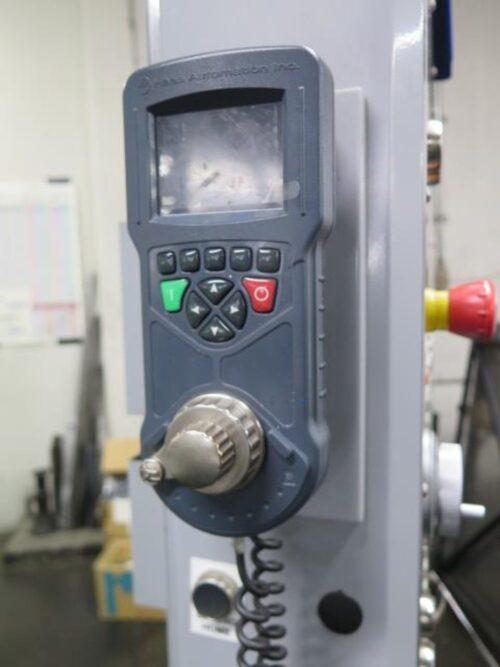

Remote Jog Handle
Power Failure Module
Macros
Quick Code Programming
Advance Tool Management
Coolant system
Telescopic way covers
Chip Auger

Travels:
X Axis: 84″
Y Axis: 50″
Z Axis: 60″
B Axis: 360° ( 0.001° Indexing )

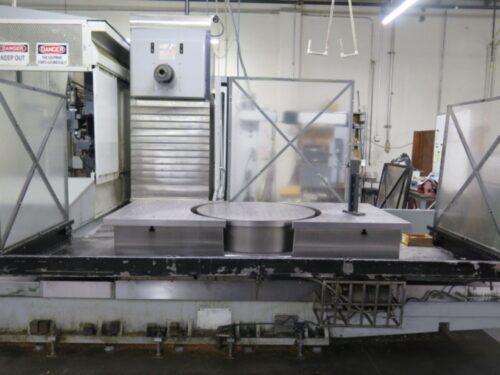

Table:
Table Length: 80″
Table Width: 40″
T-Slot Width: 0.86″
Max Weight on Table: 10,000 lbs

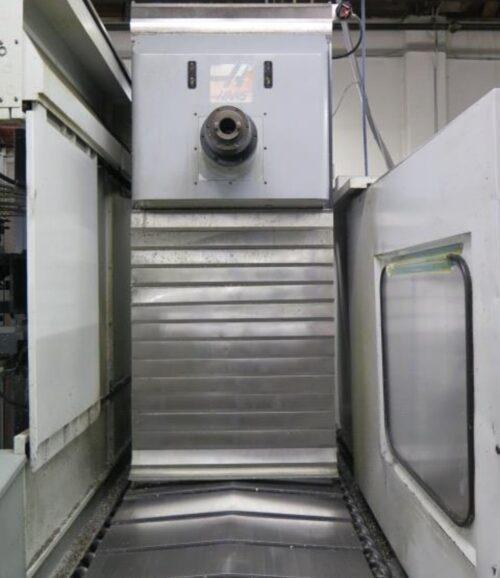

Spindle:
Taper Size: BT-50
Spindle Speed: 5000 RPM
Driven System: 2-Speed Gear Head
Spindle Power: 30 HP

Feed rates:
Rapid Traverse Rates X, Y Axis: 500 Inch Per Minute
Rapid Traverse Rates Z Axis: 708 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute

Tool changer:
Capacity: 60 Station
Max Tool Diameter : 9.84″
Tool Change Time (Chip To Chip): 15.8 Second
Tool Change Time (Tool to Tool): 4.9 Second

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Shipping Dimensions: 253″ x 189″ x 152″ High Approx.
Weight: 57,500 lbs Approx.
