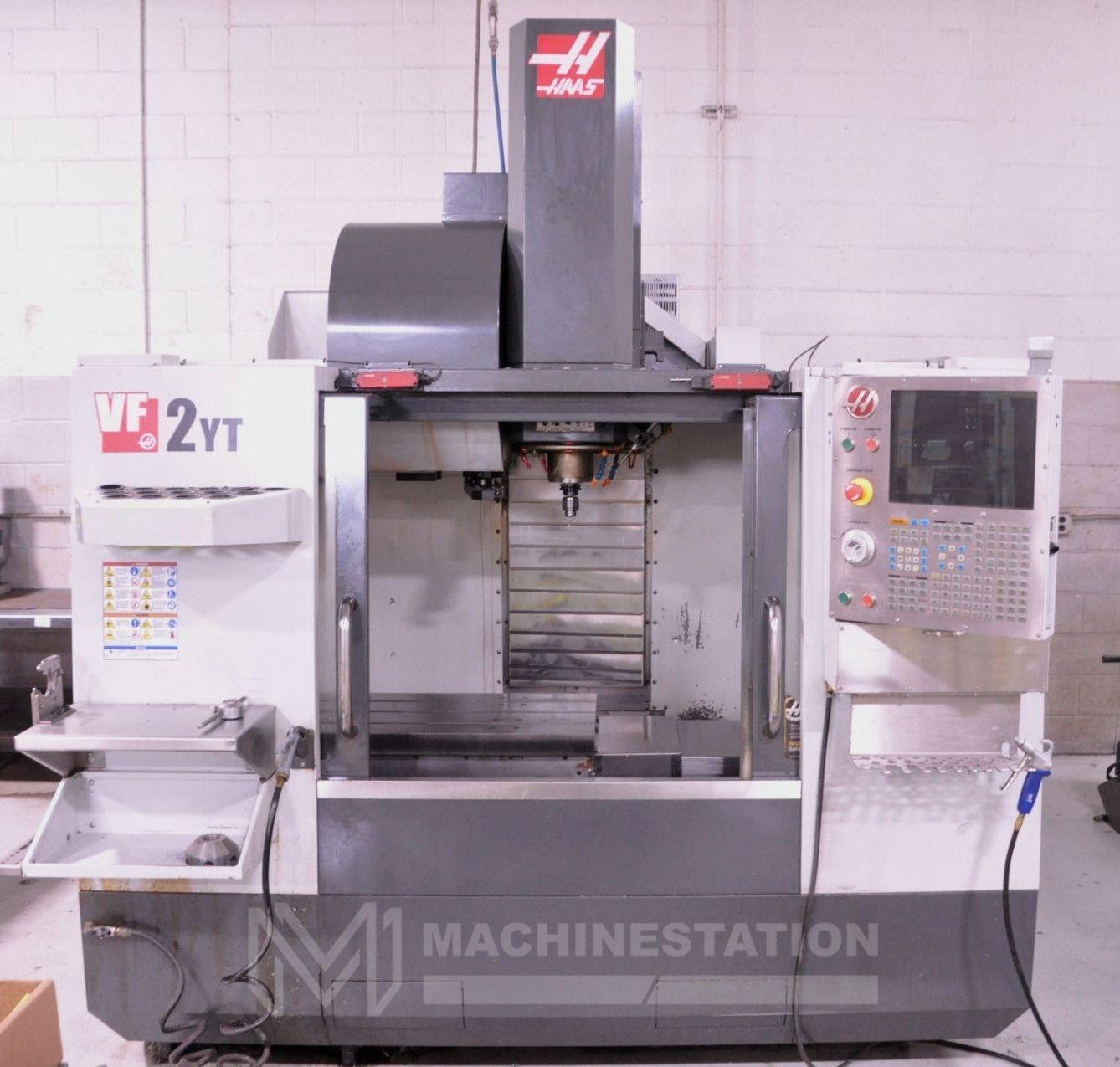

Haas VF-2YT CNC Vertical Machining Center – Mill

Haas VF-2YT CNC Vertical Machining Center – Mill

Name: Used HAAS VF-2YT For Sale 112822
Brand: HAAS
SKU: 112822

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	HAAS
Model:	VF-2YT
Year:	2014
Condition:	Used – Good

Features:

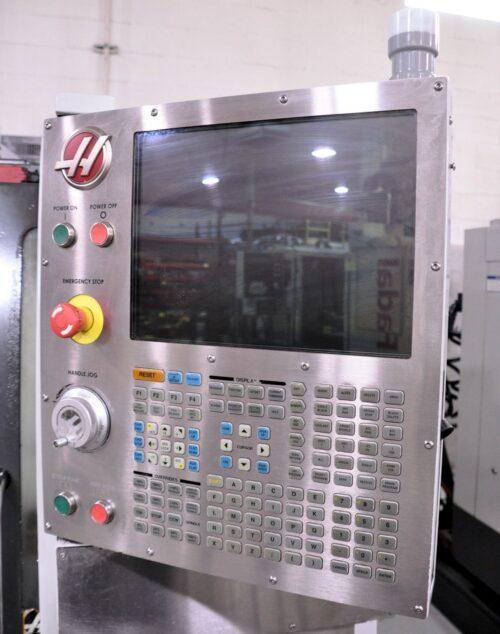

Haas CNC Control
8100 RPM Spindle
Extended Y Axis Travel
20 HP High Torque Spindle
24 Station Automatic Tool Changer
CAT-40 Taper Spindle
MPG Control
Rigid Tapping
Coolant System

Travels:
X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

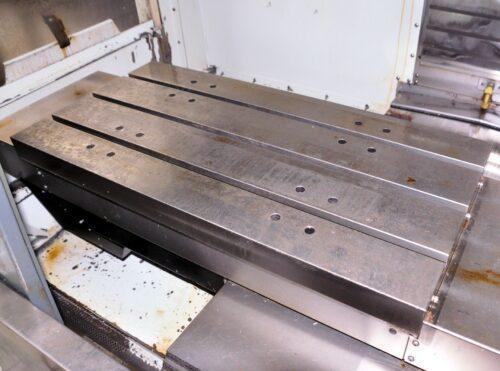

Table:
Length: 36.0″
Width: 18.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

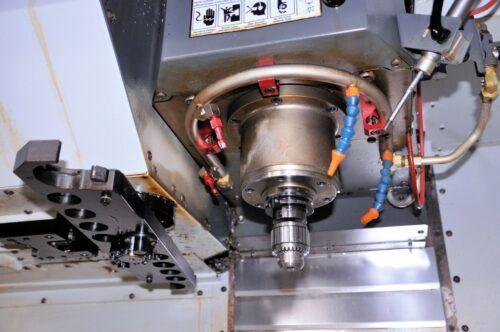

Spindle:
Taper Size: CAT-40
Speed Range: 8100 RPM
Spindle Power: 20 HP

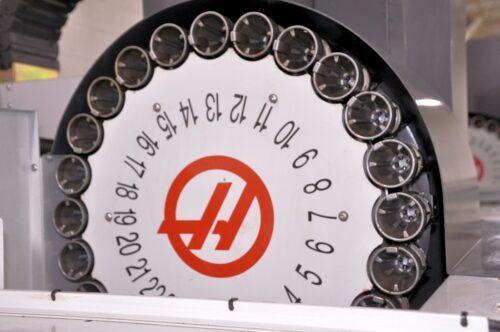

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 106″ x 101″ x 101″ High
Weight: 7800 lbs Approx..

No files or videos to display
