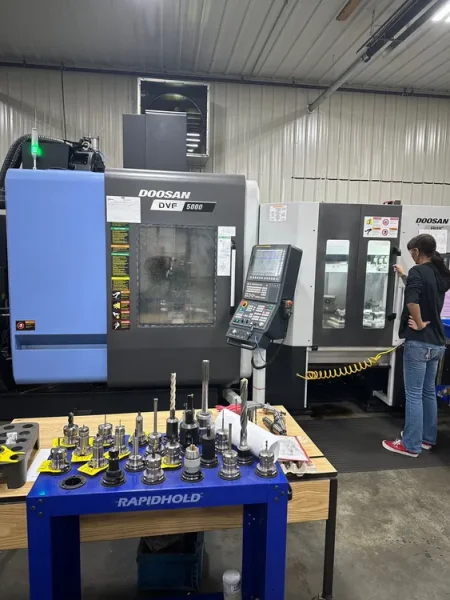

Doosan DVF 5000 5-Axis CNC VMC, 18000 RPM, x-24", y-17", z-15", 120 ATC, 40 Taper, 12 Pallets, 30HP, (2022)

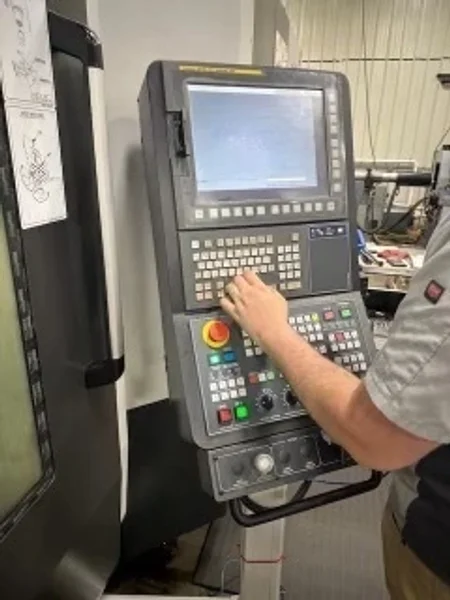

Fanuc 3i-M B5 Control
5 Axis

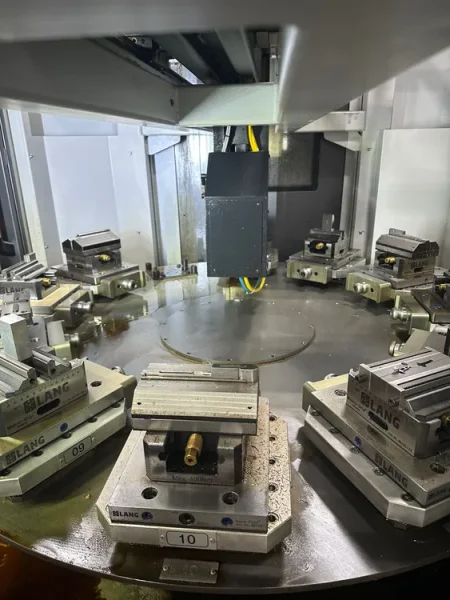

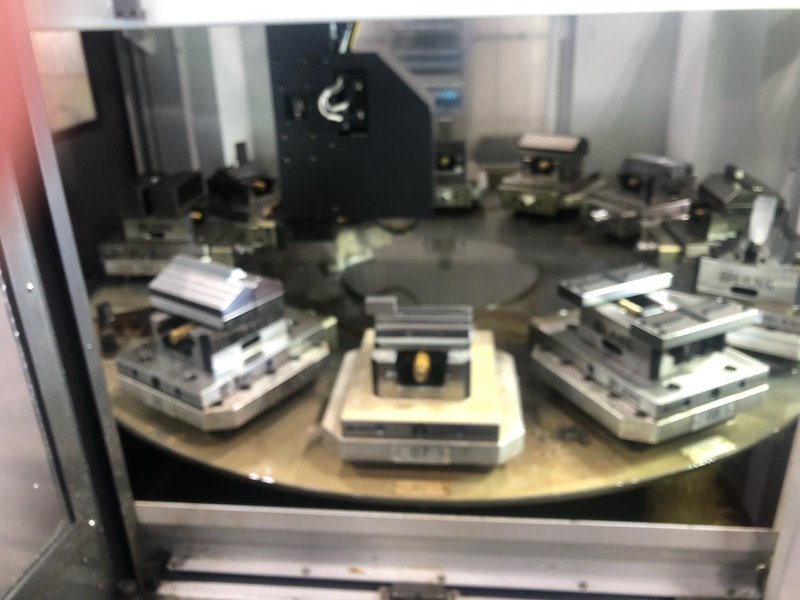

12 Position Automatic Workpiece Changer
LNS Super Fine Compact, left hand chip conveyor with variable speed drive and M-code capability.
Through Spindle Coolant
120 Tool Magazine
Mist Collector
Probing

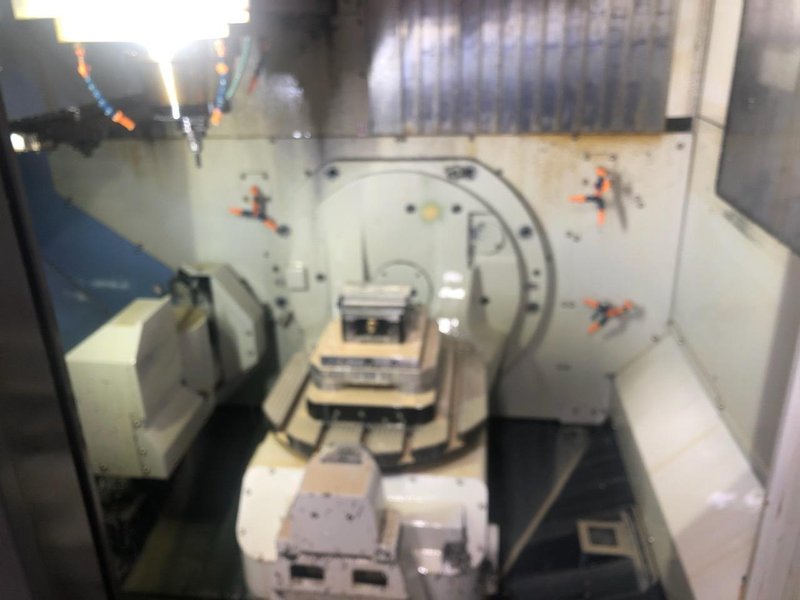

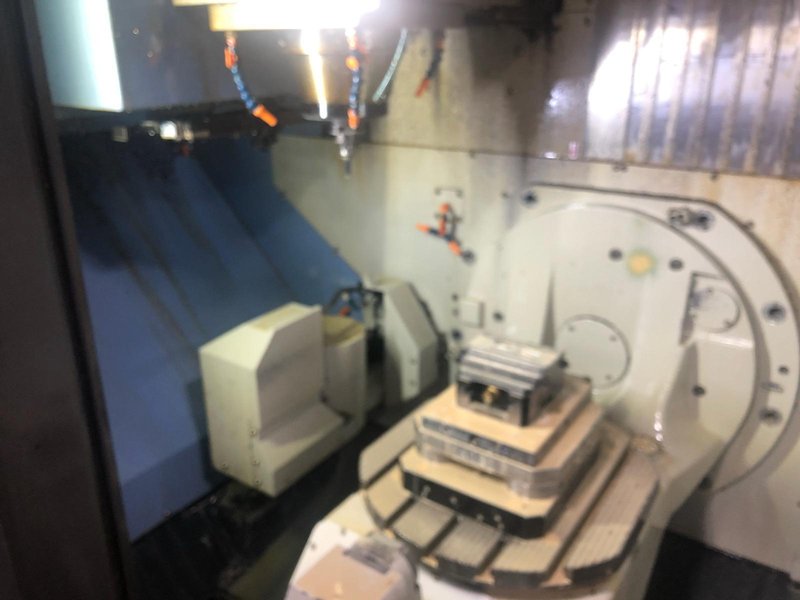

5 Axis Trunnion Table
Renishaw RMP600 Spindle Probe -
Renishaw RTS TTP Tool Setter -
Renishaw CAT40 Tool Sett
ChipBLASTER Modular* 1,000 PSI, 2-10 GPM variable flow coolant system,
100-gallon tank and dual 5-micron bag filters.
LNS FOX Mist Collector WS2-700 High Efficiency multi-application 3 filtration stage unit to meet or exceed OSHA and NIOSH
requirements - 700 CFM, 150mm/6" suction intake at 230V/2.9 Amp. Complete with standard installation kit.
1 Renishaw RMP600 "strain gauge" spindle probe, CAT 40 tool shank, 100mm probe stylus and hardware.
Renishaw Axiset calibration artifact with magnetic base, certificate of traceability and carrying case. Used in conjunction with a 600 series probe and Doosan kinematics software to fine tune 5 axis performance and accuracy.
Renishaw CAT40 tool setter calibration master.
Spindle probe calibration ring gage with 2" ID.
BK Mikro, tool changer mounted, broken tool detection system. Includes appropriate BK Mikro scanner unit, I\O card and mounting hardware. Checks up to 512 different tool lengths with variation of up to 20 inches.
CAMPLETE TruePath Software Package
Renishaw RTS TTP Tool Setter
Single independently controlled outlet at 2-10 GPM each.
Mobile Makro-Grip Stamping unit, extended version, high-end jaws (661.39 lbs)
Makro-Grip Stamping Jaws, high-end up to 45HRc (3.10)
3 Mounting Bore Hole Covers - 20mm (20 each)
12 Quick-Point Plate 246x192x27mm without mounting bores, 96mm stud distance (20.72 lbs)
12 Add-on steel soft jaw for Profilo125 (7.28 lbs)
3 Profilo 125, length 160 mm (22.23 lbs)
6 Makro-Grip base 125, jaw width 125 mm, length 160 mm (18.52 lbs)
2 Hexagon wrench 15 mm for new version Makro-Grip 125 and Makro-Grip Robo 125
12 Set 4x mounting bores into item 45716 per dwg "45716-01 USA-2005-001"
1 Rego-Fix PowrGrip clamping unit
Lang Plates
Vises

NEW PRICE WAS $664,000.00
