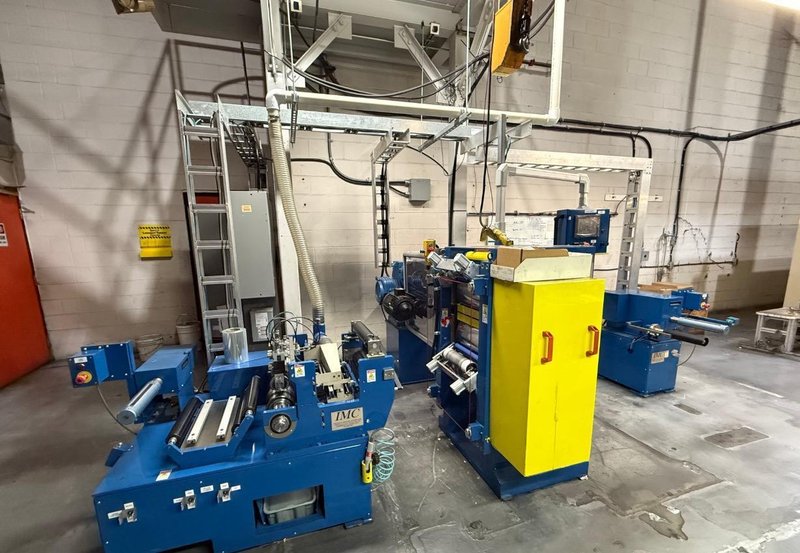

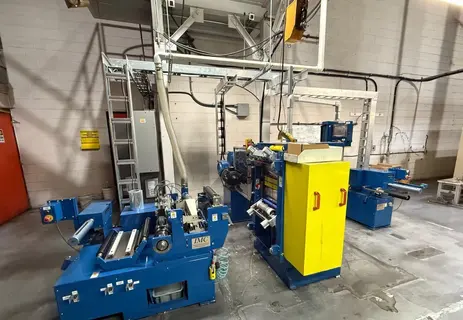

IMC Calendering Machine – 2020 – 2,700 Hours – Rubber or Plastic Sheet Processing

2020 IMC Calendering Machine is a precision roller pressing system designed for research and pilot-scale electrode manufacturing, offering controlled compression processing for battery materials up to 300mm web width.

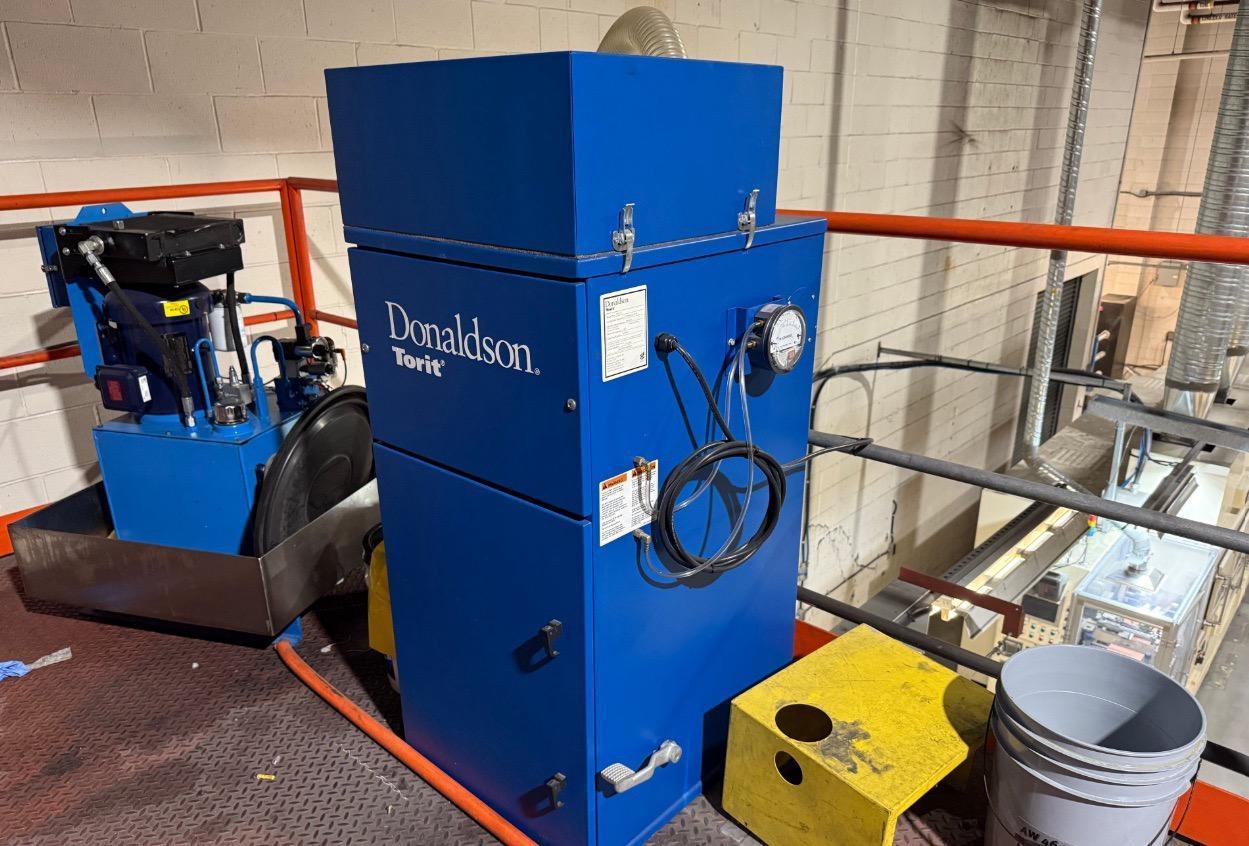

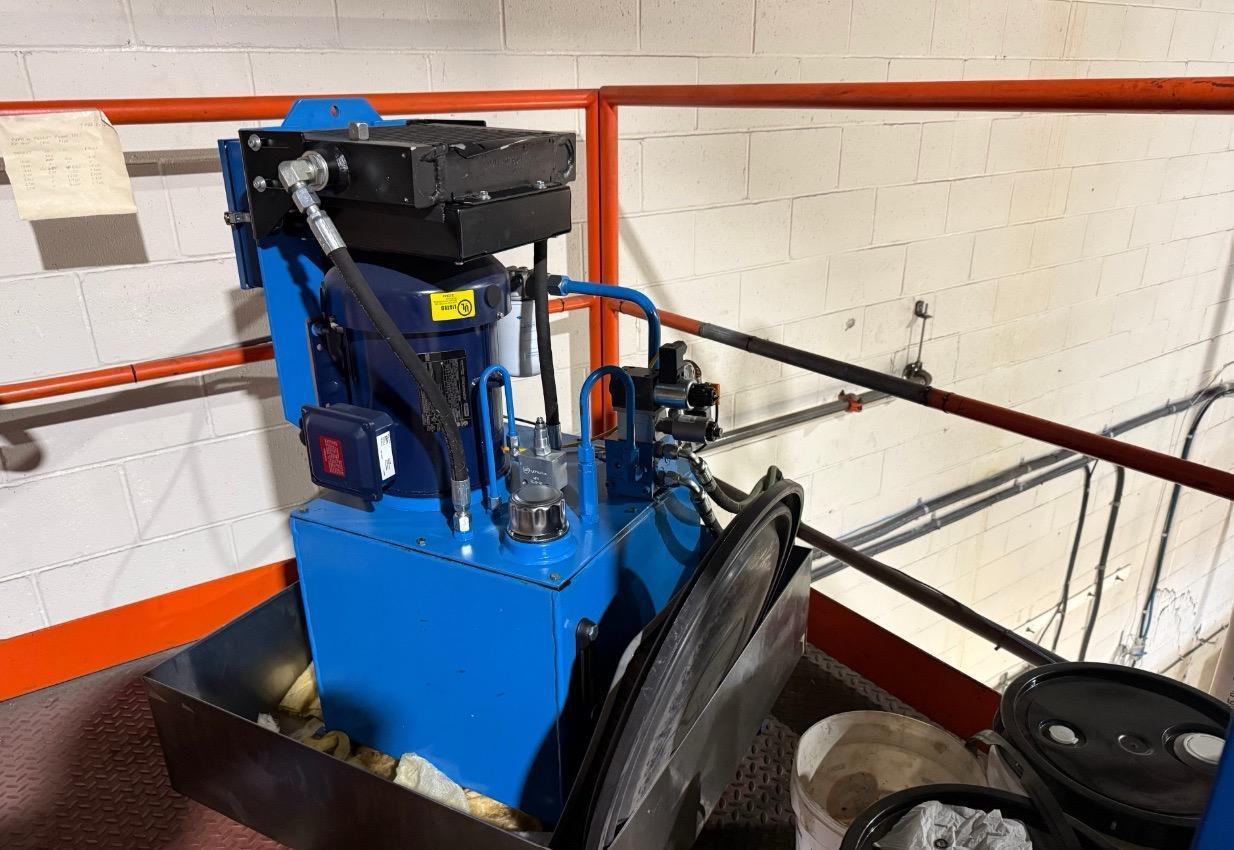

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– This calendaring line is equipped with vacuum pump and hydraulic systems.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Listing also includes crane shown in the pictures.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Estimated Hours of Operation: 2,700 hours.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features Dual hydraulic cylinder system delivering up to 3,000 PSI through 5″ diameter actuators for precise pressure control

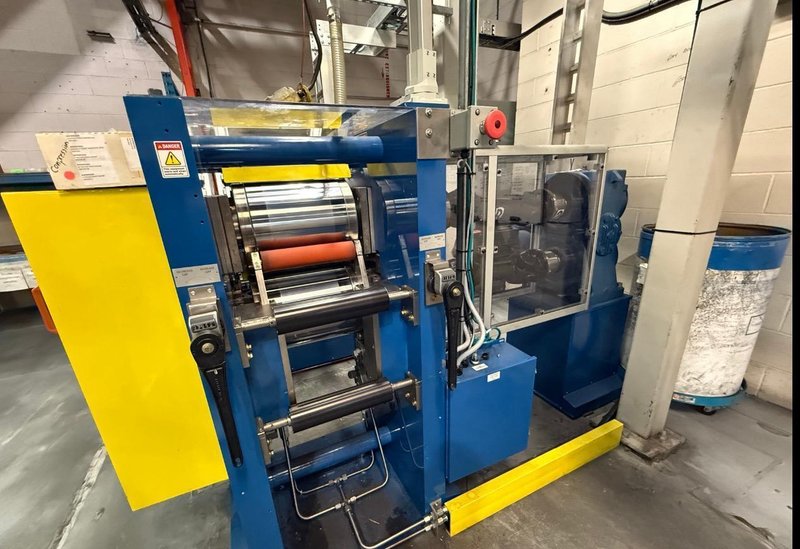

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature-controlled calendering rolls (12″ diameter x 12″ working width) with capability up to 150°C

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integrated web steering mechanism at rewind station for enhanced material tracking

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air-expansion shafts (3″ O.D.) on both unwind and rewind stations for optimal tension control Process speed control ranging from 0 to 5.0 meters per minute for varied material requirements

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material handling capacity up to 50 kg roll weight for extended production runs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
