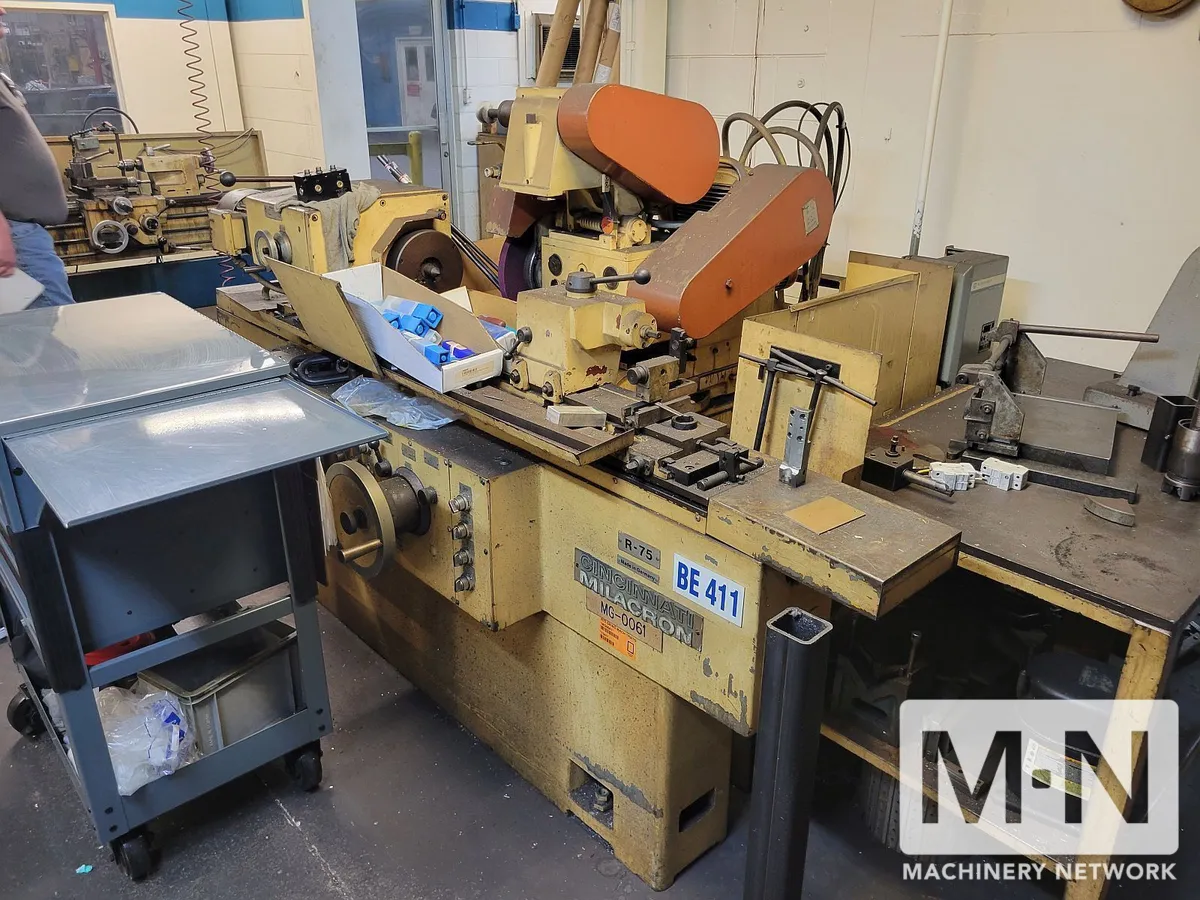

10" x 31" Cincinnati Milacron R-75 Universal Cylindrical Grinder with ID Spindle

SPECIFICATIONS
SWING OVER TABLE 10"
DISTANCE BETWEEN CENTERS 31"
TABLE
MAXIMUM TABLE TRAVEL 31"
INFINITELY VAR. TRVRSE SPDS 2" - 240"
TABLE TRVRSE PER REV. HNDWL 0.1" & 0.5"
INFINITELY VAR TABLE TARRY 0 TO 6 SEC
MAX SWIVEL OF TABLE (+/-) 10 DEG.
HEADSTOCK
INF. VARIABLE SPINDLE SPDS 60 TO 480 RPM
SWIVEL RANGE 0-90 DEGREES
DIAMETER OF BORE IN SPDL 1.4"
CENTER TAPER IN SPINDLE #13 JARNO
MACHINE CENTER # 8 JARNO
WHEELHEAD
RAPID ADVANCE STROKE 2"
MANUAL INFEED ONE REV OF HANDWHEEL
(ON DIAMETER) 0.050"
AUTO PICKFD ON DIA IN 8 STPS 0.0002" - 0.0016"
AUTO INFEED (ON DEMAND) MAX. STOCK
REMOVAL ON DIAMETER 0.079"
HAND LEVER PICKFEED ON DIA. 0.0001"
SWIVEL (UPPER & LOWER) +/- 90 DEGREES
GRINDING WHEELHEAD SIZE 12" OD x 1.5" W x 5" B
WHEEL SPEED 6,500 SFM
APRROX. MACHINE WEIGHT 5,302 LBS
APPROX. DIMENSIONS 81" x 72" x 57" H
