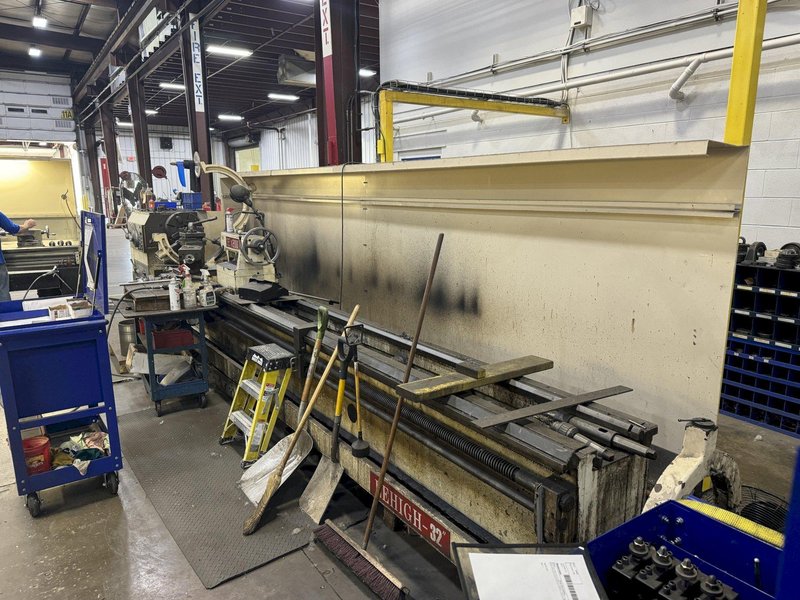

32" X 200" LEHIGH 32X200 ENGINE LATHE.(5" THRU HOLE) STOCK # 0668525
Brand
Category
Type
Model
32X200
Stock #
0668525
Year
Not specified
Condition
Used
Location
Ohio
|
MAXIMUM SWING OVER THE BED........: 32”
MAXIMUM SWING OVER CROSS SLIDE....: 16”
MAX SWING IN THE GA...............: 40"
DISTANCE BETWEEN CENTERS..........: 200”
HOLE THROUGH SPINDLE..............: 5”
SPINDLE NOSE......................: D1-11
LOW SPINDLE RPM...................: 6 HIGH SPINDLE RPM..................: 800 SPINDLE SPEED NUMBER OF STEPS.....: 18 SPINDLE DIRECTION.................: CLOCKWISE LONGITUDINAL FEEDS [72 KINDS].....: 0.004”-0.095"/REV.
CROSS FEEDS [72 KINDS]............: 0.002”-0..048"/REV.
INCH THREADS [43 KINDS]...........: 1/16-10TPI
METRIC THREADS [51 KINDS].........: 1-240 MM
MODULAR THREADS [53 KINDS]........: 0.50-120 MM
DIAMETRAL THREADS [42 KINDS]......: 1/8-30 D.P.
TRAVEL COMPOUND...................: 9"
TRAVEL CROSS SLIDE................: 10"
RAPID LONGITUDINAL TRAVEL RATE....: 160 IPM
RAPID CROSS TRAVEL RATE...........: 80 IPM
TAILSTOCK QUILL DIAMETER..........: 4"
DUAL SPEED REDUCTION RATIO........: 5:1
TAILSTOCK QUILL TRAVEL............: 12"
TAPER OF TAILSTOCK CENTER.........: MT#5
WIDTH OF BED......................: 22"
OVERALL LENGTH....................: 24'-8"
OVERALL WIDTH.....................: 5'-8" OVERALL HEIGHT....................: 6'-10" MACHINE NET WEIGHT................: 21,500 LBS MAIN MOTOR HORSEPOWER.............: 20 MAIN MOTOR VOLT...................: 220 MAIN MOTOR PHASE..................: 3 MAIN MOTOR HERTZ..................: 60 EQUIPPED WITH.....................: 22" 16" & 10" STEADY REST COOLANT |
