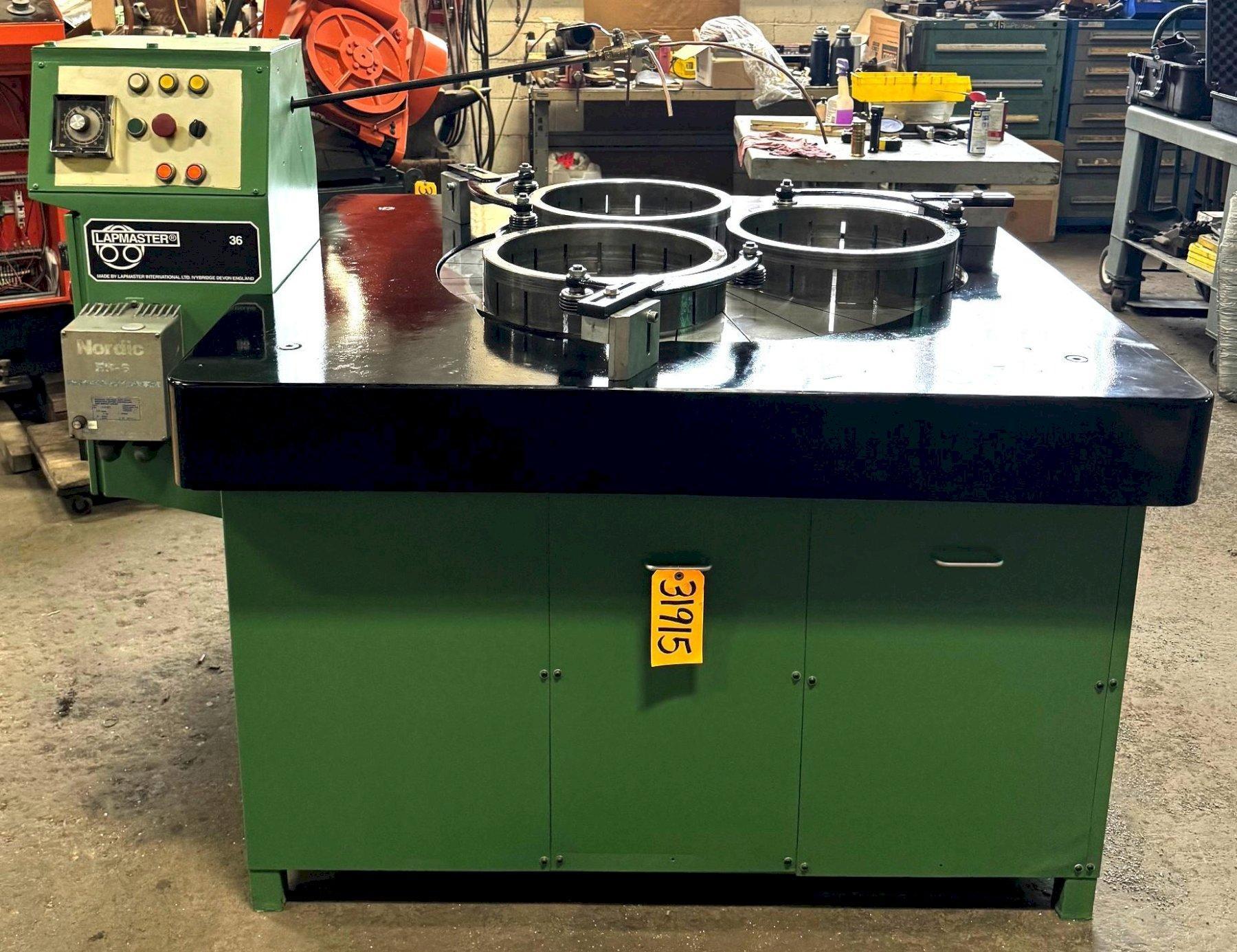

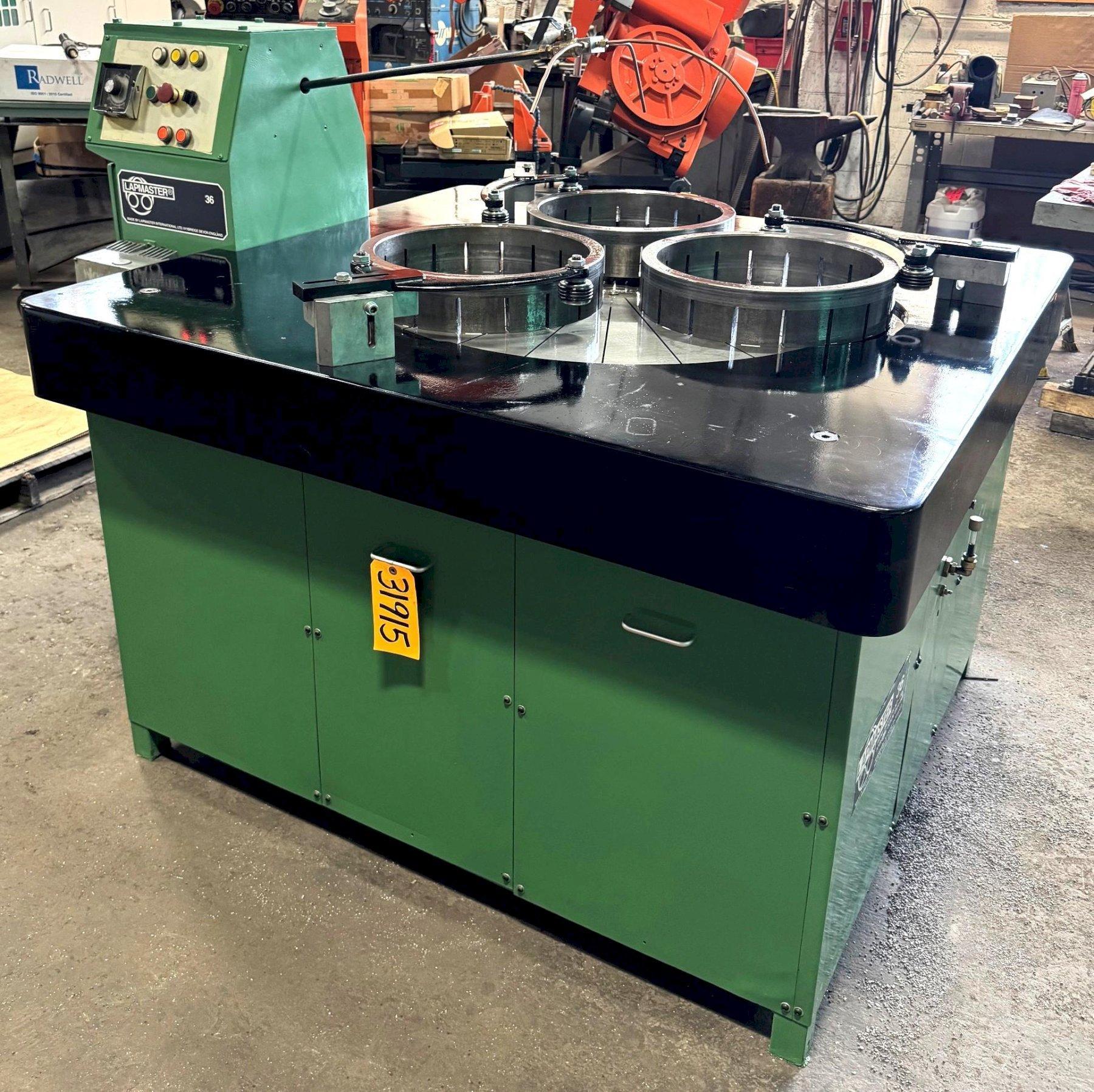

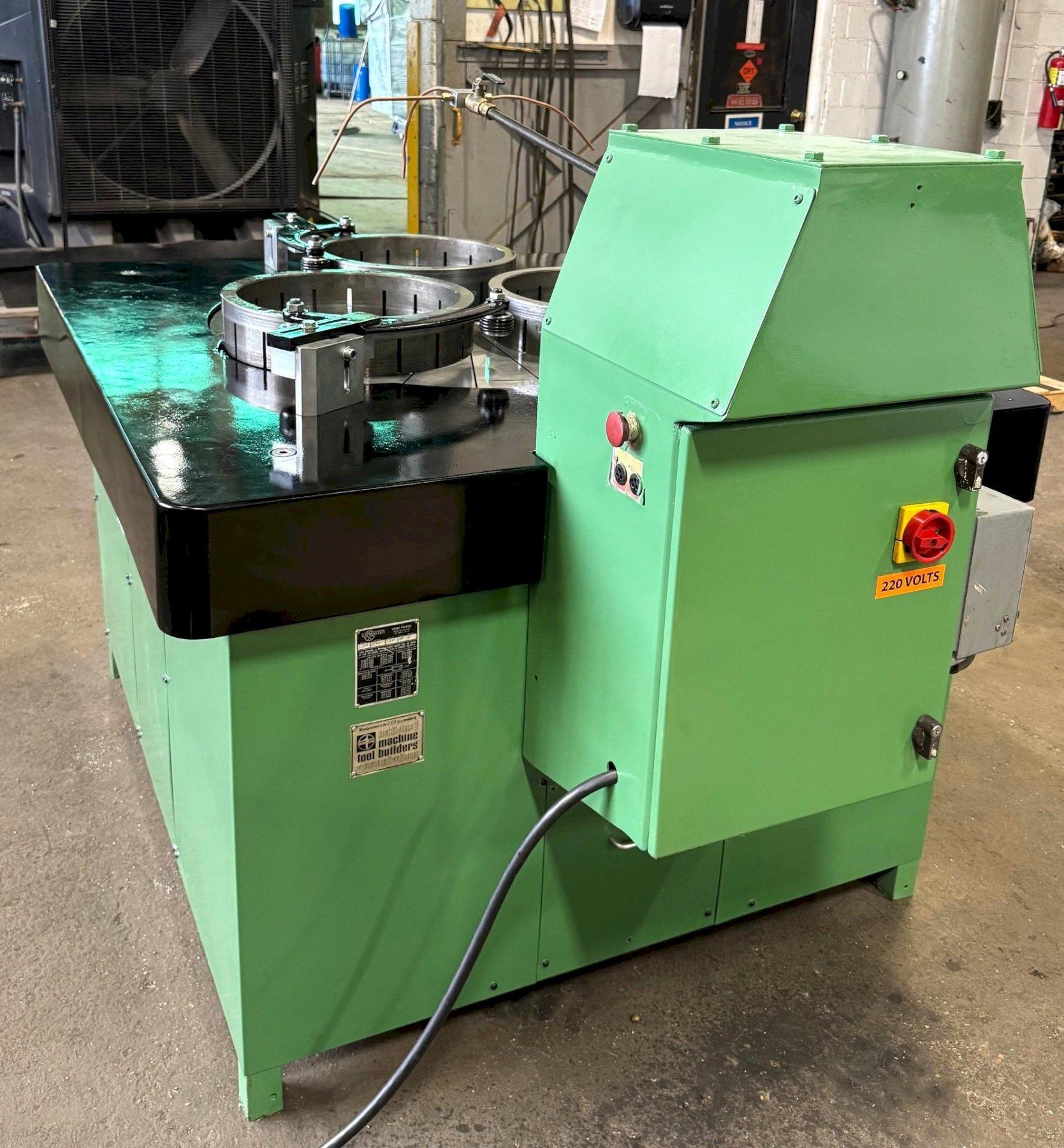

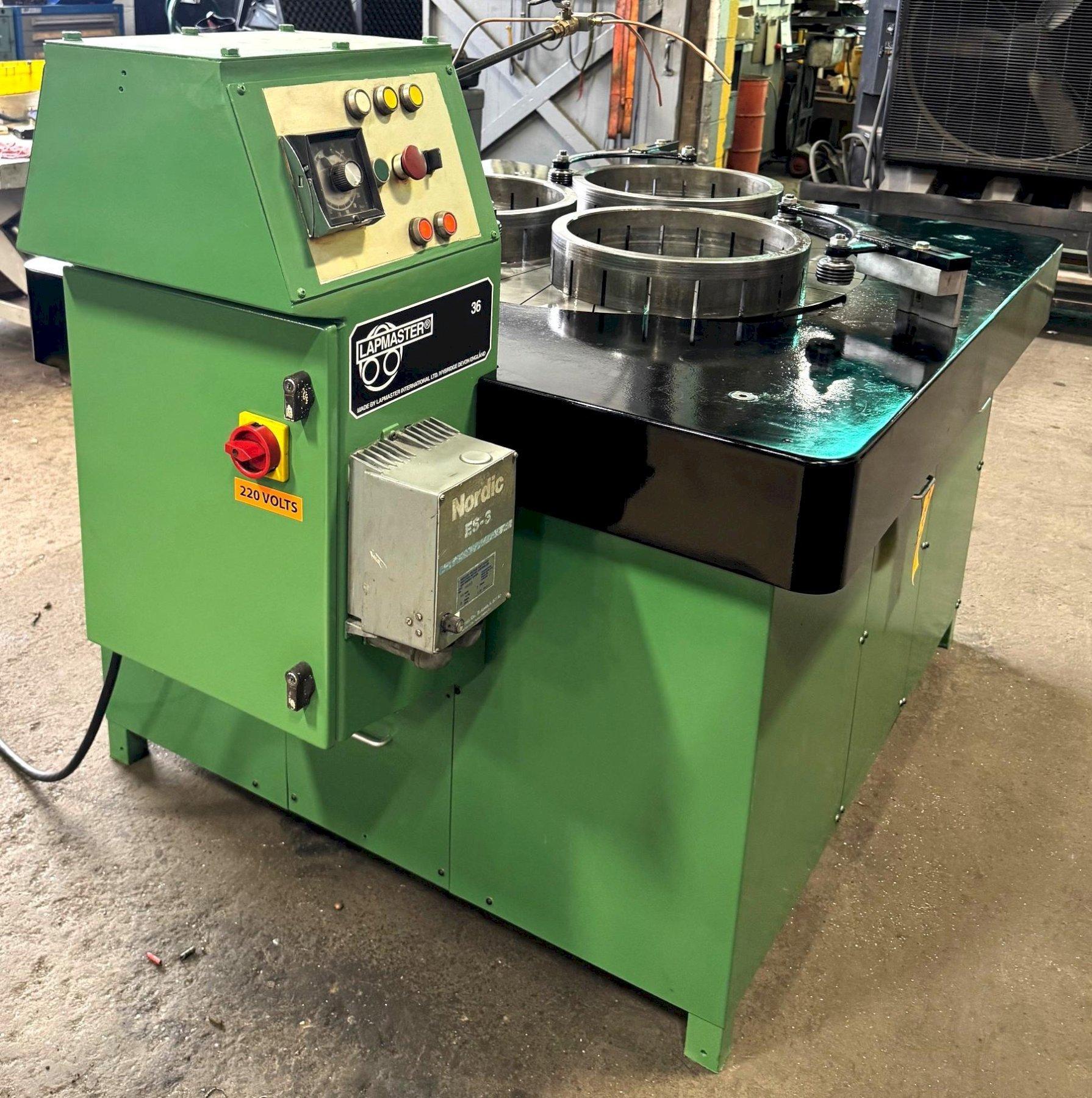

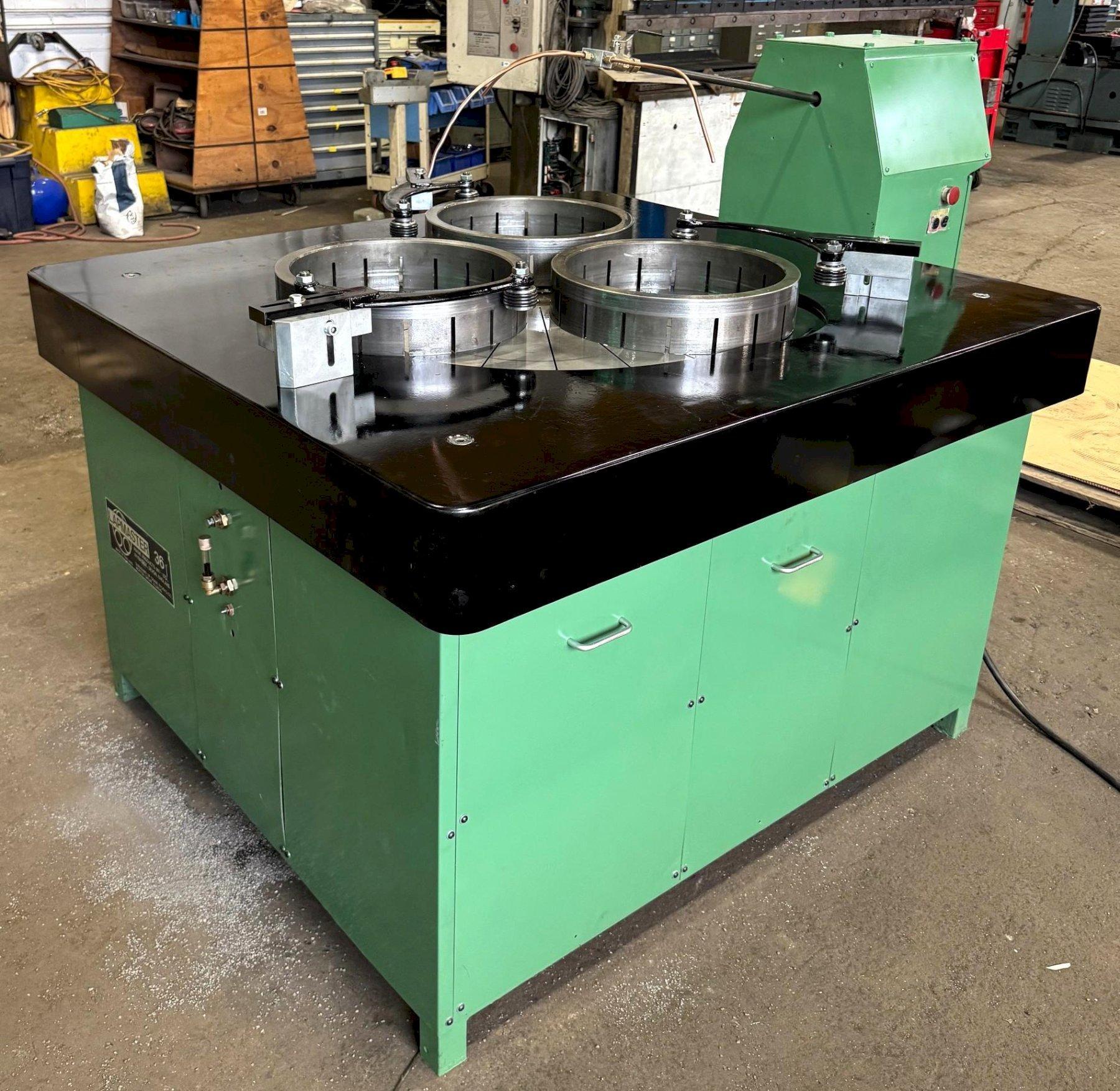

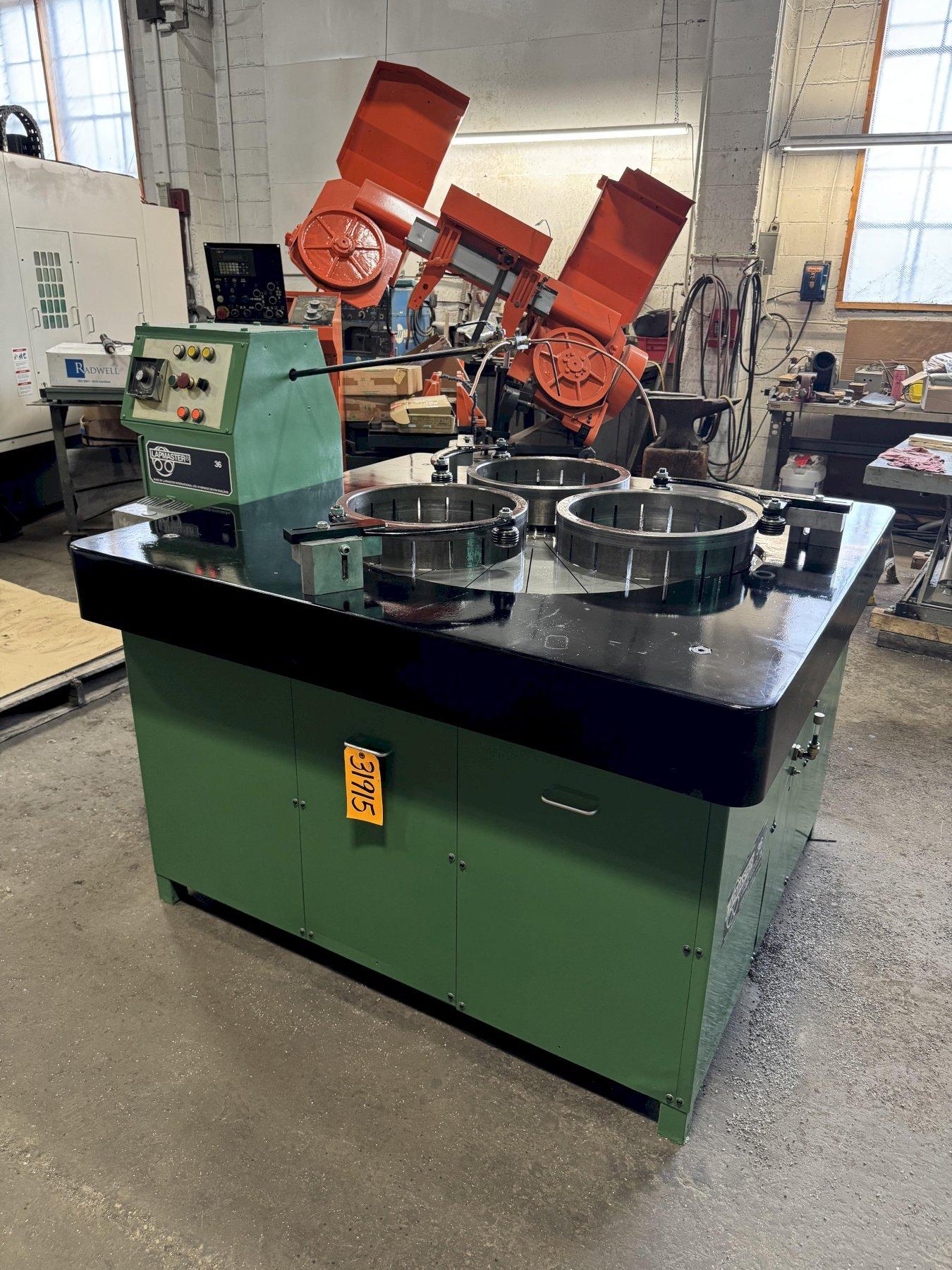

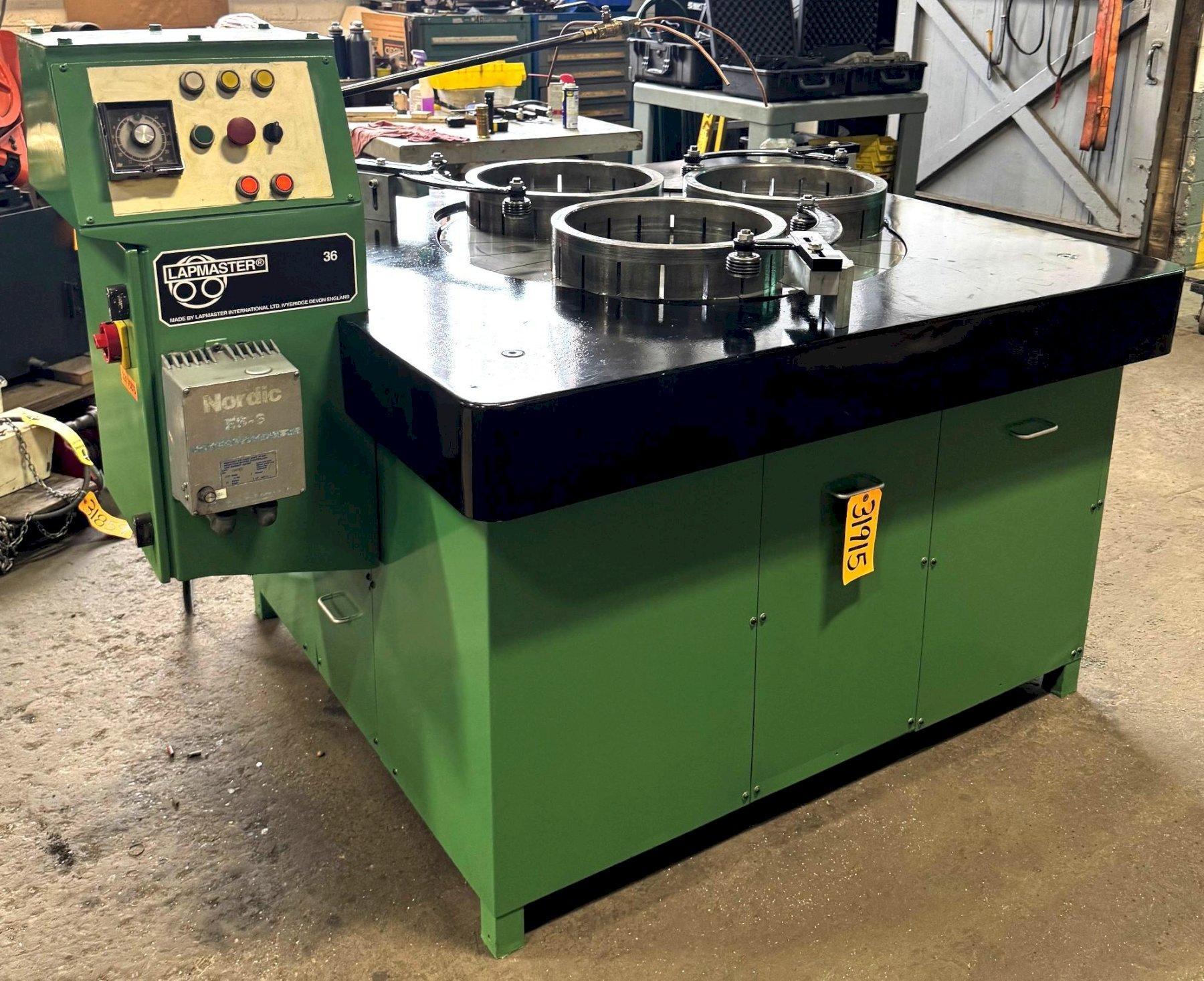

36" Lapmaster Lapping Machine No. 36, (3) Rings, Open Face, Reconditioned

LAPMASTER PRECISION FLAT LAPPING MACHINE

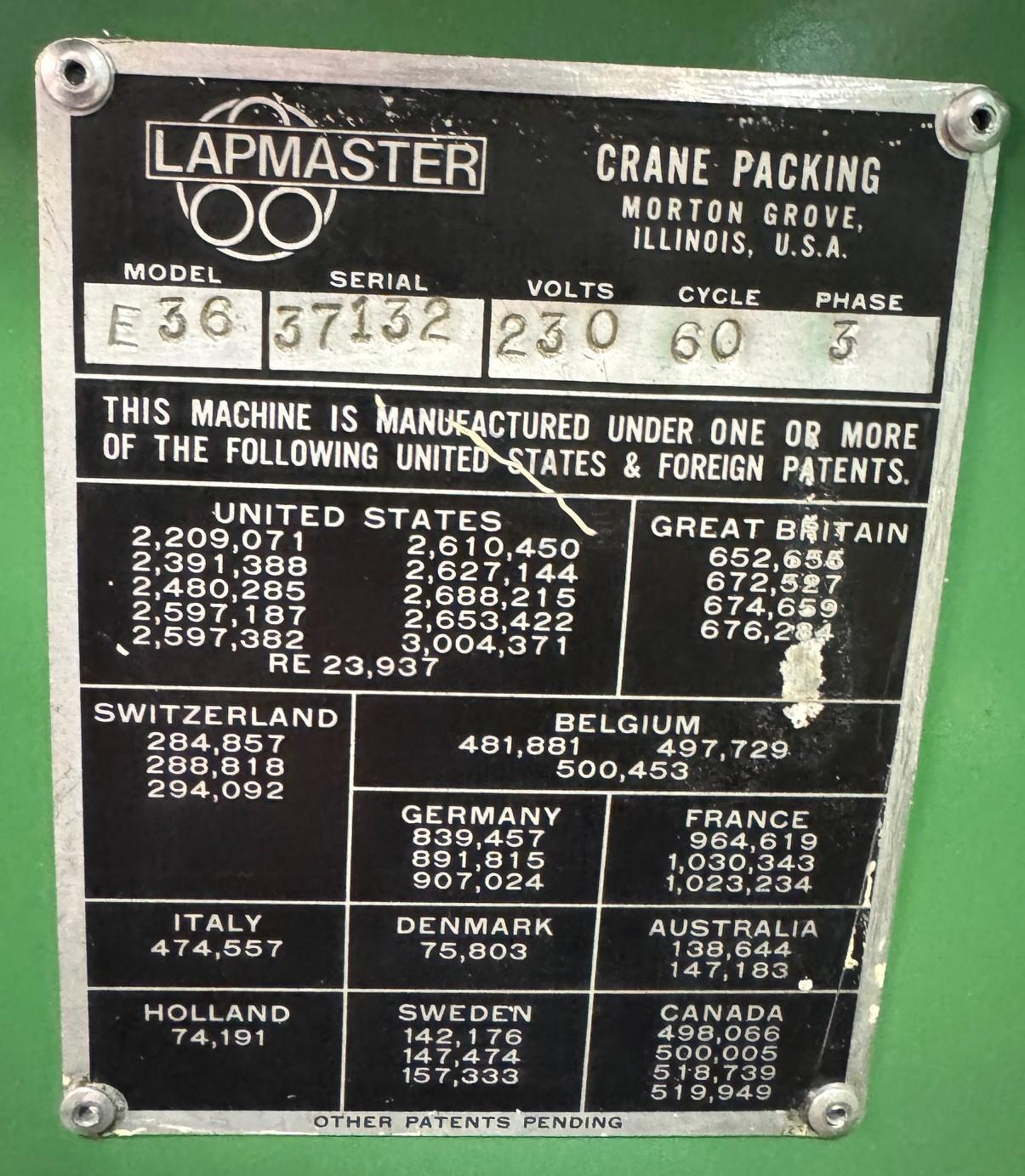

MODEL: 36E
SERIAL NUMBER: 37132*
*Reconditioned July 2025

GENERAL SPECIFICATIONS

Three Ring Style Open Face Machine
For Production Parts Up To: 14-7/16" Diameter
Lapping Plate Diameter: 36" O.D. x 6-3/4" I.D.
Conditioning Ring Size: 14-1/2" I.D. x 16-1/2" O.D.
Outer Work Table Diameter: 58" x 53"
Lap Plate Speed Approximately: 58 RPM
Lap Plate Height From Floor: 34"

EQUIPPED WITH

5 HP Lapping Plate Drive Motor and Controls, 208/230/60/3
36" Diameter Cast Iron Serrated Lapping Plate

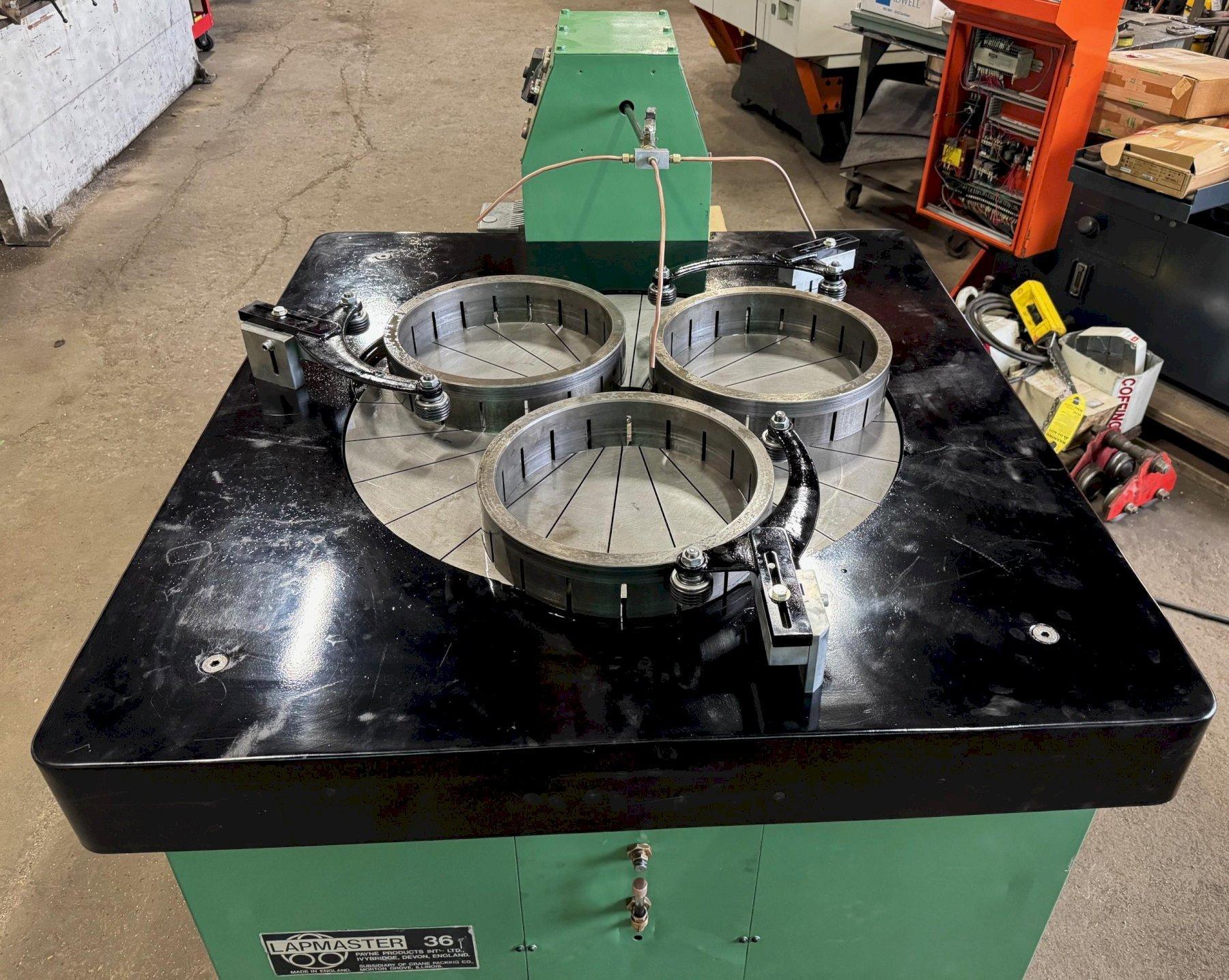

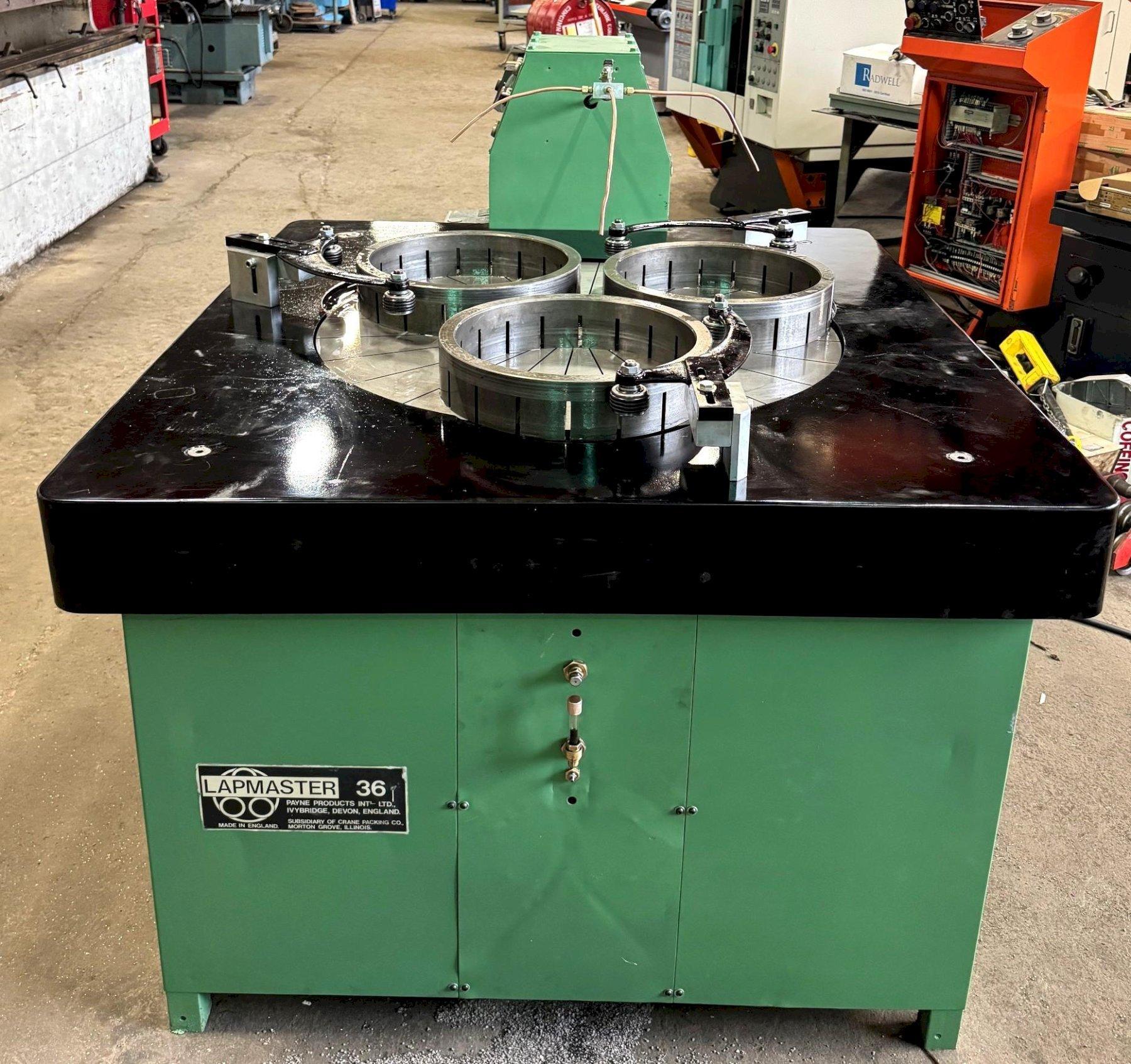

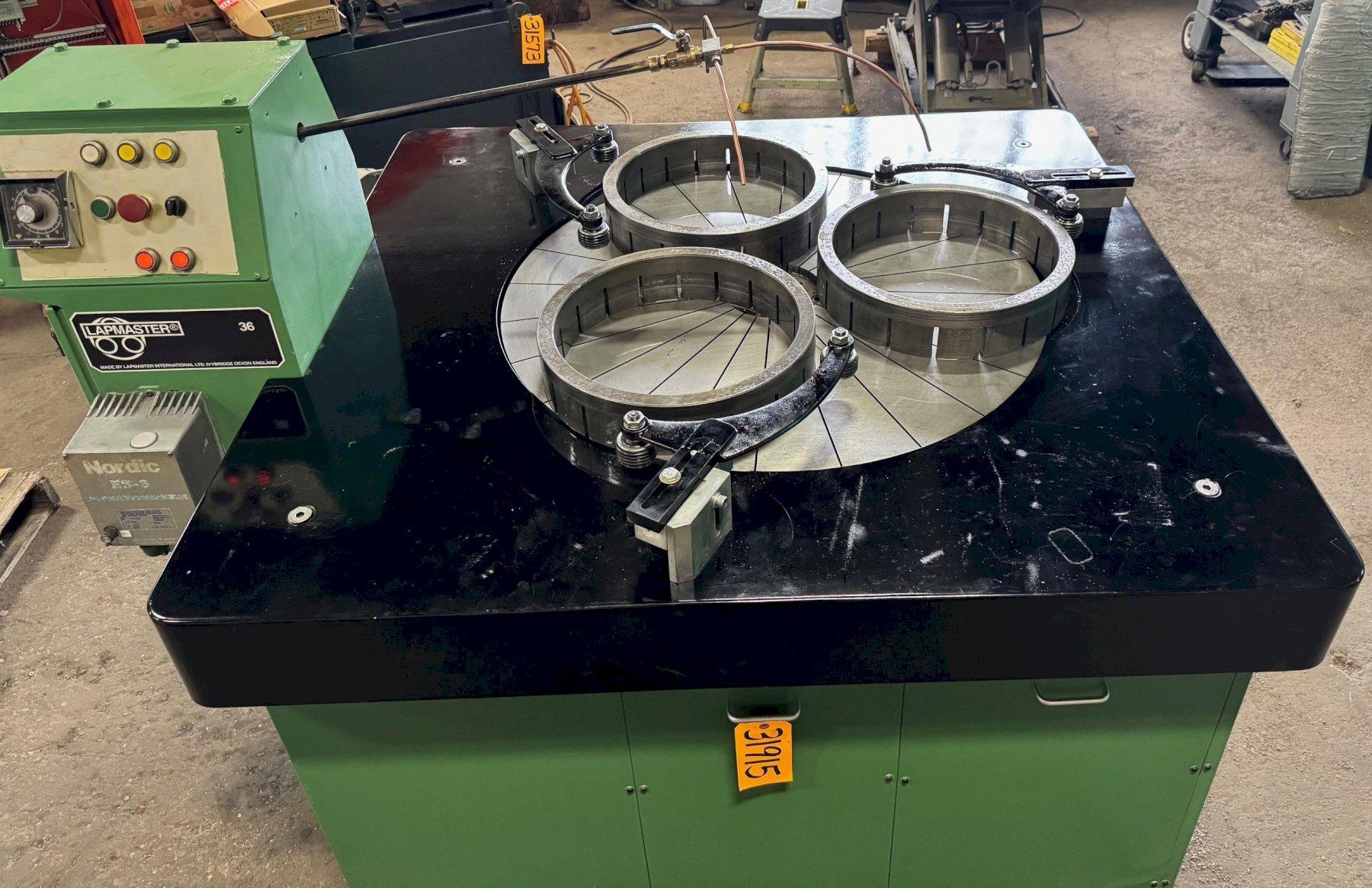

(3) Cast Iron Conditioning Rings
(3) Adjustable Ring Holder Guides (Yokes)
Abrasive Slurry Distribution System w/Pump and Tank and Distributor
Automatic Cycle Timer Control
Outside Parts Loading Table
Push Button Control Station
Operators and Maintenance Manual

Overall Size Of Machine: 56" x 72" x 55"H
Approximate Weight: 3000 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
