3/8" Vaughn Model 10 DST 10 Die Wire Drawing Machine (14508)
Brand
Category
Type
Model
10 DST
Stock #
14508
Year
Not specified
Condition
Not specified
Location
Connecticut
| Max Wire Dia. | 0.375 inches |
|
Manufacturer: Vaughn Machinery Co. (USA)

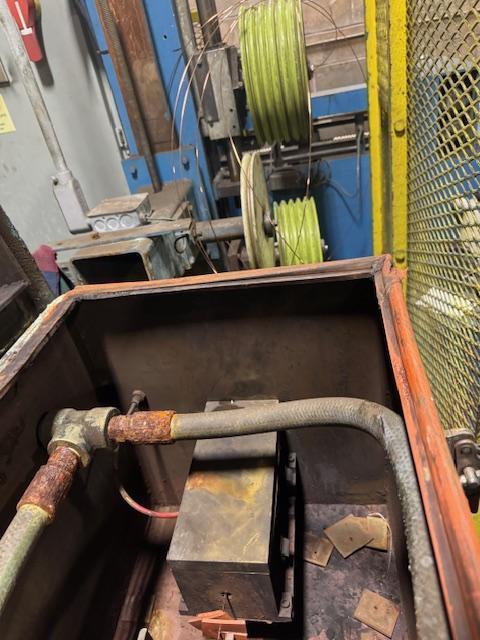

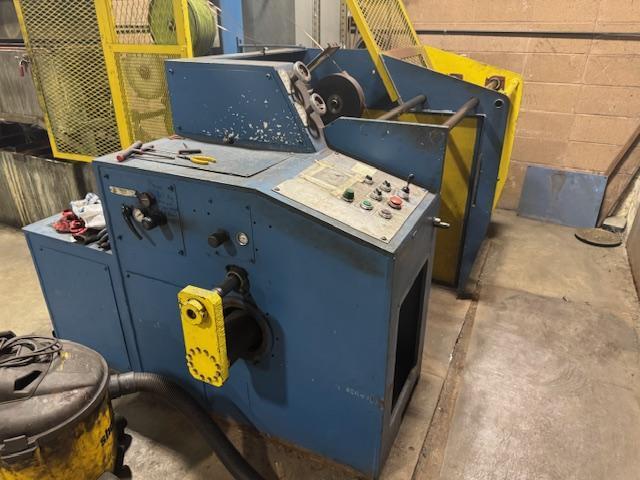

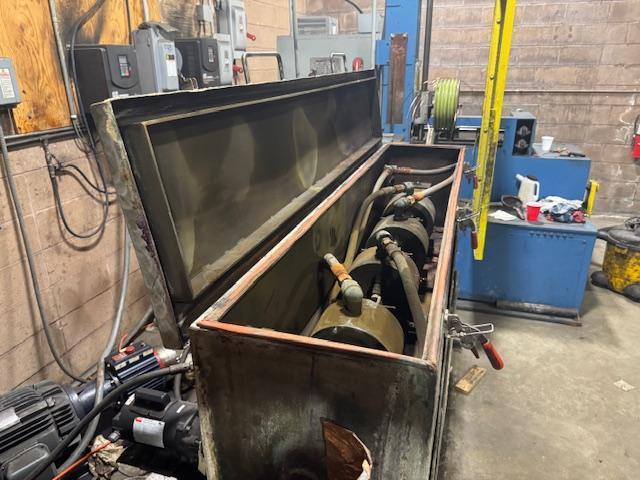

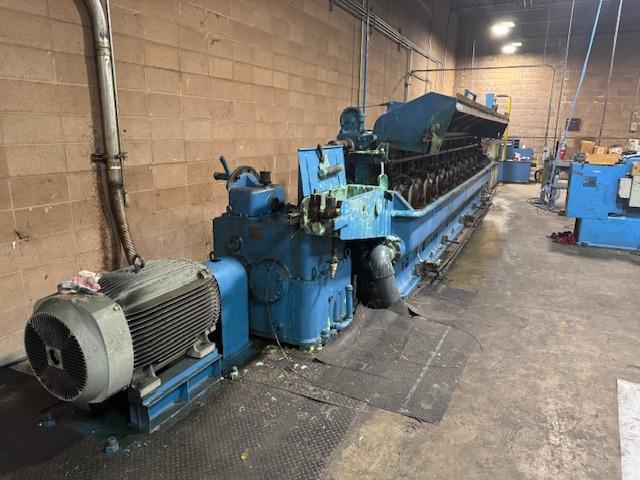

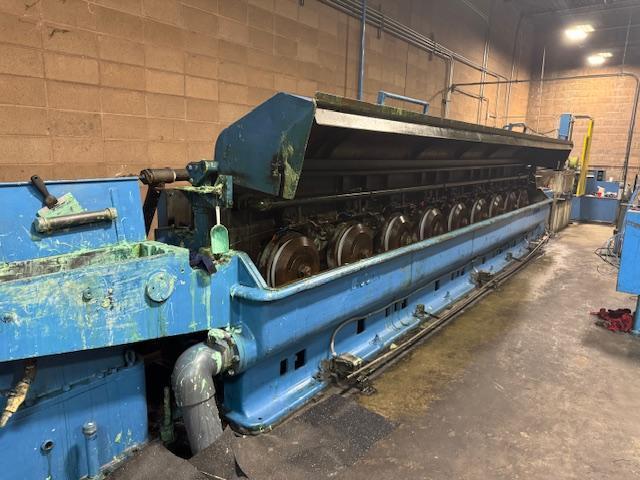

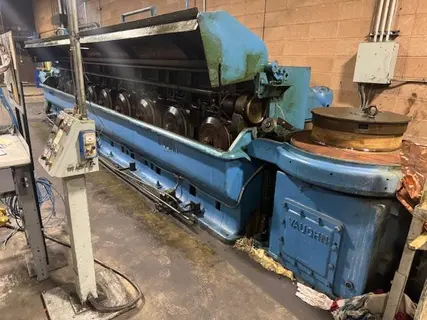

-Now Owned by Morgan Koch GmbH (Germany) Stock # 14508 Type: Tandemblox Slip Type Wet Drawing Machine for non-ferrous wire Design: 10 Die Horizontal Tandem Block with Vertical Take-up and Spooler No. of Dies - 10 Maximum entry Diameter -Copper 3/8" (9.5mm) -Alloy Aluminum 3/8" (9.5mm) -E.C. Aluminum 1/2" (12.7mm) Drawing Capstans Type: Horizontal Diameter: 16" (406mm) Face Width: 2" (50mm) Flange Diameter: 18" (457mm) No. of Horizontal Capstans: 9 Continuous Water Cooling Drive Motor: 250 HP, 575 Volts, 230 Amps,1785 RPM, 3 PH., 60 HZ WEG Mfg. Finishing Capstan: -Type: Vertical -Diameter: 22" (558mm) -Face Width: 5" (127mm) -Base Diameter: 30" (762mm) Line is equipped with: Payoff Entry Soap Lubrication Box 2 Vertical and 2 Horizontal entry guide rolls 10 Die Vaughn Drawblock Assembly with 9 horizontal blocks and Lubrication system Exit Cleaning Station - 4 Block Spray Gun System with 3 spray nozzles per block Dual Dancer System for speed control entering take-up Traversing Take-up Winder -Double pintle for spools -Spool Diameter 11" (280mm) -Spool OD 30" (762mm) -Spool Flange 5" (127mm) -Winder Electronics by Total Control Systems (USA) Line is installed and operational but shut down **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
