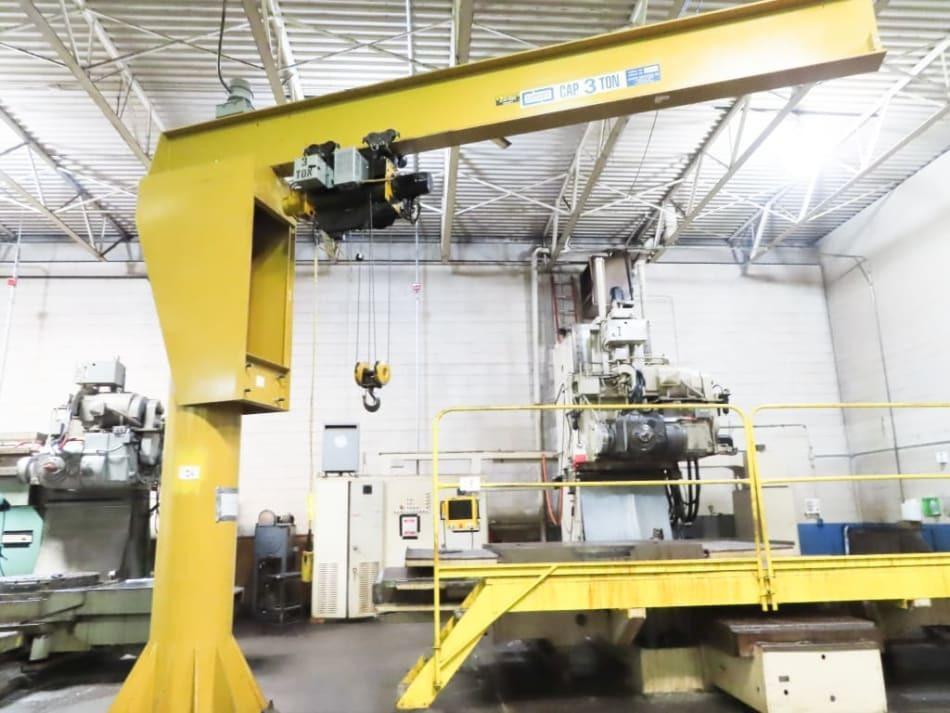

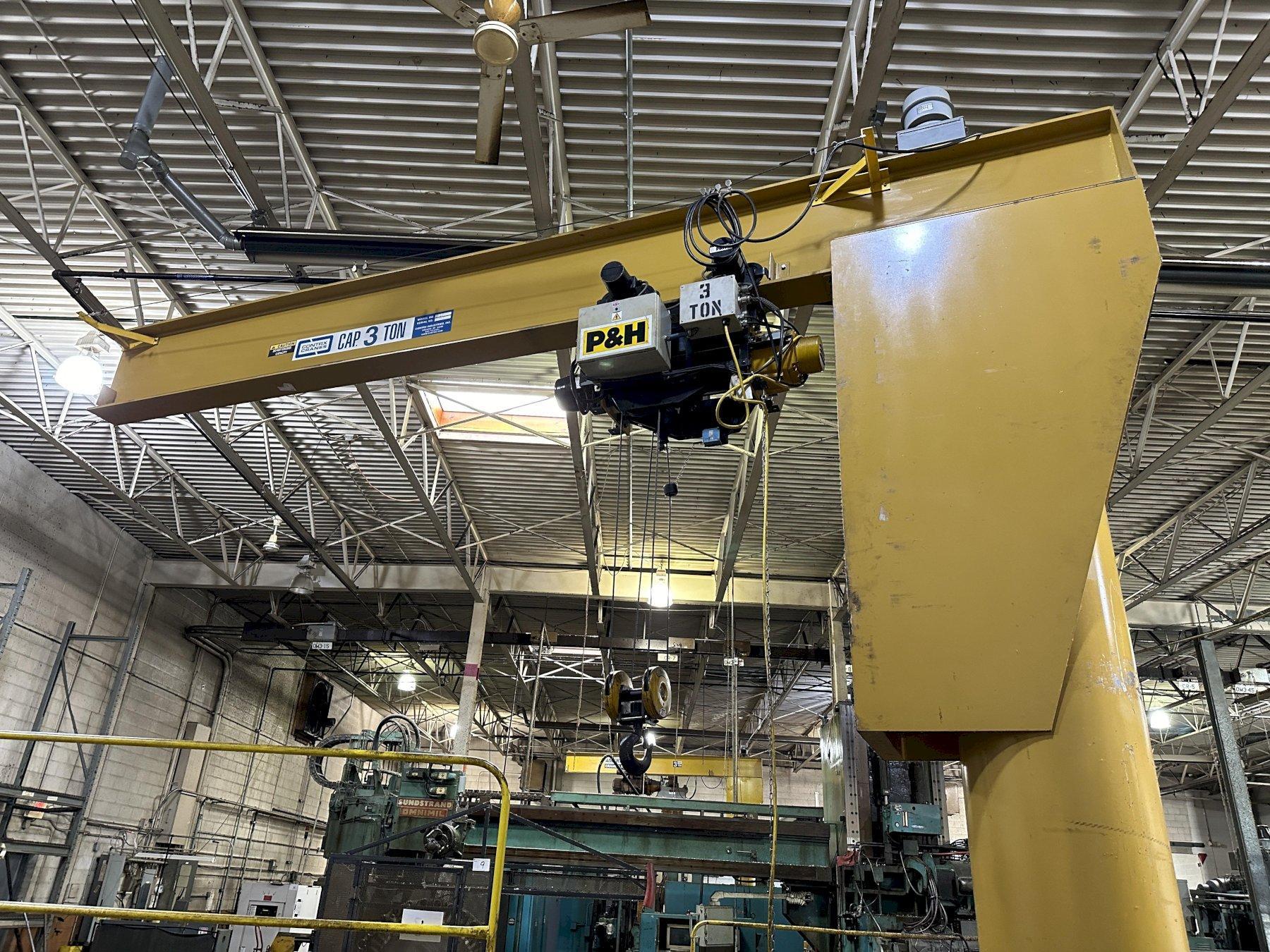

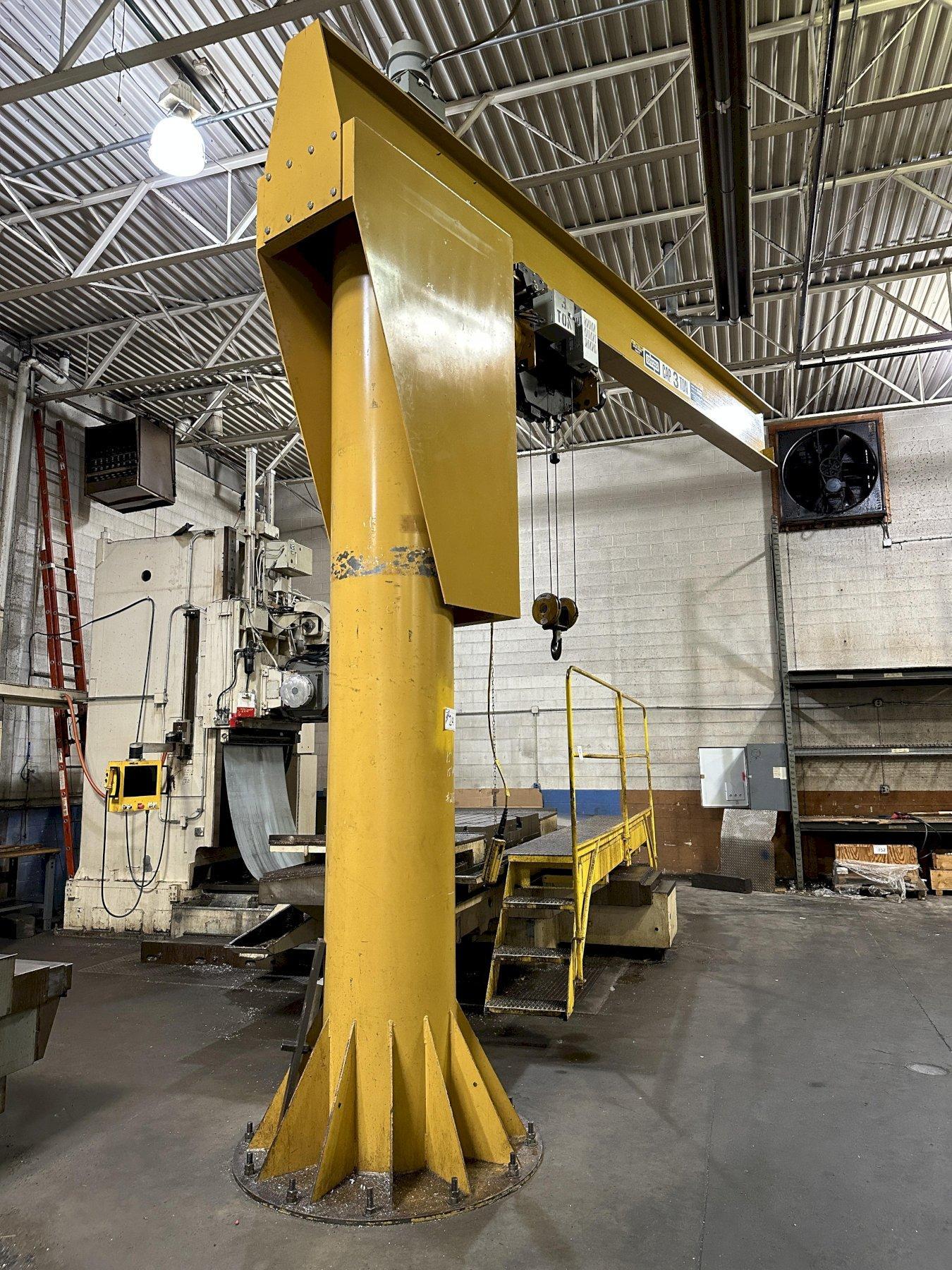

3 TON X 15’ ARM X 15' HIGH CONTRX 360° FREE STANDING JIB CRANE & 3 TON YALE CABLE HOIST: STOCK #23432
Brand
Category
Type
Model
A-5P
Stock #
23432
Year
Not specified
Condition
Good
Location
Ohio
|
SERIAL ............................ 47902
MODEL ............................. A-5P (A61418)
ARM ROTATES ....................... 360 DEGREE
LENGTH OF ARM ..................... 18'
HOIST TRAVEL ON ARM ............... 15' DISTANCE BOTTOM OF ARM TO FLOOR ... 15'
COLUMN DIAMETER ................... 25"

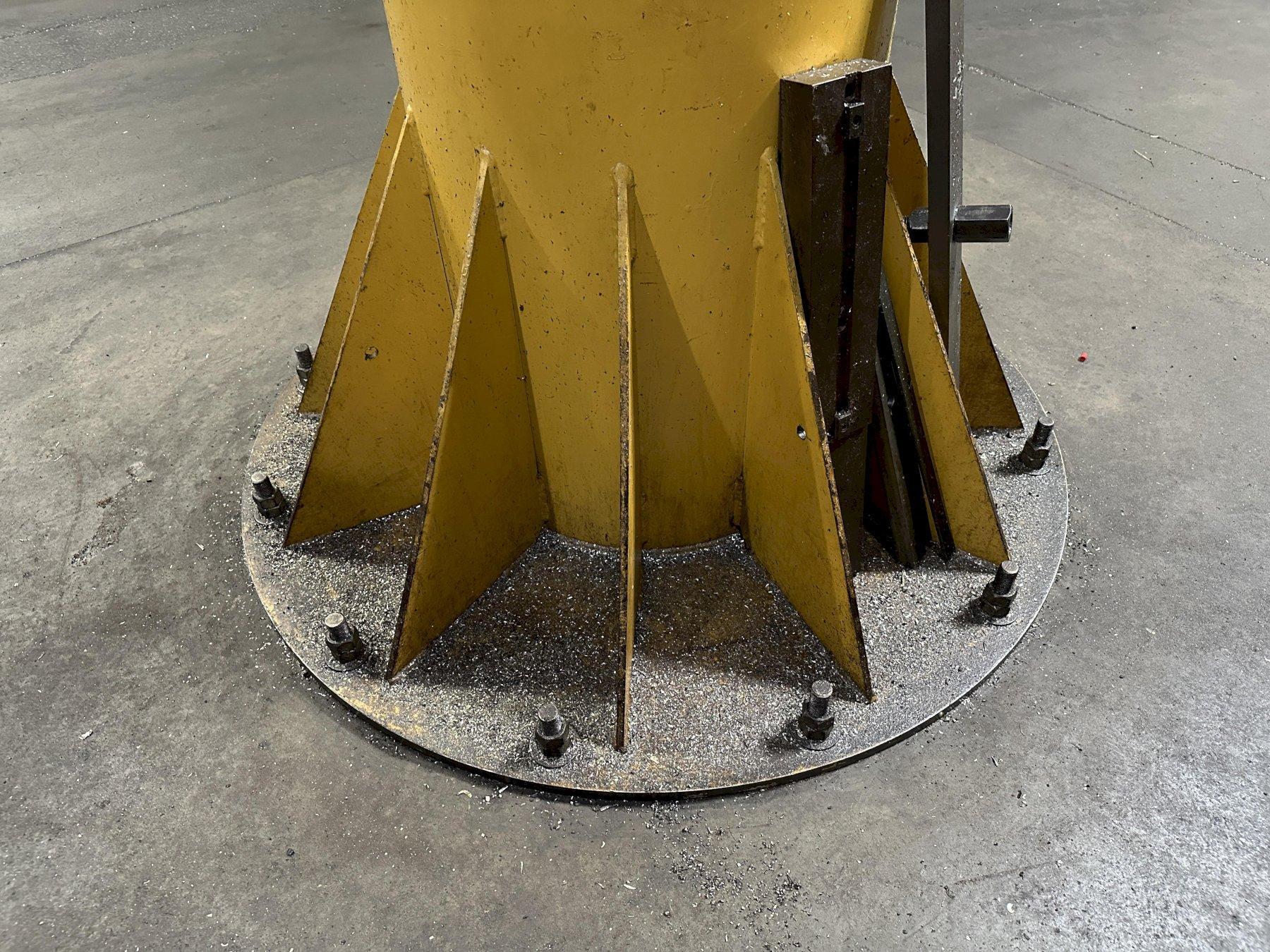

FLOOR MOUNT ....................... BASE PLATE BASE DIAMETER ..................... 54"

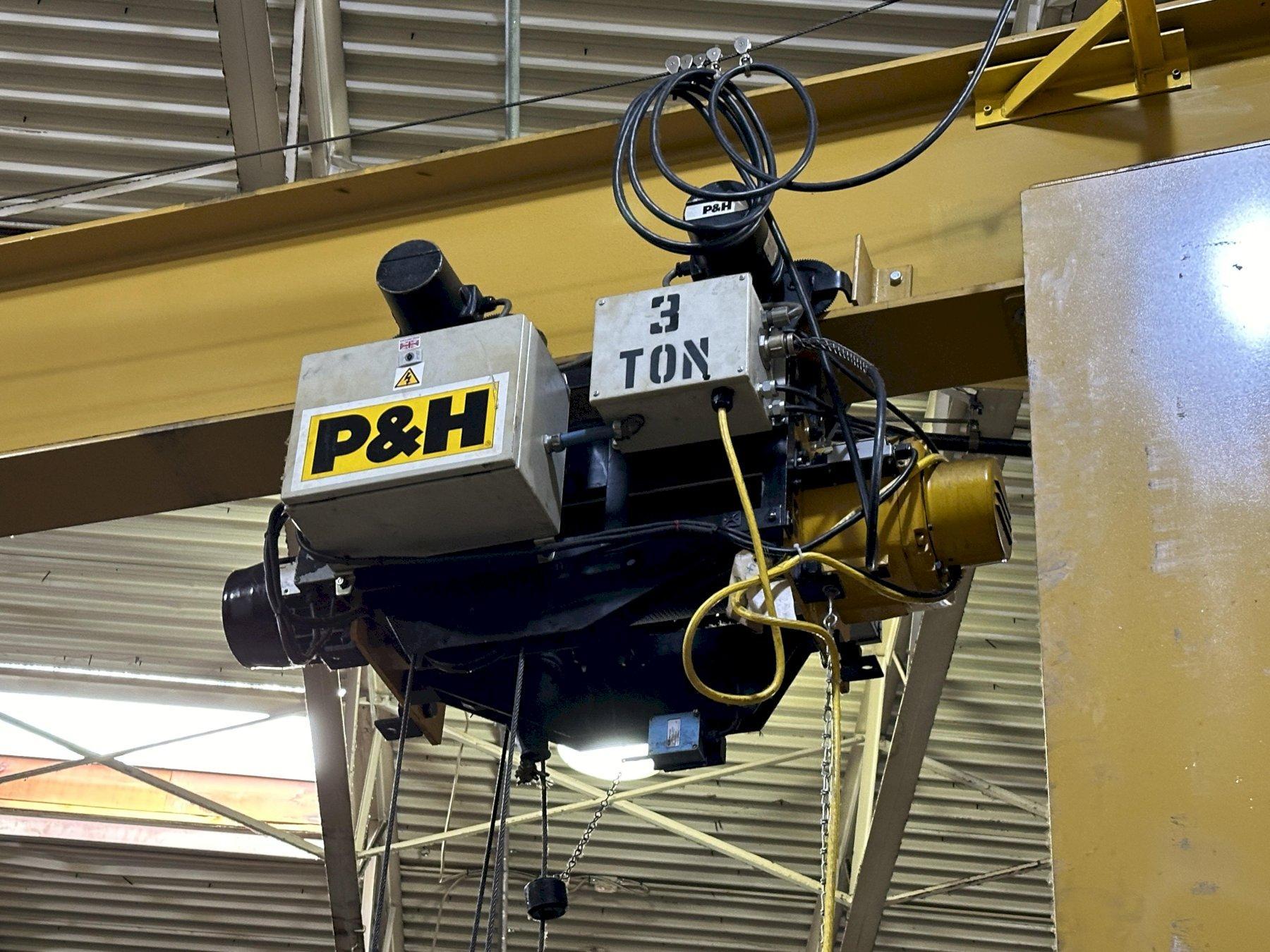

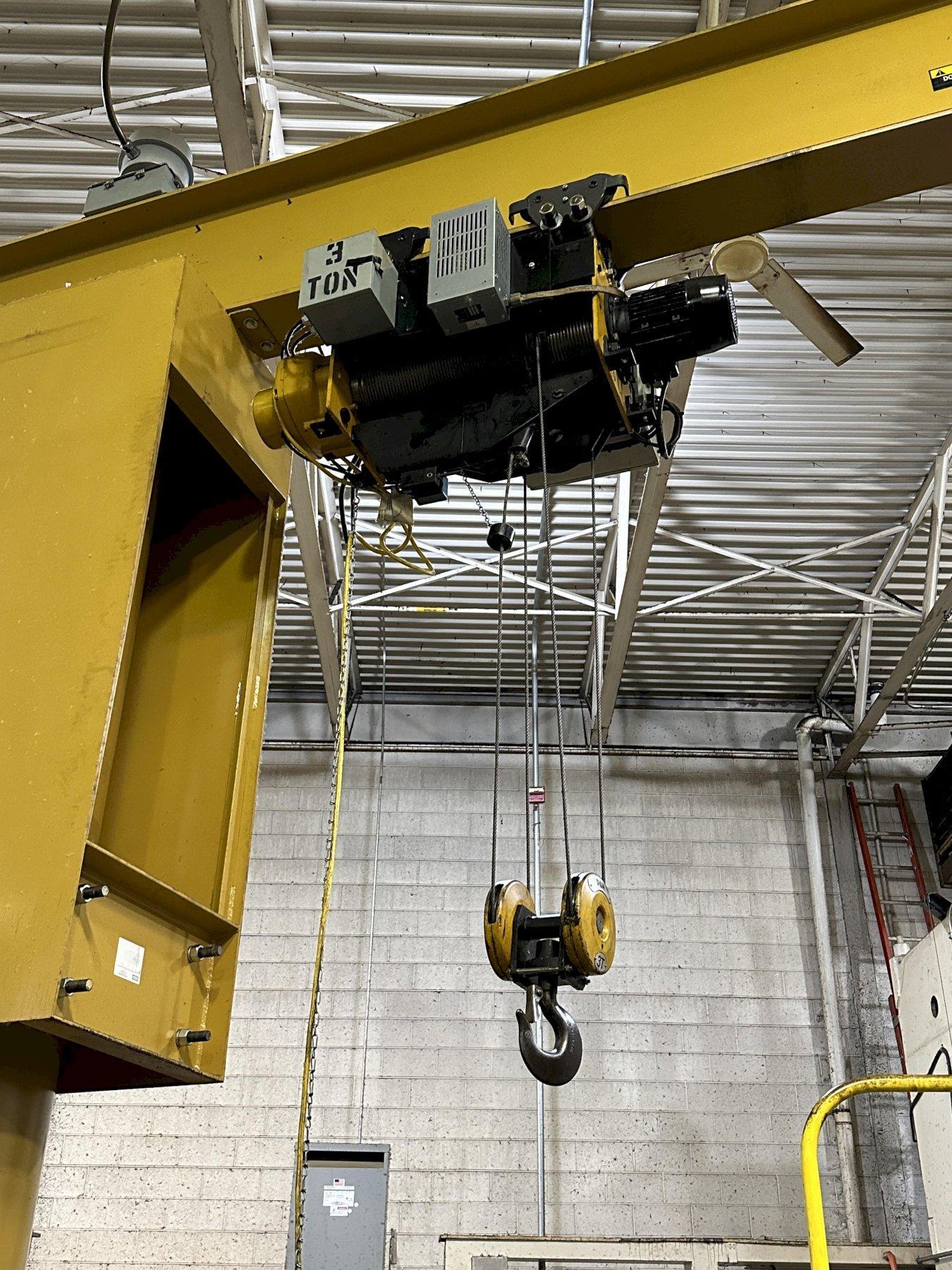

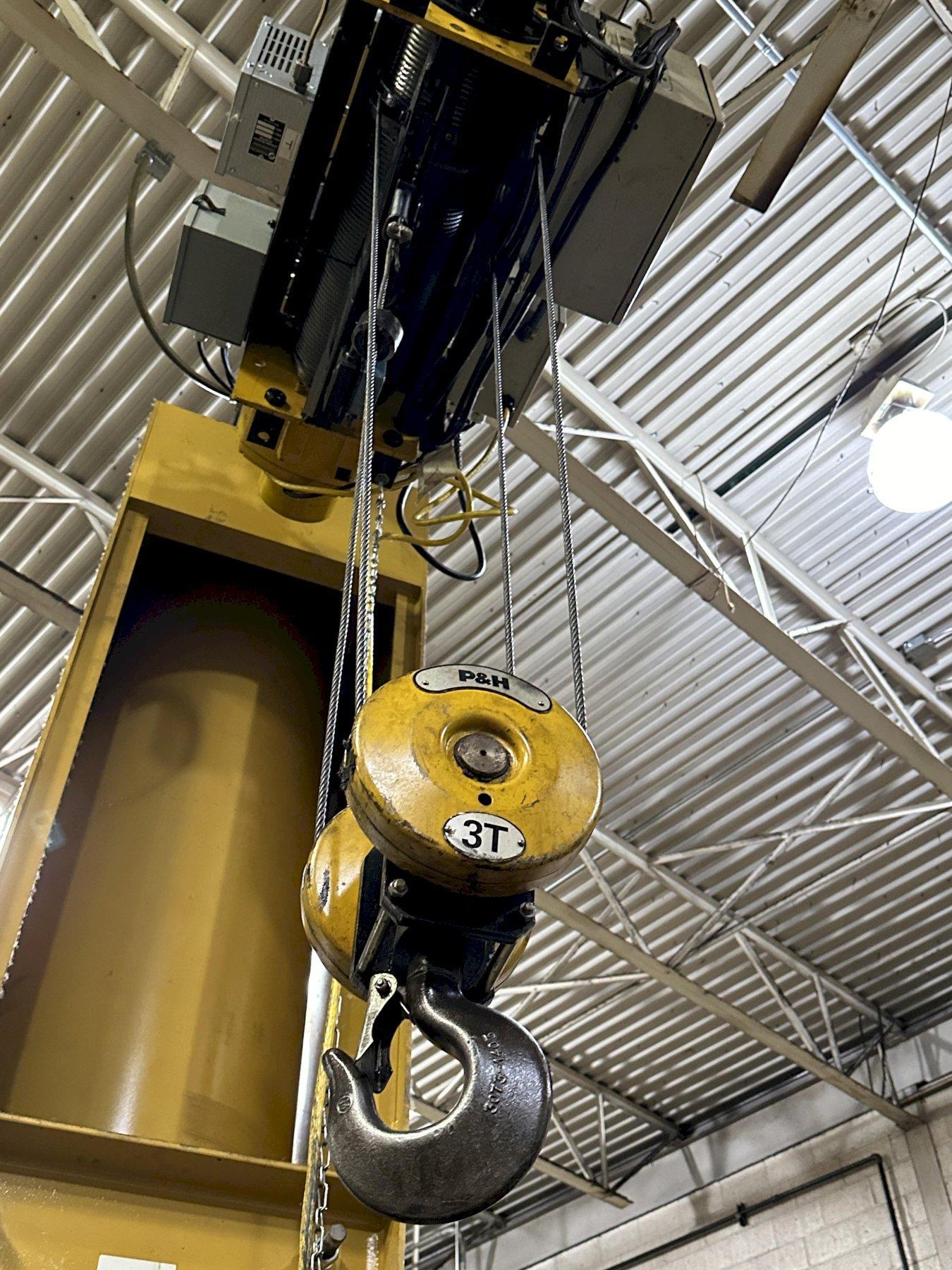

NUMBER OF MOUNTING HOLES .......... 12 P&H HOIST: TYPE .............................. CABLE HOIST CAPACITY .................... 6000 LBS (3 TON)
HOIST SPEED ....................... 16 FPM
POWER TROLLEY SPEED ............... 50 FPM
PENDANT CONTROL ................... 4 BUTTON
TROLLEY MOTOR ..................... 1/2 HORSEPOWER
HOIST MOTOR ....................... 1 HORSEPOWER |
