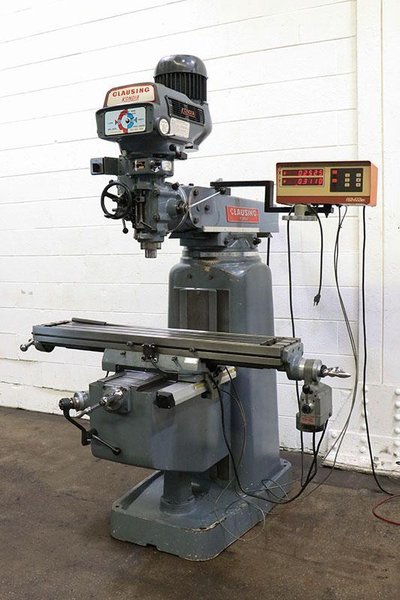

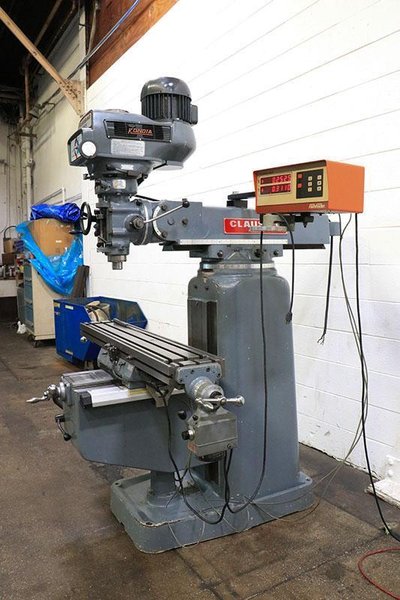

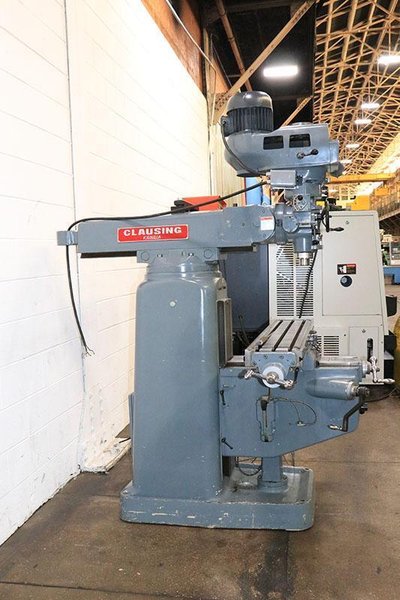

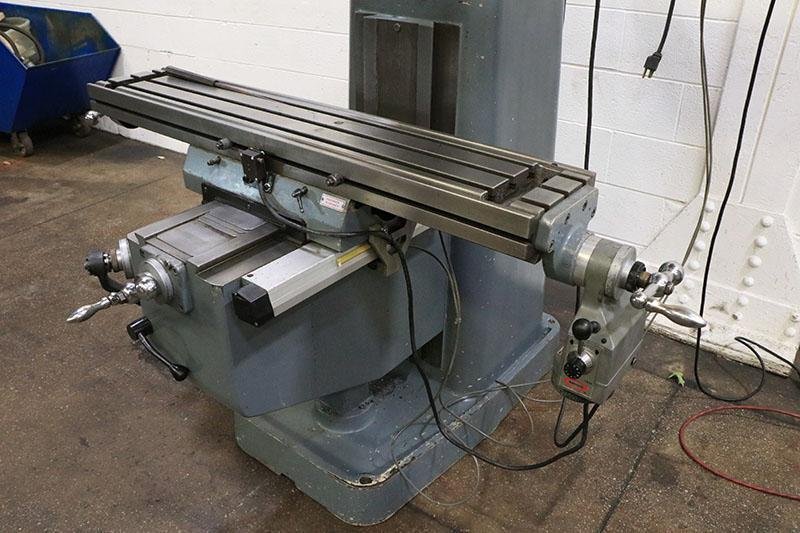

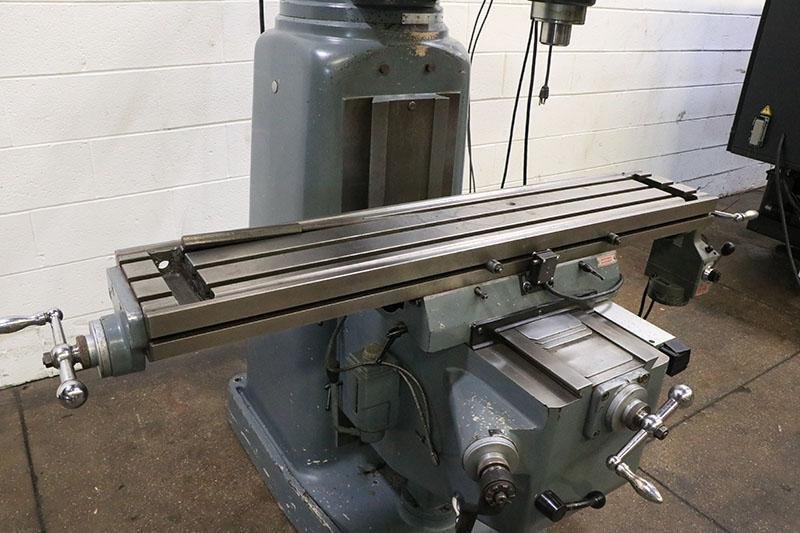

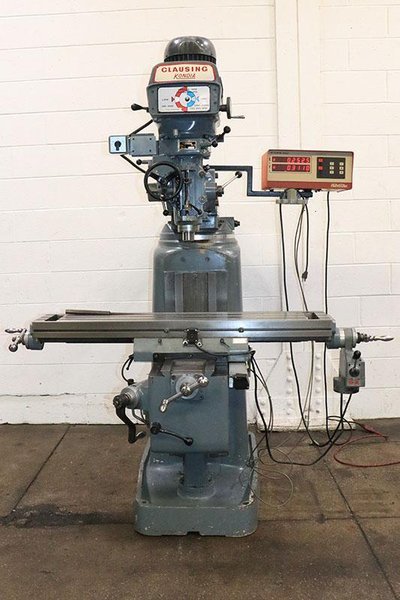

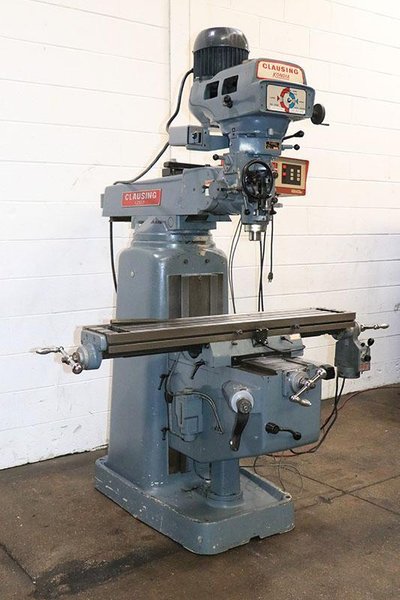

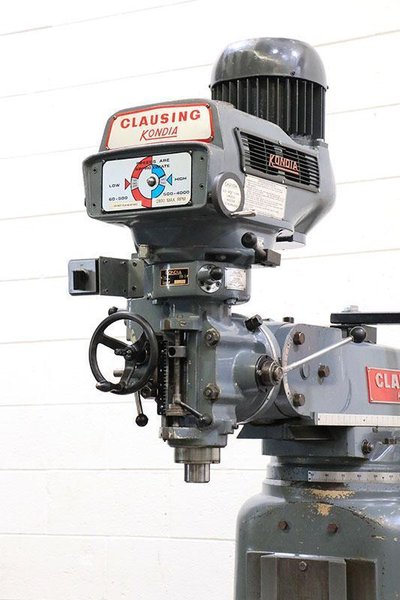

CLAUSING-KONDIA Vertical Milling Machine, Model: FV1
Brand
Category
Type
Model
FV1
Stock #
4931
Year
1990
Condition
Used
Location
New Jersey
|
CLAUSING-KONDIA VERTICAL MILLING MACHINE
MODEL: FV1
NEW: 1990'S SPECIFICATIONS:
TABLE SIZE ............................ 9" X 48"
NUMBER OF T-SLOTS ..................... 3
LONGITUDINAL TABLE TRAVEL ............. 36"
SADDLE TRAVEL ......................... 15"
QUILL TRAVEL .......................... 5"
KNEE TRAVEL ........................... 16.5"
RAM TRAVEL ............................ 23"
TABLE LOAD CAPACITY ................... 880 Lbs
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 6-5/8" / 29-11/16"
MIN/MAX DISTANCE, CENTERLINE OF SPINDLE
TP FACE OF COLUMN ................. 0" / 18-5/16"
HEAD TILT, LEFT & RIGHT ............... 90 DEGREES
HEAD TILT, FRONT & REAR ............... 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ....... 60 - 4,000 RPM
SPINDLE TAPER ......................... R-8
MAX COLLET CAPACITY ................... 3/4"

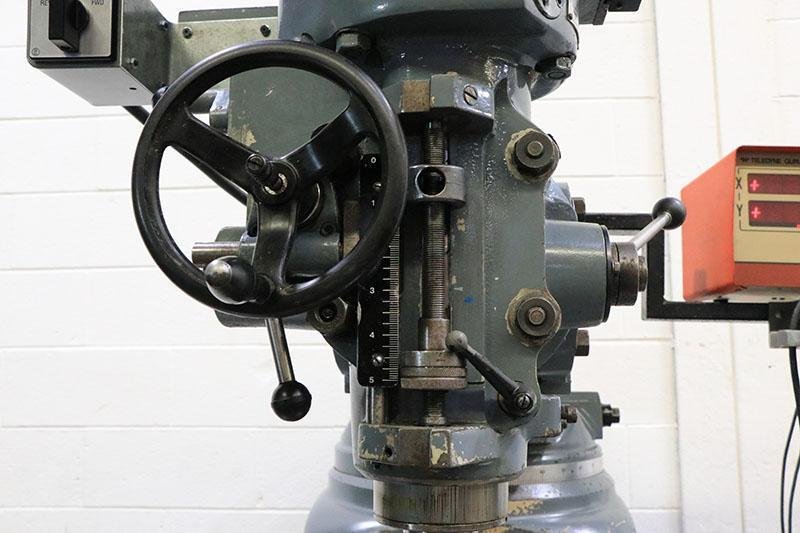

QUILL DIAMETER ........................ 3-3/8"
QUILL FEEDS ...................... 0.0015", 0.003", 0.0047"
APPROXIMATE WEIGHT .................... 3,040 LBS
SPACE REQUIRED FOR OPERATION .......... 78" F-B
100-9/16" L-R
82-1/2" H
EQUIPPED WITH:

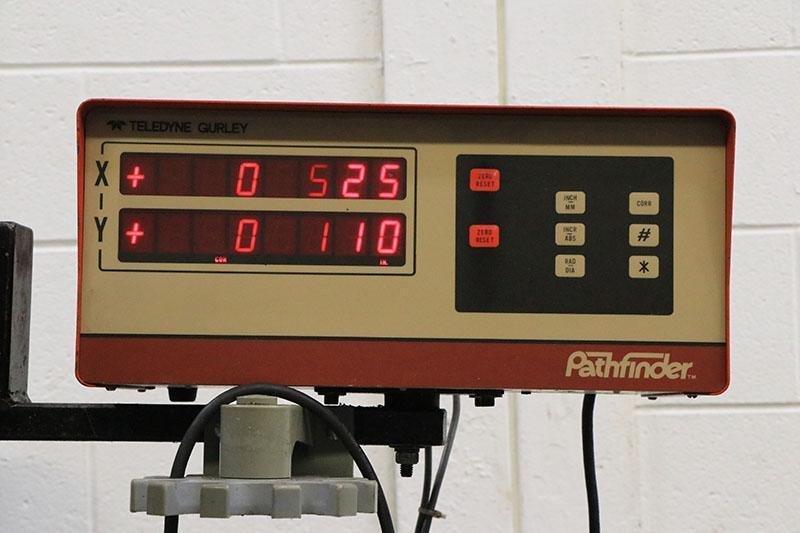

PATHFINDER-GURLEY TWO AXIS DIGITAL READOUT

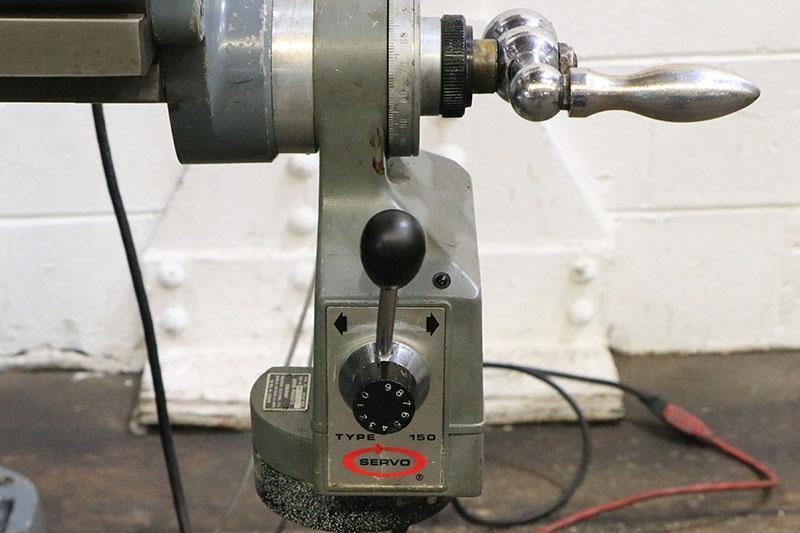

SERVO MODEL: 150 POWER FEED FOR LONGITUDINAL TABLE TRAVEL

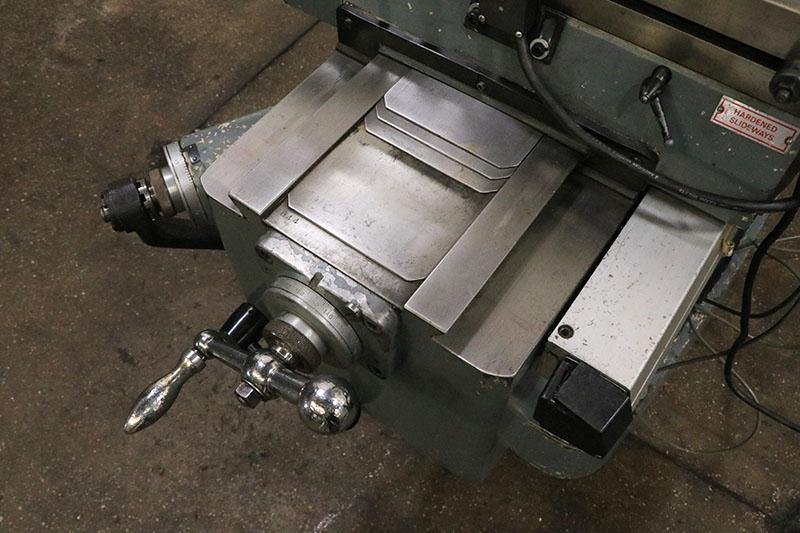

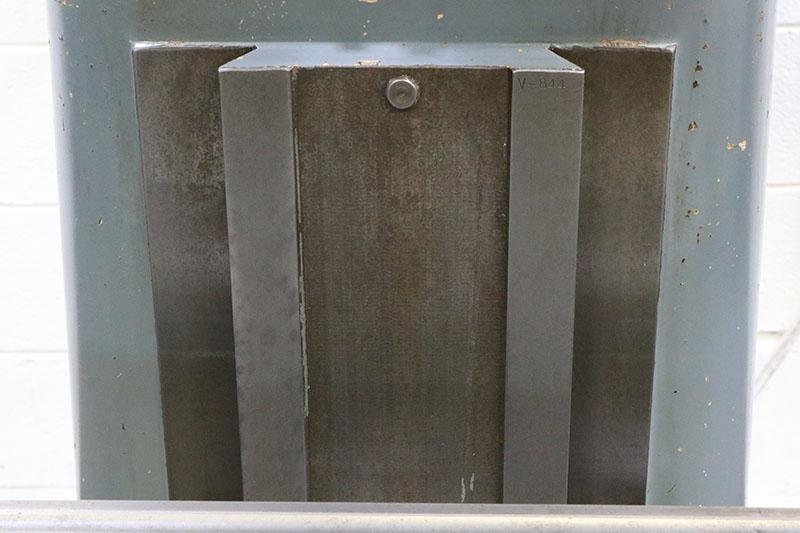

HARDENED & GROUND TABLE & WAYS
ONE-SHOT LUBRICATION SYSTEM

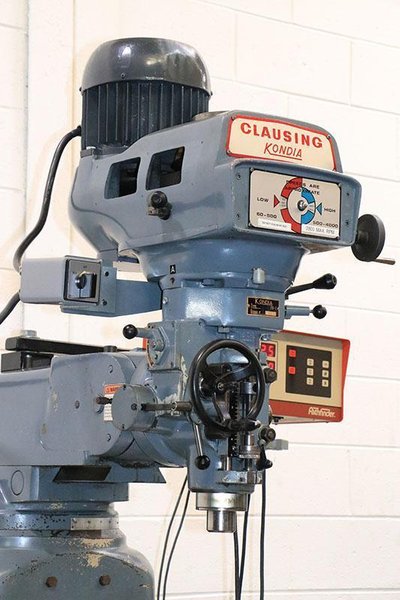

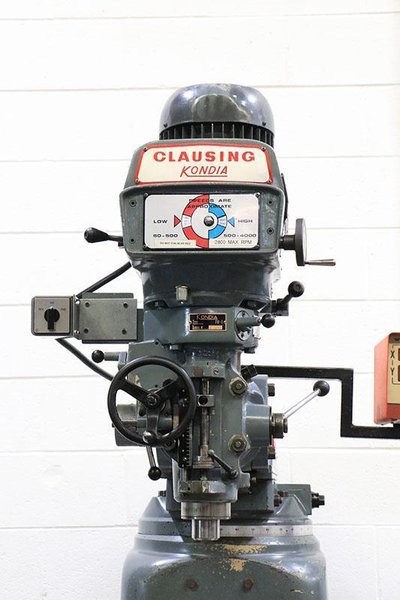

3 HORSE-POWER VARIABLE SPEED MILLING HEAD
FOB: ORIGIN |
