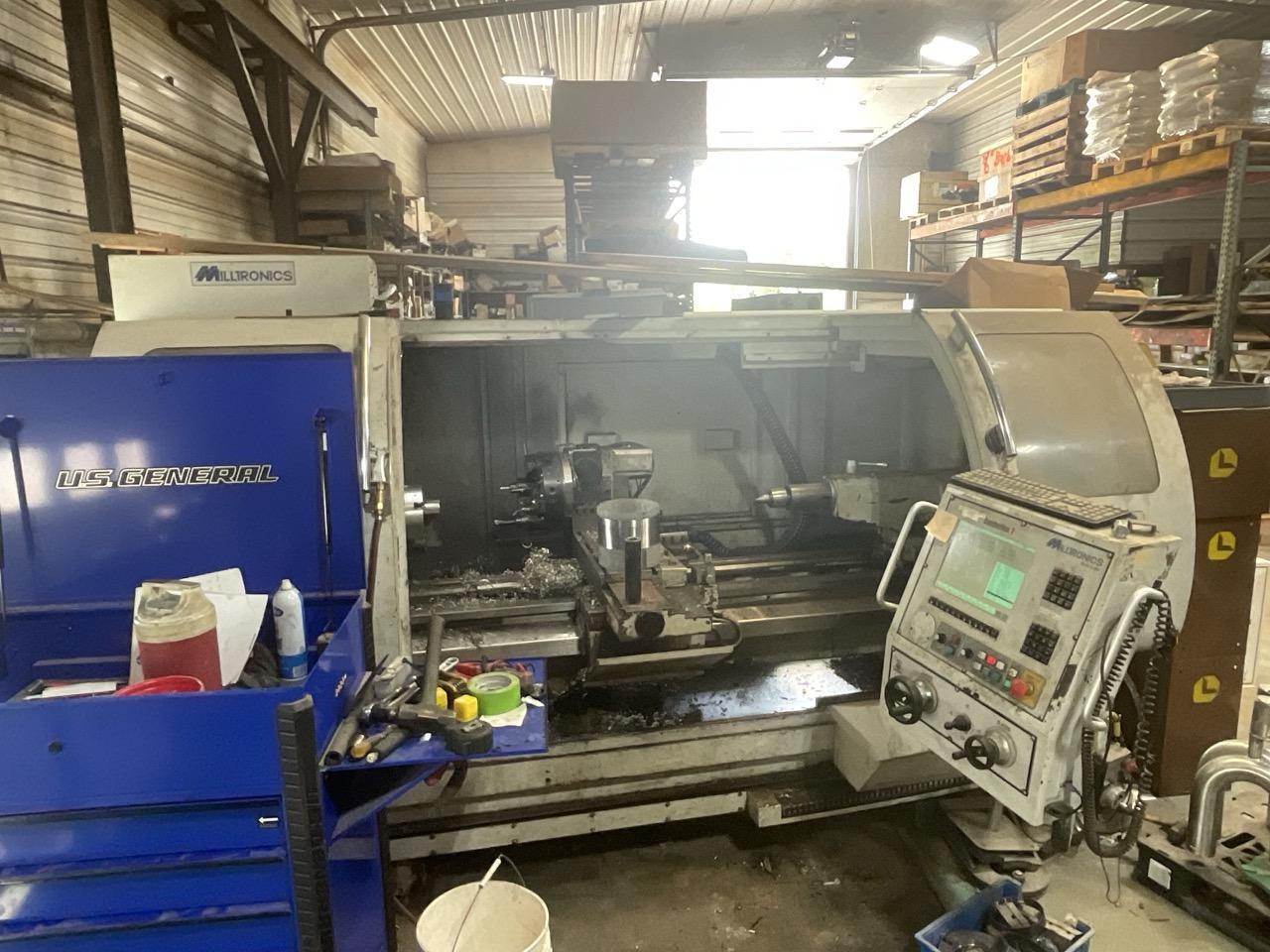

Milltronics ML-22 CNC Lathe, 2006

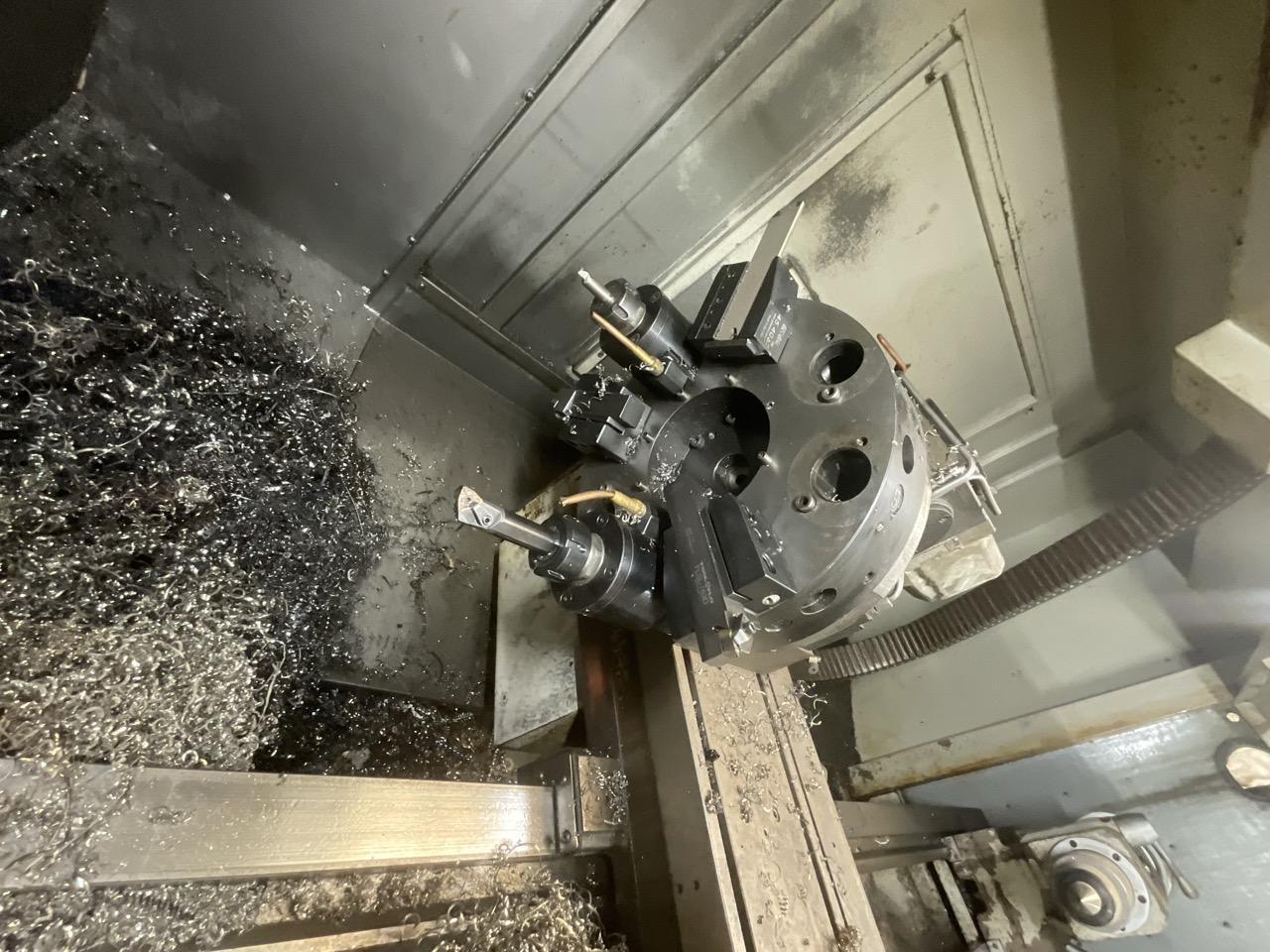

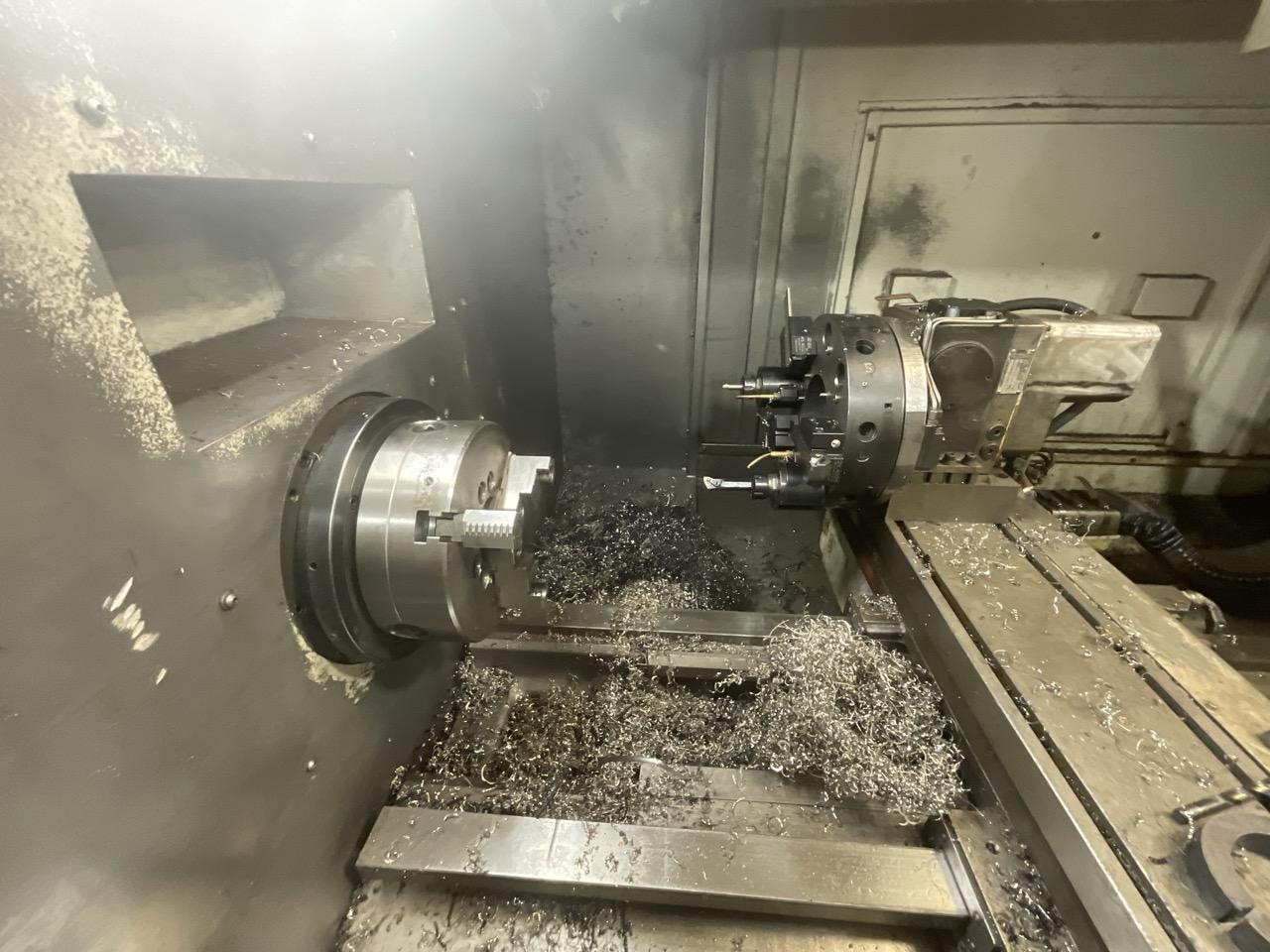

Swing Over Bed: 23″ Swing Over Cross Slide: 12.1″ Swing Over Gap: 30.3″ Gap Distance: 12.75″ Distance Between Centers: 60″ X-Axis Travel: 13″ Z-Axis Travel: 63.5″ Spindle Bore: 3.22″ Spindle Nose: A1-8 Spindle Speed Range: 2,000 RPM Spindle Motor: 24/15 HP Turret: 8-station Tailstock Quill Diameter: 3.94″ Tailstock Quill Travel: 6″ Tailstock Quill Taper: MT5 Rapid Traverse Rate (X/Z): 500 IPM Maximum Cutting Feed Rate: 100 IPM Positioning Accuracy: ±0.00025″ Repeatability: ±0.0002″ Approx. Machine Dimensions: 143″ × 83″ × 83″ Approx. Machine Weight: 10,000 lbs

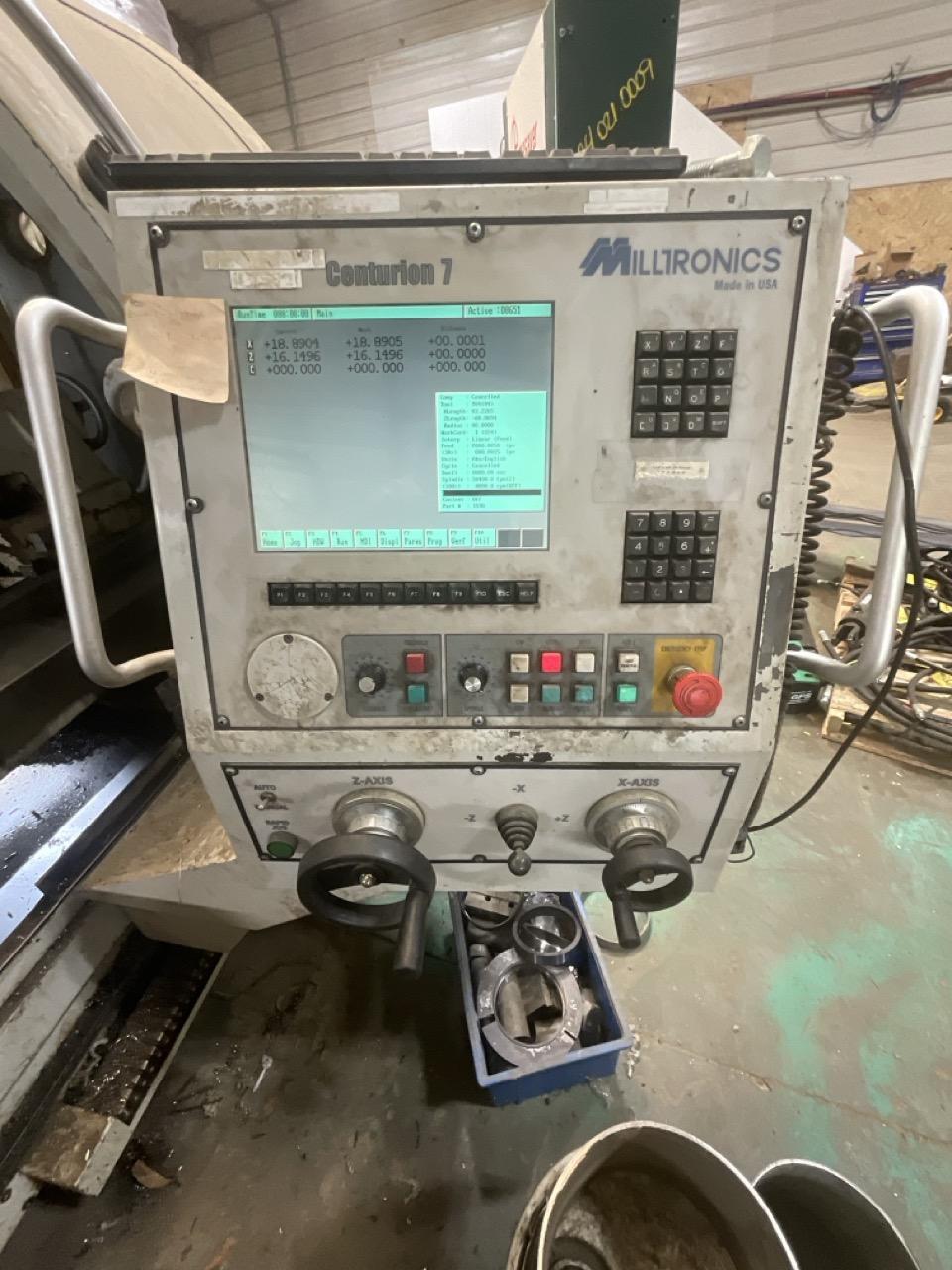

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Milltronics Centurion 7 Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
