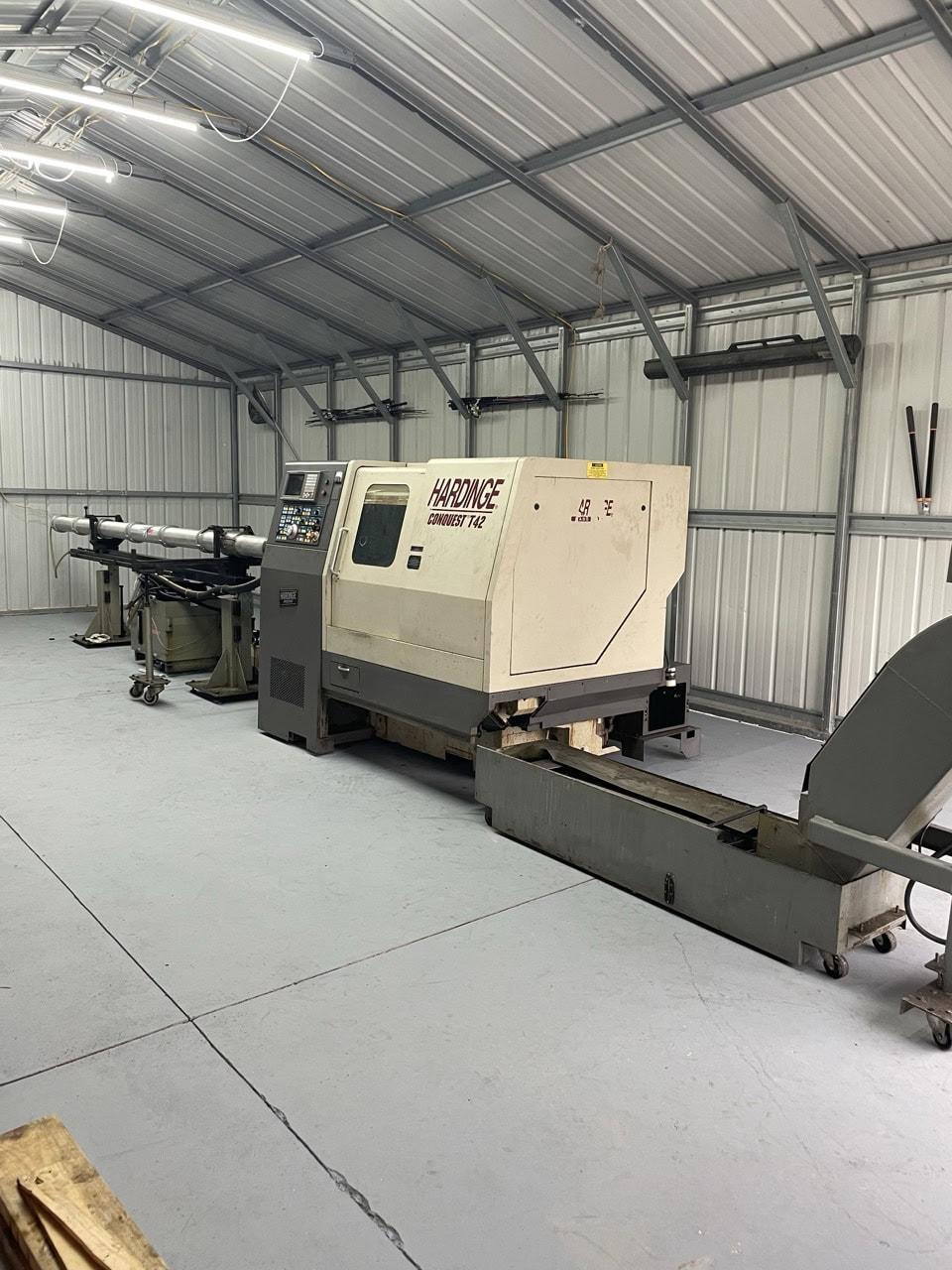

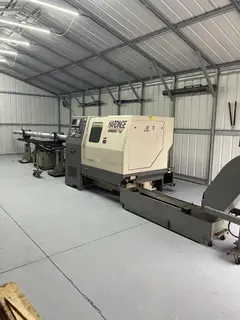

Hardinge Conquest T42 CNC Turret Lathe, 1997 – Live tooling, Chip Conveyor, LNS Bar Feeder
Brand
Category
Type
Model
SGET-43
Stock #
871626
Year
1997
Condition
Not specified
Location
Michigan
|
Chuck Size: 6″
Max Swing Over Bed: 21.2″
Max Turning Diameter: 9″
Max Distance Between Centers: 16″
Spindle Speeds: 50-5,000 Rpm
Spindle Drive: 10 Hp
Bar Capacity: 1.65″

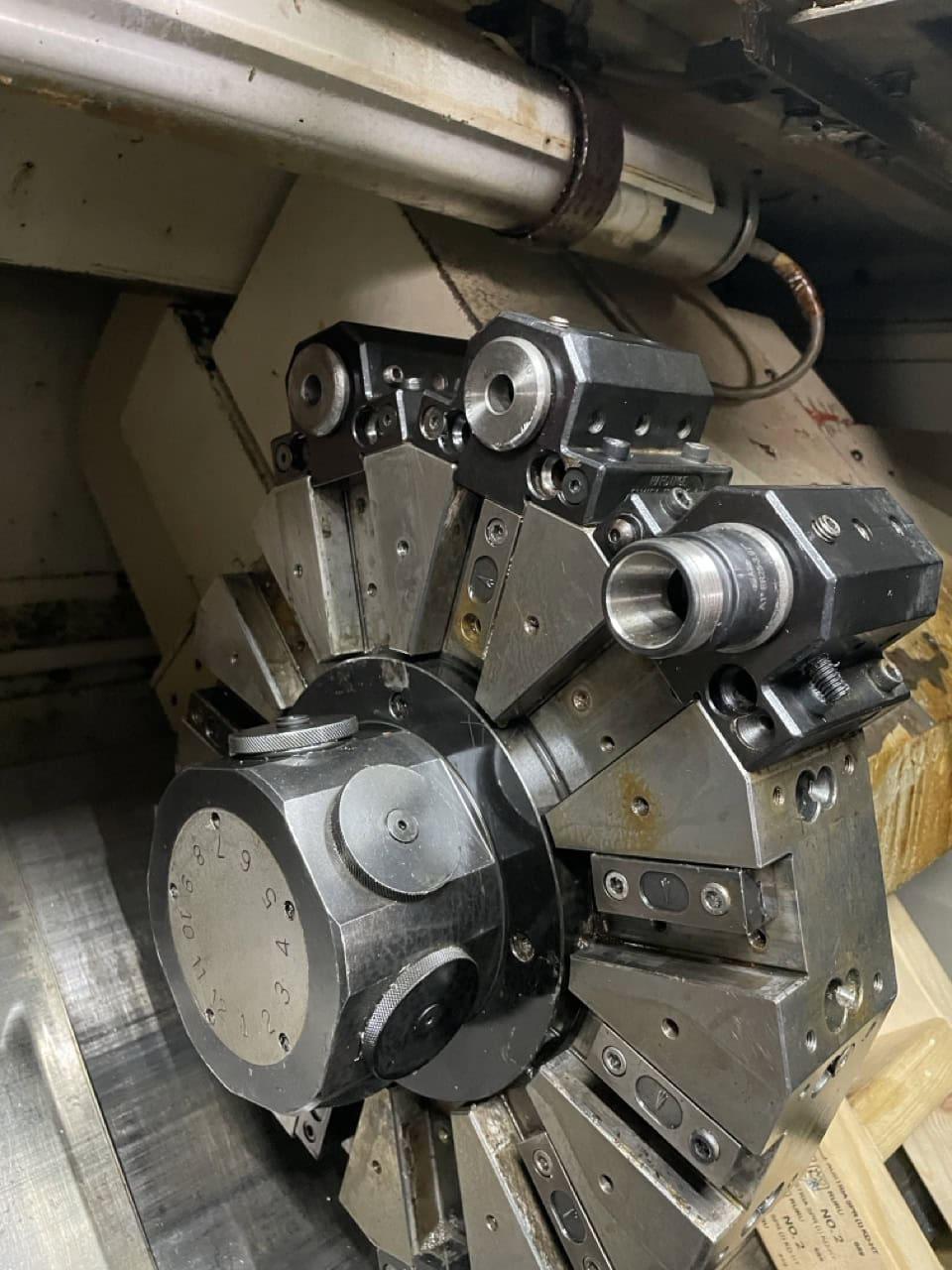

Turret Capacity: 12 Stations
Turret Travels (X/Z): 5.31″ X 13.9″
Live Tool Speeds: 4,000 Max Rpm
Rapids: 472 X / 630 Z / 300 B Inches Per Minute
Spindle Orientation: C-Axis (.001 Degree)
Spindle Nose: A2-5

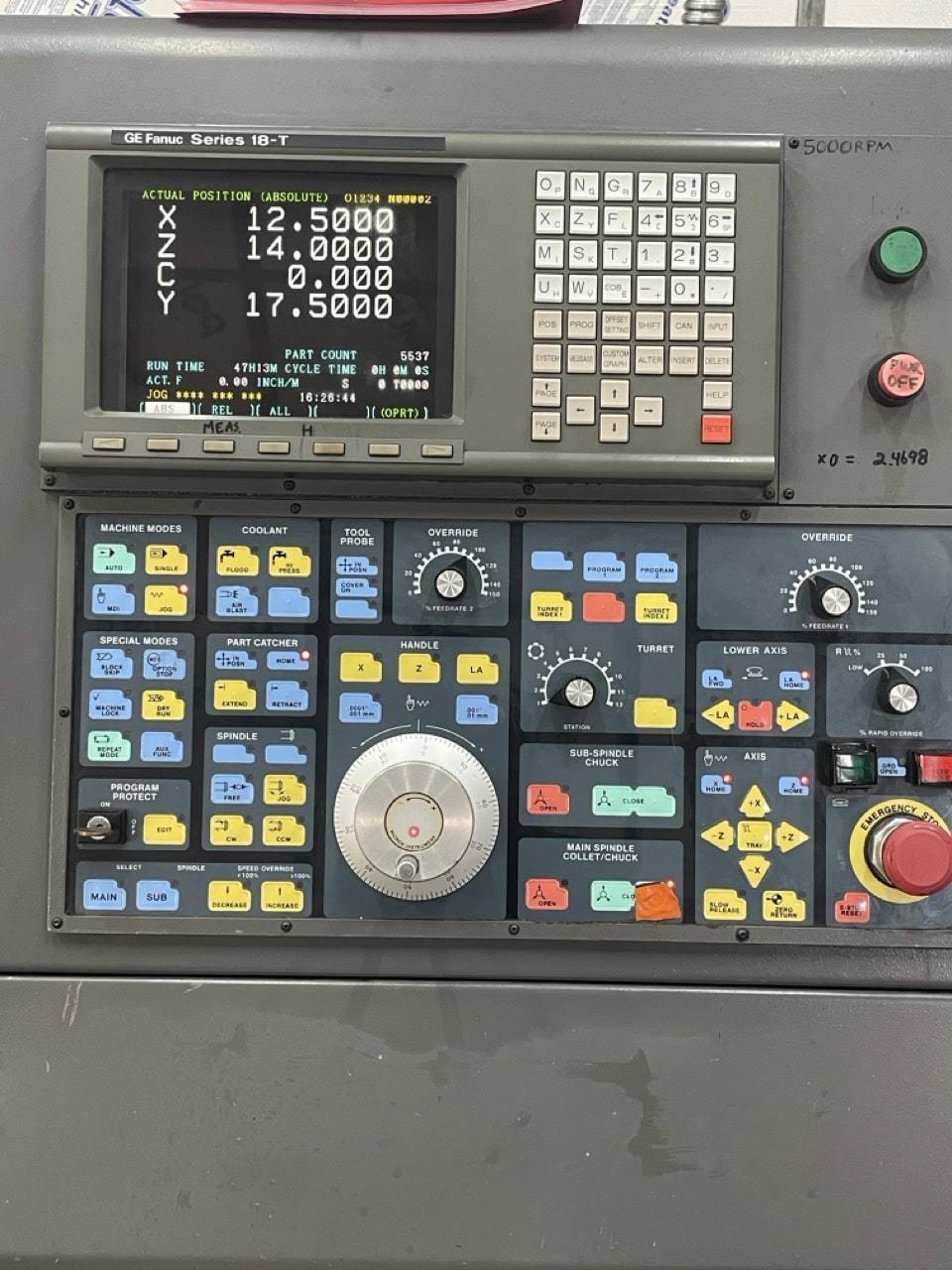

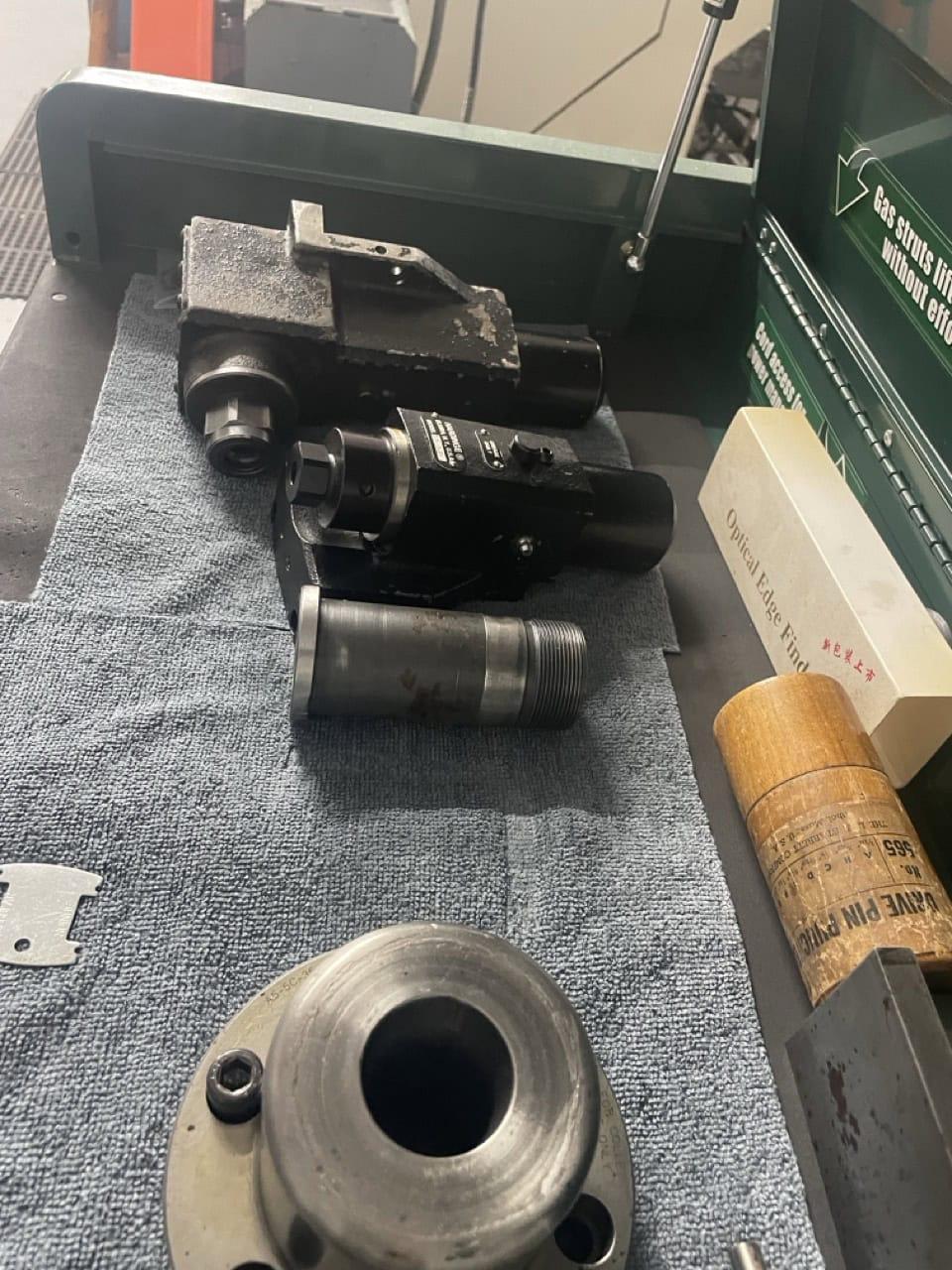

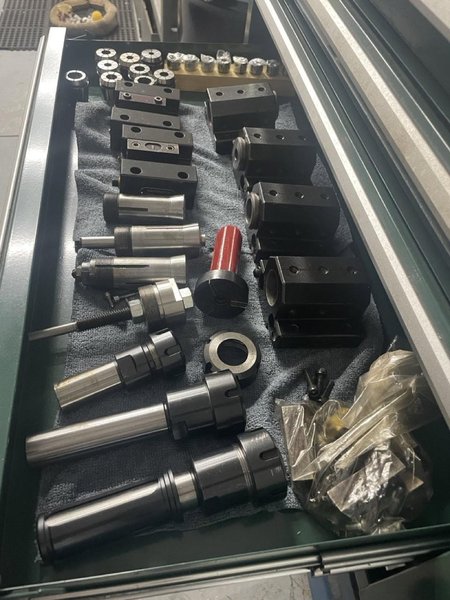

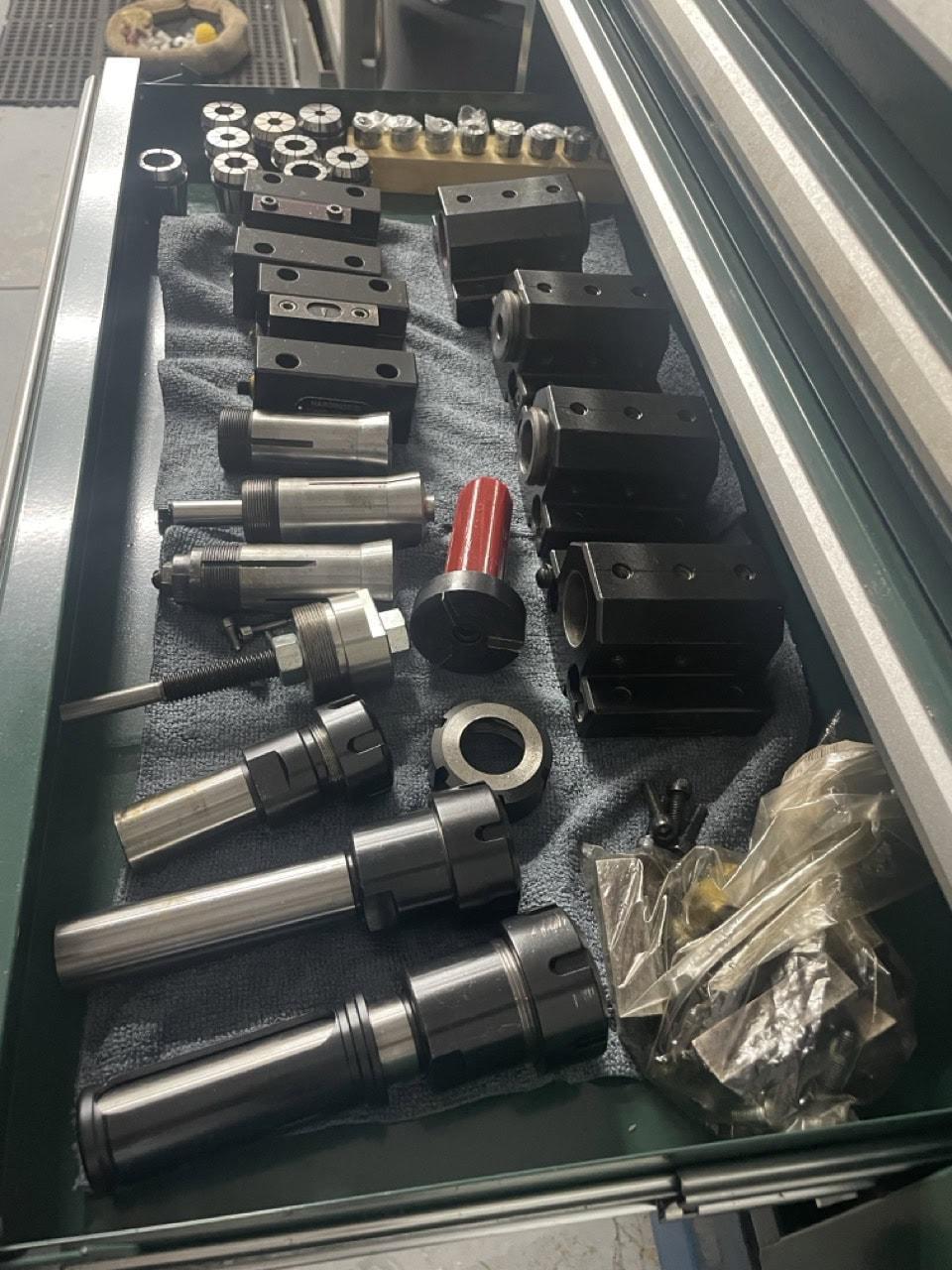

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,GE Fanuc 180T CNC Control LNS Bar Feeder Live Tooling Holders Chip Conveyor 12 Position Turret All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
