Specs
Power Output
Standby Rating: 125 kW / 156 kVA (3-phase)
Single Phase Rating: 97 kW / 97 kVA
Voltage: 208/240/480V 3-phase, 120/240V 1-phase
Frequency: 60 Hz
Power Factor: 0.8 (3-phase), 1.0 (1-phase)
RPM: 1800
Amps: 434 (208V) / 376 (240V) / 188 (480V) / 404 (120V/240V)

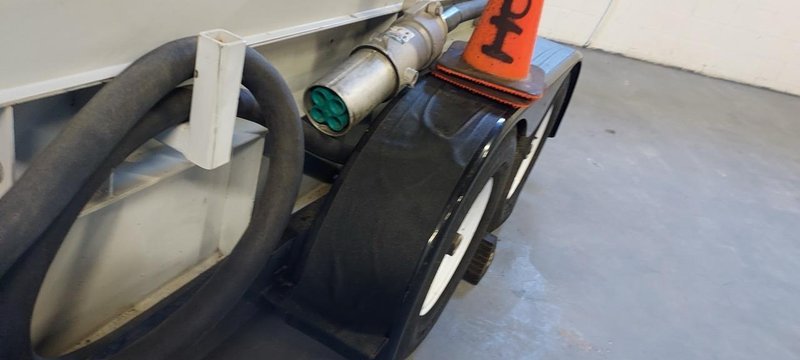

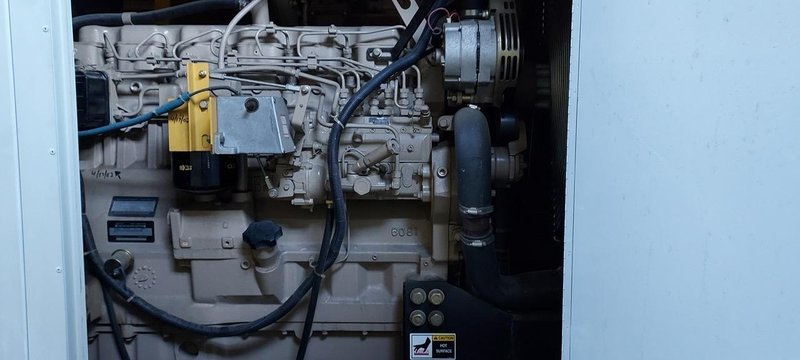

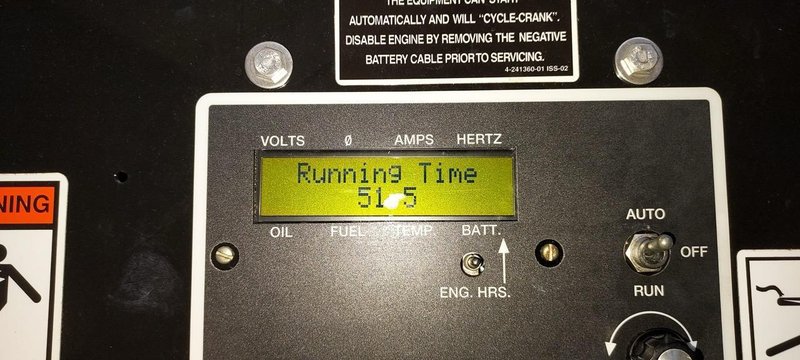

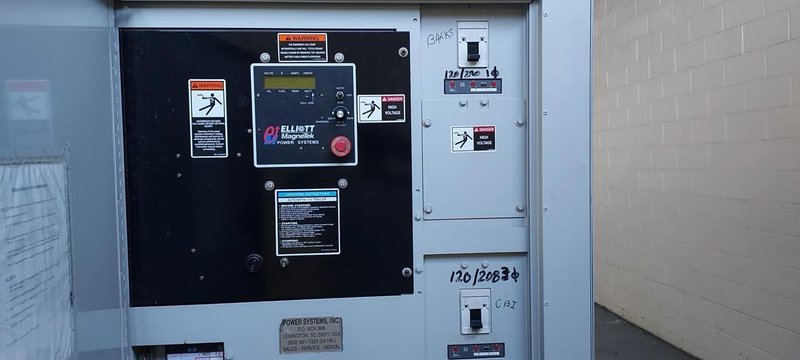

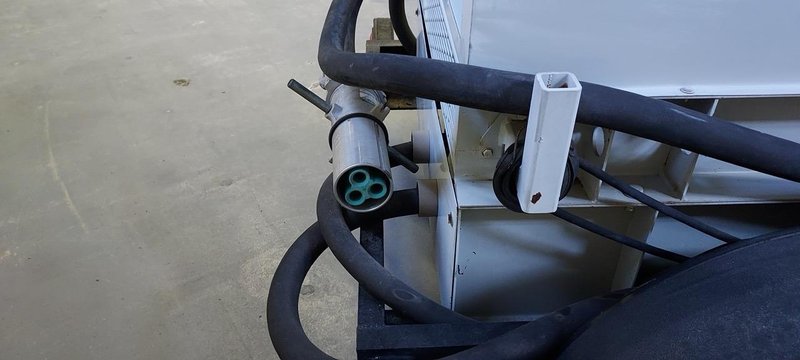

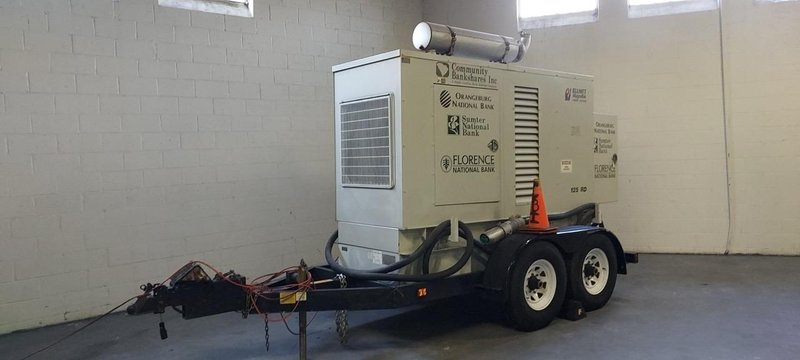

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Engine Make: John Deere Model: 6081TF001 Fuel: Diesel Hours: 51.5 Engine Serial No.: RG6081T075924 All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General Duty: Standby Weight: 8,500 lbs Ambient Rating: 40°C @ 3,300 ft Phase: Single & Three Phase Year: Likely 2003 (dated filter and labeling on engine) All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Trailer Mounted: Yes, dual-axle trailer included All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installed Options Auto start module Sound-attenuated enclosure Base fuel tank (UL listed, NEWCO Fabrication, Max Load 9300 lbs) CBI main breaker Multiple receptacle outputs with heavy-duty camlocks Control panel with voltage selector and analog gauges All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feature Spotlight Low hour unit with just 51.5 hours of runtime Equipped with reliable John Deere 6081 engine Versatile multi-voltage output for both single and three-phase applications Integrated trailer for easy mobility and deployment Enclosure and controls designed by Elliott Magnetek for commercial standby use All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Overview This Elliott Magnetek 125 RD mobile diesel generator offers 125kW of standby power and comes mounted on a dual-axle trailer for ease of transport. Powered by a robust John Deere 6081TF001 engine with just 51.5 hours of runtime, it is suited for demanding backup or temporary power needs. The unit supports both single-phase and three-phase configurations with selectable voltages of 208/240/480V (3-phase) and 120/240V (1-phase). Featuring a UL-listed base tank, sound-attenuated enclosure, integrated auto-start controller, and camlock connectors, this unit is ready for immediate service in industrial, construction, or emergency scenarios. All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
