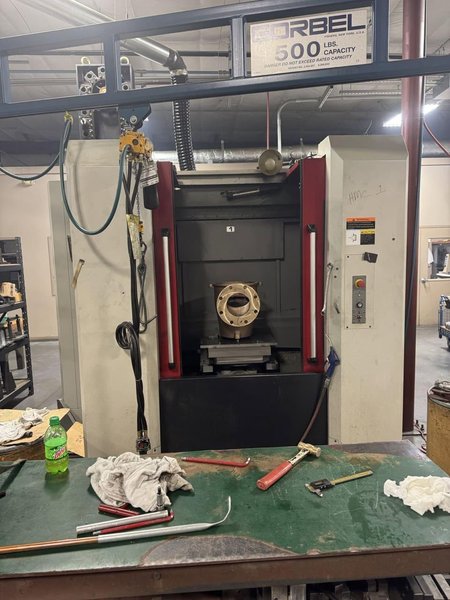

OKK SX4000 HMC, 2018

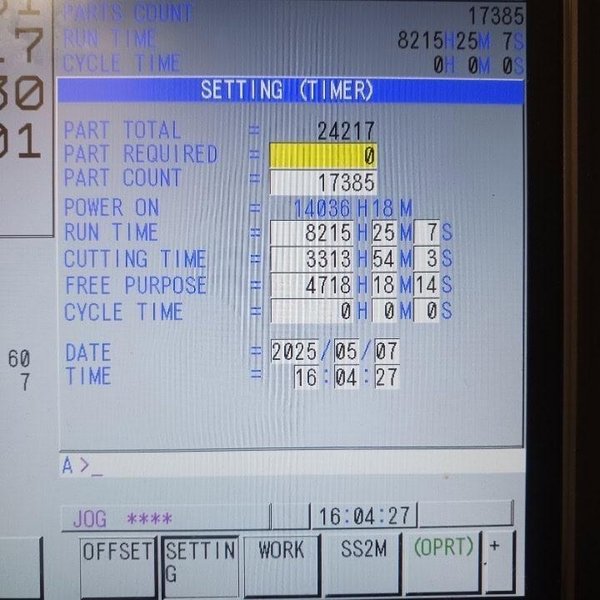

Power Requirements: 220V/ 3phase Hours: 8,215 X-Travel: 22.05″ Y-Travel: 22.05″ Z-Travel: 27.17″ Rapid Traverse: 2,480 IPM Cutting Feed Rate: 1575 IPM Table / Pallet Indexing: 0.001 Horizontal Table/Pallet Size: 15.75″ Number of Pallets: 2 Spindle Taper Type: BT40 Spindle Speed: 15,000 RPM Spindle Motor: 50 HP Tool Magazine Capacity: 60 Tool Changer Type: Arm Tool Change Time: 1.4 seconds Chip-to-Chip Time: 3 seconds Control Machine Dimensions: 102″ x 202″ x 142″ Machine Weight: 18,800 lb

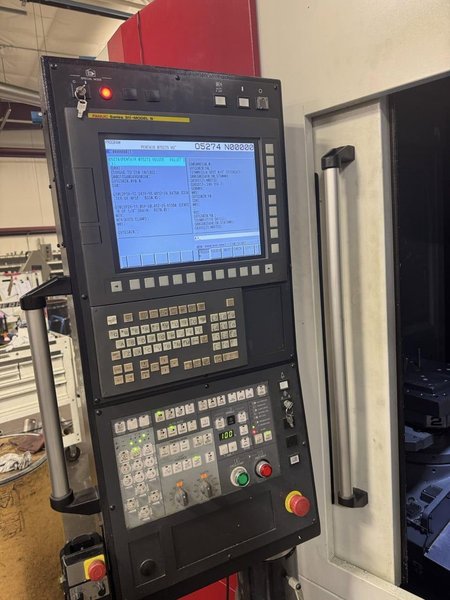

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Fanuc Series 31i-B CNC Control Absolute Position Detection Alarm Display/Alarm History Display Auto Corner Override Auto Restart Automatic Coordinate System Setting Auxillary Function, MST Look Background Editing Function Backlash Compensation Backlash Compensation: for rapid traverse & cutting feed Block Delete Clock Function Cutter Compensation C Tool offset memory radius, G40-G42 Data Protect Key

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
