Pack West 120 Inline Capper with #7+2 Vertical Cap Elevator – Complete Automatic Bottle Capping System

Equipment Overview

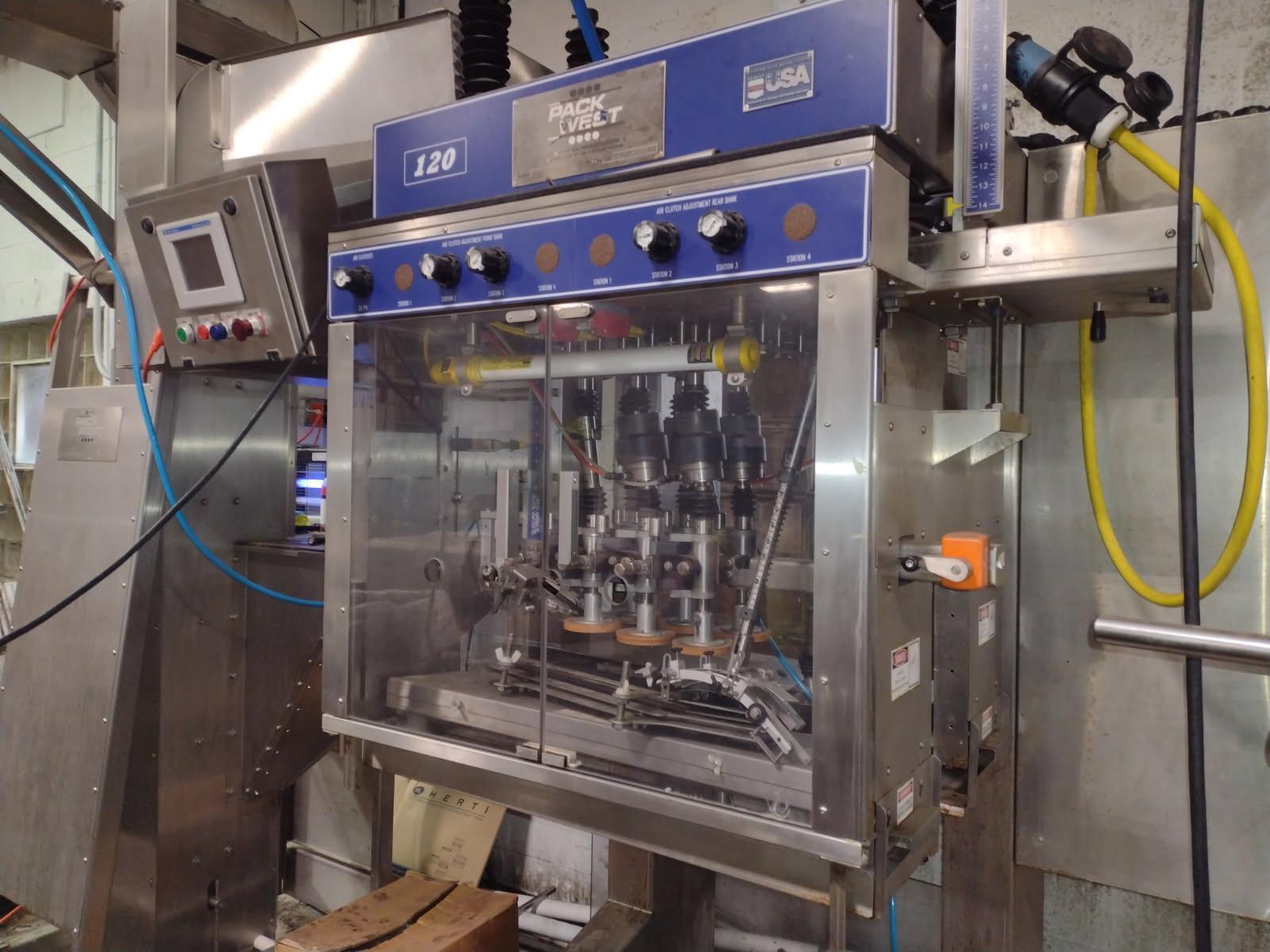

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This Pack West Model 120 in-line spindle capper with a vertical cap elevator provides a complete stainless-steel capping solution with mid-to-high throughput capability. It features Allen-Bradley PLC control, 3-station torque quills, dual gripper belts, and a #7+2 vertical elevator feeding caps to a rotary sorter. Built for food-grade and light-washdown environments, this machine is ideal for nutraceuticals, beverage, and personal care lines.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

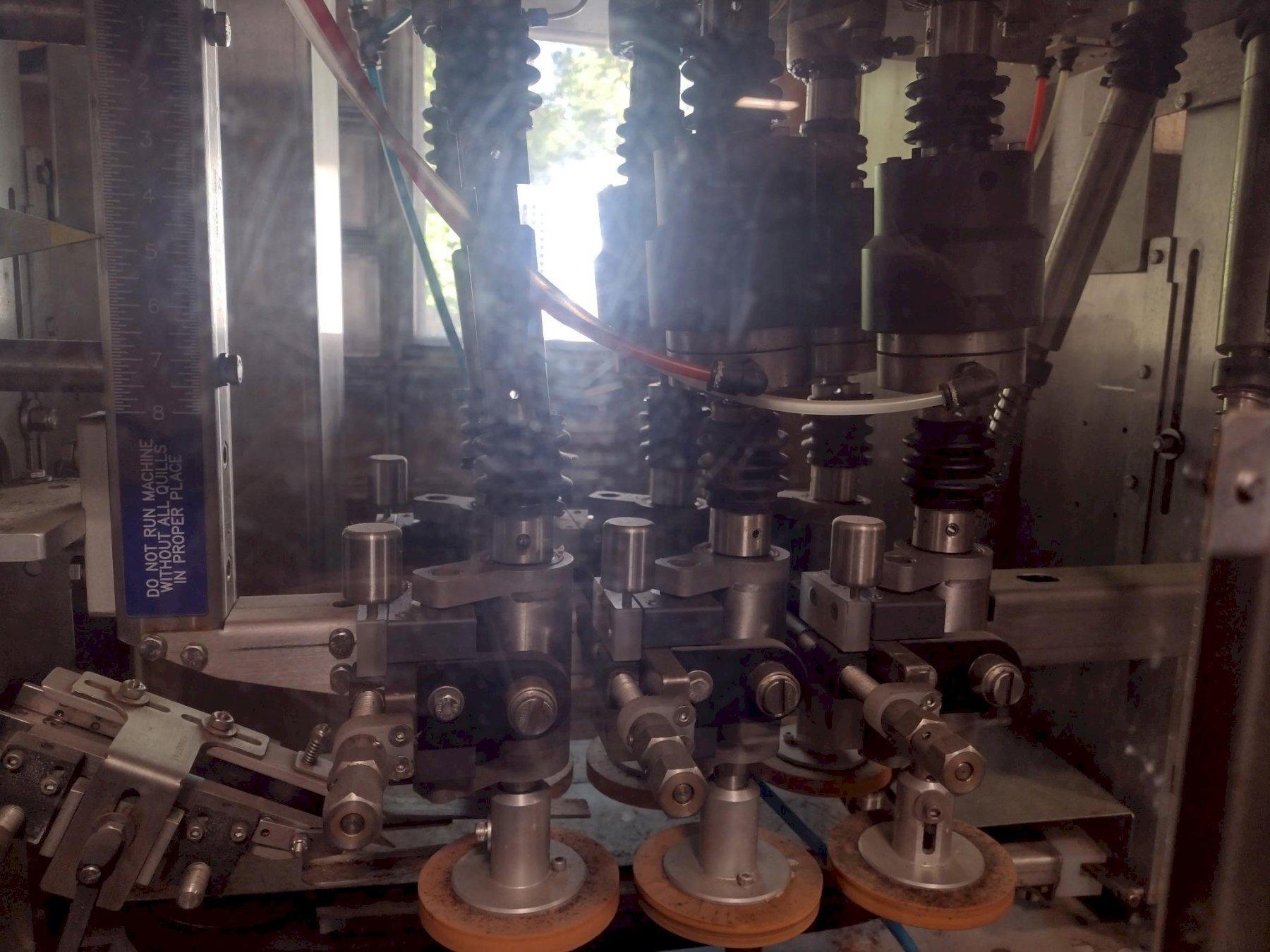

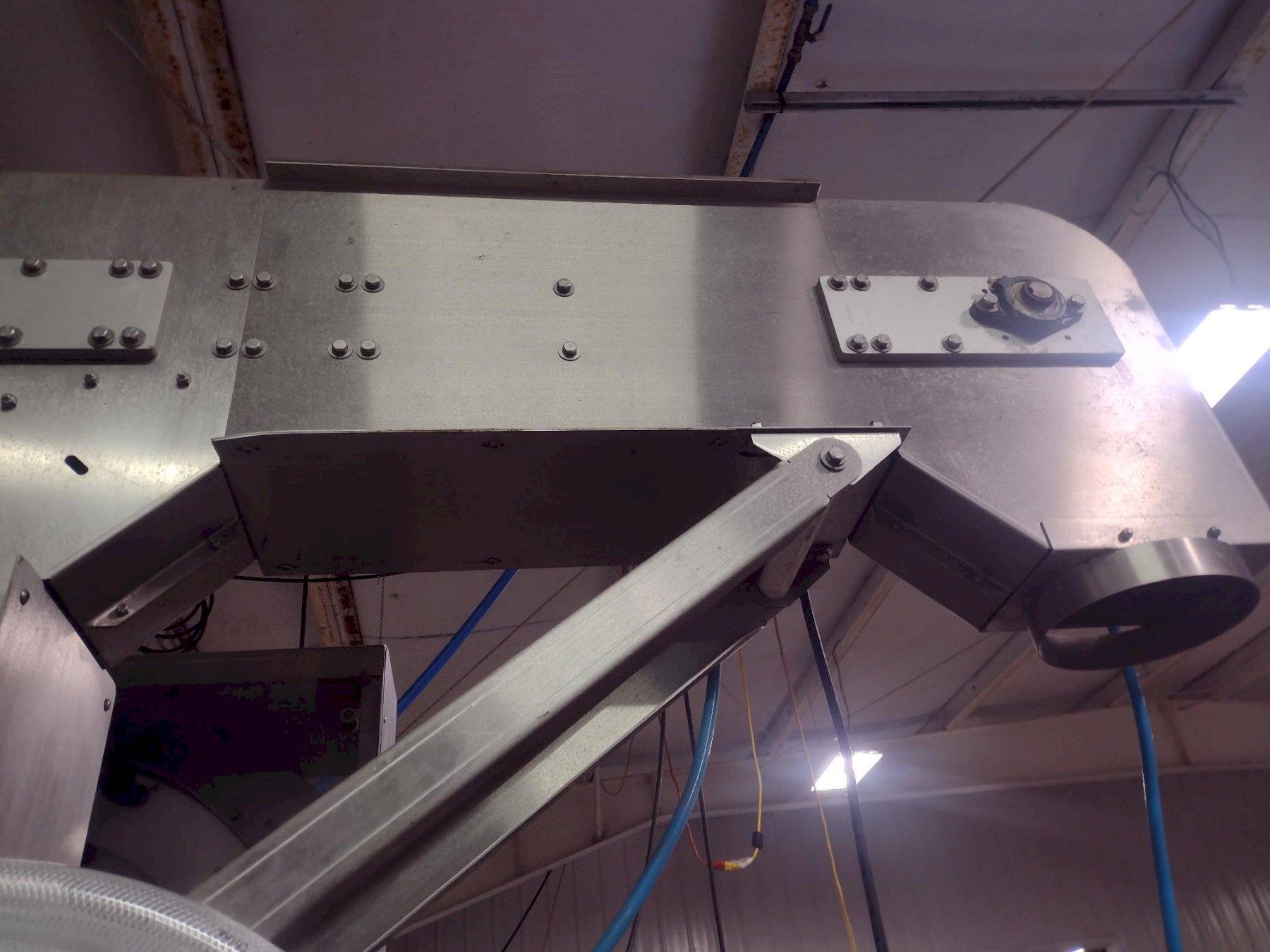

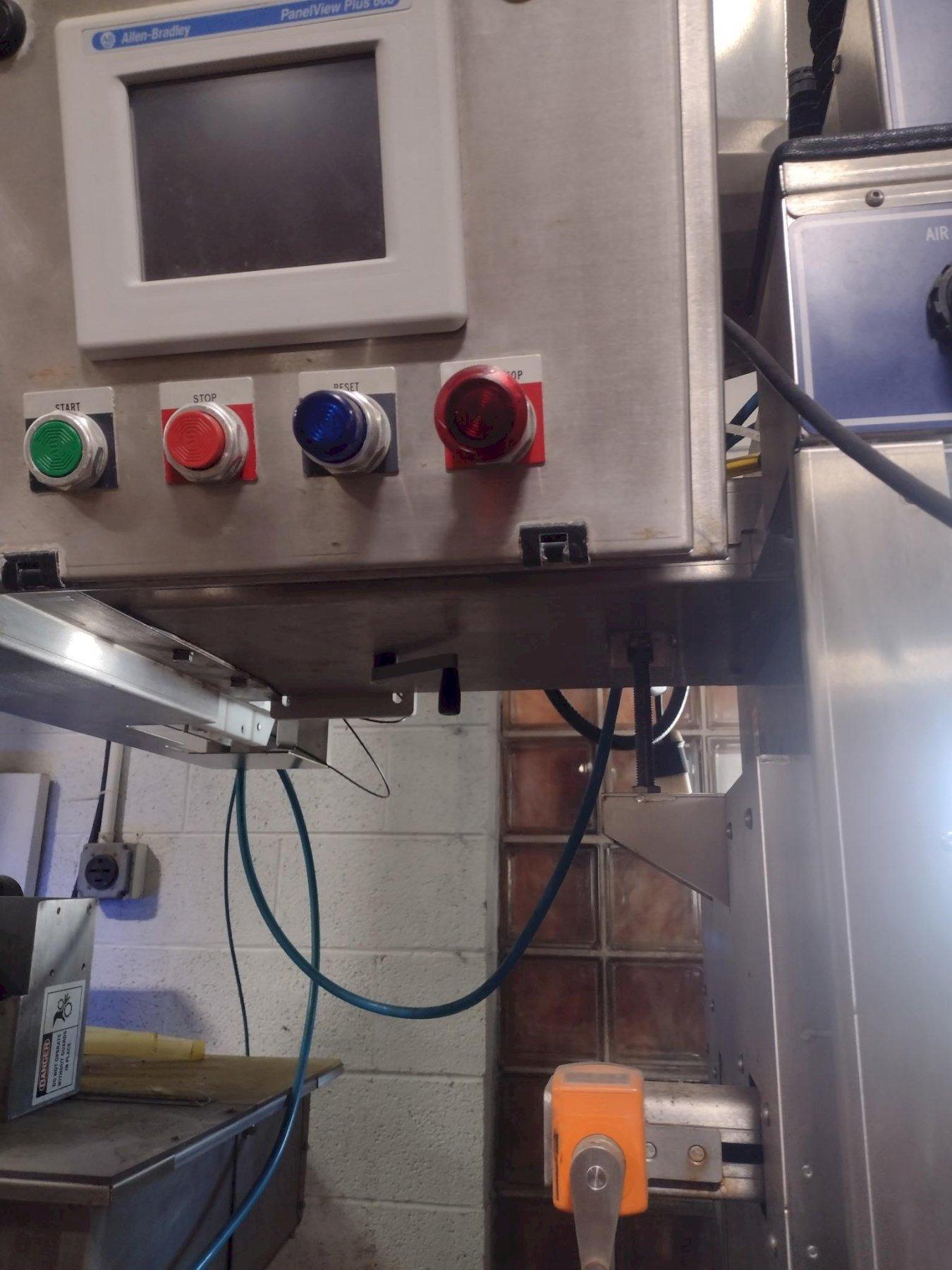

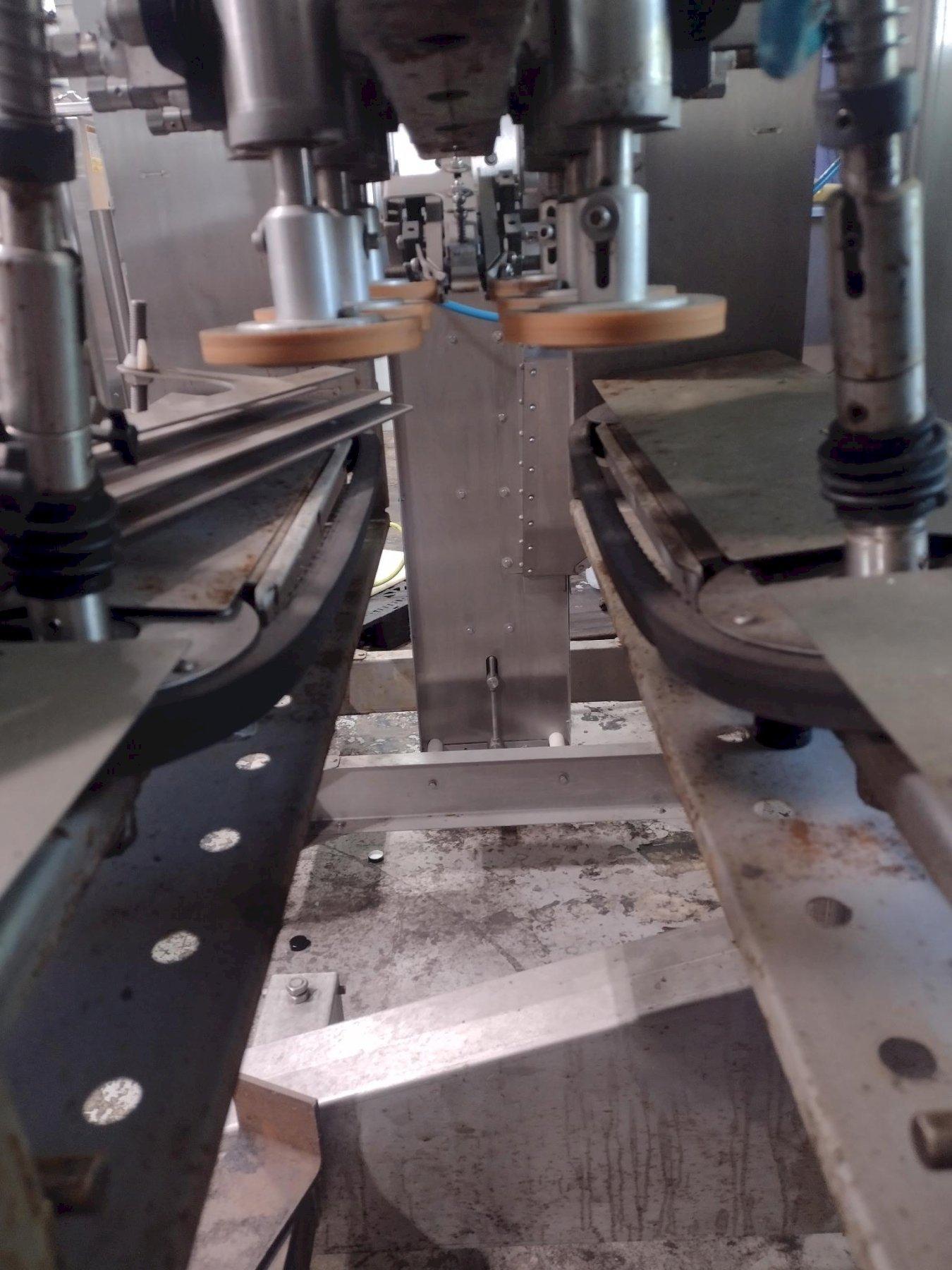

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Throughput: Rated up to 120 CPM (OEM Spec) – Cap Range: 8mm – 70mm OD (manual), currently configured for ~28–43mm caps – Container Range: 12–175mm OD × 50–381mm height – Sorting: Rotary cap sorter with chute feeding “C” track and escapement – Quill Torque: Air-clutch engaged torque quills (3 stations, 6 spindles) – Elevator: Vertical belt elevator (#7+2), integrated spillway – Construction: 304 stainless frame, Lexan safety doors – Controls: Allen-Bradley PanelView Plus 600 HMI and CompactLogix PLC – Power: 230V, 3-phase electrical, air clutch actuation – Adjustability: Quill and gripper height adjustable, lower gripper belt removable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
