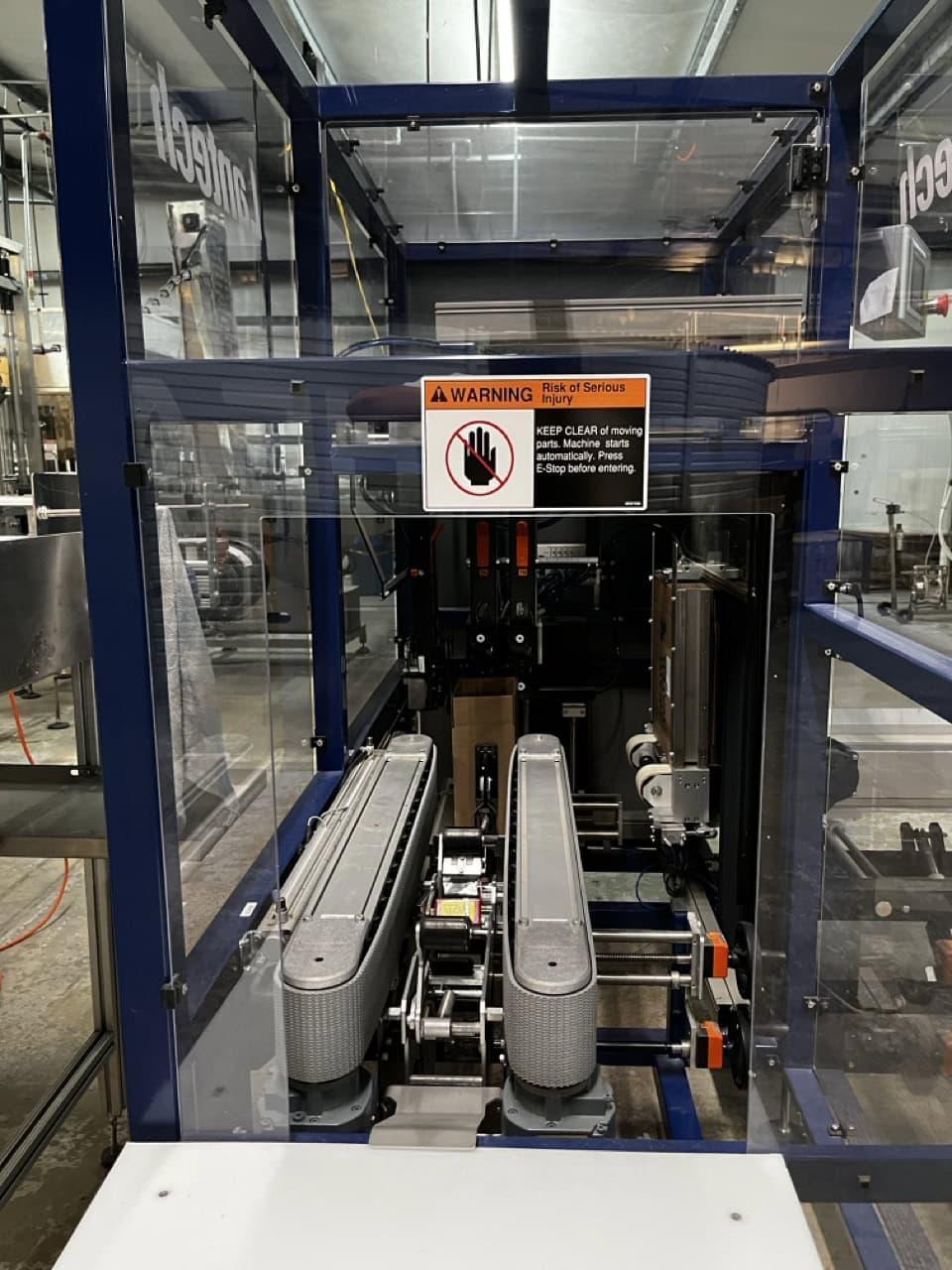

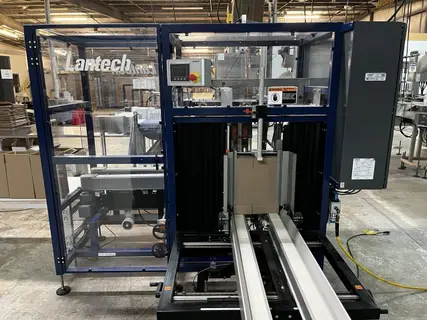

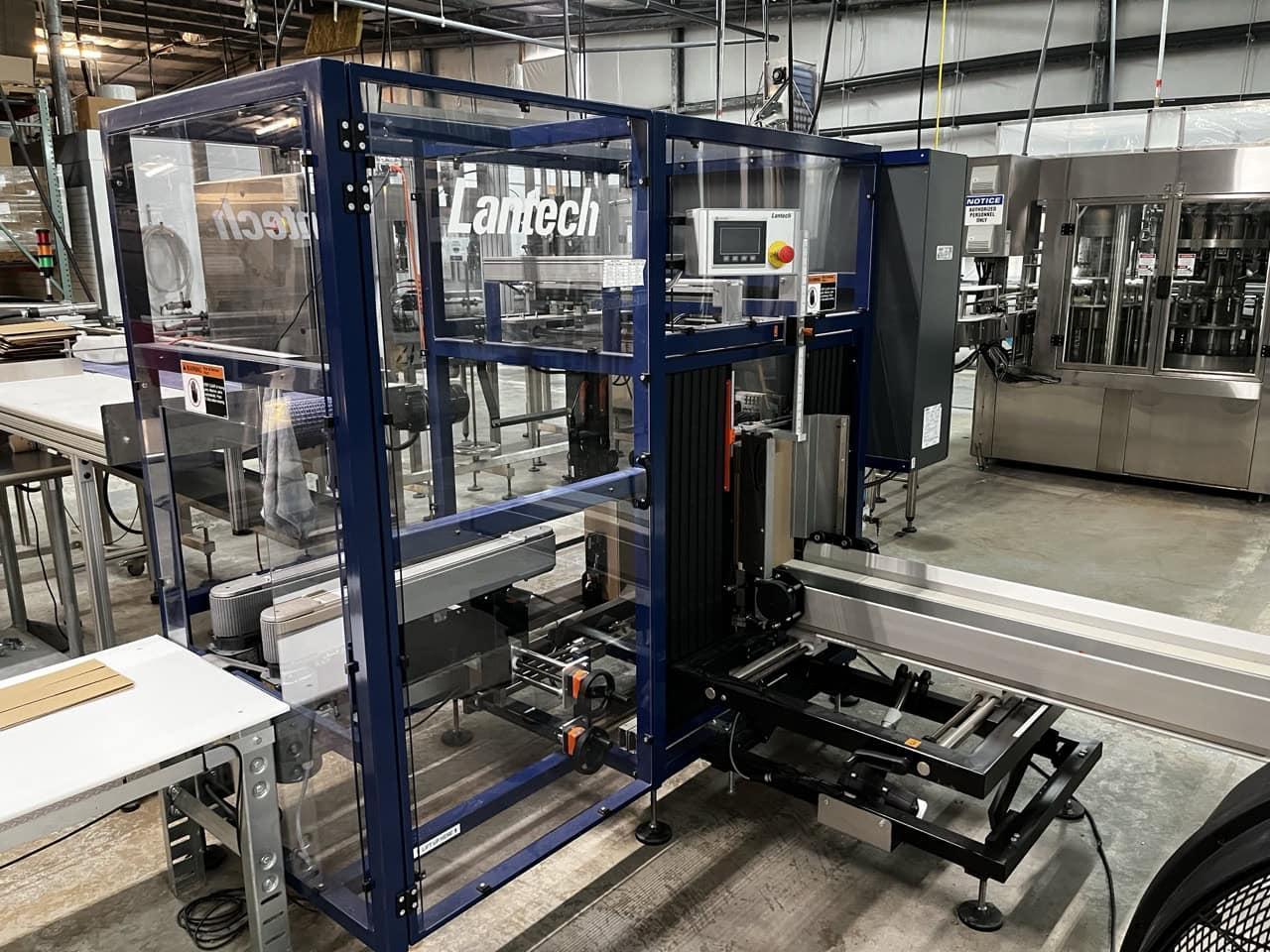

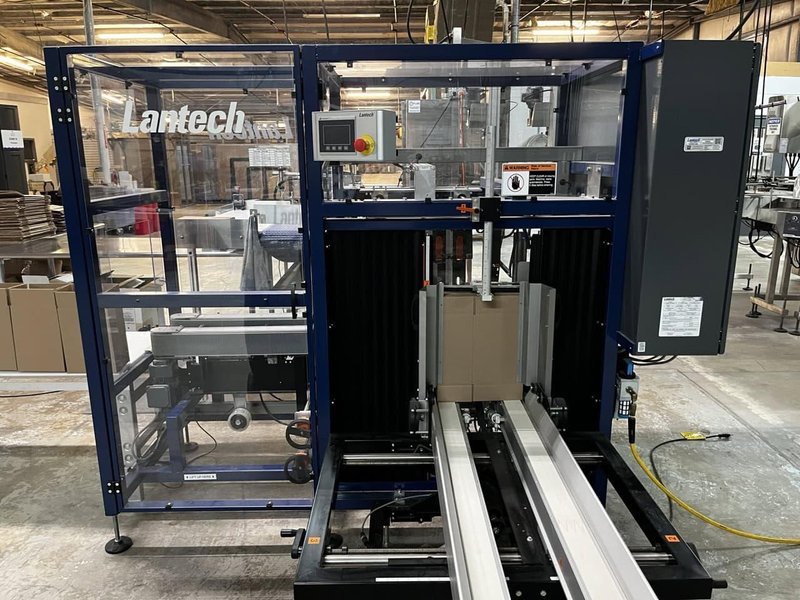

Lantech C-1000-Tape Case Erector, 2021

Lantech C-1000-Tape Case Erector, 2021

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Throughput speed: 10 cases per minute maximum – Case size minimum (outside dimensions): 7 7/8″ L x 5 7/8″ W x 5 7/8″ C (200 mm L x 150 mm W x 150 mm C) – Case size maximum (outside dimensions): 19 5/8″ L x 12 3/4″ W x 20 1/2″ C (500 mm L x 325 mm W x 520 mm C) – Standard 2″ tape

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Previously ran: – 12″ L x 9″ W x 8″ H and 14.5″ L x 11.5″ W x 11.5″ H cases – Left handed cases

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Magazine infeed capacity: 200 cases (approximate) – Case type: RSC. HSC, FEFCO 0200/0201 – Flute types: B, C, E or combinations – Wall types: Single & double wall (test for multiple wall) – Outfeed pass height: 600 mm ± 30 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Air supply required: 80 PSI – Electrical service: 230V, 3-ph, 60 Hz, Wye w/Ground

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine dimensions: 77″ L x 89 3/4″ W x 70 7/8″ H Machine weight: 1540 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
