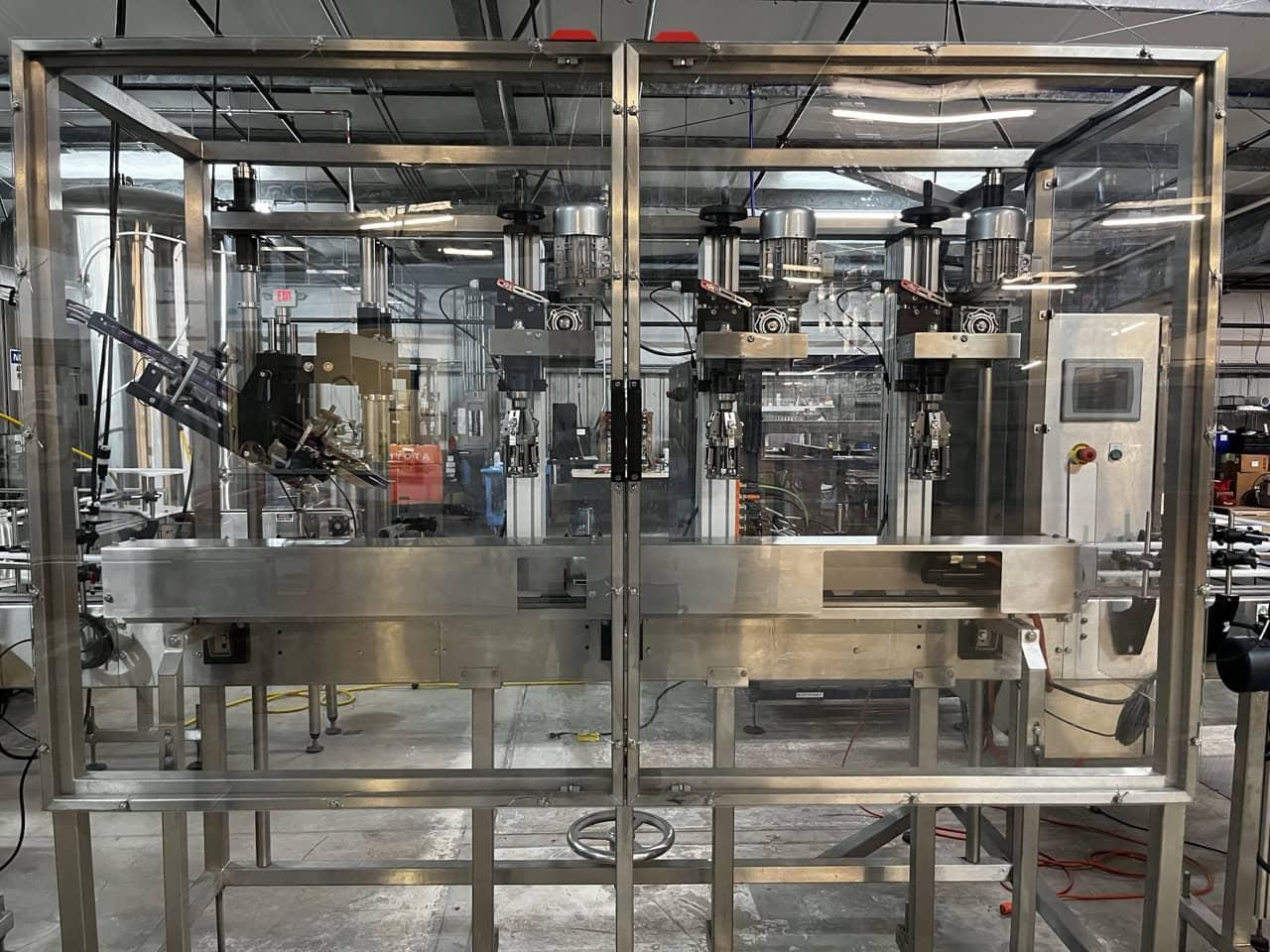

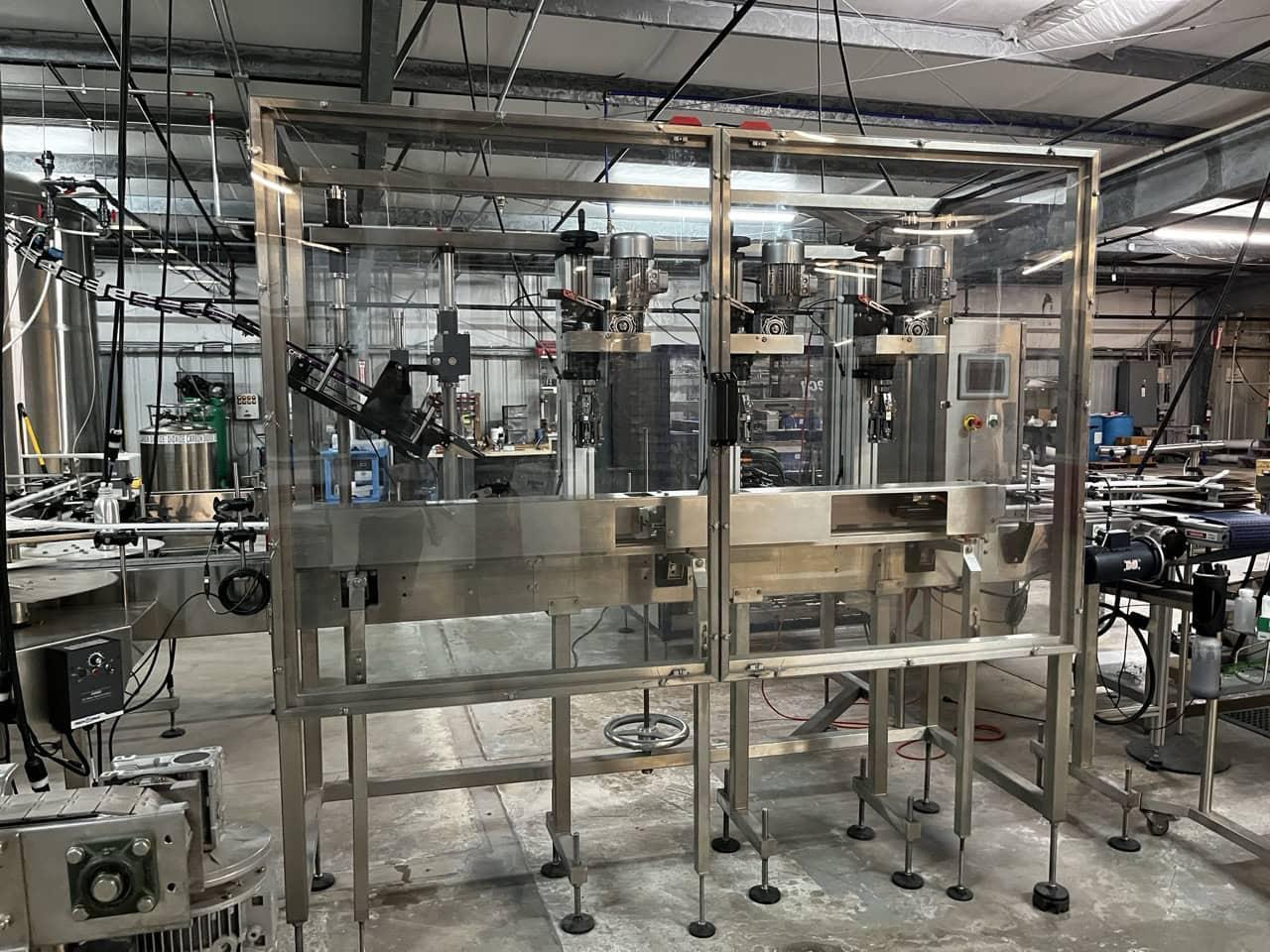

Fluid Solutions Inc. 3-Head Linear ROPP Capper, 2021

Fluid Solutions Inc. 3-Head Linear ROPP Capper, 2021:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Previous use was for 16 and 24 oz bullet/round bottles with 38mm ROPP caps, running at 60 bottles per minute

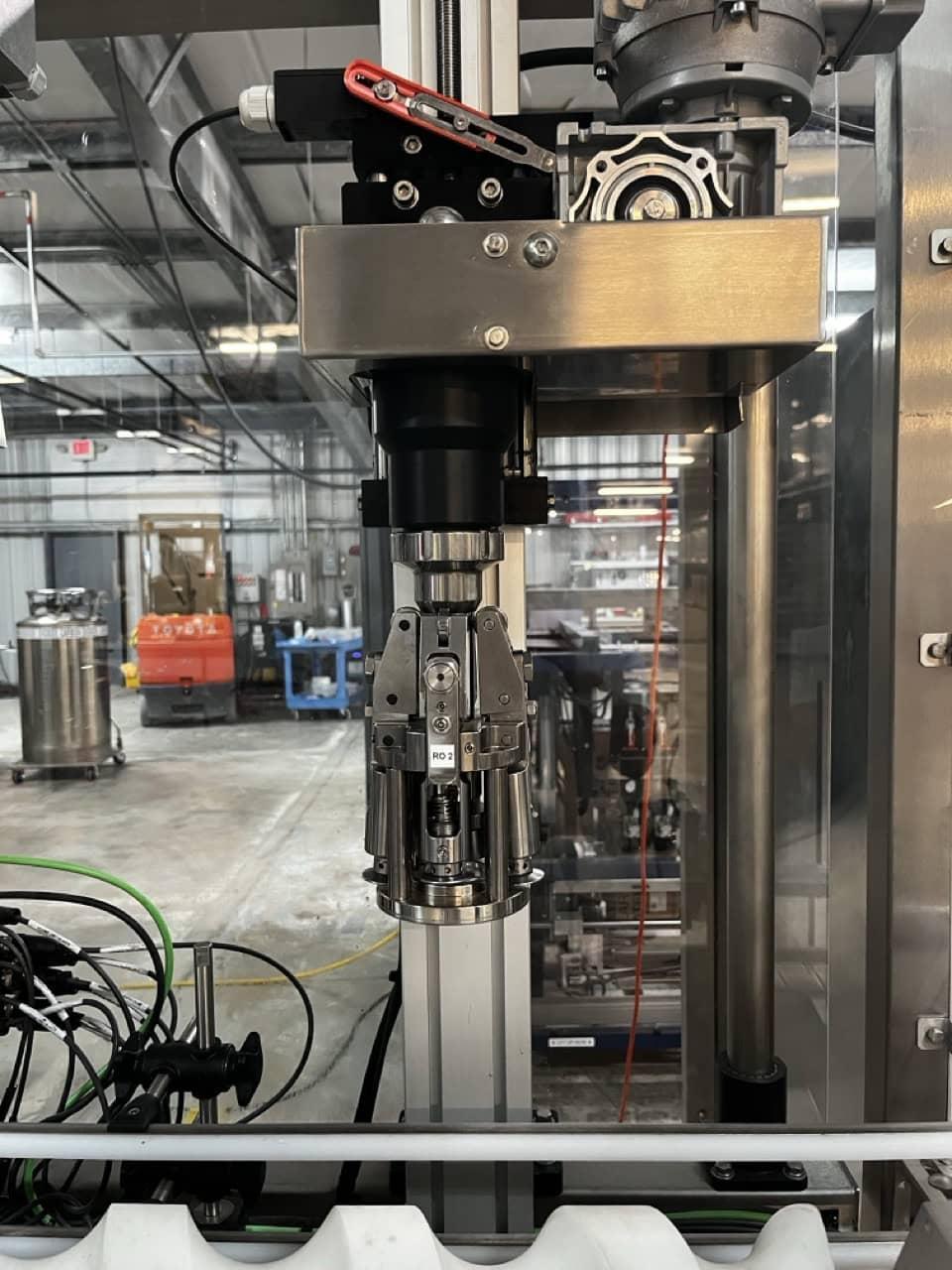

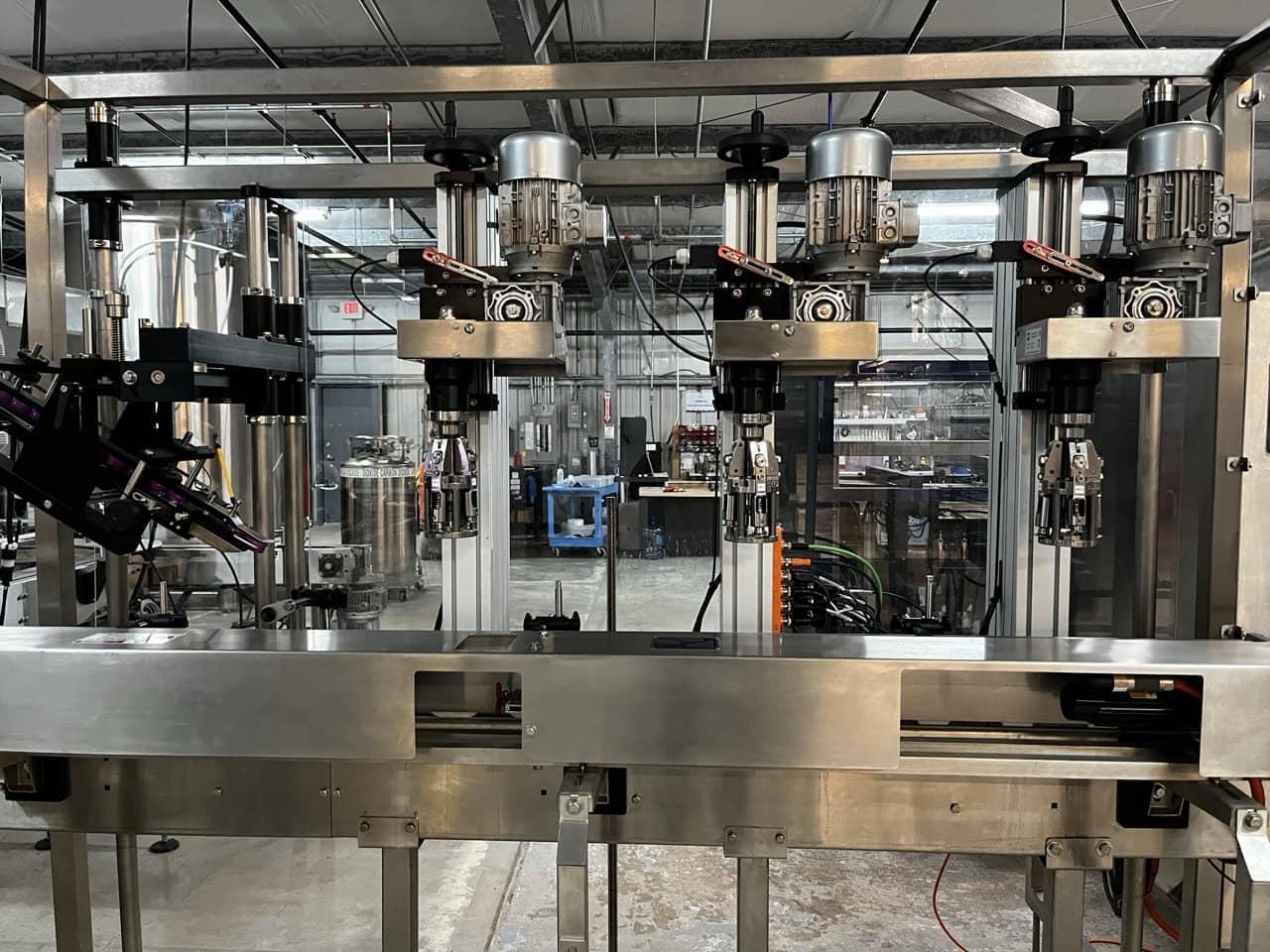

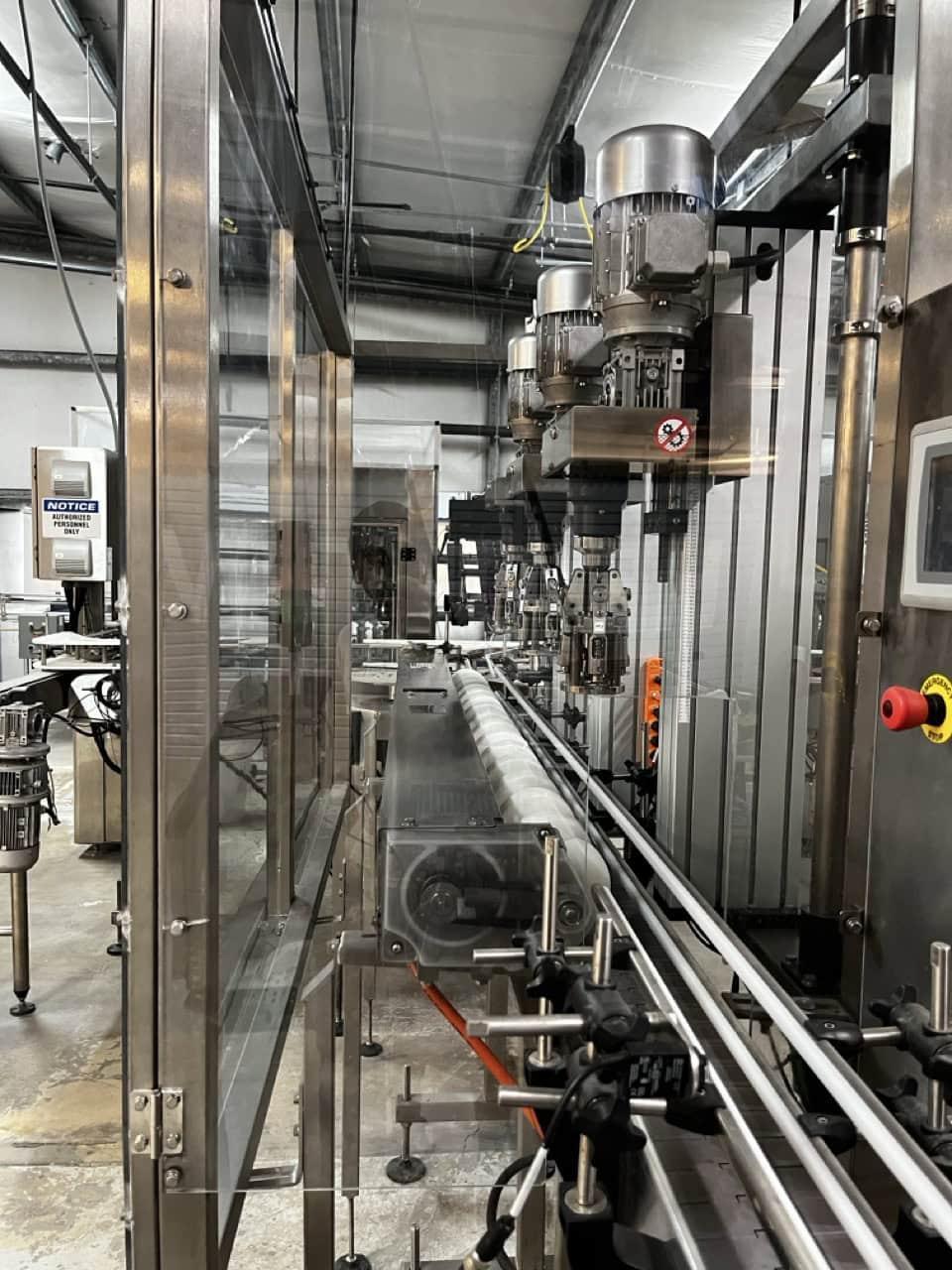

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Line orientation: left to right – Servo Timing Screw Indexing – Machine designed to place and form metal caps on 2 container sizes with 1 cap – 3 ROPP capping heads, manufactured In 304 stainless steel and hardened forming discs. – Bottle will strip cap from chute, and container will be indexed via timing screw under ROPP head for threading – Automatic start and stop with presence or absence of containers. – Jamming clutches with electric signal for shutdown on product Jamming (This prevents major damage to parts and minimizes possible spills). – (3) ROPP Capping Heads, with with independent motors – Heavy duty 304 Stainless steel welded frame. – Stainless steel enclosure with polycarbonate windows and safety switches. – Complete height adjustment with bottle setting guide for quick changeovers. – Tool less Height Adjustment

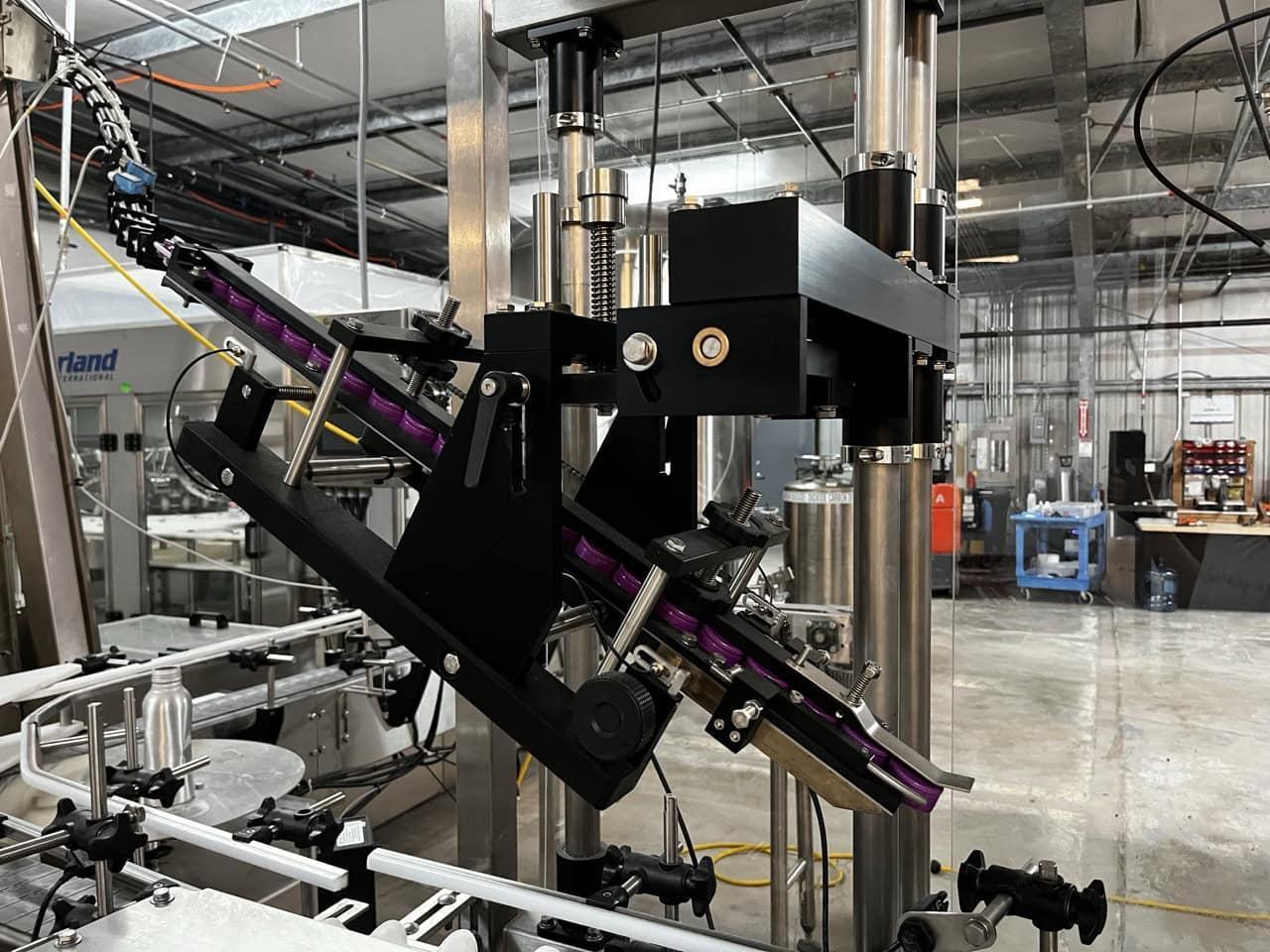

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cap chute features: – All contact parts in stainless steel. – Includes cap demand sensor to start and stop the cap feeder – Allen Bradley PLC & Allen Bradley HMI in a Nema 12 Enclosure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electric and pneumatic requirements: – 220 Volts, 60Hz, 10 Amps. – 5 CFM @ 80psi

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**Does NOT include cap feeding elevator**

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
