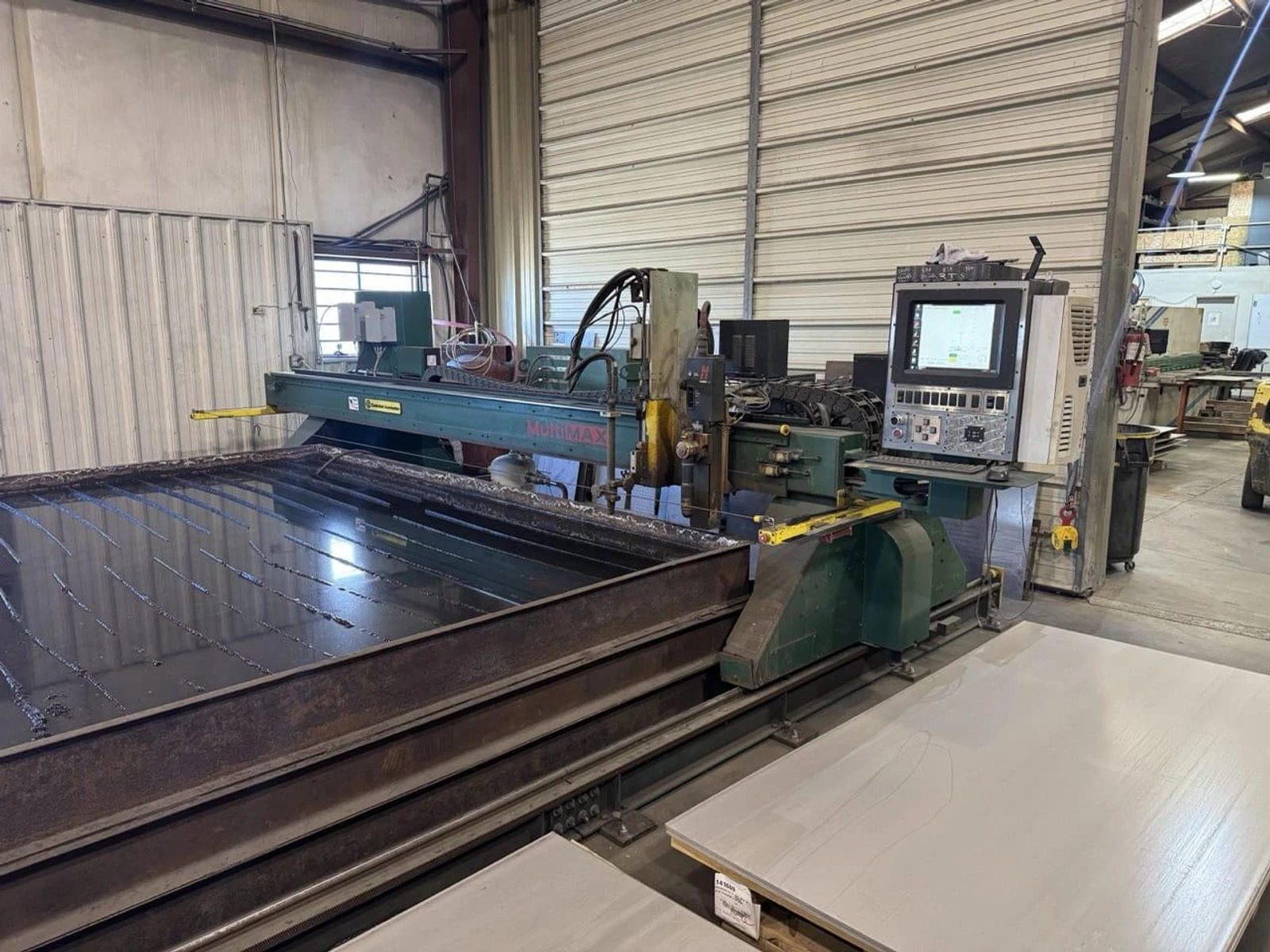

10′ x 20′ Controlled Automation Multimax Plasma, 2008 – Hypertherm 260XD

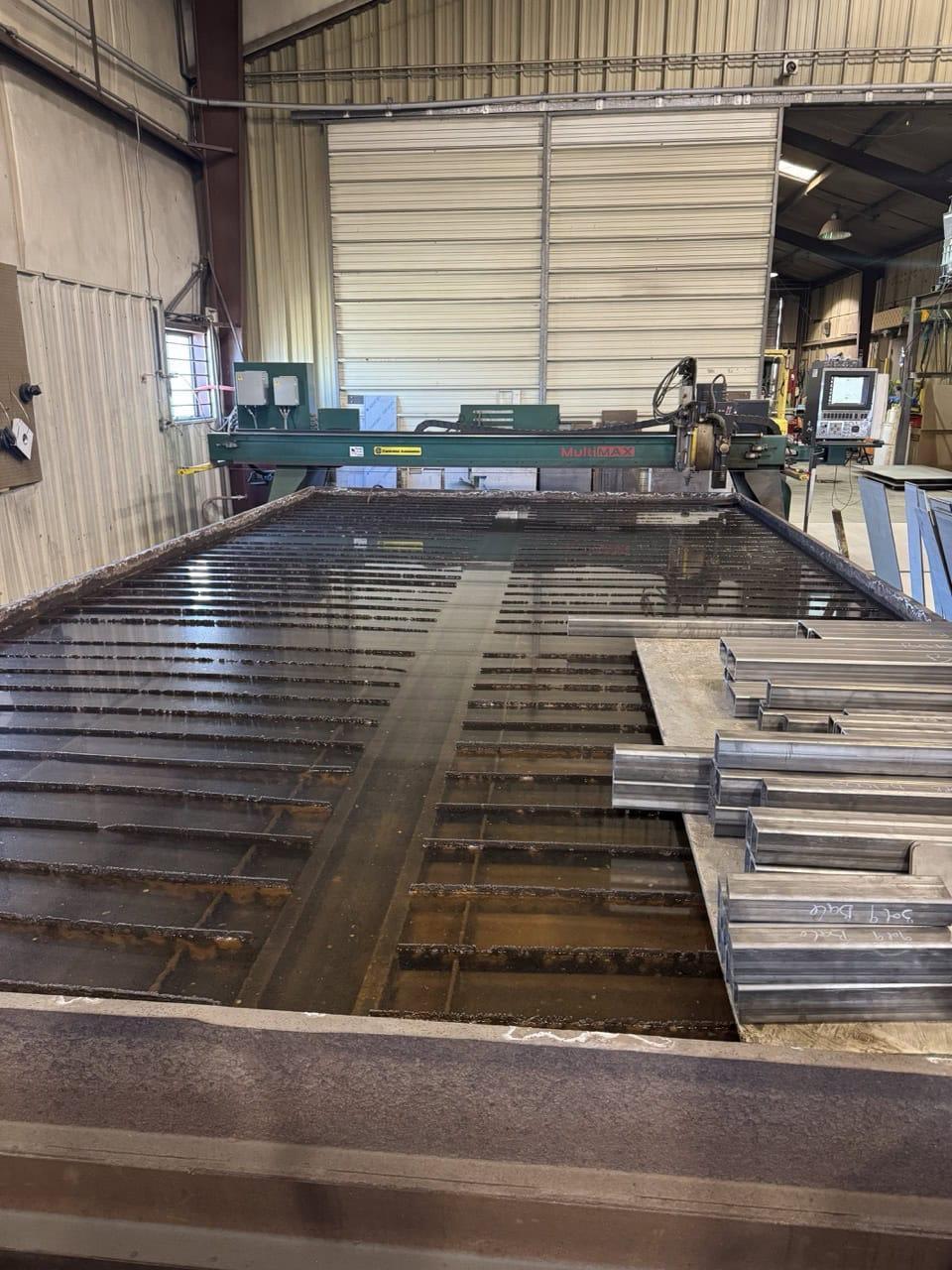

Input voltage: 240 VAC Phase: 3 Amps: Max 124 A Water table: 10′ x 20′

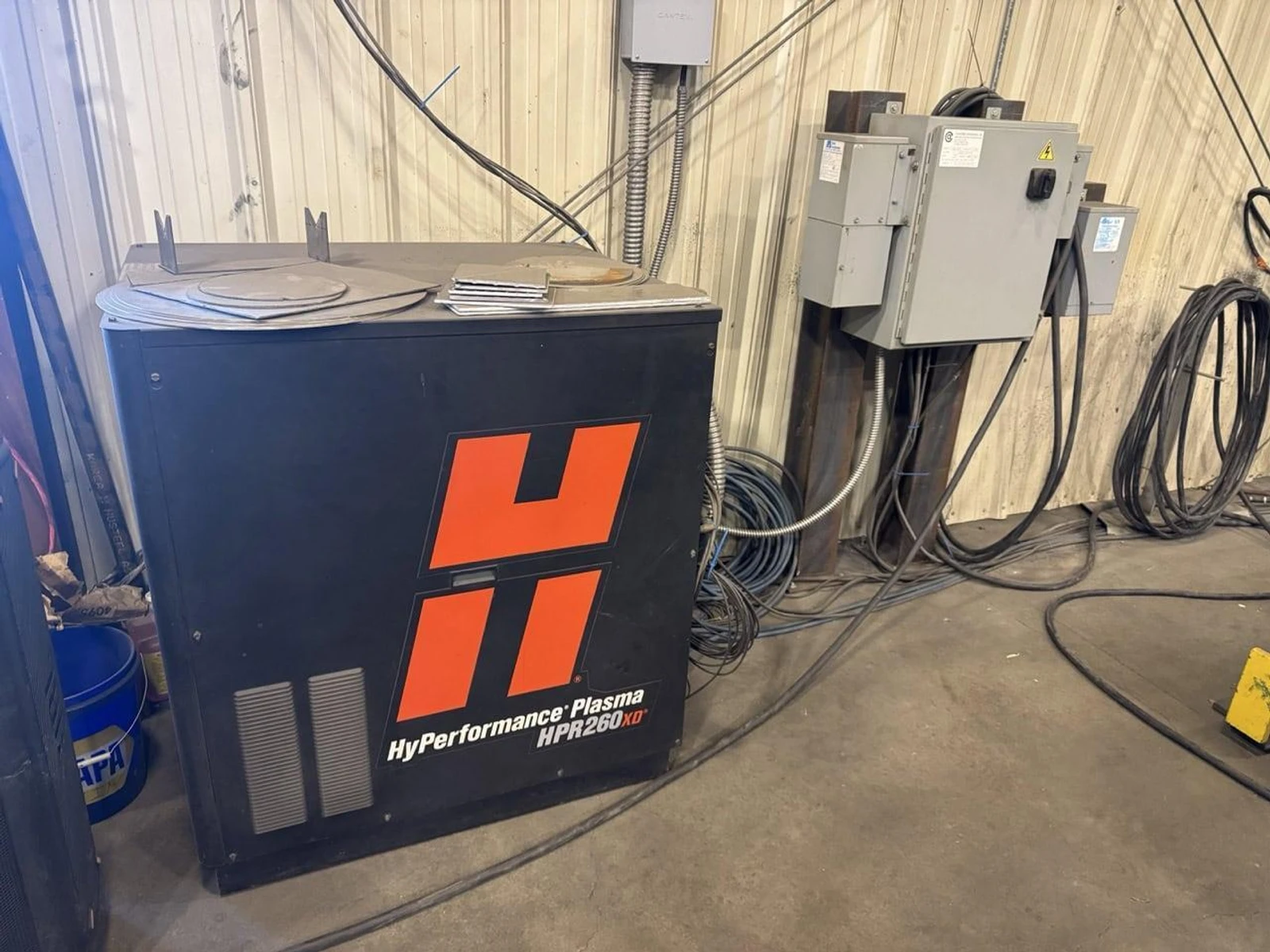

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hypertherm HPR260XD specs: Mild steel Dross free: (1-1/2″) Production pierce: (1-1/2″) Maximum cutting capacity: (2-1/2″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stainless Production pierce: (1-1/4″) Maximum cutting capacity: (2-1/2″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Aluminum Production pierce: (1″) Maximum cutting capacity: (2″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Output voltage: 175 VDC Output current: 260 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Station

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller: Automation CNC controller Software: BurnMachine and CadNesting

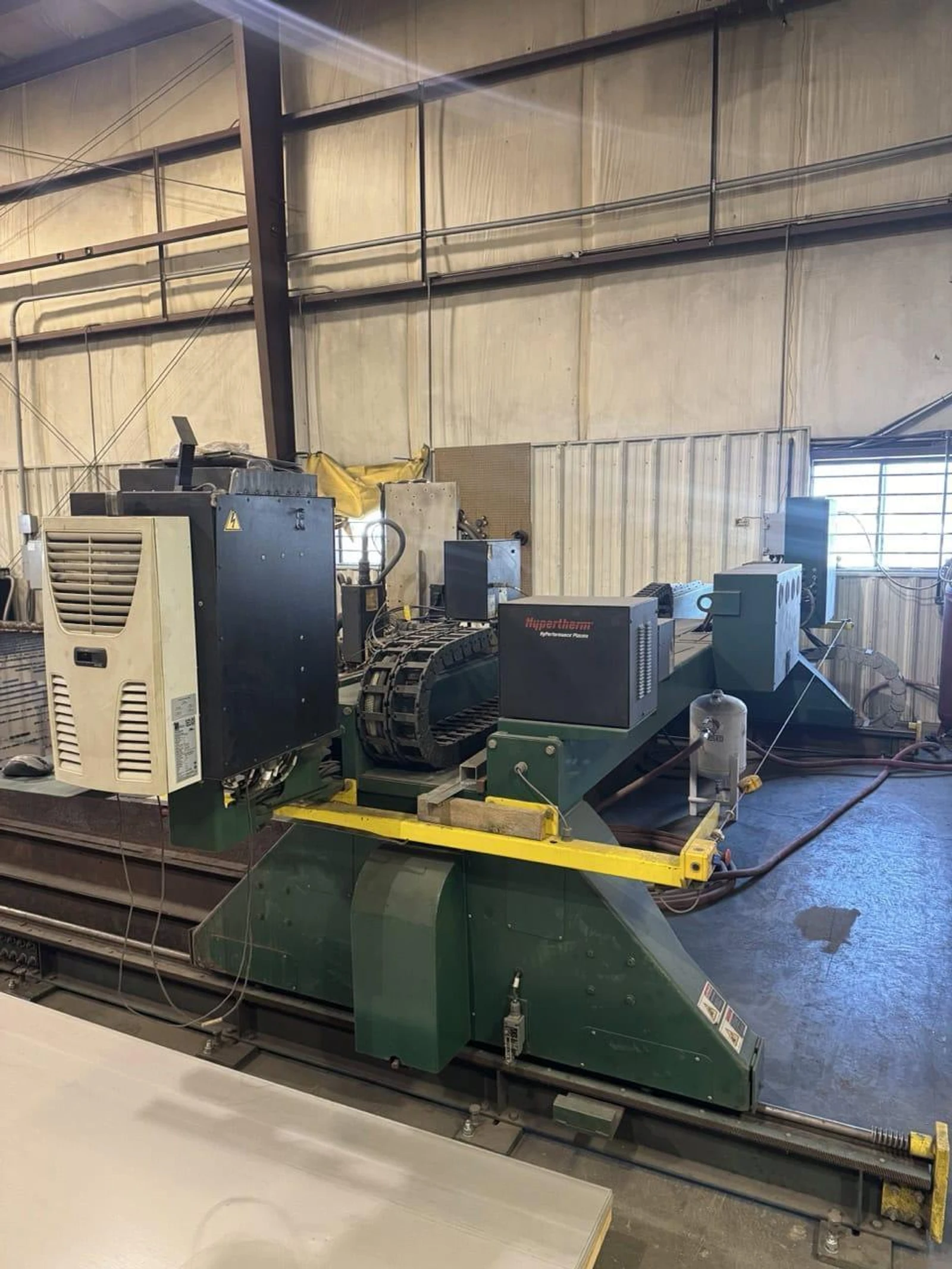

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Size: The gantry: 6’ H x 18’ 6″ W The two rails: 8” H x 30’ 1″ L The power unit: 2’ 9″ W x 3’ 9” L x 3’ 10” H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Station located on articulating arm that can be moved according to operator preference.

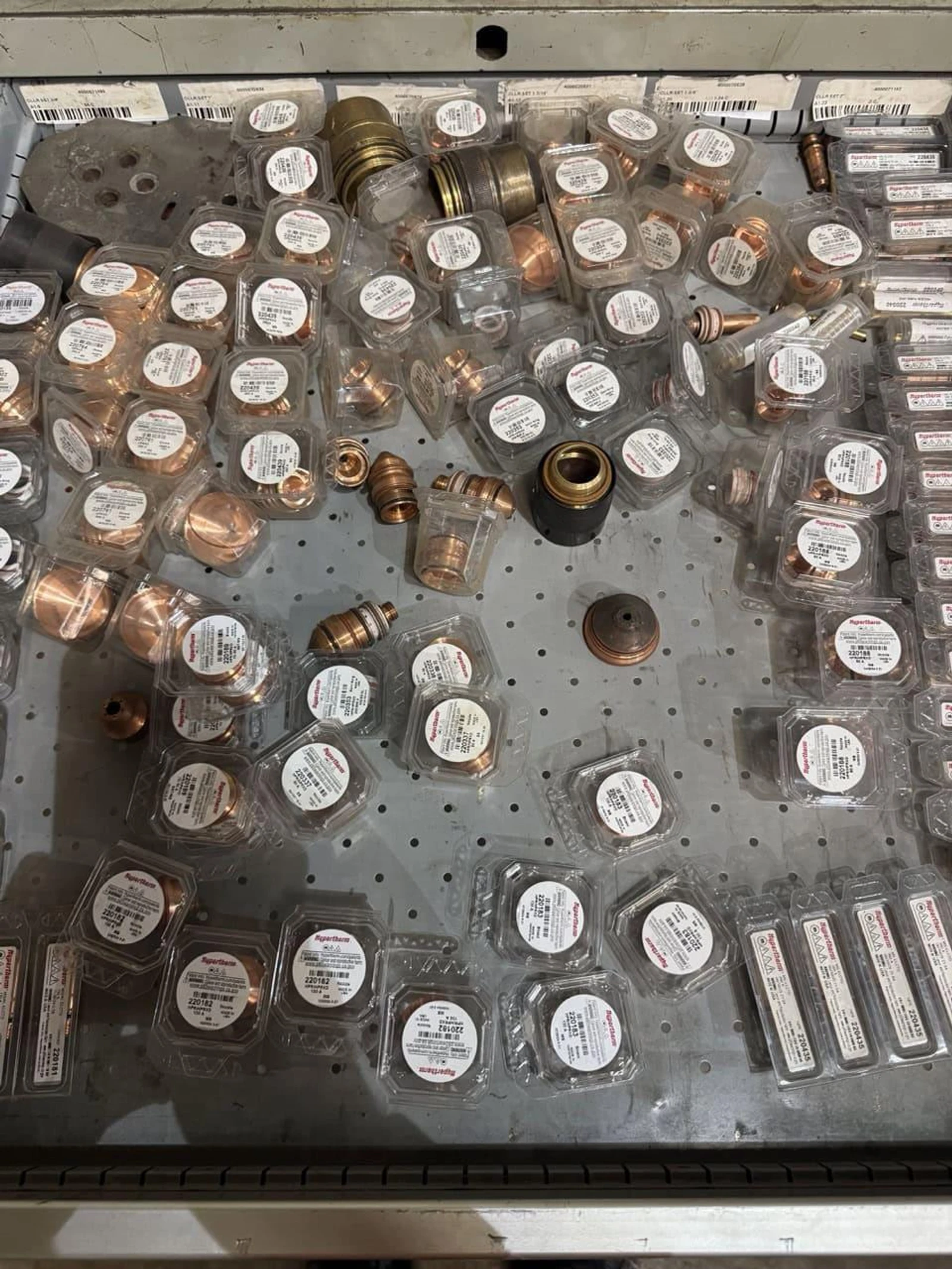

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes all consumables on hand at time of sale

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
