Norland International Complete line with (2) GlassPak66 Monoblock Systems (16oz and 25 Oz) for Glass or Aluminum with Fluid Solutions 3 Head ROPP Capper, 2020:

Norland International Complete line with (2) GlassPak66 Monoblock Systems (16oz and 25 Oz) for Glass or Aluminum with Fluid Solutions 3 Head ROPP Capper, 2020:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This line was previously used for filling and capping 16 oz and 25 Oz aluminum bottles of water at a rate of up to 70 BPM, it is a flexible solution suitable for filling both aluminum and glass.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This line is capable of running still and carbonated/sparkling products and requires nitrogen pressurization to run still and carbon dioxide pressurization for carbonated/sparkling products.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Line includes:

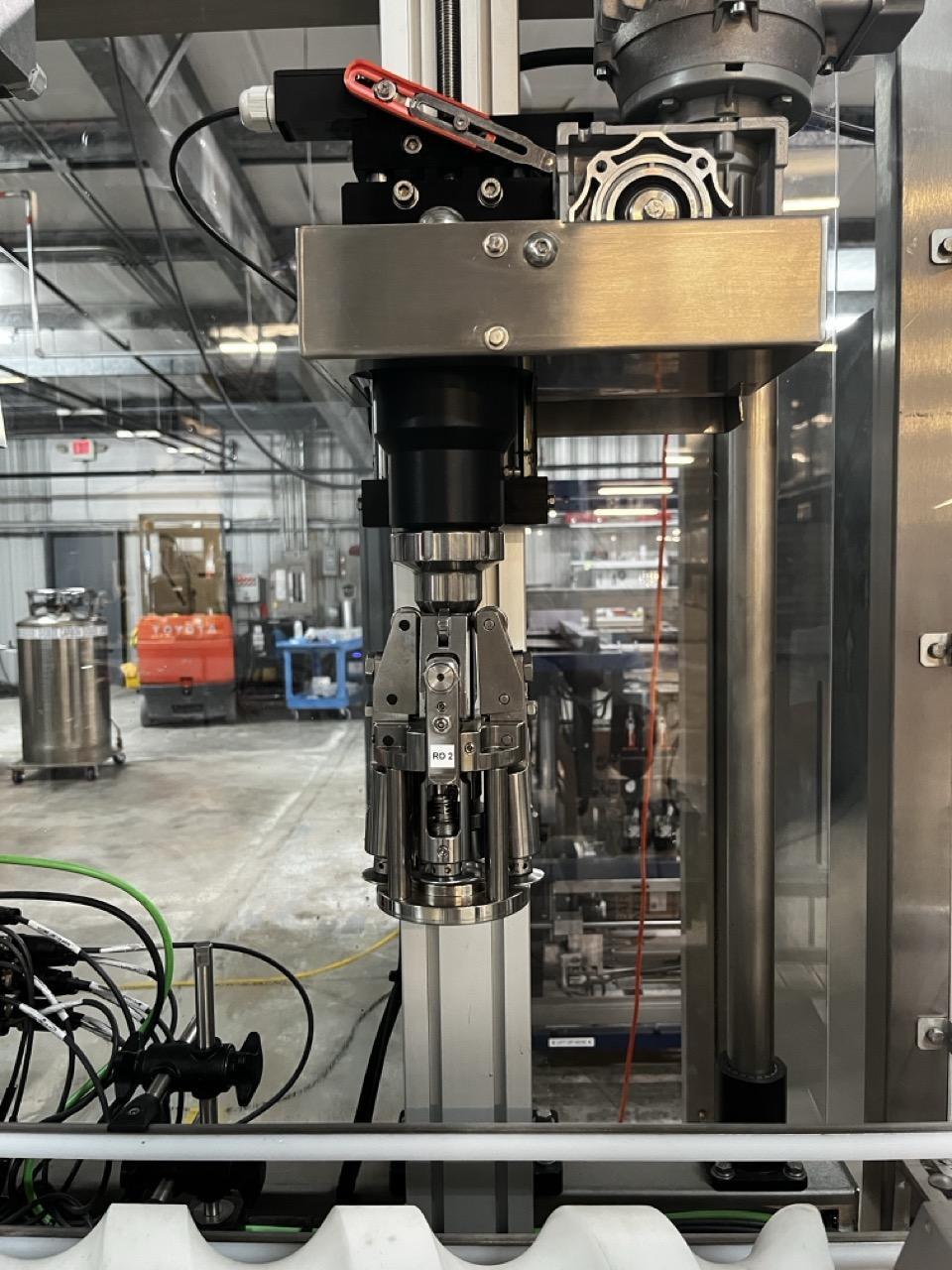

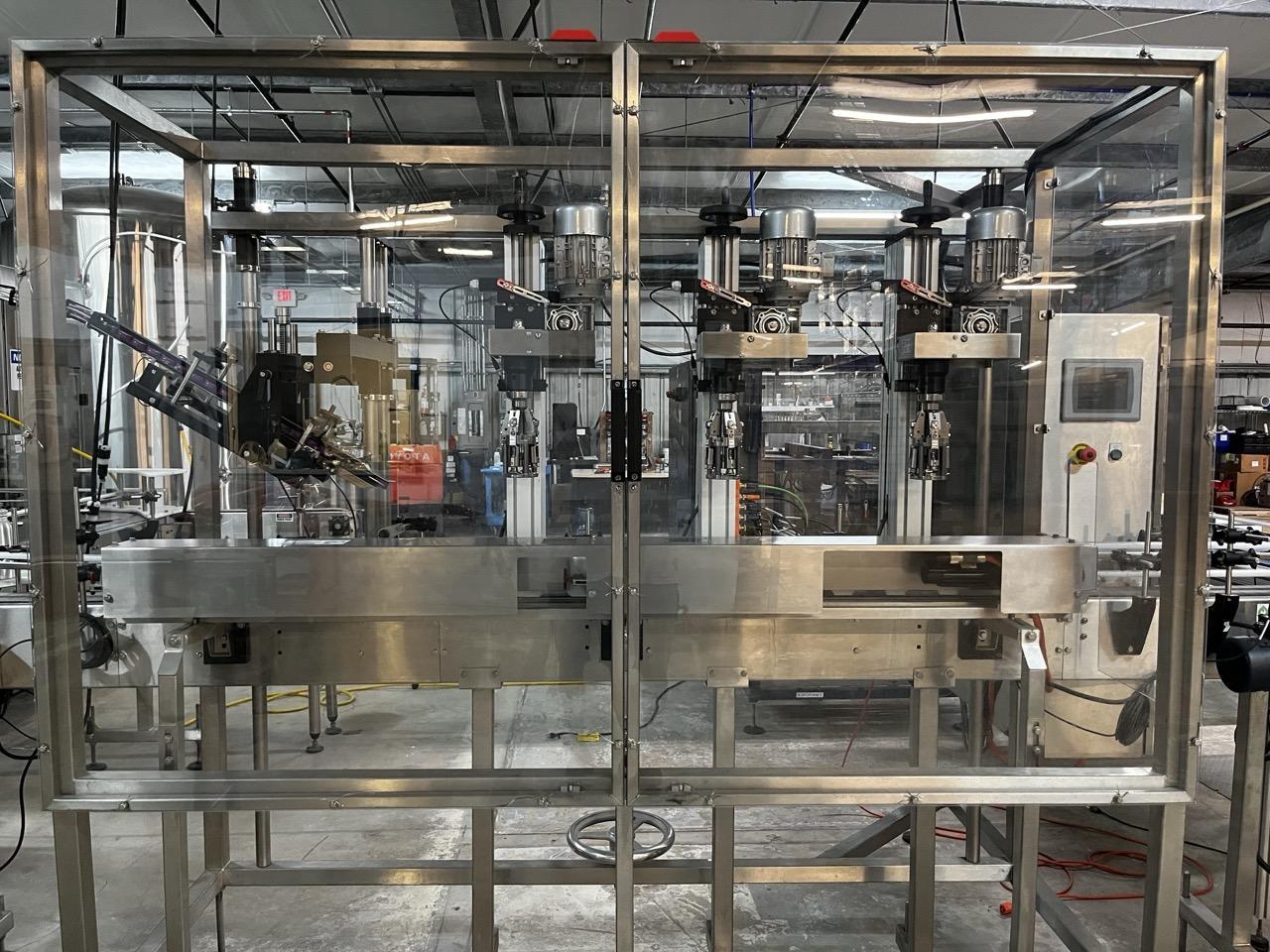

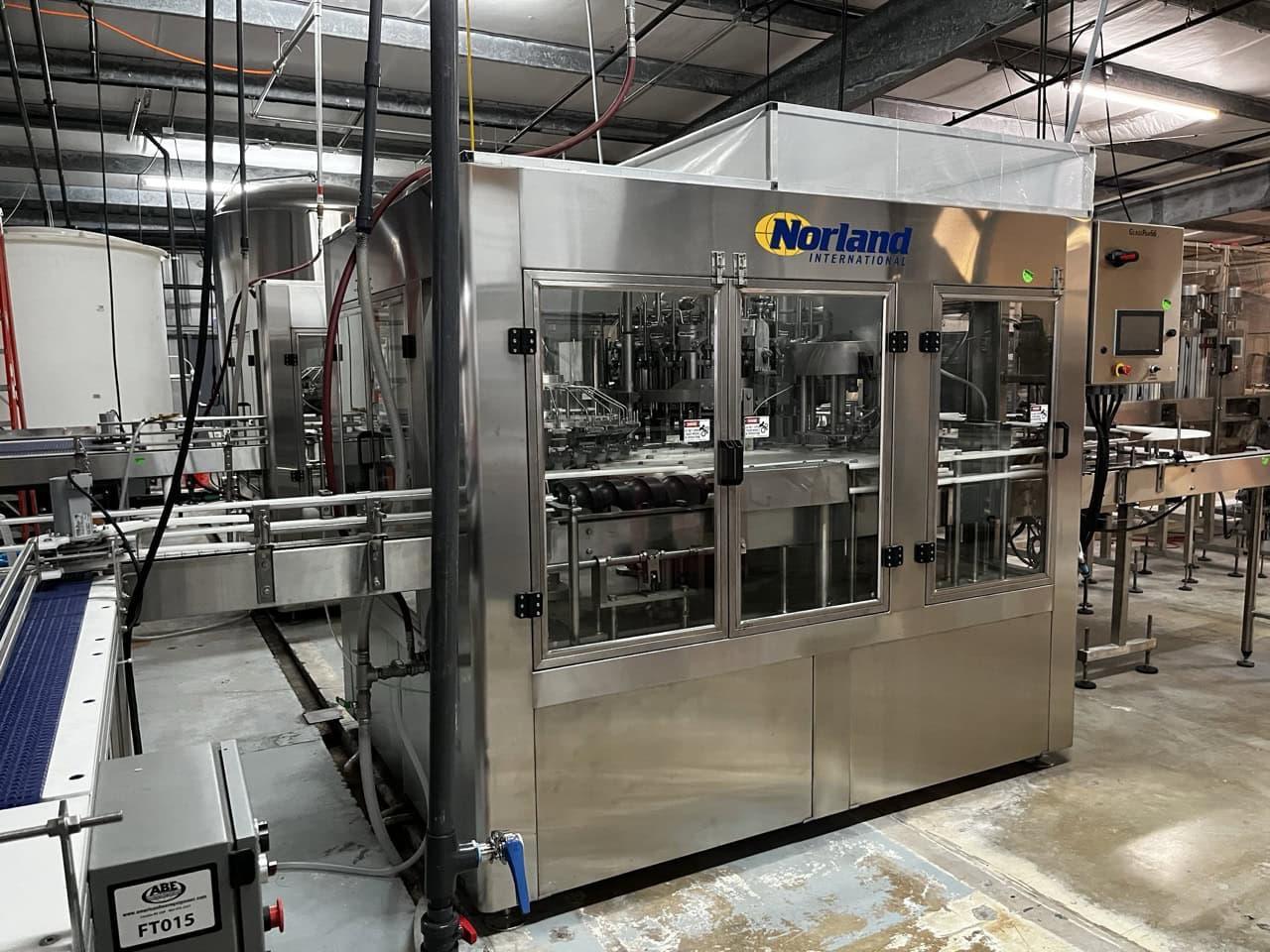

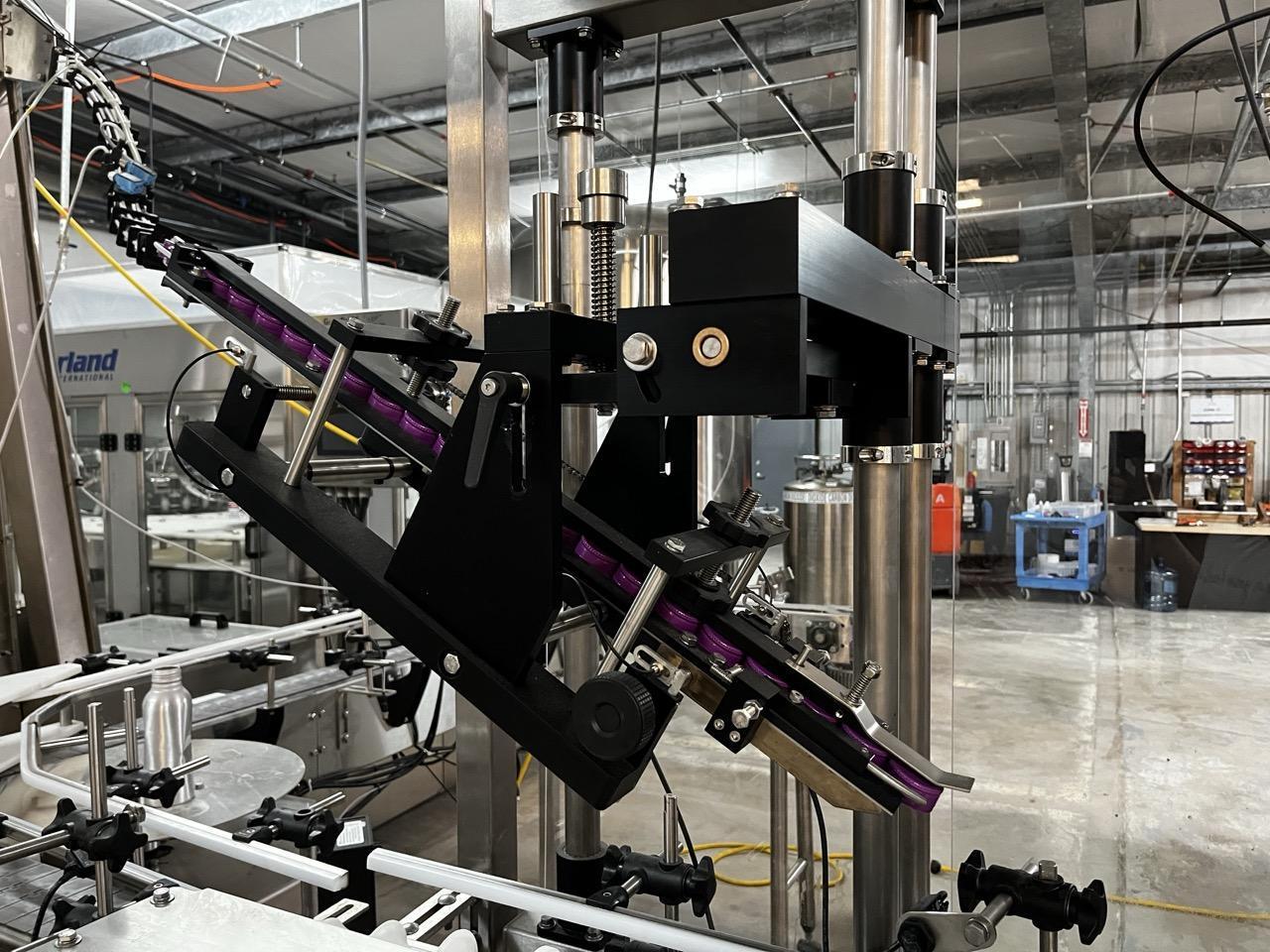

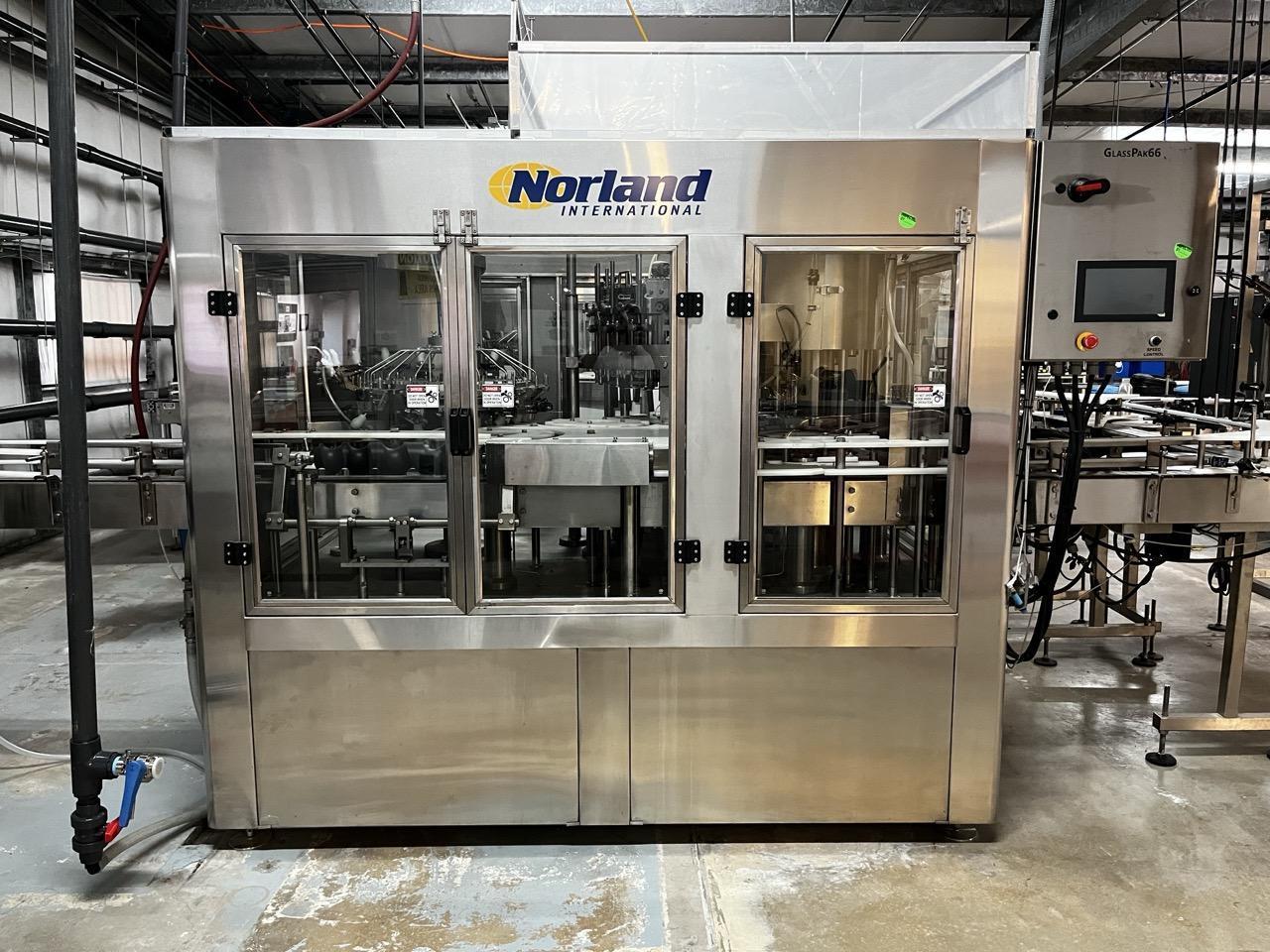

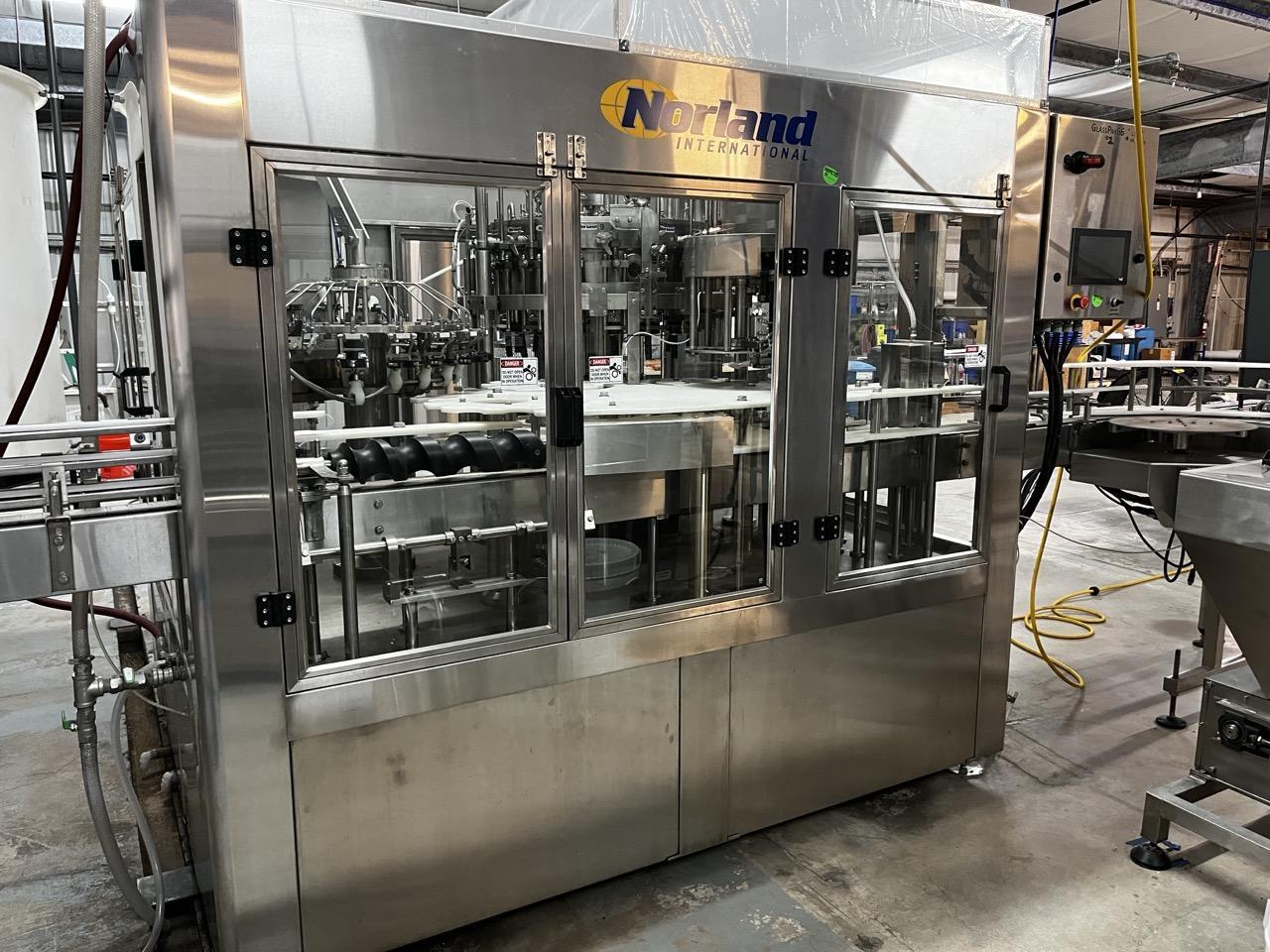

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(2) GlassPak66 Automatic Beverage Bottling and Capping Solution: (1) set up for 16 oz bottles, (1) set up for 25oz bottles. These can be ran as stand-alone filling and capping solutions for screw caps instead of feeding the ROPP capper. (1) Fluid Solutions Inc. 3-Head Linear ROPP Capper, 2021 (2) Feed table (1) Pack-Off Conveyor (1) Videojet 1220 Small Character Continuous Inkjet Printer (2) Powered conveyor system infeed and exit for the GlassPack unit (2) Diaphragm Pumps (2) Dryers (1) Conveyor handling system that merges the two bottling lines to feed the ROPP capper

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional details:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**GlassPak Details**: Pre-Rinse: inverted pre-rinse for tap water or sanitizing solution, includes recirculating pump for recycling sanitizing rinse solution.

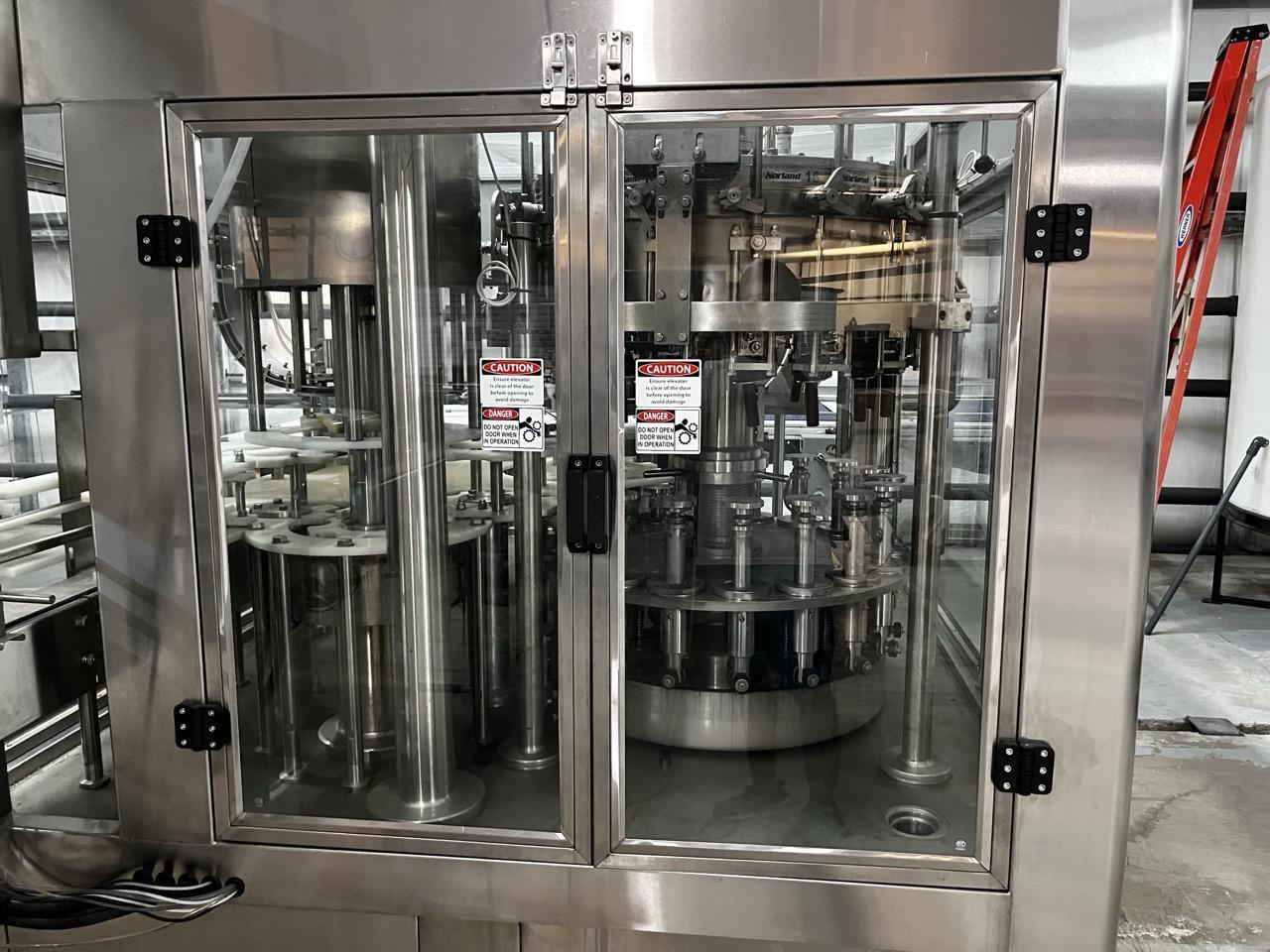

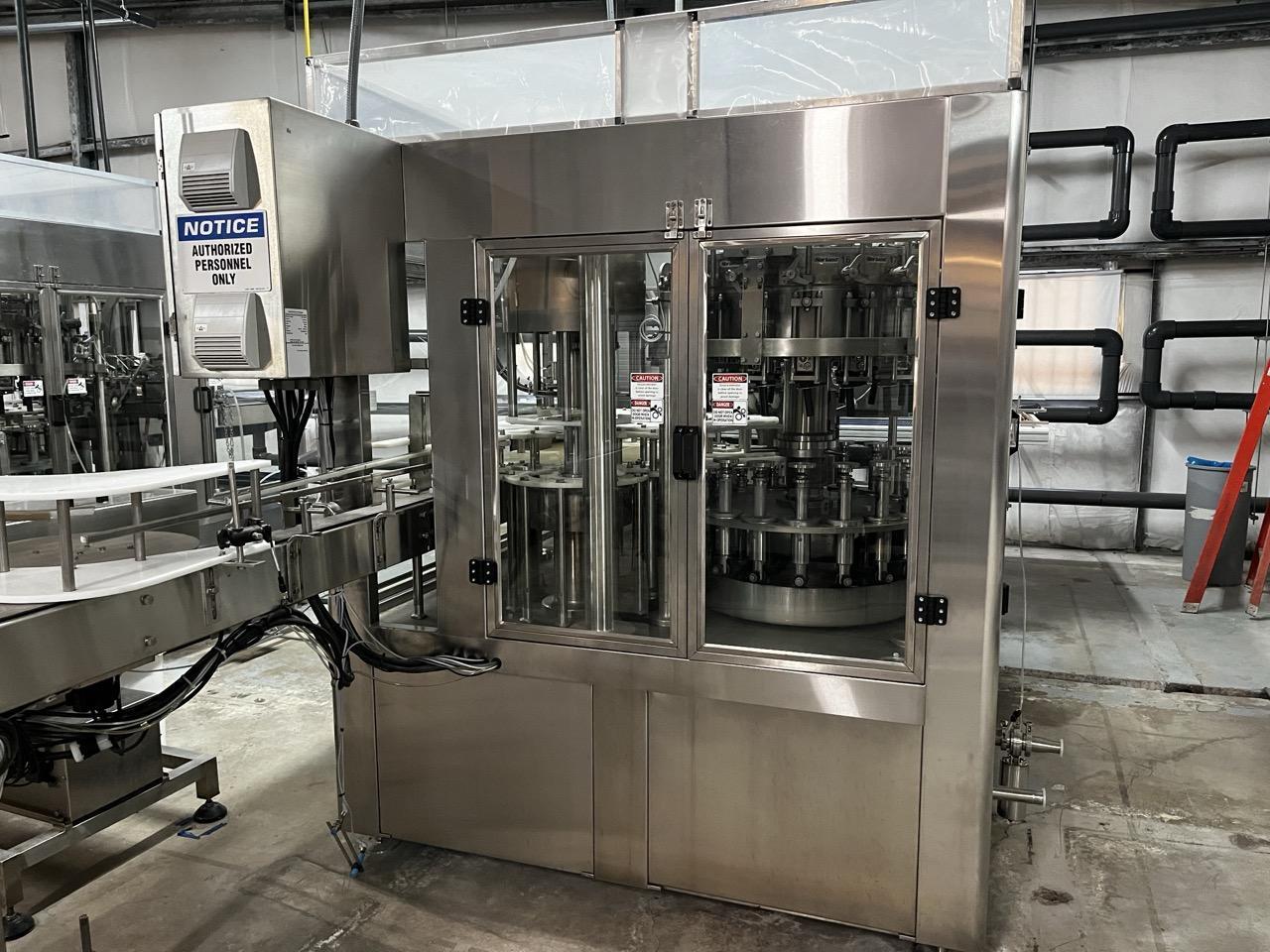

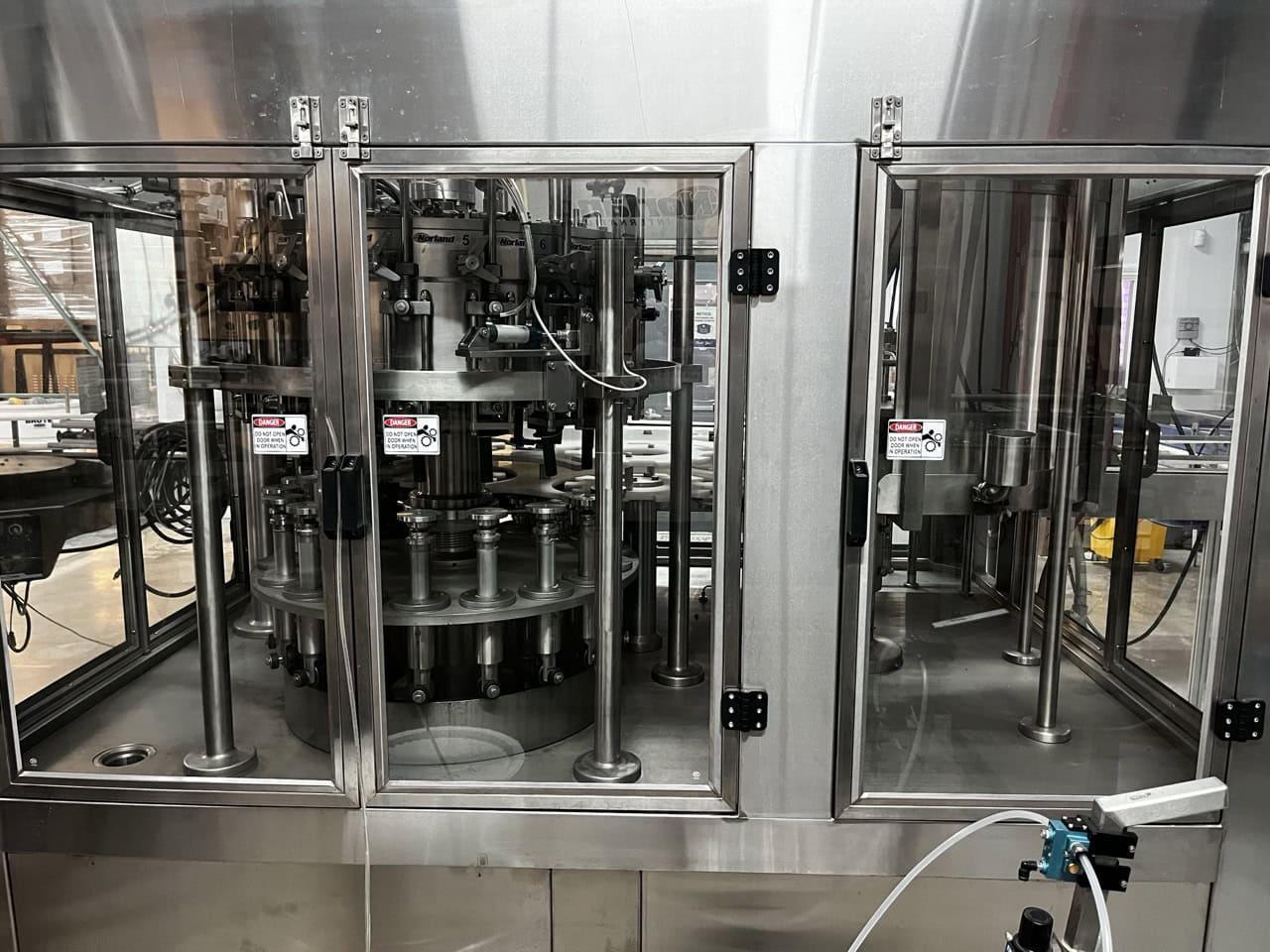

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bottle Filling: – 18 Heads – Counter pressure style bottle filler with Double-Pre-Evacuation Feature

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Each head performs four main functions during the filling process:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1). Removing the majority of air from the empty bottle 2). Purging and pressurizing the bottle with carbon dioxide 3). Filling the bottle under pressure. 4). Relieving the pressure and releasing the bottle to complete the filling process.

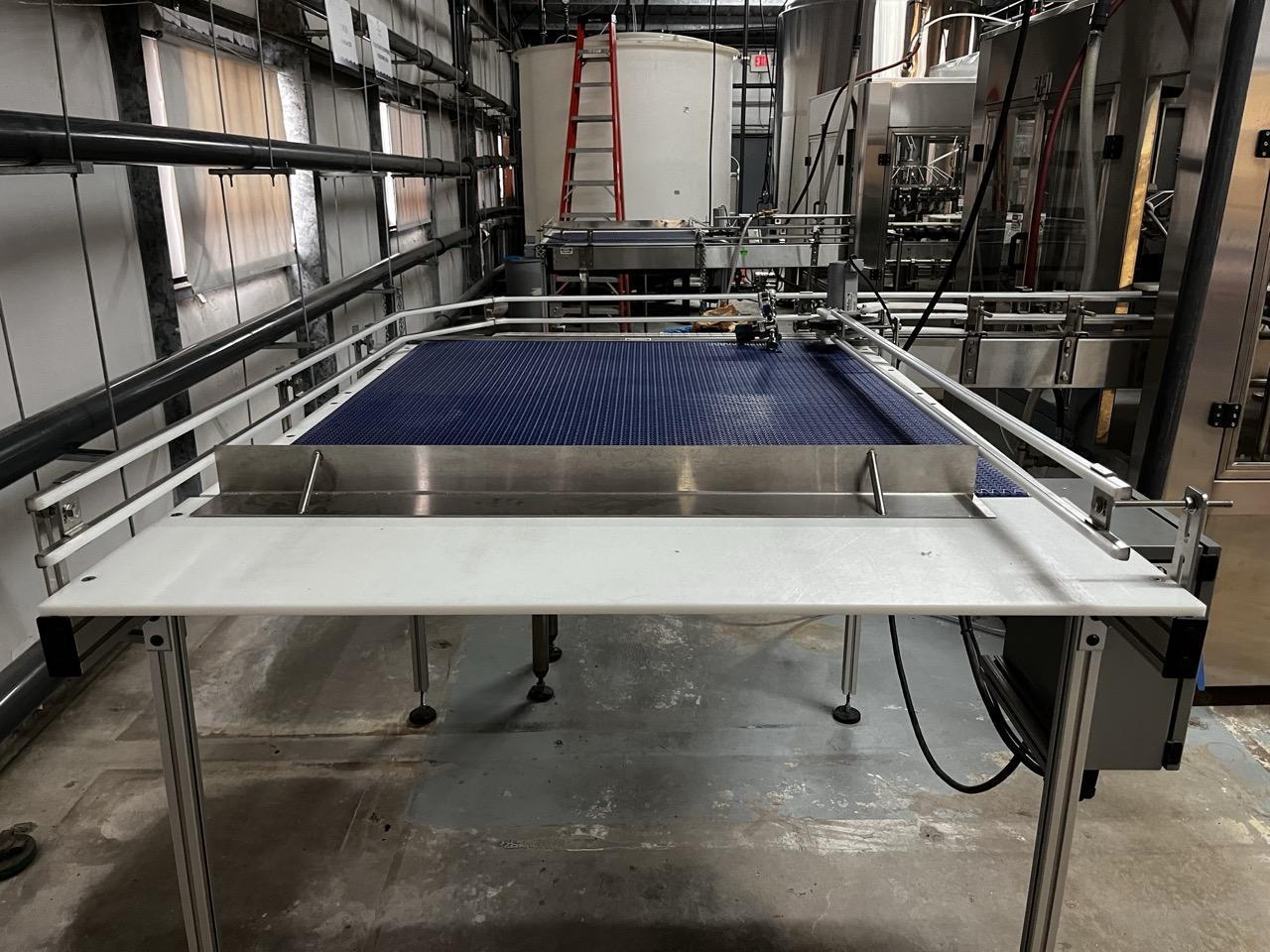

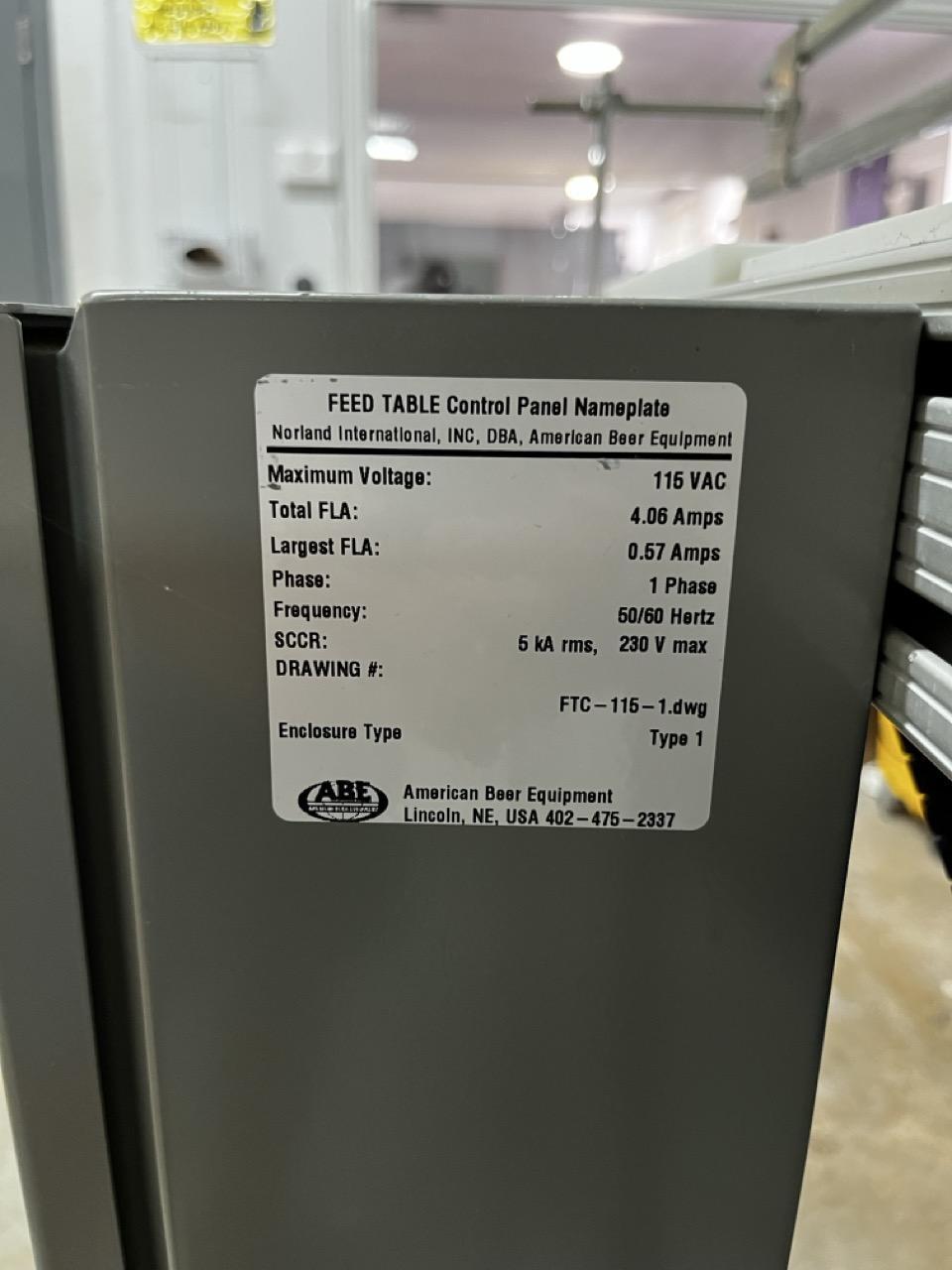

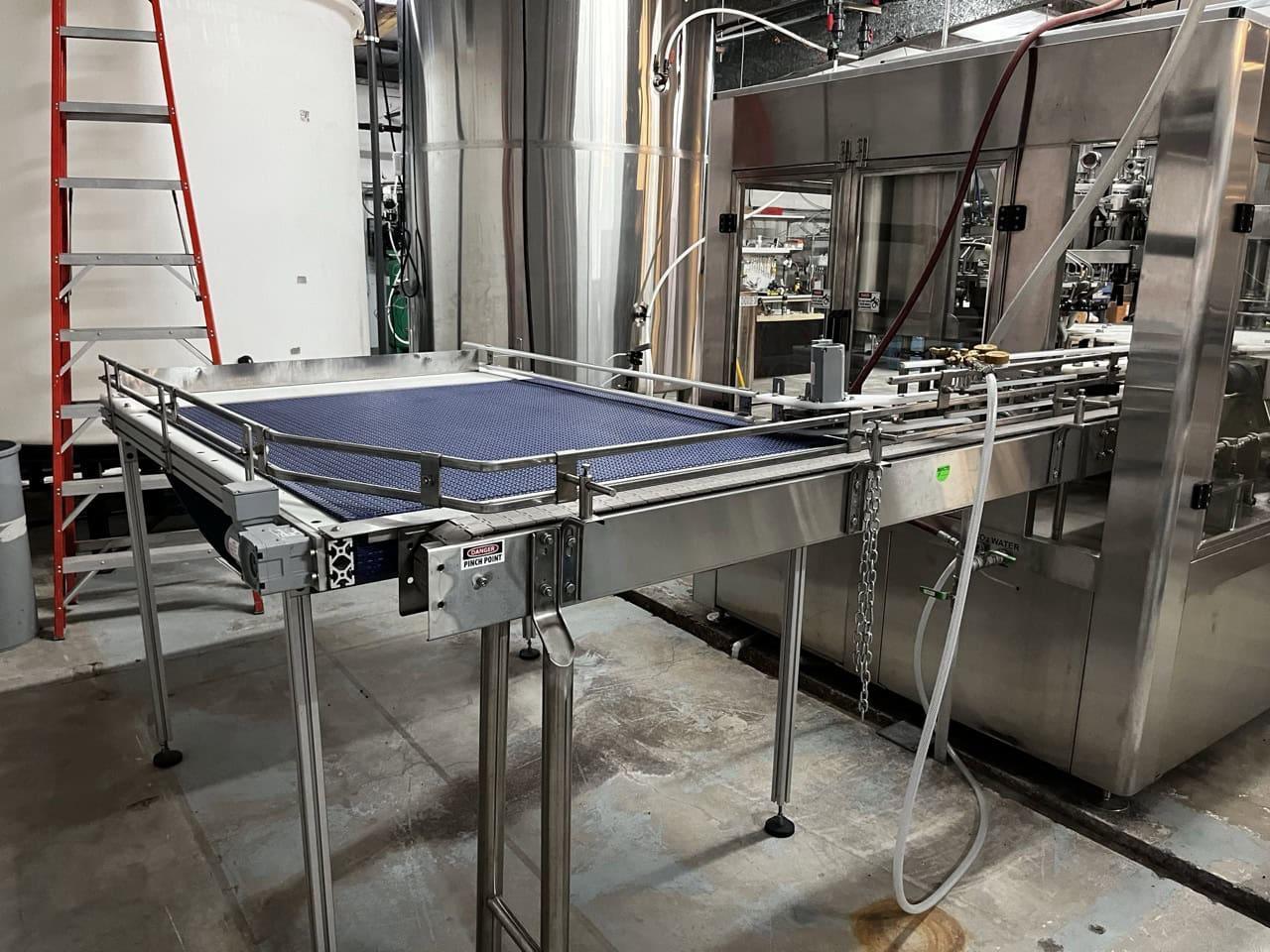

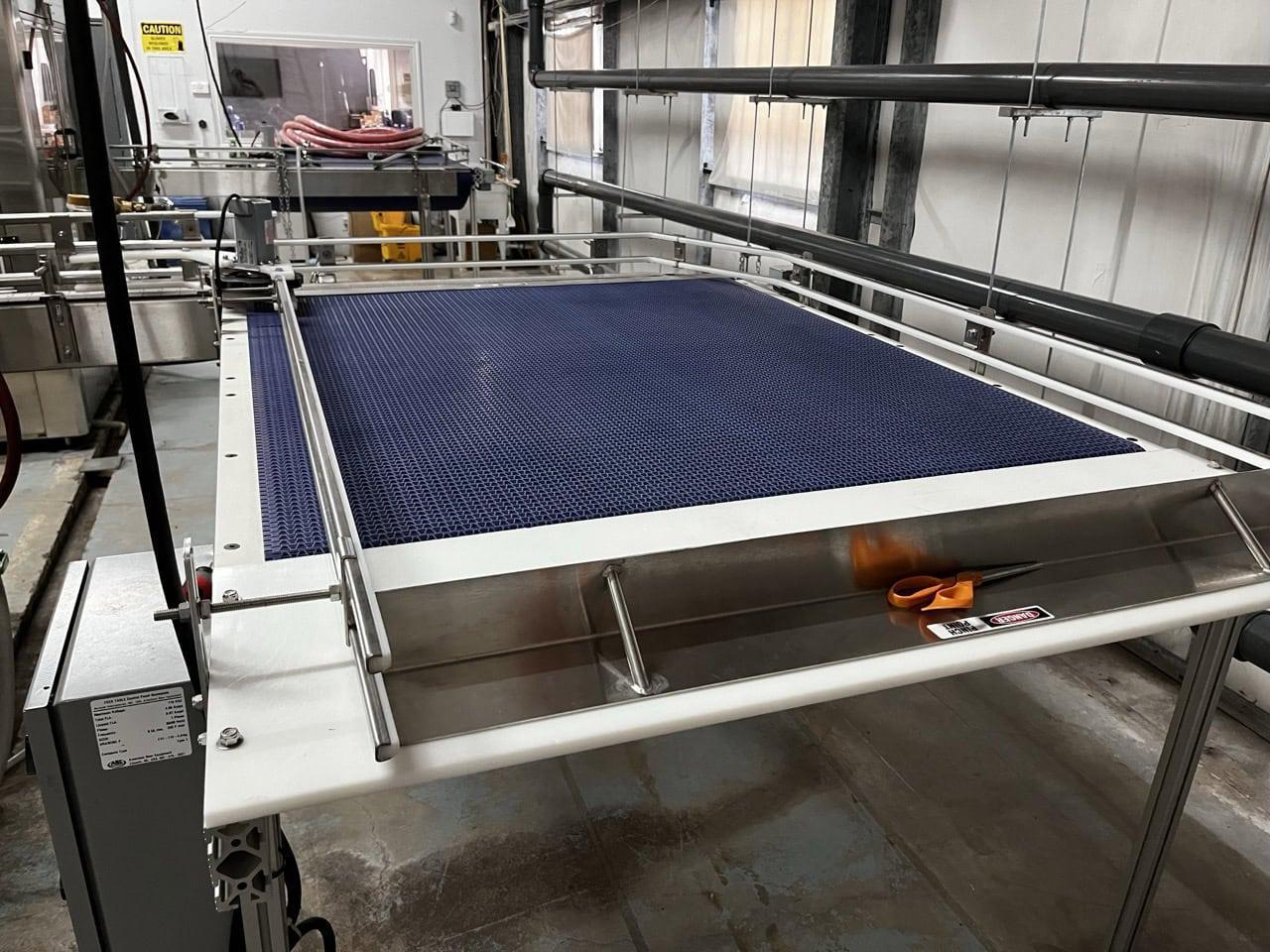

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**SUPPORT EQUIPMENT**: Feed table – Designed to hold complete slip of empty cans for semi-automatic feed onto Glass Pack drive conveyor – Spacer Wheel Add-on, control box – 52″ x 60″ Empty Can Table – Variable Speed Drive Control – 5 RPM AC Drive motor – Max can size 16.9 oz (500ml)

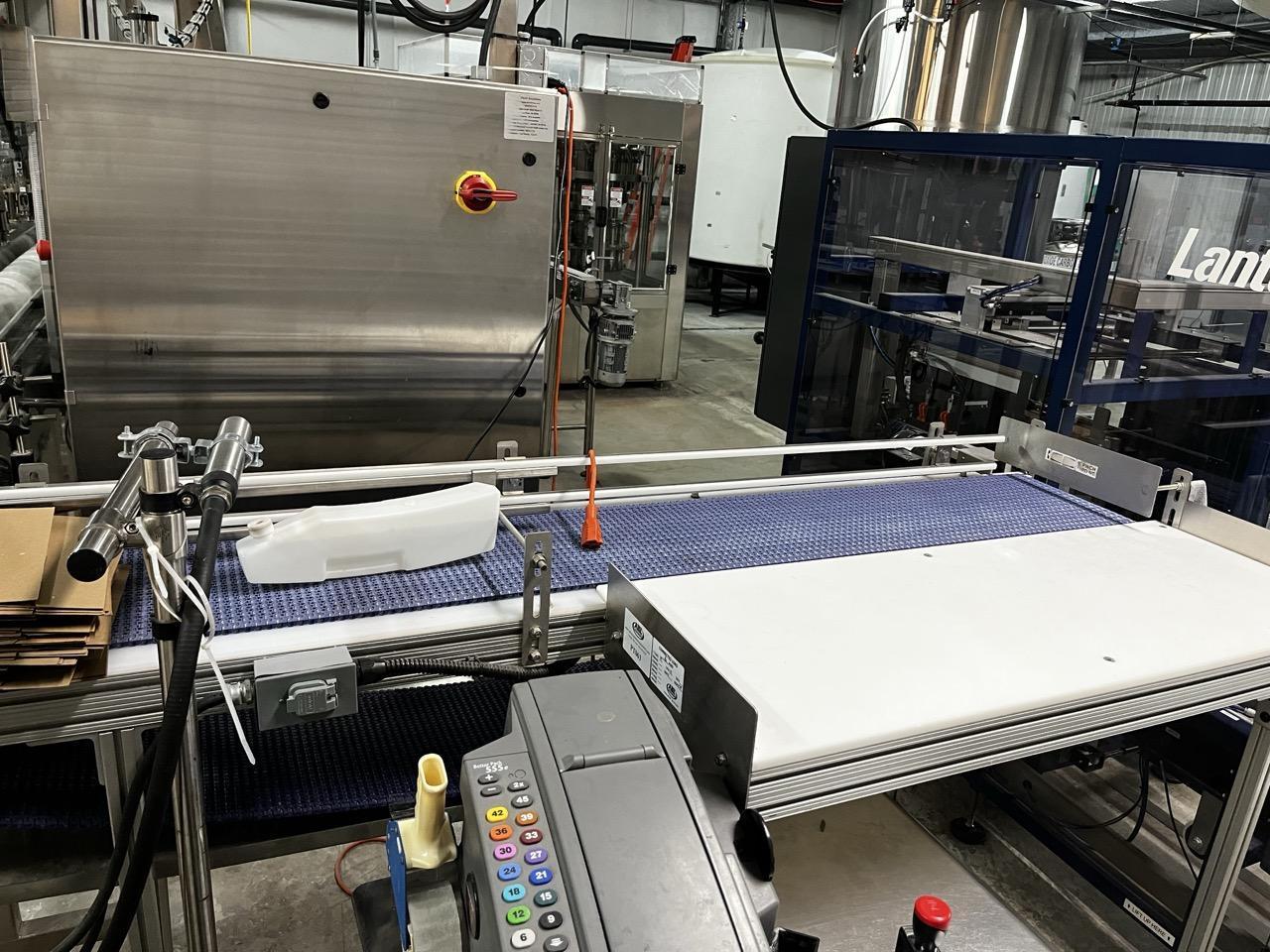

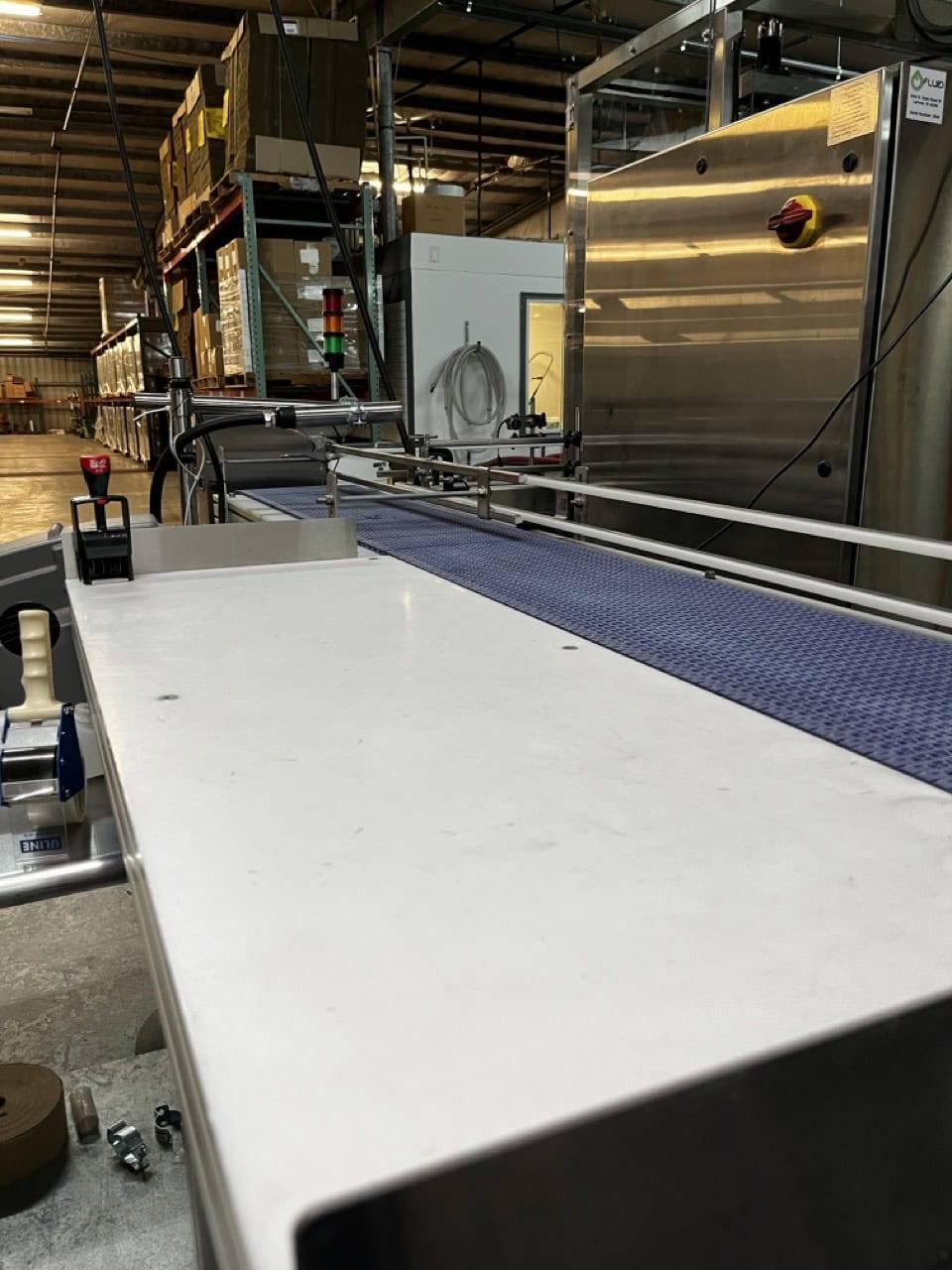

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pack-Off Conveyor – Durable Stainless / Extruded Aluminum Steel Frame – Central Drive Motor – Delron steel drive chain – Delron Long-Life conveyor material – Includes stainless steel drip pan and adjustable legs – SS and UHMW guide rails

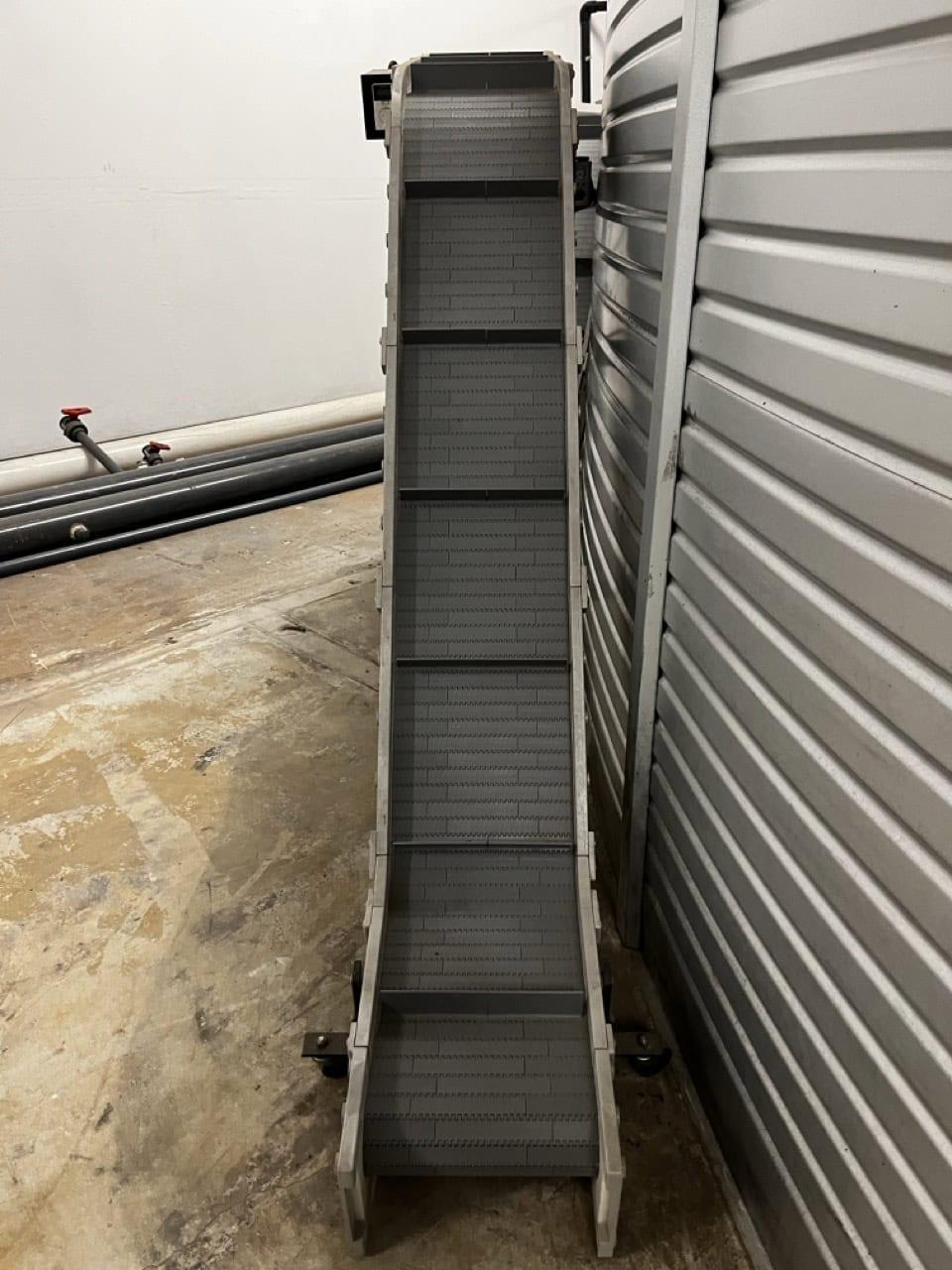

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Powered conveyor system infeed and exit for the GlassPack unit: – Durable Stainless / Extruded Aluminum Steel Frame – Central Drive Motor – Delron steel drive chain – Delron Long-Life conveyor material – Includes stainless steel drip pan and adjustable legs – SS and UHMW guide rails

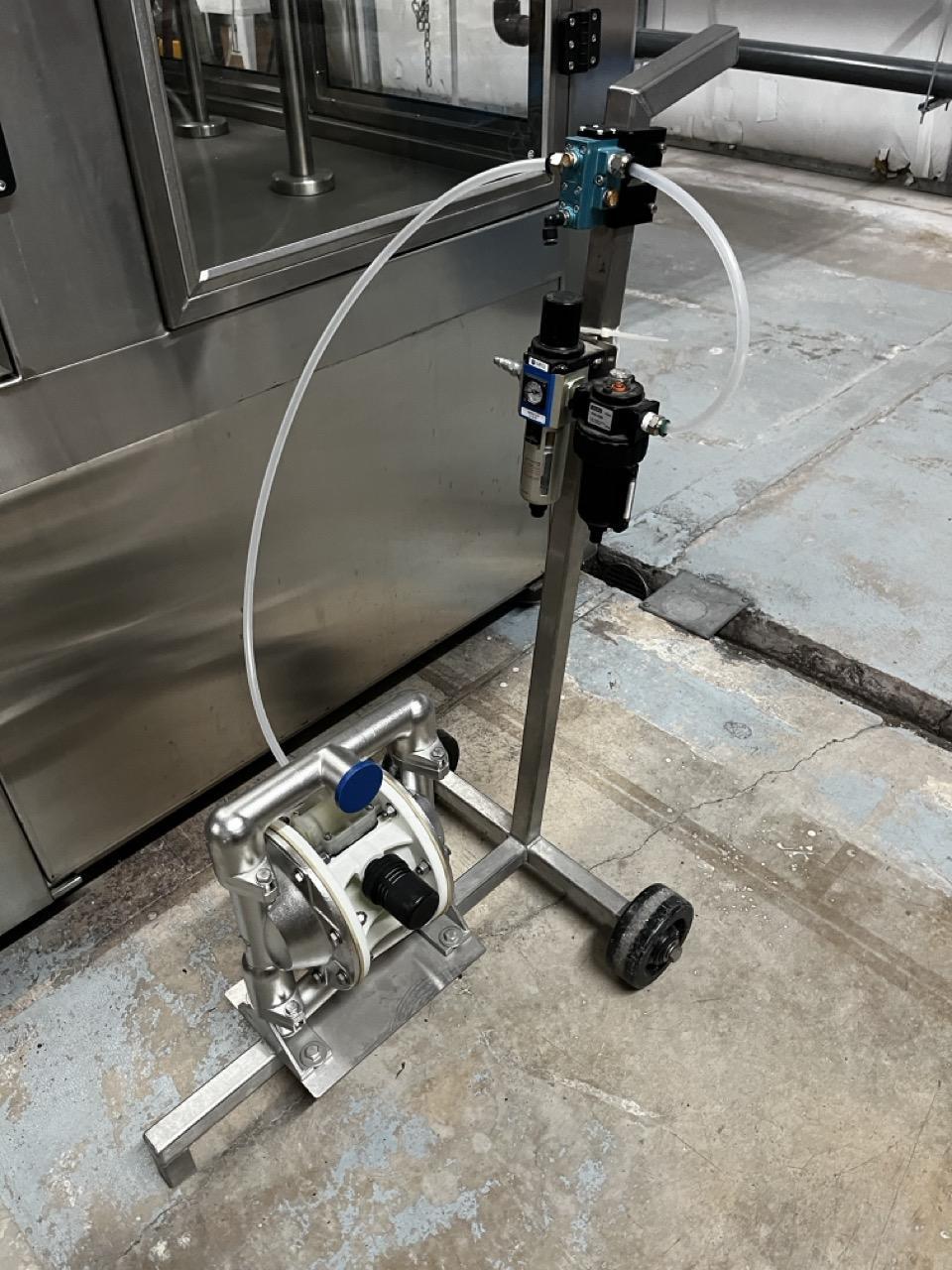

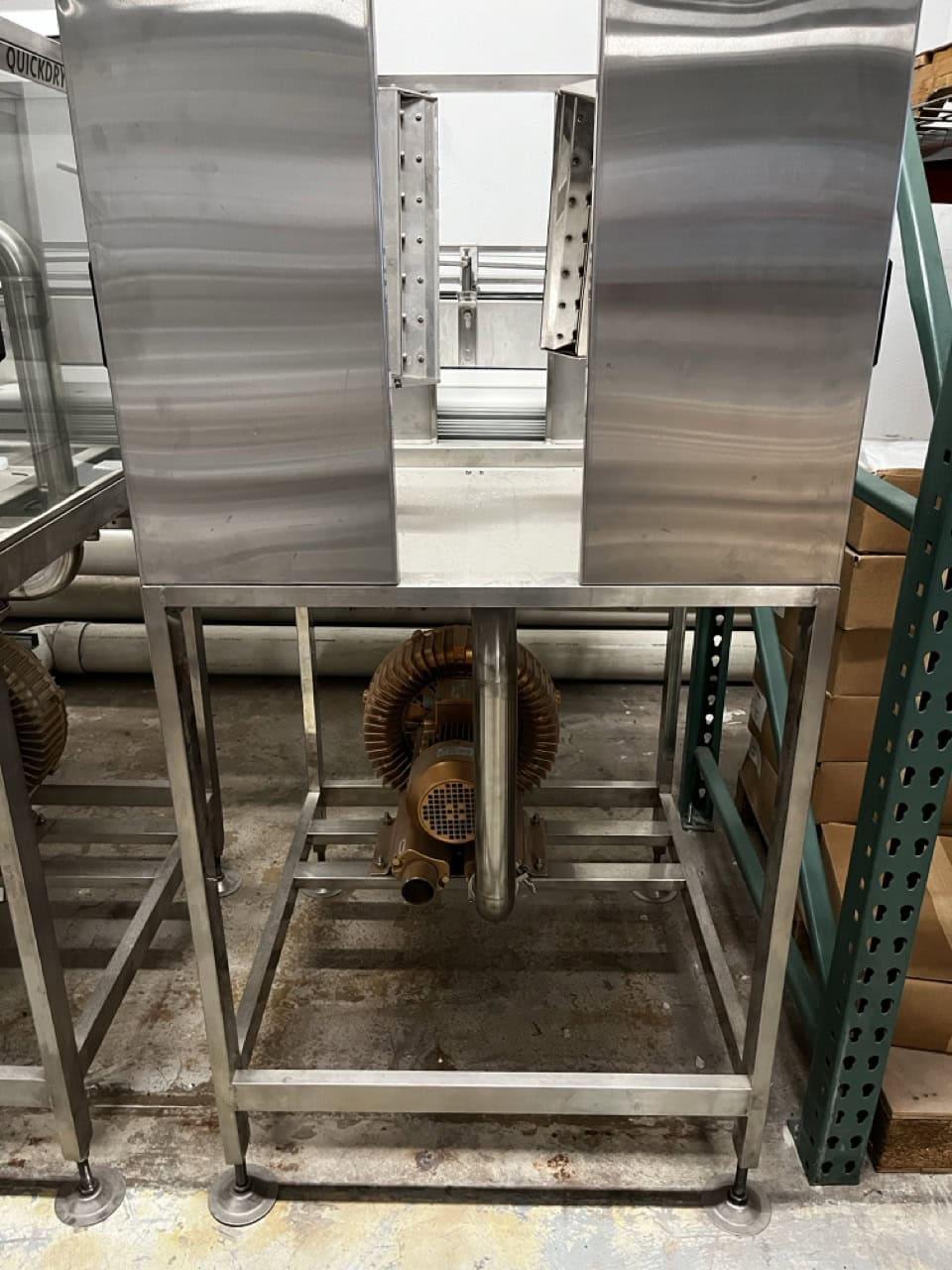

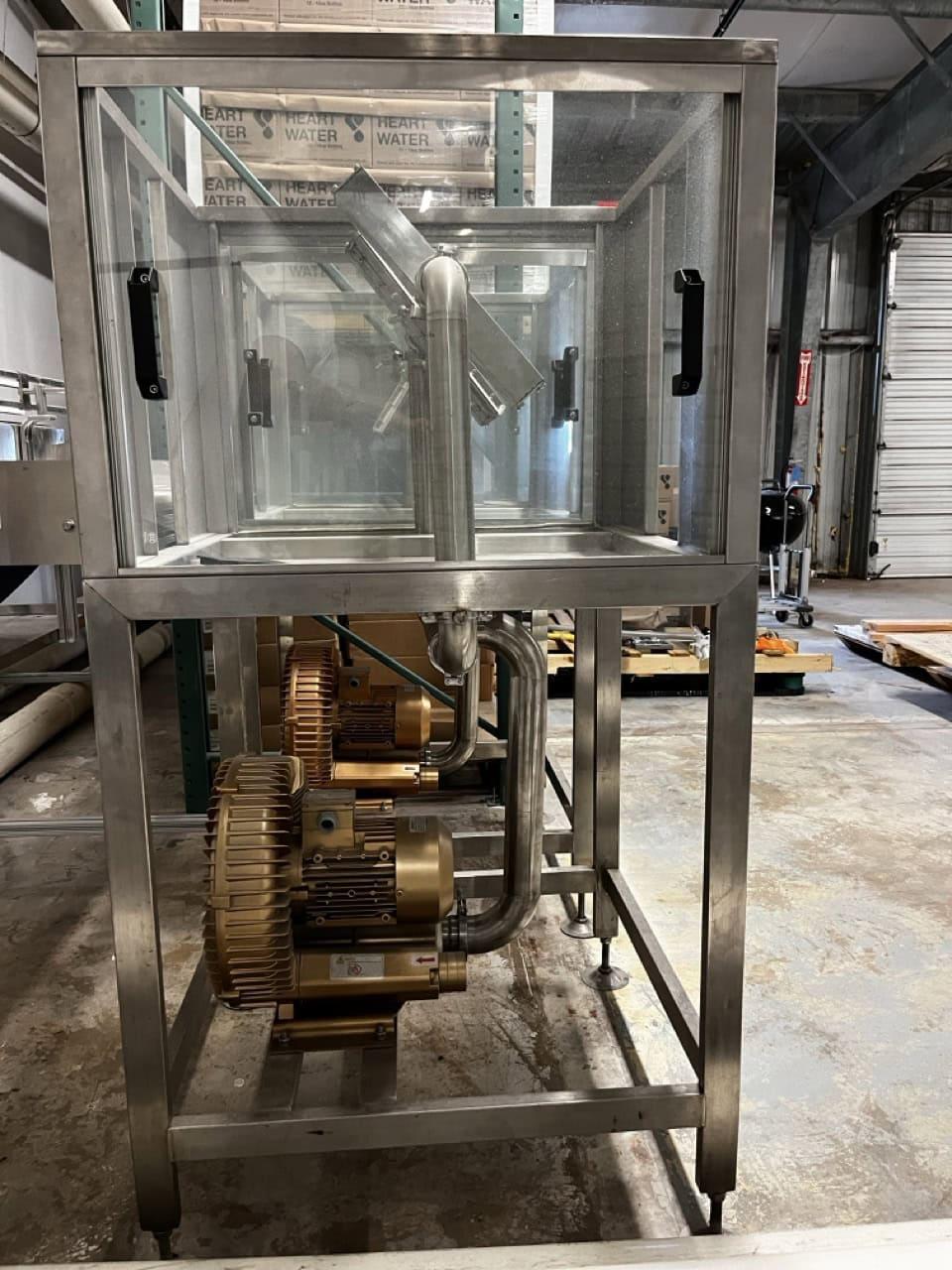

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Diaphragm Pump (2) Dryers

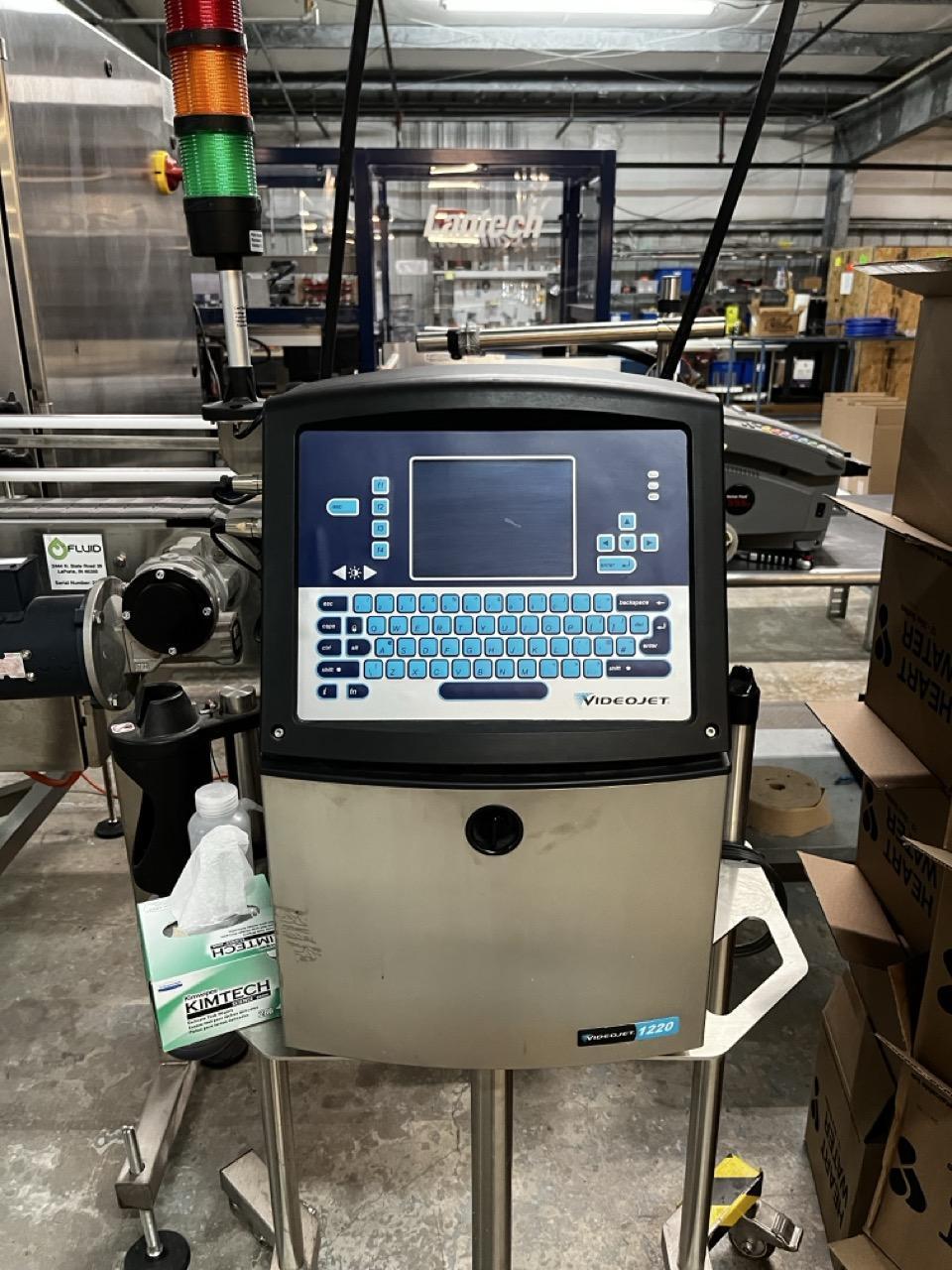

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Videojet 1220 Small Character Continuous Inkjet Printer
